Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

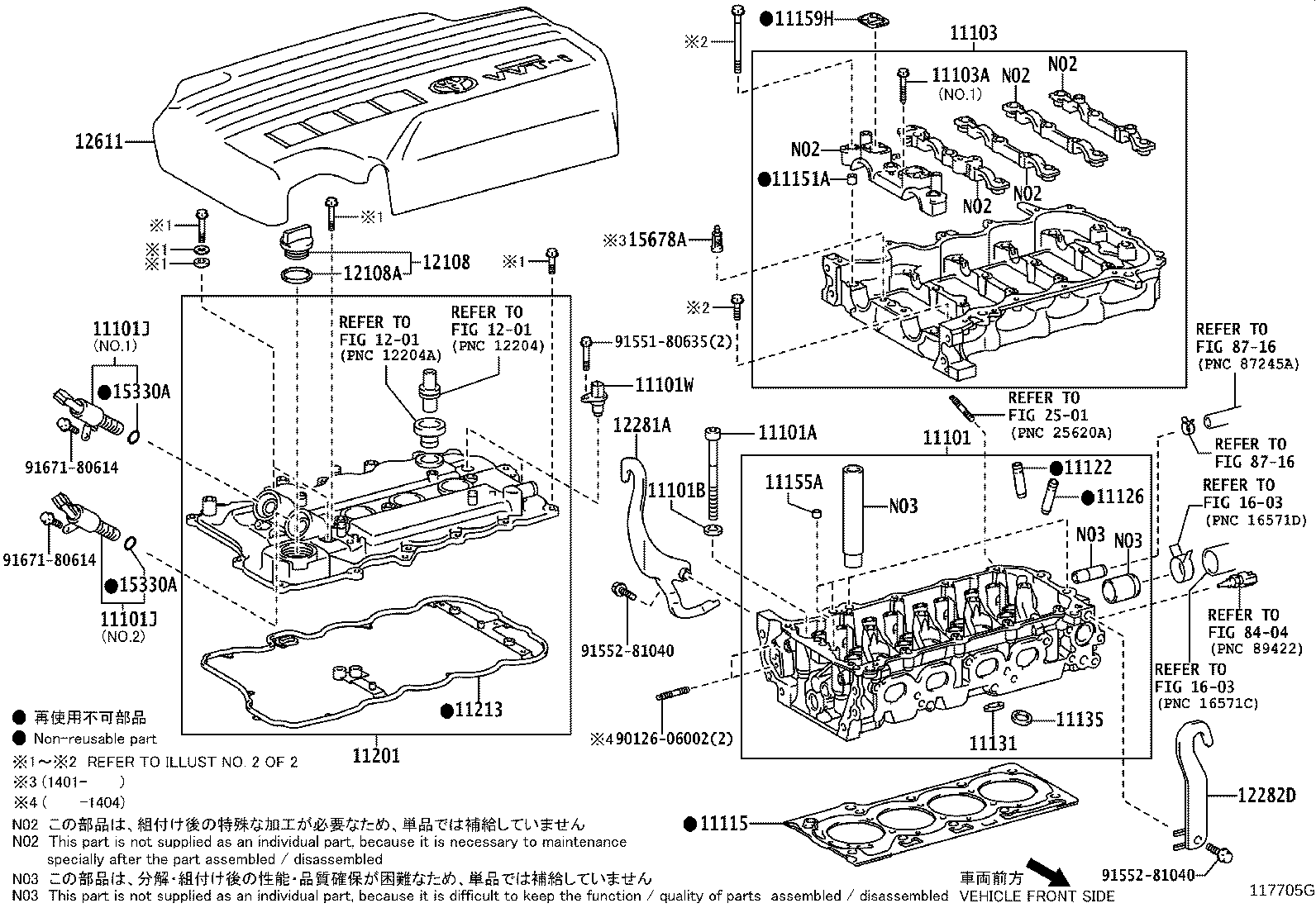

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-09300 note |
Head Sub-assy, Cylinder
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11101-09415 note |
Head Sub-assy, Cylinder
2012-10 → 2013-09
ended
|
1ADFTV ADE186 | — | |
| 11101-09415 |
Head Sub-assy, Cylinder
2013-09 → —
|
1ADFTV ADE186 | — | |
| 11101-09435 note |
Head Sub-assy, Cylinder
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11101-29615 note |
Head Sub-assy, Cylinder
2012-10 → 2013-09
ended
|
1ADFTV ADE186 | — | |
| 11101-33061 |
Head Sub-assy, Cylinder
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11101-39725 note |
Head Sub-assy, Cylinder
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11101-09300 note |
Head Sub-assy, Cylinder
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 11101-09435 note |
Head Sub-assy, Cylinder
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11101-0N010 |
Head Sub-assy, Cylinder
2015-05 → 2019-10
ended
|
1NDTV NDE180 | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 11101-39725 note |
Head Sub-assy, Cylinder
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2015-05 → 2017-08
ended
|
1NRFE NRE180 | — | |
| 11101-49466 |
Head Sub-assy, Cylinder
2017-08 → —
|
1NRFE NRE180 | — | |
| 11101-49515 |
Head Sub-assy, Cylinder
2015-05 → 2017-02
ended
|
8NRFTS NRE185 | — | |
| 11101-49516 |
Head Sub-assy, Cylinder
2017-02 → —
|
8NRFTS NRE185 | — | |
| 11101-WA010 |
Head Sub-assy, Cylinder
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90069-31065 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NDTV NDE180 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NRFE NRE180 | — | |
| 90910-02190 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NRFE NRE180 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NDTV NDE180 | — | |
| 11101J — Valve Assy, Camshaft Timing Oil Control | ||||
| 15330-0T050 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 15330-0T050 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 15330-0T060 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 15330-37020 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 15330-47010 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 15330-47020 note |
Valve Assy, Camshaft Timing Oil Control
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 15330-0T050 note |
Valve Assy, Camshaft Timing Oil Control
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 15330-0T060 note |
Valve Assy, Camshaft Timing Oil Control
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 15330-37010 note |
Valve Assy, Camshaft Timing Oil Control
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 15330-37020 note |
Valve Assy, Camshaft Timing Oil Control
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 15330-47010 note |
Valve Assy, Camshaft Timing Oil Control
2015-05 → —
|
1NRFE NRE180 | — | |
| 15330-47020 note |
Valve Assy, Camshaft Timing Oil Control
2015-05 → —
|
1NRFE NRE180 | — | |
| 11101W — Sensor, Crank Position, NO.1 | ||||
| 90919-05029 note |
Sensor, Crank Position, NO.1
2012-10 → 2014-05
ended
|
1NDTV NDE180 RHD HB +1 | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 LHD;1NDTV NDE180 +2 | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2014-05 → 2015-05
ended
|
1NDTV NDE180 RHD 6F | — | |
| 90919-05060 |
Sensor, Crank Position, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90919-05060 |
Sensor, Crank Position, NO.1
2015-05 → 2018-11
ended
|
1NRFE NRE180 | — | |
| 11103 — Housing Sub-assy, Camshaft | ||||
| 11103-0T051 note |
Housing Sub-assy, Camshaft
2012-10 → 2015-01
ended
|
2ZRFXE ZWE186 | — | |
| 11103-0T052 note |
Housing Sub-assy, Camshaft
2015-02 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11103-37031 note |
Housing Sub-assy, Camshaft
2012-10 → 2015-01
ended
|
2ZRFXE ZWE186 | — | |
| 11103-37032 note |
Housing Sub-assy, Camshaft
2015-02 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11103-47010 |
Housing Sub-assy, Camshaft
2012-10 → 2013-09
ended
|
1NRFE NRE180 | — | |
| 11103-47011 |
Housing Sub-assy, Camshaft
2013-09 → 2014-01
ended
|
1NRFE NRE180 | — | |
| 11103-47012 |
Housing Sub-assy, Camshaft
2014-01 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11107-37014 |
Housing Sub-assy, Camshaft
2012-10 → 2013-10
ended
|
1ZRFAE ZRE185 | — | |
| 11107-37015 |
Housing Sub-assy, Camshaft
2013-10 → 2014-06
ended
|
1ZRFAE ZRE185 | — | |
| 11107-37016 |
Housing Sub-assy, Camshaft
2014-07 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11103-0T052 note |
Housing Sub-assy, Camshaft
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11103-37032 note |
Housing Sub-assy, Camshaft
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11103-47012 |
Housing Sub-assy, Camshaft
2015-05 → 2016-12
ended
|
1NRFE NRE180 | — | |
| 11103-47041 |
Housing Sub-assy, Camshaft
2016-12 → —
|
1NRFE NRE180 | — | |
| 11103-47050 |
Housing Sub-assy, Camshaft
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11103-WA010 |
Housing Sub-assy, Camshaft
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 11107-37016 |
Housing Sub-assy, Camshaft
2015-05 → 2016-07
ended
|
1ZRFAE ZRE185 | — | |
| 11107-37017 |
Housing Sub-assy, Camshaft
2016-08 → —
|
1ZRFAE ZRE185 | — | |
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90069-31070 |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
1NRFE NRE180 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-26052-A0 note |
Gasket, Cylinder Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11115-26052-B0 note |
Gasket, Cylinder Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11115-26052-C0 note |
Gasket, Cylinder Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11115-26052-D0 note |
Gasket, Cylinder Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11115-26052-E0 note |
Gasket, Cylinder Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2012-10 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2012-10 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2012-10 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2012-10 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2012-10 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33041-A0 note |
Gasket, Cylinder Head
2015-02 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11115-33041-B0 note |
Gasket, Cylinder Head
2015-02 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11115-33041-C0 note |
Gasket, Cylinder Head
2015-02 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11115-33041-D0 note |
Gasket, Cylinder Head
2015-02 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11115-33041-E0 note |
Gasket, Cylinder Head
2015-02 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11115-37060 |
Gasket, Cylinder Head
2012-10 → 2014-06
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11115-37061 |
Gasket, Cylinder Head
2014-07 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11115-47050 |
Gasket, Cylinder Head
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11115-33041-A0 note |
Gasket, Cylinder Head
2015-05 → —
|
1NDTV NDE180 | — | |
| 11115-33041-B0 note |
Gasket, Cylinder Head
2015-05 → —
|
1NDTV NDE180 | — | |
| 11115-33041-C0 note |
Gasket, Cylinder Head
2015-05 → —
|
1NDTV NDE180 | — | |
| 11115-33041-D0 note |
Gasket, Cylinder Head
2015-05 → —
|
1NDTV NDE180 | — | |
| 11115-33041-E0 note |
Gasket, Cylinder Head
2015-05 → —
|
1NDTV NDE180 | — | |
| 11115-37061 |
Gasket, Cylinder Head
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11115-47050 |
Gasket, Cylinder Head
2015-05 → —
|
1NRFE NRE180 | — | |
| 11115-47090 |
Gasket, Cylinder Head
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11115-WA010-01 note |
Gasket, Cylinder Head
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 11115-WA010-02 note |
Gasket, Cylinder Head
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 11115-WA010-03 note |
Gasket, Cylinder Head
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-0R010 note |
Bush, Intake Valve Guide
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11123-0R010 note |
Bush, Intake Valve Guide
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2015-05 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2015-05 → 2019-04
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2015-05 → —
|
1NDTV NDE180 | — | |
| 11122-47010 note |
Bush, Intake Valve Guide
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11122-47020 note |
Bush, Intake Valve Guide
2017-08 → —
|
1NRFE NRE180 | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2015-05 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2015-05 → 2019-04
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2015-05 → —
|
1NDTV NDE180 | — | |
| 11123-47010 note |
Bush, Intake Valve Guide
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11123-47020 note |
Bush, Intake Valve Guide
2017-08 → —
|
1NRFE NRE180 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-0R010 note |
Bush, Exhaust Valve Guide
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11122-31041 note |
Bush, Exhaust Valve Guide
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11123-0R010 note |
Bush, Exhaust Valve Guide
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11122-31041 note |
Bush, Exhaust Valve Guide
2015-05 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2015-05 → —
|
1NDTV NDE180 | — | |
| 11122-47010 note |
Bush, Exhaust Valve Guide
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11122-47020 note |
Bush, Exhaust Valve Guide
2017-08 → —
|
1NRFE NRE180 | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2015-05 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2015-05 → —
|
1NDTV NDE180 | — | |
| 11123-47010 note |
Bush, Exhaust Valve Guide
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11123-47020 note |
Bush, Exhaust Valve Guide
2017-08 → —
|
1NRFE NRE180 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2015-05 → 2019-04
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2015-05 → 2019-04
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11131 — Seat, Intake Valve | ||||
| 11131-37020 note |
Seat, Intake Valve
2012-10 → 2015-02
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11131-37040 note |
Seat, Intake Valve
2015-02 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11131-47010 note |
Seat, Intake Valve
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11132-37020 note |
Seat, Intake Valve
2012-10 → 2012-11
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11132-37040 note |
Seat, Intake Valve
2012-11 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11132-47010 note |
Seat, Intake Valve
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11131-37040 note |
Seat, Intake Valve
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11131-47010 note |
Seat, Intake Valve
2015-05 → —
|
1NRFE NRE180 | — | |
| 11131-47040 note |
Seat, Intake Valve
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11132-37040 note |
Seat, Intake Valve
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11132-47010 note |
Seat, Intake Valve
2015-05 → —
|
1NRFE NRE180 | — | |
| 11132-47040 note |
Seat, Intake Valve
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11135 — Seat, Exhaust Valve | ||||
| 11135-37020 note |
Seat, Exhaust Valve
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11135-47010 note |
Seat, Exhaust Valve
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11136-37020 note |
Seat, Exhaust Valve
2012-10 → 2012-11
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11136-37040 note |
Seat, Exhaust Valve
2012-11 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11136-47010 note |
Seat, Exhaust Valve
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11135-37020 note |
Seat, Exhaust Valve
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11135-47010 note |
Seat, Exhaust Valve
2015-05 → 2018-02
ended
|
8NRFTS NRE185 | — | |
| 11135-47010 note |
Seat, Exhaust Valve
2015-05 → —
|
1NRFE NRE180 | — | |
| 11135-47050 note |
Seat, Exhaust Valve
2018-03 → —
|
8NRFTS NRE185 | — | |
| 11136-37040 note |
Seat, Exhaust Valve
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 11136-47010 note |
Seat, Exhaust Valve
2015-05 → 2018-03
ended
|
8NRFTS NRE185 | — | |
| 11136-47010 note |
Seat, Exhaust Valve
2015-05 → —
|
1NRFE NRE180 | — | |
| 11136-47050 note |
Seat, Exhaust Valve
2018-03 → —
|
8NRFTS NRE185 | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2015-05 → —
|
1NDTV NDE180 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90253-11004 |
Pin, Ring W/Head
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90253-11021 |
Pin, Ring W/Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90253-12002 |
Pin, Ring W/Head
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90253-11004 |
Pin, Ring W/Head
2015-05 → —
|
1NRFE NRE180 | — | |
| 90253-12002 |
Pin, Ring W/Head
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90253-12002 |
Pin, Ring W/Head
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11159H — Gasket, Camshaft Bearing Cap Oil Hole | ||||
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11159-47010 |
Gasket, Camshaft Bearing Cap Oil Hole
2012-10 → 2014-01
ended
|
1NRFE NRE180 | — | |
| 11159-47020 |
Gasket, Camshaft Bearing Cap Oil Hole
2014-01 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11159-37010 |
Gasket, Camshaft Bearing Cap Oil Hole
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 11159-47020 |
Gasket, Camshaft Bearing Cap Oil Hole
2015-05 → —
|
1NRFE NRE180 | — | |
| 90430-10024 |
Gasket, Camshaft Bearing Cap Oil Hole
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0N020 note |
Cover Sub-assy, Cylinder Head
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11201-0R042 |
Cover Sub-assy, Cylinder Head
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11201-0T050 |
Cover Sub-assy, Cylinder Head
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11201-0T090 note |
Cover Sub-assy, Cylinder Head
2013-05 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11201-37040 note |
Cover Sub-assy, Cylinder Head
2013-05 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11201-37040 |
Cover Sub-assy, Cylinder Head
2012-10 → 2013-05
ended
|
2ZRFXE ZWE186 | — | |
| 11201-47101 |
Cover Sub-assy, Cylinder Head
2012-10 → 2014-07
ended
|
1NRFE NRE180 | — | |
| 11201-47130 |
Cover Sub-assy, Cylinder Head
2014-07 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11201-0N030 |
Cover Sub-assy, Cylinder Head
2015-05 → —
|
1NDTV NDE180 | — | |
| 11201-0T050 note |
Cover Sub-assy, Cylinder Head
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 11201-0T090 note |
Cover Sub-assy, Cylinder Head
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11201-37011 note |
Cover Sub-assy, Cylinder Head
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 11201-37040 note |
Cover Sub-assy, Cylinder Head
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11201-47130 |
Cover Sub-assy, Cylinder Head
2015-05 → —
|
1NRFE NRE180 | — | |
| 11201-47160 |
Cover Sub-assy, Cylinder Head
2015-05 → 2016-04
ended
|
8NRFTS NRE185 | — | |
| 11201-47161 |
Cover Sub-assy, Cylinder Head
2016-05 → —
|
8NRFTS NRE185 | — | |
| 11201-WA011 |
Cover Sub-assy, Cylinder Head
2015-05 → 2015-10
ended
|
1WW WWE185 | — | |
| 11201-WA012 |
Cover Sub-assy, Cylinder Head
2015-10 → 2018-04
ended
|
1WW WWE185 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0R040 |
Gasket, Cylinder Head Cover
2012-10 → —
|
1ADFTV ADE186 | — | |
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11213-0T030 note |
Gasket, Cylinder Head Cover
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11213-33030 |
Gasket, Cylinder Head Cover
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 11213-37020 note |
Gasket, Cylinder Head Cover
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 11213-37040 note |
Gasket, Cylinder Head Cover
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 11213-0N010 |
Gasket, Cylinder Head Cover
2015-05 → —
|
1NDTV NDE180 | — | |
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2015-05 → 2015-06
ended
|
1ZRFAE ZRE185 | — | |
| 11213-0T021 note |
Gasket, Cylinder Head Cover
2015-06 → —
|
1ZRFAE ZRE185 | — | |
| 11213-0T030 note |
Gasket, Cylinder Head Cover
2015-05 → 2015-07
ended
|
2ZRFXE ZWE186 | — | |
| 11213-0T031 note |
Gasket, Cylinder Head Cover
2015-08 → —
|
2ZRFXE ZWE186 | — | |
| 11213-37021 note |
Gasket, Cylinder Head Cover
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 11213-37040 note |
Gasket, Cylinder Head Cover
2015-05 → 2015-07
ended
|
2ZRFXE ZWE186 | — | |
| 11213-37041 note |
Gasket, Cylinder Head Cover
2015-08 → —
|
2ZRFXE ZWE186 | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2015-05 → —
|
1NRFE NRE180 | — | |
| 11213-47050 |
Gasket, Cylinder Head Cover
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11213-WA010 |
Gasket, Cylinder Head Cover
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-38010 |
Cap Sub-assy, Oil Filler
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2012-10 → —
|
1ADFTV ADE186 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 12180-WA010 |
Cap Sub-assy, Oil Filler
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-26040 |
Hanger, Engine, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12281-47022 |
Hanger, Engine, NO.1
2012-10 → 2014-04
ended
|
1NRFE NRE180 | — | |
| 12281-47023 |
Hanger, Engine, NO.1
2014-04 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 12281-0T040 note |
Hanger, Engine, NO.1
2016-08 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12281-33080 |
Hanger, Engine, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12281-47023 |
Hanger, Engine, NO.1
2015-05 → —
|
1NRFE NRE180 | — | |
| 12281-WA010 |
Hanger, Engine, NO.1
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-26010 |
Hanger, Engine, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 12282-33022 |
Hanger, Engine, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 12281-0X030 |
Hanger, Engine, NO.2
2015-05 → 2016-07
ended
|
1WW WWE185 | — | |
| 12281-0X031 |
Hanger, Engine, NO.2
2016-08 → 2018-04
ended
|
1WW WWE185 | — | |
| 12282-0N020 |
Hanger, Engine, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 12282-0T040 note |
Hanger, Engine, NO.2
2016-08 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2015-05 → —
|
1NRFE NRE180 | — | |
| 12282-47030 |
Hanger, Engine, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 12611 — Cover, Engine, NO.1 | ||||
| 12611-0N080 |
Cover, Engine, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 12611-0R101 |
Cover, Engine, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 12611-0Y040 |
Cover, Engine, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 12611-0N090 |
Cover, Engine, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 12611-0N090 note |
Cover, Engine, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 12611-0X020 |
Cover, Engine, NO.1
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 12611-0Y040 |
Cover, Engine, NO.1
2015-05 → —
|
1NRFE NRE180 | — | |
| 12611-47110 |
Cover, Engine, NO.1
2015-05 → —
|
8NRFTS NRE185 | — | |
| 15330A — Ring, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90099-14137 |
Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
2015-05 → —
|
1NRFE NRE180 | — | |
| 15678A — Filter, Oil Control Valve | ||||
| 15678-31020 |
Filter, Oil Control Valve
2014-01 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 15678-37010 |
Filter, Oil Control Valve
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 15678-31020 |
Filter, Oil Control Valve
2015-05 → —
|
1NRFE NRE180 | — | |
| 15678-37010 |
Filter, Oil Control Valve
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 15678-46020 |
Filter, Oil Control Valve
2015-05 → —
|
8NRFTS NRE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
