Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

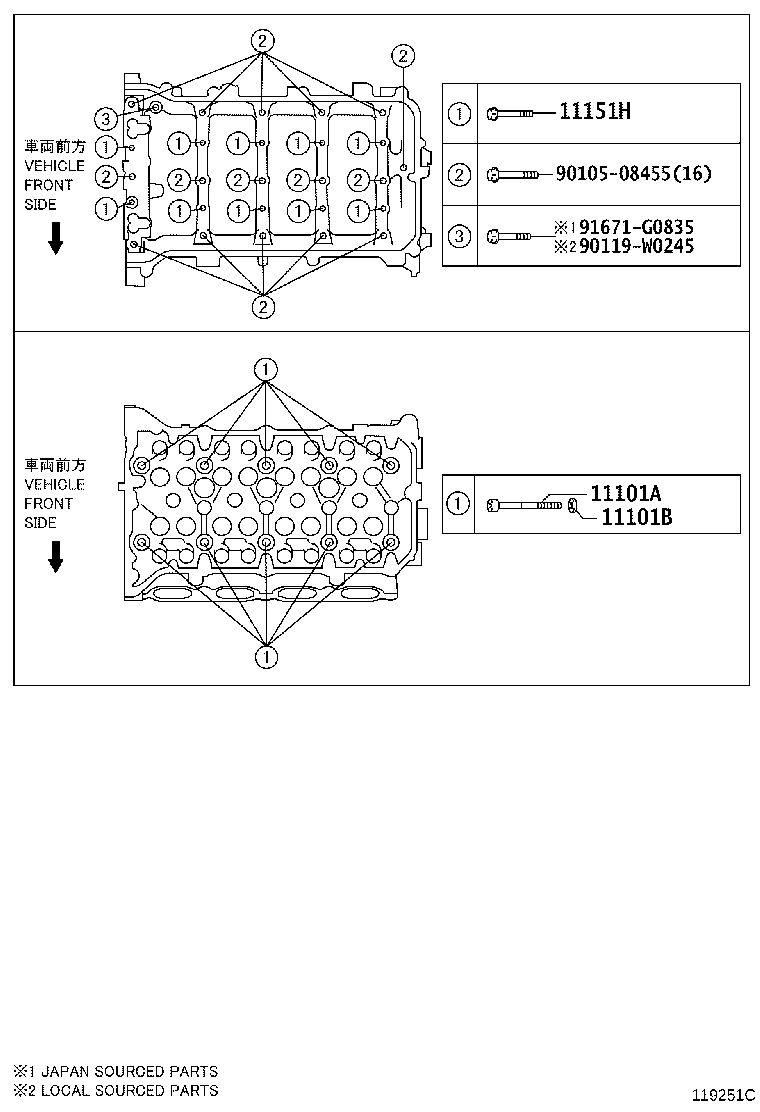

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90069-31065 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NDTV NDE180 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NRFE NRE180 | — | |
| 90910-02190 |
Bolt(FOR CYLINDER HEAD SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NRFE NRE180 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90201-11034 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2015-05 → —
|
1NDTV NDE180 | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
