Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

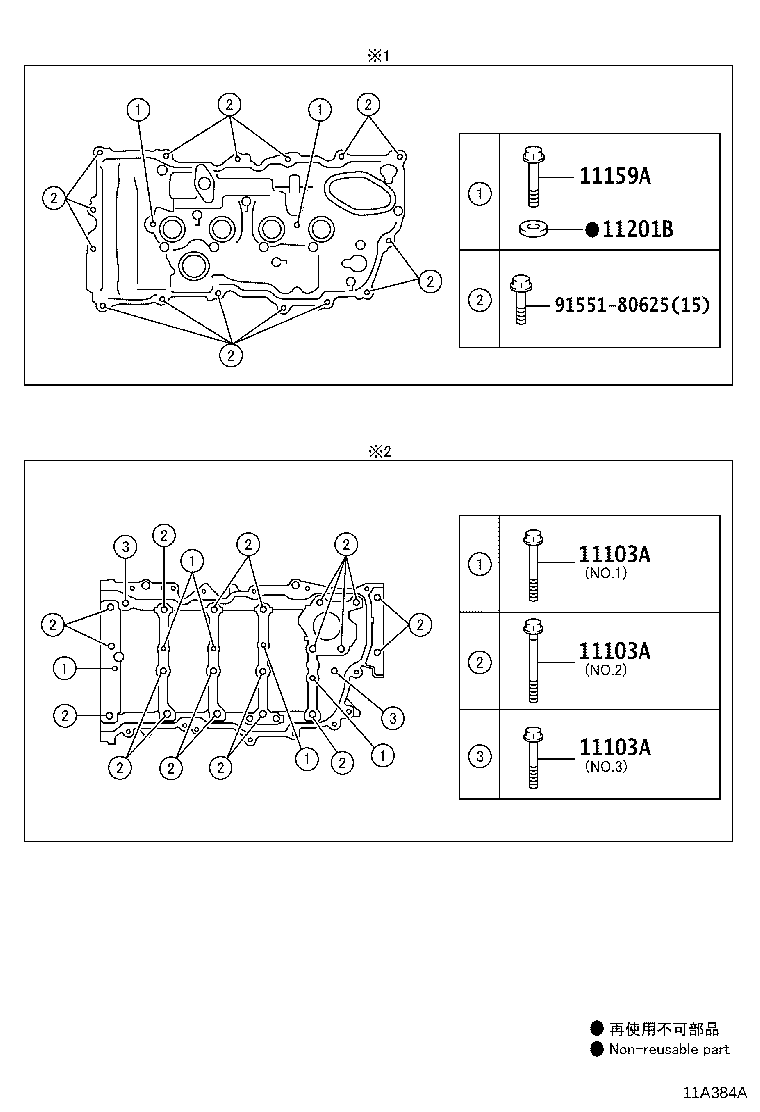

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90069-31070 |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
1NRFE NRE180 | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 91551-G0845 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-W0138 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 91551-80860 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90069-31068 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90105-06360 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-11 → 2017-05
ended
|
1NRFE NRE180 | — | |
| 90105-T0347 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2016-10
ended
|
1NRFE NRE180 | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2015-05 → —
|
1NDTV NDE180 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2015-05 → —
|
1NDTV NDE180 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2015-05 → 2016-06
ended
|
1NRFE NRE180 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2017-05 → —
|
1NRFE NRE180 | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 16258-37010 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90210-06013 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90210-12011 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16258-37010 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90210-05008 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90210-06013 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90210-12011 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2015-05 → —
|
1NRFE NRE180 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
