Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

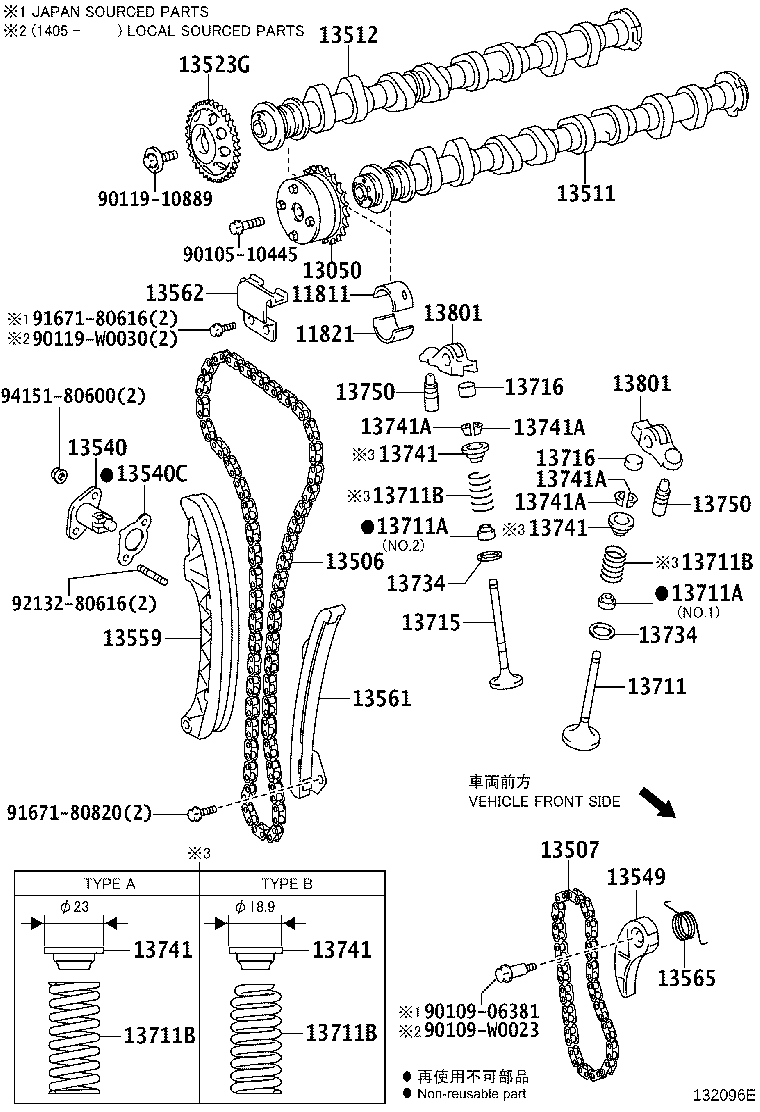

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11811 — Bearing, Camshaft, NO.1 | ||||
| 11811-37010 |
Bearing, Camshaft, NO.1
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11811-37010 |
Bearing, Camshaft, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 11821 — Bearing, Camshaft, NO.2 | ||||
| 11821-37010 |
Bearing, Camshaft, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 11821-37010 |
Bearing, Camshaft, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-0T031 note |
Gear Assy, Camshaft Timing
2012-10 → 2013-07
ended
|
1ZRFAE ZRE185 | — | |
| 13050-0T070 note |
Gear Assy, Camshaft Timing
2013-07 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 13050-37012 |
Gear Assy, Camshaft Timing
2012-10 → 2013-02
ended
|
2ZRFXE ZWE186 | — | |
| 13050-37012 note |
Gear Assy, Camshaft Timing
2012-10 → 2013-02
ended
|
1ZRFAE ZRE185 | — | |
| 13050-37040 note |
Gear Assy, Camshaft Timing
2013-02 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 13050-37040 |
Gear Assy, Camshaft Timing
2013-02 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13050-47011 |
Gear Assy, Camshaft Timing
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13050-0T070 note |
Gear Assy, Camshaft Timing
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 13050-37040 note |
Gear Assy, Camshaft Timing
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13050-47011 |
Gear Assy, Camshaft Timing
2015-05 → —
|
1NRFE NRE180 | — | |
| 13050-47030 |
Gear Assy, Camshaft Timing
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-0R020 |
Chain Sub-assy
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13506-0T100 note |
Chain Sub-assy
2014-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 13506-0T110 note |
Chain Sub-assy
2014-06 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13506-33030 |
Chain Sub-assy
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13506-37010 |
Chain Sub-assy
2012-10 → 2013-11
ended
|
2ZRFXE ZWE186 | — | |
| 13506-37040 |
Chain Sub-assy
2012-10 → 2014-05
ended
|
1ZRFAE ZRE185 | — | |
| 13506-37050 note |
Chain Sub-assy
2014-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 13506-37070 |
Chain Sub-assy
2013-11 → 2014-06
ended
|
2ZRFXE ZWE186 | — | |
| 13506-37070 note |
Chain Sub-assy
2014-06 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13506-47030 |
Chain Sub-assy
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13506-0N020 |
Chain Sub-assy
2015-05 → —
|
1NDTV NDE180 | — | |
| 13506-0T100 note |
Chain Sub-assy
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 13506-0T110 note |
Chain Sub-assy
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13506-37050 note |
Chain Sub-assy
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 13506-37070 note |
Chain Sub-assy
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13506-47030 |
Chain Sub-assy
2015-05 → —
|
1NRFE NRE180 | — | |
| 13506-47040 |
Chain Sub-assy
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13506-WA010 |
Chain Sub-assy
2015-05 → 2015-08
ended
|
1WW WWE185 | — | |
| 13506-WA011 |
Chain Sub-assy
2015-08 → 2018-04
ended
|
1WW WWE185 | — | |
| 13507 — Chain Sub-assy, NO.2 | ||||
| 13507-28010 |
Chain Sub-assy, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13507-33010 |
Chain Sub-assy, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13507-28010 |
Chain Sub-assy, NO.2
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13507-33010 |
Chain Sub-assy, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 13507-47010 |
Chain Sub-assy, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13507-WA010 |
Chain Sub-assy, NO.2
2015-05 → 2015-10
ended
|
1WW WWE185 | — | |
| 13507-WA011 |
Chain Sub-assy, NO.2
2015-10 → 2018-04
ended
|
1WW WWE185 | — | |
| 13511 — Camshaft | ||||
| 13501-0R010 |
Camshaft
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13501-0T080 note |
Camshaft
2015-03 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13501-33042 |
Camshaft
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13501-37030 |
Camshaft
2012-10 → 2015-03
ended
|
2ZRFXE ZWE186 | — | |
| 13501-37030 note |
Camshaft
2015-03 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13501-47020 |
Camshaft
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13501-0T080 note |
Camshaft
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13501-33020 |
Camshaft
2015-05 → —
|
1NDTV NDE180 | — | |
| 13501-37030 note |
Camshaft
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13501-47020 |
Camshaft
2015-05 → —
|
1NRFE NRE180 | — | |
| 13501-47070 |
Camshaft
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13501-WA010 |
Camshaft
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-0R011 |
Camshaft, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13502-0T070 note |
Camshaft, NO.2
2015-03 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13502-37040 |
Camshaft, NO.2
2012-10 → 2015-01
ended
|
2ZRFXE ZWE186 | — | |
| 13502-37080 |
Camshaft, NO.2
2015-01 → 2015-03
ended
|
2ZRFXE ZWE186 | — | |
| 13502-37080 note |
Camshaft, NO.2
2015-03 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13502-47010 |
Camshaft, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13502-0T070 note |
Camshaft, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13502-37080 note |
Camshaft, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13502-47010 |
Camshaft, NO.2
2015-05 → —
|
1NRFE NRE180 | — | |
| 13502-47060 |
Camshaft, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13502-WA010 |
Camshaft, NO.2
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13523G — Sprocket, Camshaft Timing | ||||
| 13523-22020 |
Sprocket, Camshaft Timing
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13523-22020 |
Sprocket, Camshaft Timing
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13523-WA010 |
Sprocket, Camshaft Timing
2015-05 → 2016-10
ended
|
1WW WWE185 | — | |
| 13523-WA011 |
Sprocket, Camshaft Timing
2016-10 → 2018-04
ended
|
1WW WWE185 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-0R010 |
Tensioner Assy, Chain, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13540-33030 |
Tensioner Assy, Chain, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13540-47010 |
Tensioner Assy, Chain, NO.1
2012-10 → 2013-12
ended
|
1NRFE NRE180 | — | |
| 13540-47011 |
Tensioner Assy, Chain, NO.1
2013-12 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13540-33030 |
Tensioner Assy, Chain, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13540-47011 |
Tensioner Assy, Chain, NO.1
2015-05 → —
|
1NRFE NRE180 | — | |
| 13540-47050 |
Tensioner Assy, Chain, NO.1
2015-05 → 2016-01
ended
|
8NRFTS NRE185 | — | |
| 13540-47060 |
Tensioner Assy, Chain, NO.1
2016-02 → —
|
8NRFTS NRE185 | — | |
| 13540-WA010 |
Tensioner Assy, Chain, NO.1
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13540C — Gasket(FOR CHAIN TENSIONER) | ||||
| 13552-0T030 note |
Gasket(FOR CHAIN TENSIONER)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13552-37010 note |
Gasket(FOR CHAIN TENSIONER)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13552-47010 |
Gasket(FOR CHAIN TENSIONER)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13552-0T030 note |
Gasket(FOR CHAIN TENSIONER)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13552-37010 note |
Gasket(FOR CHAIN TENSIONER)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13552-47010 |
Gasket(FOR CHAIN TENSIONER)
2015-05 → —
|
1NRFE NRE180 | — | |
| 13549 — Plate, Chain Tensioner | ||||
| 13549-0T030 note |
Plate, Chain Tensioner
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13549-33010 |
Plate, Chain Tensioner
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13549-37010 note |
Plate, Chain Tensioner
2012-10 → 2015-01
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2015-02 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13549-0T030 note |
Plate, Chain Tensioner
2015-05 → 2016-04
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13549-0T050 note |
Plate, Chain Tensioner
2016-04 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13549-33010 |
Plate, Chain Tensioner
2015-05 → —
|
1NDTV NDE180 | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13549-47010 |
Plate, Chain Tensioner
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0R020 |
Slipper, Chain Tensioner
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13559-0T030 note |
Slipper, Chain Tensioner
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13559-33020 |
Slipper, Chain Tensioner
2012-10 → 2014-08
ended
|
1NDTV NDE180 | — | |
| 13559-33021 |
Slipper, Chain Tensioner
2014-09 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13559-37010 note |
Slipper, Chain Tensioner
2012-10 → 2015-01
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2015-02 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13559-0N020 |
Slipper, Chain Tensioner
2015-05 → —
|
1NDTV NDE180 | — | |
| 13559-0T030 note |
Slipper, Chain Tensioner
2015-05 → 2016-05
ended
|
2ZRFXE ZWE186 | — | |
| 13559-0T030 note |
Slipper, Chain Tensioner
2015-05 → 2016-05
ended
|
1ZRFAE ZRE185 | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2016-06 → —
|
1ZRFAE ZRE185 | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2016-06 → —
|
2ZRFXE ZWE186 | — | |
| 13559-0Y010 |
Slipper, Chain Tensioner
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-0R020 |
Damper, Chain Vibration, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13561-0T020 note |
Damper, Chain Vibration, NO.1
2014-02 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13561-0T050 note |
Damper, Chain Vibration, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 13561-33030 |
Damper, Chain Vibration, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13561-37010 note |
Damper, Chain Vibration, NO.1
2012-10 → 2013-06
ended
|
1ZRFAE ZRE185 | — | |
| 13561-37020 note |
Damper, Chain Vibration, NO.1
2014-02 → 2015-01
ended
|
2ZRFXE ZWE186 | — | |
| 13561-37020 |
Damper, Chain Vibration, NO.1
2012-10 → 2014-02
ended
|
2ZRFXE ZWE186 | — | |
| 13561-37040 note |
Damper, Chain Vibration, NO.1
2013-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 13561-37050 note |
Damper, Chain Vibration, NO.1
2015-02 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13561-0N020 |
Damper, Chain Vibration, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 13561-0T020 note |
Damper, Chain Vibration, NO.1
2015-05 → 2016-05
ended
|
2ZRFXE ZWE186 | — | |
| 13561-0T050 note |
Damper, Chain Vibration, NO.1
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 13561-0T080 note |
Damper, Chain Vibration, NO.1
2016-06 → —
|
2ZRFXE ZWE186 | — | |
| 13561-37040 note |
Damper, Chain Vibration, NO.1
2015-05 → 2018-06
ended
|
1ZRFAE ZRE185 | — | |
| 13561-37050 note |
Damper, Chain Vibration, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 13561-37060 note |
Damper, Chain Vibration, NO.1
2018-07 → —
|
1ZRFAE ZRE185 | — | |
| 13562 — Damper, Chain Vibration, NO.2 | ||||
| 13562-37010 |
Damper, Chain Vibration, NO.2
2012-10 → 2015-01
ended
|
2ZRFXE ZWE186 | — | |
| 13562-37020 |
Damper, Chain Vibration, NO.2
2015-02 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 13562-47020 |
Damper, Chain Vibration, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13562-0T050 note |
Damper, Chain Vibration, NO.2
2016-06 → —
|
2ZRFXE ZWE186 | — | |
| 13562-37020 |
Damper, Chain Vibration, NO.2
2015-05 → 2016-06
ended
|
2ZRFXE ZWE186 | — | |
| 13562-37020 note |
Damper, Chain Vibration, NO.2
2016-06 → —
|
2ZRFXE ZWE186 | — | |
| 13562-47020 |
Damper, Chain Vibration, NO.2
2015-05 → —
|
1NRFE NRE180 | — | |
| 13565 — Spring, Chain Damper | ||||
| 13565-0T030 note |
Spring, Chain Damper
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13565-33010 |
Spring, Chain Damper
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13565-37010 note |
Spring, Chain Damper
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13565-0T030 note |
Spring, Chain Damper
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13565-33010 |
Spring, Chain Damper
2015-05 → —
|
1NDTV NDE180 | — | |
| 13565-37010 |
Spring, Chain Damper
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13565-37010 note |
Spring, Chain Damper
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13711 — Valve, Intake | ||||
| 13711-0N030 |
Valve, Intake
2015-04 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13711-0R010 |
Valve, Intake
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13711-0T040 note |
Valve, Intake
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13711-33031 |
Valve, Intake
2012-10 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 13711-37020 note |
Valve, Intake
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13711-47010 |
Valve, Intake
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13711-0N030 |
Valve, Intake
2015-05 → —
|
1NDTV NDE180 | — | |
| 13711-0T040 note |
Valve, Intake
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13711-37020 note |
Valve, Intake
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13711-47010 |
Valve, Intake
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 13711-WA010 |
Valve, Intake
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13711A — Seal OR Ring, O(FOR VALVE STEM OIL) | ||||
| 90080-31061 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90080-31062 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-02101 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-02112 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734-WA010 |
Seal OR Ring, O(FOR VALVE STEM OIL)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90080-31061 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90080-31062 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-02101 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-02112 note |
Seal OR Ring, O(FOR VALVE STEM OIL)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13711B — Spring, Compression(FOR INNER) | ||||
| 90501-28039 |
Spring, Compression(FOR INNER)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90501-31027 |
Spring, Compression(FOR INNER)
2012-10 → 2014-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90501-31028 note |
Spring, Compression(FOR INNER)
2014-05 → 2014-08
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90501-32071 note |
Spring, Compression(FOR INNER)
2014-05 → 2014-08
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90501-32072 note |
Spring, Compression(FOR INNER)
2014-08 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90069-51022 |
Spring, Compression(FOR INNER)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 90501-32072 note |
Spring, Compression(FOR INNER)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-0N030 note |
Valve, Exhaust
2015-04 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13715-0R010 |
Valve, Exhaust
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13715-0T040 note |
Valve, Exhaust
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13715-33041 note |
Valve, Exhaust
2015-04 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13715-33041 |
Valve, Exhaust
2012-10 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 13715-37030 note |
Valve, Exhaust
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13715-47010 |
Valve, Exhaust
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13715-0N030 note |
Valve, Exhaust
2015-05 → —
|
1NDTV NDE180 | — | |
| 13715-0T040 note |
Valve, Exhaust
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13715-33041 note |
Valve, Exhaust
2015-05 → —
|
1NDTV NDE180 | — | |
| 13715-37030 note |
Valve, Exhaust
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13715-47010 |
Valve, Exhaust
2015-05 → —
|
1NRFE NRE180 | — | |
| 13715-47040 |
Valve, Exhaust
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13715-WA010 |
Valve, Exhaust
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13716 — Cap, Valve Stem | ||||
| 13716-0T020 note |
Cap, Valve Stem
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13716-33010 |
Cap, Valve Stem
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13716-75020 note |
Cap, Valve Stem
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13716-75020 |
Cap, Valve Stem
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13716-0T020 note |
Cap, Valve Stem
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13716-33010 |
Cap, Valve Stem
2015-05 → —
|
1NDTV NDE180 | — | |
| 13716-75020 |
Cap, Valve Stem
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 13716-75020 note |
Cap, Valve Stem
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-0P010 note |
Seat, Valve Spring
2014-02 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734-33020 |
Seat, Valve Spring
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13734-33020 |
Seat, Valve Spring
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13734-62020 |
Seat, Valve Spring
2012-10 → 2014-02
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734-62020 |
Seat, Valve Spring
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13734-62020 note |
Seat, Valve Spring
2014-02 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734-0P010 note |
Seat, Valve Spring
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734-33020 |
Seat, Valve Spring
2015-05 → —
|
1NDTV NDE180 | — | |
| 13734-62020 note |
Seat, Valve Spring
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13734-62020 |
Seat, Valve Spring
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-0N010 note |
Retainer, Valve Spring
2015-04 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13741-20021 note |
Retainer, Valve Spring
2012-10 → 2014-01
ended
|
1NRFE NRE180 | — | |
| 13741-20021 |
Retainer, Valve Spring
2012-10 → 2014-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13741-20021 note |
Retainer, Valve Spring
2014-05 → 2014-08
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13741-33020 |
Retainer, Valve Spring
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13741-33020 |
Retainer, Valve Spring
2012-10 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 13741-33020 note |
Retainer, Valve Spring
2015-04 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13741-36010 note |
Retainer, Valve Spring
2014-01 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13741-36010 |
Retainer, Valve Spring
2014-08 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13741-36010 note |
Retainer, Valve Spring
2014-05 → 2014-08
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13741-0N010 note |
Retainer, Valve Spring
2015-05 → —
|
1NDTV NDE180 | — | |
| 13741-33020 note |
Retainer, Valve Spring
2015-05 → —
|
1NDTV NDE180 | — | |
| 13741-36010 |
Retainer, Valve Spring
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13741-36010 |
Retainer, Valve Spring
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 13741-WA010 |
Retainer, Valve Spring
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03021 |
Lock, Valve Spring Retainer
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2014-06 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2012-10 → 2014-06
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2014-06 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
2015-05 → —
|
1NDTV NDE180 | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| SU004-00001 |
Lock, Valve Spring Retainer
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 13750 — Adjuster Assy, Valve Lash | ||||
| 13750-0R010 |
Adjuster Assy, Valve Lash
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13750-0T010 note |
Adjuster Assy, Valve Lash
2012-10 → 2015-01
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2015-01 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2014-01 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2015-01 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13750-75020 note |
Adjuster Assy, Valve Lash
2012-10 → 2015-01
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13750-75020 note |
Adjuster Assy, Valve Lash
2012-10 → 2014-01
ended
|
1NRFE NRE180 | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13750-21010 |
Adjuster Assy, Valve Lash
2015-05 → —
|
1NRFE NRE180 | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13750-36020 |
Adjuster Assy, Valve Lash
2015-05 → —
|
8NRFTS NRE185 | — | |
| 13750-WA011 |
Adjuster Assy, Valve Lash
2015-05 → 2016-12
ended
|
1WW WWE185 | — | |
| 13750-WA012 |
Adjuster Assy, Valve Lash
2016-12 → 2018-04
ended
|
1WW WWE185 | — | |
| 13801 — Arm Sub-assy, Valve Rocker, NO.1 | ||||
| 13801-0R010 |
Arm Sub-assy, Valve Rocker, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 13801-0T020 note |
Arm Sub-assy, Valve Rocker, NO.1
2012-10 → 2014-12
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2015-01 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13801-23011 note |
Arm Sub-assy, Valve Rocker, NO.1
2012-10 → 2014-04
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13801-33020 note |
Arm Sub-assy, Valve Rocker, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2014-01 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2014-05 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13801-47010 note |
Arm Sub-assy, Valve Rocker, NO.1
2012-10 → 2014-01
ended
|
1NRFE NRE180 | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13801-33020 note |
Arm Sub-assy, Valve Rocker, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 13801-WA011 |
Arm Sub-assy, Valve Rocker, NO.1
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
