Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

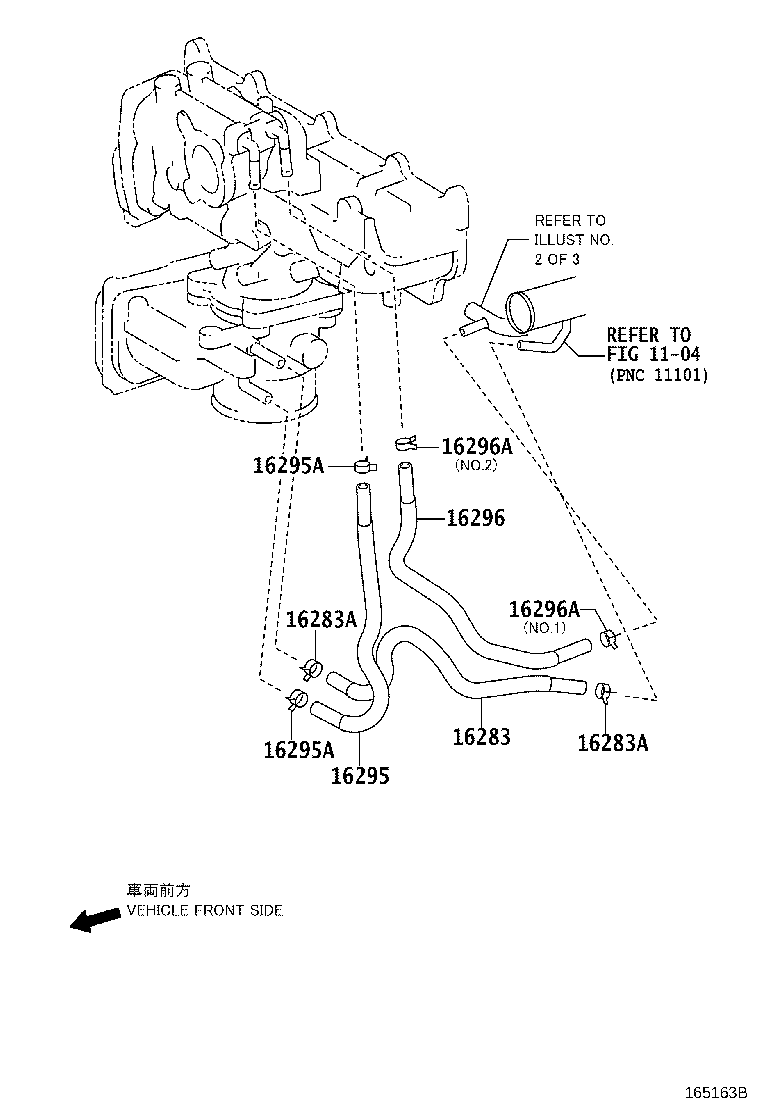

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-0N010 |
Hose, Water By-pass, NO.6
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16283-0R010 |
Hose, Water By-pass, NO.6
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16283-0N010 |
Hose, Water By-pass, NO.6
2015-05 → —
|
1NDTV NDE180 | — | |
| 16283-47040 |
Hose, Water By-pass, NO.6
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16295 — Hose, Water By-pass, NO.7 | ||||
| 16295-0R010 |
Hose, Water By-pass, NO.7
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16295-47030 |
Hose, Water By-pass, NO.7
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16295A — Clip(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16296 — Hose, Water By-pass, NO.8 | ||||
| 16296-0R020 |
Hose, Water By-pass, NO.8
2014-02 → —
|
1ADFTV ADE186 | — | |
| 16296-26020 |
Hose, Water By-pass, NO.8
2012-10 → 2014-02
ended
|
1ADFTV ADE186 | — | |
| 16296-47020 |
Hose, Water By-pass, NO.8
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 16296A — Clip(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90467-15022 note |
Clip(FOR WATER BY-PASS HOSE NO.8)
2014-02 → —
|
1ADFTV ADE186 | — | |
| 96136-41501 note |
Clip(FOR WATER BY-PASS HOSE NO.8)
2012-10 → 2014-02
ended
|
1ADFTV ADE186 | — | |
| 96136-41501 note |
Clip(FOR WATER BY-PASS HOSE NO.8)
2014-02 → —
|
1ADFTV ADE186 | — | |
| 96136-52101 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
