Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

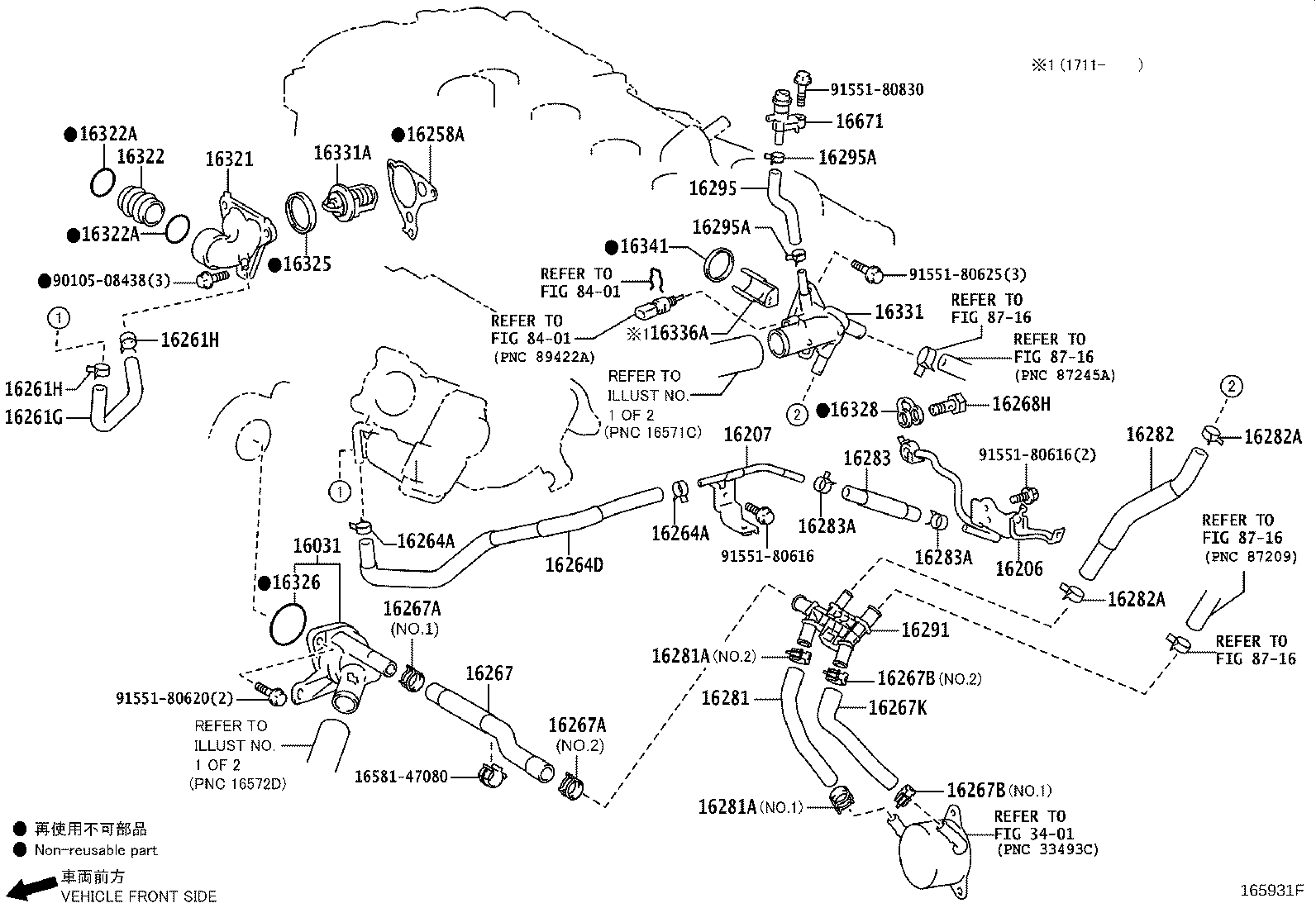

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16031 — Water Inlet Sub-assy, W/Thermostat | ||||
| 16031-37010 |
Water Inlet Sub-assy, W/Thermostat
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16031-37010 |
Water Inlet Sub-assy, W/Thermostat
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16031-47030 |
Water Inlet Sub-assy, W/Thermostat
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16206 — Pipe Sub-assy, Water By-pass | ||||
| 16206-33070 |
Pipe Sub-assy, Water By-pass
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16206-33080 |
Pipe Sub-assy, Water By-pass
2015-05 → 2018-01
ended
|
1NDTV NDE180 | — | |
| 16206-33081 |
Pipe Sub-assy, Water By-pass
2018-01 → —
|
1NDTV NDE180 | — | |
| 16206-47010 |
Pipe Sub-assy, Water By-pass
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16207 — Pipe Sub-assy, Water By-pass, NO.2 | ||||
| 16207-47010 |
Pipe Sub-assy, Water By-pass, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16258A — Gasket(FOR HEATER RETURN) | ||||
| 16258-47010 |
Gasket(FOR HEATER RETURN)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-0R070 |
Hose, Water By-pass, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16261-0T130 |
Hose, Water By-pass, NO.1
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16261-47020 |
Hose, Water By-pass, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16261-0T130 |
Hose, Water By-pass, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16261-47020 |
Hose, Water By-pass, NO.1
2015-05 → —
|
1NRFE NRE180 | — | |
| 16261-47140 |
Hose, Water By-pass, NO.1
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-42201 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-42901 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-42201 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-42901 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2015-05 → —
|
1NRFE NRE180 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264D — Hose, Water By-pass, NO.2 | ||||
| 16264-0T090 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16264-0Y030 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16264-0Y030 |
Hose, Water By-pass, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16264-0T090 |
Hose, Water By-pass, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16264-0Y030 |
Hose, Water By-pass, NO.2
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16264-0Y030 |
Hose, Water By-pass, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264-47060 |
Hose, Water By-pass, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-0N050 note |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16267-0R070 |
Hose, Water By-pass, NO.3
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16267-33030 note |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16267-37010 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16267-37050 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16267-33040 |
Hose, Water By-pass, NO.3
2015-05 → —
|
1NDTV NDE180 | — | |
| 16267-37010 |
Hose, Water By-pass, NO.3
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16267-37050 |
Hose, Water By-pass, NO.3
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16267-47030 |
Hose, Water By-pass, NO.3
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90467-15022 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2013-08
ended
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE185 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 90467-15022 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 96136-42701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16267B — Clip(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 90466-W0007 note |
Clip(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-42201 note |
Clip(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clip(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16267K — Hose, Water By-pass, NO.3 | ||||
| 16267-0N030 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16267-0N030 note |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 N | — | |
| 16267-0N030 note |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 D | — | |
| 16267-0R040 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16267-0T060 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16267-0N030 |
Hose, Water By-pass, NO.3
2015-05 → —
|
1NDTV NDE180 | — | |
| 16267-0N030 note |
Hose, Water By-pass, NO.3
2015-05 → —
|
1NDTV NDE180 G,N,S | — | |
| 16267-0N030 note |
Hose, Water By-pass, NO.3
2015-05 → —
|
1NDTV NDE180 D | — | |
| 16267-0T060 |
Hose, Water By-pass, NO.3
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16267-0X010 note |
Hose, Water By-pass, NO.3
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16267-0X010 |
Hose, Water By-pass, NO.3
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16267-0Y040 |
Hose, Water By-pass, NO.3
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16268H — Bolt, Union(FOR WATER BY-PASS PIPE) | ||||
| 90401-14003 |
Bolt, Union(FOR WATER BY-PASS PIPE)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16281 — Hose, Water By-pass, NO.4 | ||||
| 16281-0N070 note |
Hose, Water By-pass, NO.4
2012-10 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 16281-0N070 |
Hose, Water By-pass, NO.4
2015-04 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16281-0R010 note |
Hose, Water By-pass, NO.4
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16281-0R030 note |
Hose, Water By-pass, NO.4
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16281-0T100 |
Hose, Water By-pass, NO.4
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16281-33030 note |
Hose, Water By-pass, NO.4
2012-10 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 16281-0N070 note |
Hose, Water By-pass, NO.4
2015-05 → —
|
1NDTV NDE180 | — | |
| 16281-0T100 |
Hose, Water By-pass, NO.4
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16281-0Y040 |
Hose, Water By-pass, NO.4
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16281-33030 note |
Hose, Water By-pass, NO.4
2015-05 → —
|
1NDTV NDE180 | — | |
| 16281-47060 |
Hose, Water By-pass, NO.4
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-21010 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96134-52100 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-41901 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-42201 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96137-41701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-41901 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-42201 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 96137-41701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16260-37080 |
Hose, Water By-pass, NO.5
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16282-0N040 |
Hose, Water By-pass, NO.5
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16260-37080 |
Hose, Water By-pass, NO.5
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16282-0N040 |
Hose, Water By-pass, NO.5
2015-05 → —
|
1NDTV NDE180 | — | |
| 16282-47030 |
Hose, Water By-pass, NO.5
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16581-37090 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-52101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-0N010 |
Hose, Water By-pass, NO.6
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16283-0R010 |
Hose, Water By-pass, NO.6
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16283-0N010 |
Hose, Water By-pass, NO.6
2015-05 → —
|
1NDTV NDE180 | — | |
| 16283-47040 |
Hose, Water By-pass, NO.6
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16291 — Joint, Water Hose | ||||
| 16291-33020 |
Joint, Water Hose
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16291-0X010 |
Joint, Water Hose
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16291-33020 |
Joint, Water Hose
2015-05 → 2017-06
ended
|
1NDTV NDE180 | — | |
| 16291-47050 |
Joint, Water Hose
2017-07 → —
|
1NDTV NDE180 | — | |
| 87251-12060 |
Joint, Water Hose
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16295 — Hose, Water By-pass, NO.7 | ||||
| 16295-0R010 |
Hose, Water By-pass, NO.7
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16295-47030 |
Hose, Water By-pass, NO.7
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16295A — Clip(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90467-15022 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16321 — Inlet, Water | ||||
| 16321-0R020 note |
Inlet, Water
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16321-0T010 note |
Inlet, Water
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16321-26030 note |
Inlet, Water
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16321-33040 |
Inlet, Water
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16321-37010 note |
Inlet, Water
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16321-47011 |
Inlet, Water
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16321-0T010 note |
Inlet, Water
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16321-33040 |
Inlet, Water
2015-05 → —
|
1NDTV NDE180 | — | |
| 16321-37010 note |
Inlet, Water
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16321-47011 |
Inlet, Water
2015-05 → —
|
1NRFE NRE180 | — | |
| 16321-47040 |
Inlet, Water
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16321-WA010 |
Inlet, Water
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16322 — Pipe, Water Inlet | ||||
| 16322-33010 |
Pipe, Water Inlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16322-33010 |
Pipe, Water Inlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16322-47010 |
Pipe, Water Inlet
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16322A — Ring, O(FOR WATER INLET) | ||||
| 96761-35031 |
Ring, O(FOR WATER INLET)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16325-33010 |
Gasket, Water Inlet Housing, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16325-33010 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 16325-36040 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-26011 note |
Gasket, Water Inlet Housing, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16326-26020 note |
Gasket, Water Inlet Housing, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16326-37020 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16326-47010 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16326-37020 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16326-47010 |
Gasket, Water Inlet Housing, NO.2
2015-05 → 2015-09
ended
|
1NRFE NRE180 | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2015-10 → —
|
1NRFE NRE180 | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16328 — Gasket, Water Inlet Pipe | ||||
| 16328-47010 |
Gasket, Water Inlet Pipe
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16331 — Outlet, Water | ||||
| 16331-47050 |
Outlet, Water
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90069-42000 |
Outlet, Water
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16331A — Thermostat | ||||
| 90916-03125 note |
Thermostat
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90916-03144 note |
Thermostat
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90916-03145 note |
Thermostat
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90916-03147 note |
Thermostat
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90916-A3003 note |
Thermostat
2014-02 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90916-03144 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 90916-03145 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 90916-03147 note |
Thermostat
2015-05 → —
|
1NRFE NRE180 | — | |
| 90916-03154 note |
Thermostat
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90916-A3003 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| SU004-00002 |
Thermostat
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16336A — Insert, Water Outlet | ||||
| 16336-47010 |
Insert, Water Outlet
2017-11 → —
|
8NRFTS NRE185 | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-33010 |
Gasket, Water Outlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16341-33020 |
Gasket, Water Outlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16341-47030 |
Gasket, Water Outlet
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16671 — Valve, Water | ||||
| 16671-47010 |
Valve, Water
2015-05 → —
|
8NRFTS NRE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
