Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

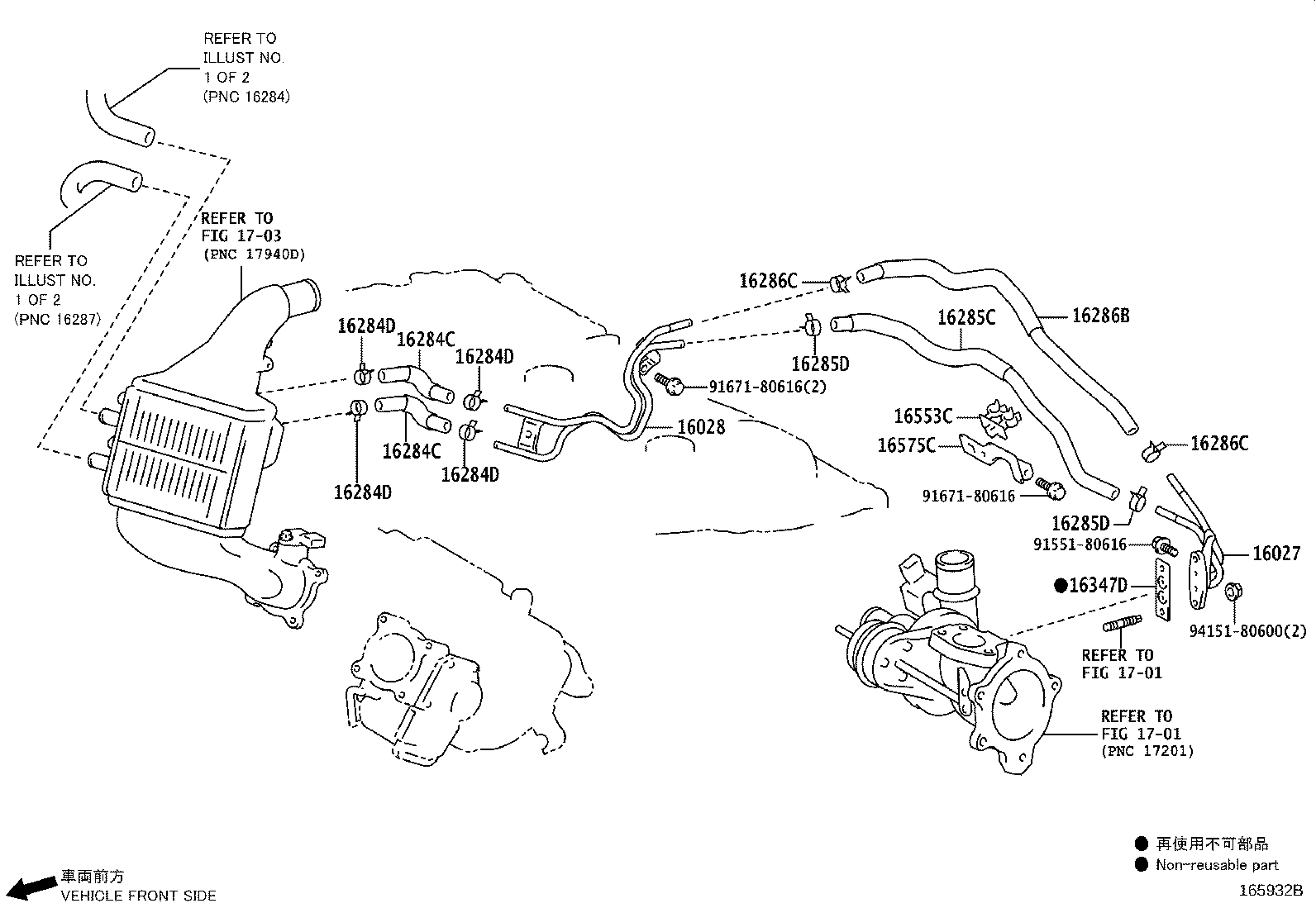

26 parts on this figure

Part number	Description	Fitment	Price
16027 — Pipe Sub-assy, Turbo Water, NO.1
16027-33010	Pipe Sub-assy, Turbo Water, NO.1 2015-05 → —	1NDTV NDE180	—
16027-47010	Pipe Sub-assy, Turbo Water, NO.1 2015-05 → —	8NRFTS NRE185	—
16028 — Pipe Sub-assy, Turbo Water, NO.2
16028-47010	Pipe Sub-assy, Turbo Water, NO.2 2015-05 → —	8NRFTS NRE185	—
16284C — Hose, Intercooler Water, NO.1
16284-47010	Hose, Intercooler Water, NO.1 2015-05 → —	8NRFTS NRE185	—
16284D — Clip(FOR INTERCOOLER WATER HOSE NO.1)
96136-41501	Clip(FOR INTERCOOLER WATER HOSE NO.1) 2015-05 → —	8NRFTS NRE185	—
16285C — Hose, Intercooler Water, NO.2
16285-47010	Hose, Intercooler Water, NO.2 2015-05 → —	8NRFTS NRE185	—
16285D — Clip(FOR INTERCOOLER WATER HOSE NO.2)
96136-41501	Clip(FOR INTERCOOLER WATER HOSE NO.2) 2015-05 → —	8NRFTS NRE185	—
16286B — Hose, Intercooler Water, NO.3
16286-47010	Hose, Intercooler Water, NO.3 2015-05 → —	8NRFTS NRE185	—
16286C — Clip(FOR INTERCOOLER WATER HOSE NO.3)
96136-41501	Clip(FOR INTERCOOLER WATER HOSE NO.3) 2015-05 → —	8NRFTS NRE185	—
16347D — Gasket, Water By-pass
16347-33010	Gasket, Water By-pass 2015-05 → —	1NDTV NDE180	—
16347-47010	Gasket, Water By-pass 2015-05 → —	8NRFTS NRE185	—
16553C — Clamp, Hose
16581-33040 note	Clamp, Hose 2012-10 → 2015-05 ended	1NDTV NDE180	—
16581-33050 note	Clamp, Hose 2012-10 → 2015-05 ended	1NDTV NDE180	—
16581-33120 note	Clamp, Hose 2012-10 → 2015-05 ended	1NDTV NDE180	—
16581-33040 note	Clamp, Hose 2015-05 → —	1NDTV NDE180	—
16581-33050 note	Clamp, Hose 2015-05 → —	1NDTV NDE180	—
16581-33120 note	Clamp, Hose 2015-05 → —	1NDTV NDE180	—
16581-33140 note	Clamp, Hose 2015-05 → —	1NDTV NDE180	—
16581-47090	Clamp, Hose 2015-05 → —	8NRFTS NRE185	—
16575C — Bracket, Water Hose Clamp, NO.1
16575-0Y010	Bracket, Water Hose Clamp, NO.1 2012-10 → 2015-05 ended	1N# NDE180,NRE180	—
16575-0Y010	Bracket, Water Hose Clamp, NO.1 2012-10 → 2015-05 ended	1ZRFAE ZRE185	—
16575-0Y010	Bracket, Water Hose Clamp, NO.1 2012-10 → —	1ADFTV ADE186	—
16575-0Y010	Bracket, Water Hose Clamp, NO.1 2015-05 → 2018-04 ended	1WW WWE185	—
16575-0Y010	Bracket, Water Hose Clamp, NO.1 2015-05 → —	1ZRFAE ZRE185	—
16575-0Y010	Bracket, Water Hose Clamp, NO.1 2015-05 → —	1N# NDE180,NRE180	—
16575-47020	Bracket, Water Hose Clamp, NO.1 2015-05 → —	8NRFTS NRE185	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
