Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

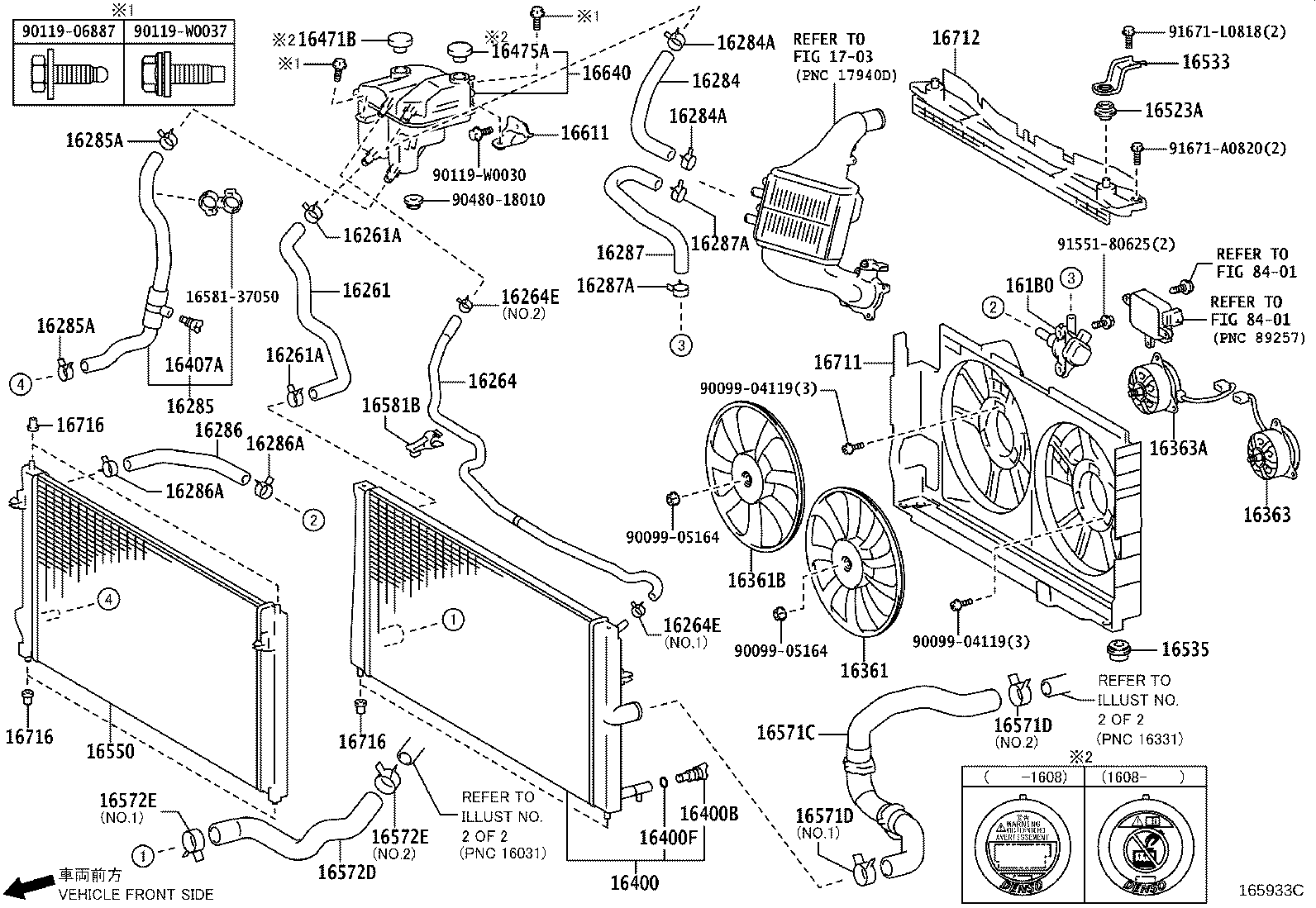

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 161B0 — Pump Assy, Electric Water | ||||
| 161B0-47010 |
Pump Assy, Electric Water
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16261 — Hose, Water By-pass | ||||
| 16261-0N050 note |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16261-0R081 |
Hose, Water By-pass
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16261-0T240 note |
Hose, Water By-pass
2014-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16261-33050 note |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16261-37052 |
Hose, Water By-pass
2012-10 → 2014-06
ended
|
1ZRFAE ZRE185 | — | |
| 16261-37052 note |
Hose, Water By-pass
2014-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16261-37081 |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16261-47010 |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16261-0N050 note |
Hose, Water By-pass
2015-05 → —
|
1NDTV NDE180 | — | |
| 16261-0T240 note |
Hose, Water By-pass
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16261-0Y090 |
Hose, Water By-pass
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16261-33050 note |
Hose, Water By-pass
2015-05 → —
|
1NDTV NDE180 | — | |
| 16261-37052 note |
Hose, Water By-pass
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16261-37081 |
Hose, Water By-pass
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16261-47010 |
Hose, Water By-pass
2015-05 → —
|
1NRFE NRE180 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NRFE NRE180 | — | |
| 96136-42501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0N030 note |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16264-0R030 |
Hose, Water By-pass, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16264-33040 note |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16264-37042 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16264-37050 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16264-0N030 note |
Hose, Water By-pass, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264-0Y090 |
Hose, Water By-pass, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16264-33040 note |
Hose, Water By-pass, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264-37042 |
Hose, Water By-pass, NO.2
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16264-37050 |
Hose, Water By-pass, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16264E — Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90467-15022 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-42101 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-42101 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-42101 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90467-15022 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-41901 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-42101 |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-42101 note |
Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1NDTV,8NRFTS NDE180,NRE185 | — | |
| 16284 — Hose, Turbo Water, NO.1 | ||||
| 16284-33010 |
Hose, Turbo Water, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 16284-47020 |
Hose, Turbo Water, NO.1
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16284A — Clip(FOR TURBO WATER HOSE NO.1) | ||||
| 90466-W0007 note |
Clip(FOR TURBO WATER HOSE NO.1)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-41501 |
Clip(FOR TURBO WATER HOSE NO.1)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clip(FOR TURBO WATER HOSE NO.1)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16285 — Hose, Turbo Water, NO.2 | ||||
| 16285-33010 |
Hose, Turbo Water, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16285-47020 |
Hose, Turbo Water, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16285A — Clip(FOR TURBO WATER HOSE NO.2) | ||||
| 90466-W0007 note |
Clip(FOR TURBO WATER HOSE NO.2)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-41501 |
Clip(FOR TURBO WATER HOSE NO.2)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clip(FOR TURBO WATER HOSE NO.2)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16286 — Hose, Turbo Water, NO.3 | ||||
| 16286-47020 |
Hose, Turbo Water, NO.3
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16286A — Clip(FOR TURBO WATER HOSE NO.3) | ||||
| 90466-W0007 note |
Clip(FOR TURBO WATER HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-42501 note |
Clip(FOR TURBO WATER HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16287 — Hose, Turbo Water, NO.4 | ||||
| 16287-0Y010 |
Hose, Turbo Water, NO.4
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16287A — Clip(FOR TURBO WATER HOSE NO.4) | ||||
| 90466-W0007 note |
Clip(FOR TURBO WATER HOSE NO.4)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96136-42501 note |
Clip(FOR TURBO WATER HOSE NO.4)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16361 — Fan | ||||
| 16361-0D150 |
Fan
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16361-0D150 |
Fan
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16361-0N040 |
Fan
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16361-0R020 |
Fan
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16361-0T120 |
Fan
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16361-0D150 |
Fan
2015-05 → —
|
1NRFE NRE180 | — | |
| 16361-0D150 |
Fan
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16361-0N040 |
Fan
2015-05 → —
|
1NDTV NDE180 | — | |
| 16361-0R060 |
Fan
2015-05 → 2017-05
ended
|
1WW WWE185 | — | |
| 16361-0R080 |
Fan
2017-06 → 2018-04
ended
|
1WW WWE185 | — | |
| 16361-0T120 |
Fan
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16361-0Y100 |
Fan
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16361B — Fan, NO.2 | ||||
| 16361-0R030 |
Fan, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16361-0T110 |
Fan, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16361-0R100 |
Fan, NO.2
2015-05 → 2017-05
ended
|
1WW WWE185 | — | |
| 16361-0T110 |
Fan, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16361-0X010 |
Fan, NO.2
2017-06 → 2018-04
ended
|
1WW WWE185 | — | |
| 16361-0Y110 |
Fan, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16363 — Motor, Cooling Fan | ||||
| 16363-0D120 |
Motor, Cooling Fan
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16363-0D120 |
Motor, Cooling Fan
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16363-0N020 |
Motor, Cooling Fan
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16363-0R020 |
Motor, Cooling Fan
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16363-0T080 |
Motor, Cooling Fan
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16363-0D120 |
Motor, Cooling Fan
2015-05 → —
|
1NRFE NRE180 | — | |
| 16363-0D120 |
Motor, Cooling Fan
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16363-0N020 |
Motor, Cooling Fan
2015-05 → —
|
1NDTV NDE180 | — | |
| 16363-0R040 |
Motor, Cooling Fan
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16363-0T080 |
Motor, Cooling Fan
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16363-47030 |
Motor, Cooling Fan
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16363A — Motor, Cooling Fan, NO.2 | ||||
| 16363-0R030 |
Motor, Cooling Fan, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16363-0T090 |
Motor, Cooling Fan, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16363-0R050 |
Motor, Cooling Fan, NO.2
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16363-0T090 |
Motor, Cooling Fan, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16363-47040 |
Motor, Cooling Fan, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16400 — Radiator Assy | ||||
| 16400-0D400 |
Radiator Assy
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16400-0D400 |
Radiator Assy
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16400-0D470 note |
Radiator Assy
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 LHD HB +1 | — | |
| 16400-0D470 note |
Radiator Assy
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 HB D | — | |
| 16400-0D470 note |
Radiator Assy
2012-10 → 2015-05
ended
|
1NRFE NRE180 LHD HB +1 | — | |
| 16400-0D470 note |
Radiator Assy
2012-10 → 2015-05
ended
|
1NRFE NRE180 LHD HB +1 | — | |
| 16400-0N060 |
Radiator Assy
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16400-0R030 |
Radiator Assy
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16400-0T240 |
Radiator Assy
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16400-0T250 note |
Radiator Assy
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 LHD HB | — | |
| 16400-0D400 |
Radiator Assy
2015-05 → —
|
1NRFE NRE180 | — | |
| 16400-0D400 |
Radiator Assy
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16400-0D470 note |
Radiator Assy
2015-05 → 2017-07
ended
|
1NRFE NRE180 LHD HB +1 | — | |
| 16400-0D470 note |
Radiator Assy
2015-05 → 2017-07
ended
|
1ZRFAE ZRE185 LHD HB | — | |
| 16400-0D470 note |
Radiator Assy
2015-05 → 2017-07
ended
|
1NRFE NRE180 LHD HB +1 | — | |
| 16400-0N060 |
Radiator Assy
2015-05 → —
|
1NDTV NDE180 | — | |
| 16400-0R030 |
Radiator Assy
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16400-0T240 |
Radiator Assy
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16400-0T250 note |
Radiator Assy
2015-05 → 2017-07
ended
|
2ZRFXE ZWE186 LHD HB | — | |
| 16400-0Y140 |
Radiator Assy
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-0Q040 |
Plug, Radiator Drain Cock
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 16417-0Q040 |
Plug, Radiator Drain Cock
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16417-0Q040 |
Plug, Radiator Drain Cock
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16417-0Q040 note |
Plug, Radiator Drain Cock
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16417-0Q040 note |
Plug, Radiator Drain Cock
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 LHD HB +1 | — | |
| 16417-0Q040 note |
Plug, Radiator Drain Cock
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 HB D | — | |
| 16417-0Q040 note |
Plug, Radiator Drain Cock
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16417-0Q040 |
Plug, Radiator Drain Cock
2015-05 → —
|
1N# NDE180,NRE180 | — | |
| 16417-0Q040 note |
Plug, Radiator Drain Cock
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16417-21280 |
Plug, Radiator Drain Cock
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 16492-21050 |
Packing(FOR RADIATOR DRAIN COCK)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16407A — Cock Sub-assy, Radiator Drain | ||||
| 16407-64010 |
Cock Sub-assy, Radiator Drain
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16471B — Cap, Reserve Tank | ||||
| 16475-37010 |
Cap, Reserve Tank
2012-10 → 2014-11
ended
|
1ADFTV ADE186 | — | |
| 16475-37010 |
Cap, Reserve Tank
2012-10 → 2014-11
ended
|
1N# NDE180,NRE180 | — | |
| 16475-37010 |
Cap, Reserve Tank
2012-10 → 2014-11
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16475-37011 |
Cap, Reserve Tank
2014-12 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 16475-37011 |
Cap, Reserve Tank
2014-12 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16475-37011 |
Cap, Reserve Tank
2014-12 → —
|
1ADFTV ADE186 | — | |
| 16475-28140 |
Cap, Reserve Tank
2016-08 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16475-28140 |
Cap, Reserve Tank
2016-08 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 16475-37011 |
Cap, Reserve Tank
2015-05 → 2016-07
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 16475-37011 |
Cap, Reserve Tank
2015-05 → 2016-08
ended
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 16475-53022 |
Cap, Reserve Tank
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16475A — Cap, Reserve Tank | ||||
| 16475-28140 |
Cap, Reserve Tank
2016-08 → —
|
8NRFTS NRE185 | — | |
| 16475-37011 |
Cap, Reserve Tank
2015-05 → 2016-08
ended
|
8NRFTS NRE185 | — | |
| 16523A — Cushion, Radiator Support | ||||
| 16523-0R010 note |
Cushion, Radiator Support
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16523-0R020 note |
Cushion, Radiator Support
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16523-0T040 |
Cushion, Radiator Support
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16523-0Y030 |
Cushion, Radiator Support
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 16523-0Y030 |
Cushion, Radiator Support
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16523-0R010 note |
Cushion, Radiator Support
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16523-0R020 note |
Cushion, Radiator Support
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16523-0R020 note |
Cushion, Radiator Support
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16523-0T040 |
Cushion, Radiator Support
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16523-0T040 |
Cushion, Radiator Support
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16523-0Y030 |
Cushion, Radiator Support
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16523-0Y030 |
Cushion, Radiator Support
2015-05 → —
|
1N# NDE180,NRE180 | — | |
| 16533 — Support, Radiator, Upper | ||||
| 16533-0R040 |
Support, Radiator, Upper
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16533-0R040 |
Support, Radiator, Upper
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16534-0T010 |
Support, Radiator, Upper
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16535 — Support, Radiator, Lower | ||||
| 16535-0R040 |
Support, Radiator, Lower
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16535-0R050 |
Support, Radiator, Lower
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16535-0Y010 |
Support, Radiator, Lower
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16535-0Y010 |
Support, Radiator, Lower
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16535-0Y010 |
Support, Radiator, Lower
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16535-0R040 |
Support, Radiator, Lower
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16535-0R050 |
Support, Radiator, Lower
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16535-0R050 |
Support, Radiator, Lower
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16535-0Y010 |
Support, Radiator, Lower
2015-05 → —
|
1NRFE NRE180 | — | |
| 16535-0Y010 |
Support, Radiator, Lower
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16535-0Y010 |
Support, Radiator, Lower
2015-05 → —
|
1NDTV NDE180 | — | |
| 16550 — Radiator Assy, Intercooler Cooling | ||||
| 16550-0Y010 |
Radiator Assy, Intercooler Cooling
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16571C — Hose, Radiator, NO.1 | ||||
| 16571-0D200 |
Hose, Radiator, NO.1
2012-10 → 2013-05
ended
|
1ZRFAE ZRE185 6F | — | |
| 16571-0N080 |
Hose, Radiator, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16571-0R040 |
Hose, Radiator, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16571-0T050 |
Hose, Radiator, NO.1
2012-10 → 2013-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16571-0T140 |
Hose, Radiator, NO.1
2013-05 → 2015-05
ended
|
1ZRFAE ZRE185 6F | — | |
| 16571-0T150 |
Hose, Radiator, NO.1
2013-05 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16571-0T260 |
Hose, Radiator, NO.1
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16571-0Y070 |
Hose, Radiator, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16571-0N080 |
Hose, Radiator, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 16571-0T140 |
Hose, Radiator, NO.1
2015-05 → —
|
1ZRFAE ZRE185 6F | — | |
| 16571-0T150 |
Hose, Radiator, NO.1
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16571-0T260 |
Hose, Radiator, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16571-0X020 |
Hose, Radiator, NO.1
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16571-0Y070 |
Hose, Radiator, NO.1
2015-05 → —
|
1NRFE NRE180 | — | |
| 16571-0Y140 |
Hose, Radiator, NO.1
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16571D — Clip, Radiator Hose, NO.1 | ||||
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90467-33006 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90467-41005 note |
Clip, Radiator Hose, NO.1
2013-05 → —
|
1ADFTV ADE186 | — | |
| 90467-43002 note |
Clip, Radiator Hose, NO.1
2012-10 → 2013-05
ended
|
1ADFTV ADE186 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-44801 note |
Clip, Radiator Hose, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 90467-33006 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.1
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16572D — Hose, Radiator, NO.2 | ||||
| 16572-0N080 |
Hose, Radiator, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16572-0R080 |
Hose, Radiator, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16572-0T180 |
Hose, Radiator, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16572-0T190 |
Hose, Radiator, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16572-0Y050 |
Hose, Radiator, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16572-0N080 |
Hose, Radiator, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16572-0T180 |
Hose, Radiator, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16572-0T190 |
Hose, Radiator, NO.2
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16572-0X020 |
Hose, Radiator, NO.2
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16572-0Y050 |
Hose, Radiator, NO.2
2015-05 → —
|
1NRFE NRE180 | — | |
| 16572-0Y130 |
Hose, Radiator, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16572E — Clip, Radiator Hose, NO.2 | ||||
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180 | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-44801 |
Clip, Radiator Hose, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 90466-W0016 note |
Clip, Radiator Hose, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-43901 note |
Clip, Radiator Hose, NO.2
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2015-05 → —
|
1N#,8NRFTS NDE180,NRE18# | — | |
| 96136-44301 note |
Clip, Radiator Hose, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16581B — Clamp, Hose(FOR RADIATOR HOSE) | ||||
| 16581-28070 |
Clamp, Hose(FOR RADIATOR HOSE)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16581-33020 note |
Clamp, Hose(FOR RADIATOR HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16581-33150 note |
Clamp, Hose(FOR RADIATOR HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16581-36020 |
Clamp, Hose(FOR RADIATOR HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16581-36020 |
Clamp, Hose(FOR RADIATOR HOSE)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16581-33020 note |
Clamp, Hose(FOR RADIATOR HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16581-33150 note |
Clamp, Hose(FOR RADIATOR HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16581-36020 |
Clamp, Hose(FOR RADIATOR HOSE)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16581-36020 |
Clamp, Hose(FOR RADIATOR HOSE)
2015-05 → —
|
1NRFE,8NRFTS NRE18# | — | |
| 16611 — Bracket, Radiator Reserve Tank | ||||
| 16611-0Y010 |
Bracket, Radiator Reserve Tank
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16640 — Tank Assy, Intercooler Reserve | ||||
| 16640-47010 |
Tank Assy, Intercooler Reserve
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16711 — Shroud, Fan | ||||
| 16711-0D191 |
Shroud, Fan
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16711-0D191 |
Shroud, Fan
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16711-0N041 |
Shroud, Fan
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16711-0R060 |
Shroud, Fan
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 16711-0T090 |
Shroud, Fan
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16711-0D191 |
Shroud, Fan
2015-05 → —
|
1NRFE NRE180 | — | |
| 16711-0D191 |
Shroud, Fan
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16711-0N041 |
Shroud, Fan
2015-05 → —
|
1NDTV NDE180 | — | |
| 16711-0R100 |
Shroud, Fan
2015-05 → 2017-05
ended
|
1WW WWE185 | — | |
| 16711-0T090 |
Shroud, Fan
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16711-0X020 |
Shroud, Fan
2017-06 → 2018-04
ended
|
1WW WWE185 | — | |
| 16711-0Y100 |
Shroud, Fan
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16712 — Shroud, Fan, NO.2 | ||||
| 16712-0D011 |
Shroud, Fan, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16712-0D011 |
Shroud, Fan, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16712-0N050 |
Shroud, Fan, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16712-0T050 |
Shroud, Fan, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16712-0D011 |
Shroud, Fan, NO.2
2015-05 → —
|
1NRFE NRE180 | — | |
| 16712-0D011 |
Shroud, Fan, NO.2
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16712-0N050 |
Shroud, Fan, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16712-0T050 |
Shroud, Fan, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16712-0Y010 |
Shroud, Fan, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16716 — Cushion, Fan Shroud | ||||
| 16716-37010 |
Cushion, Fan Shroud
2015-05 → —
|
8NRFTS NRE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
