Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

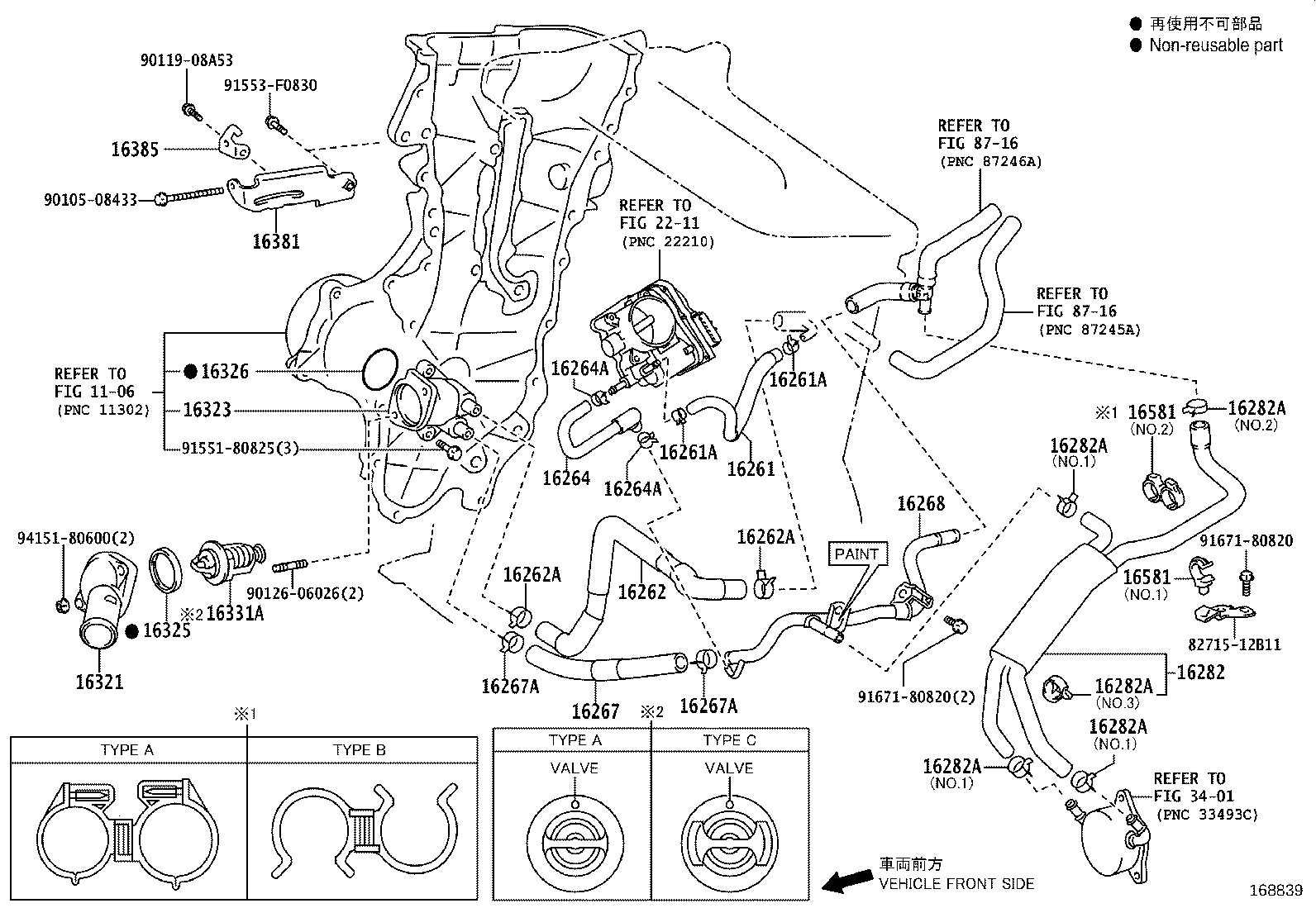

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-0N050 note |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16261-0R081 |
Hose, Water By-pass
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16261-0T240 note |
Hose, Water By-pass
2014-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16261-33050 note |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16261-37052 |
Hose, Water By-pass
2012-10 → 2014-06
ended
|
1ZRFAE ZRE185 | — | |
| 16261-37052 note |
Hose, Water By-pass
2014-06 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16261-37081 |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16261-47010 |
Hose, Water By-pass
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16261-0N050 note |
Hose, Water By-pass
2015-05 → —
|
1NDTV NDE180 | — | |
| 16261-0T240 note |
Hose, Water By-pass
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16261-0Y090 |
Hose, Water By-pass
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16261-33050 note |
Hose, Water By-pass
2015-05 → —
|
1NDTV NDE180 | — | |
| 16261-37052 note |
Hose, Water By-pass
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16261-37081 |
Hose, Water By-pass
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16261-47010 |
Hose, Water By-pass
2015-05 → —
|
1NRFE NRE180 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NRFE NRE180 | — | |
| 96136-42501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16262 — Hose, Water Inlet | ||||
| 16262-0N011 note |
Hose, Water Inlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16262-0T050 note |
Hose, Water Inlet
2014-06 → 2014-09
ended
|
1ZRFAE ZRE185 | — | |
| 16262-33011 note |
Hose, Water Inlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16262-37010 note |
Hose, Water Inlet
2014-06 → 2014-09
ended
|
1ZRFAE ZRE185 | — | |
| 16262-37010 |
Hose, Water Inlet
2014-09 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16262-37010 |
Hose, Water Inlet
2012-10 → 2014-06
ended
|
1ZRFAE ZRE185 | — | |
| 16263-0N010 note |
Hose, Water Inlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16263-33030 note |
Hose, Water Inlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16262-0N011 note |
Hose, Water Inlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16262-0T050 note |
Hose, Water Inlet
2016-05 → —
|
1ZRFAE ZRE185 | — | |
| 16262-33011 note |
Hose, Water Inlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16262-37010 |
Hose, Water Inlet
2015-05 → 2016-05
ended
|
1ZRFAE ZRE185 | — | |
| 16262-37010 note |
Hose, Water Inlet
2016-05 → —
|
1ZRFAE ZRE185 | — | |
| 16263-0N010 note |
Hose, Water Inlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16263-33030 note |
Hose, Water Inlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16262A — Clip(FOR WATER INLET HOSE) | ||||
| 90466-W0007 note |
Clip(FOR WATER INLET HOSE)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 96136-42501 |
Clip(FOR WATER INLET HOSE)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE185 | — | |
| 96136-42501 note |
Clip(FOR WATER INLET HOSE)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 96136-52201 |
Clip(FOR WATER INLET HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clip(FOR WATER INLET HOSE)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 96136-42501 note |
Clip(FOR WATER INLET HOSE)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 96136-52201 |
Clip(FOR WATER INLET HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0N030 note |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16264-0R030 |
Hose, Water By-pass, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16264-33040 note |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16264-37042 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16264-37050 |
Hose, Water By-pass, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16264-0N030 note |
Hose, Water By-pass, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264-0Y090 |
Hose, Water By-pass, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16264-33040 note |
Hose, Water By-pass, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16264-37042 |
Hose, Water By-pass, NO.2
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16264-37050 |
Hose, Water By-pass, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
8NRFTS NRE185 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1ZRFAE,2ZRFXE ZRE185,ZWE186 | — | |
| 96137-41701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96137-41901 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16267 — Hose, Water By-pass, NO.3 | ||||
| 16267-0N050 note |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16267-0R070 |
Hose, Water By-pass, NO.3
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16267-33030 note |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16267-37010 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16267-37050 |
Hose, Water By-pass, NO.3
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16267-33040 |
Hose, Water By-pass, NO.3
2015-05 → —
|
1NDTV NDE180 | — | |
| 16267-37010 |
Hose, Water By-pass, NO.3
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16267-37050 |
Hose, Water By-pass, NO.3
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16267-47030 |
Hose, Water By-pass, NO.3
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90467-15022 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-42501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE185 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2012-10 → 2013-08
ended
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 90467-15022 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 96136-42701 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-0T020 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16268-0T140 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE185 6F | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2012-10 → 2014-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2014-09 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2012-10 → 2014-05
ended
|
1ZRFAE ZRE185 6F | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2014-09 → 2015-05
ended
|
1ZRFAE ZRE185 6F | — | |
| 16268-37060 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16268-37070 note |
Pipe, Water By-pass, NO.1
2014-06 → 2014-09
ended
|
1ZRFAE ZRE185 6F | — | |
| 16268-47031 |
Pipe, Water By-pass, NO.1
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16268-0T020 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16268-0T140 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE185 6F | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2015-05 → 2016-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2015-05 → 2016-05
ended
|
1ZRFAE ZRE185 6F | — | |
| 16268-37060 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16268-37070 note |
Pipe, Water By-pass, NO.1
2016-05 → —
|
1ZRFAE ZRE185 6F | — | |
| 16268-47031 |
Pipe, Water By-pass, NO.1
2015-05 → —
|
1NRFE NRE180 | — | |
| 16282 — Hose, Water By-pass, NO.5 | ||||
| 16260-37080 |
Hose, Water By-pass, NO.5
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16282-0N040 |
Hose, Water By-pass, NO.5
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16260-37080 |
Hose, Water By-pass, NO.5
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16282-0N040 |
Hose, Water By-pass, NO.5
2015-05 → —
|
1NDTV NDE180 | — | |
| 16282-47030 |
Hose, Water By-pass, NO.5
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) | ||||
| 16581-37090 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2013-08
ended
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2013-08 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16581-37090 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1NDTV NDE180 | — | |
| 90466-W0007 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 96134-41900 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1NDTV NDE180 | — | |
| 96136-42501 note |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 96136-52101 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2015-05 → —
|
8NRFTS NRE185 CVT | — | |
| 16321 — Inlet, Water | ||||
| 16321-0R020 note |
Inlet, Water
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16321-0T010 note |
Inlet, Water
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16321-26030 note |
Inlet, Water
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16321-33040 |
Inlet, Water
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16321-37010 note |
Inlet, Water
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16321-47011 |
Inlet, Water
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16321-0T010 note |
Inlet, Water
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16321-33040 |
Inlet, Water
2015-05 → —
|
1NDTV NDE180 | — | |
| 16321-37010 note |
Inlet, Water
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16321-47011 |
Inlet, Water
2015-05 → —
|
1NRFE NRE180 | — | |
| 16321-47040 |
Inlet, Water
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16321-WA010 |
Inlet, Water
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16323 — Housing, Water Inlet | ||||
| 16323-0R011 note |
Housing, Water Inlet
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16323-0T030 note |
Housing, Water Inlet
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16323-26010 note |
Housing, Water Inlet
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16323-33030 |
Housing, Water Inlet
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16323-37021 note |
Housing, Water Inlet
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16323-0T030 note |
Housing, Water Inlet
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16323-33030 |
Housing, Water Inlet
2015-05 → —
|
1NDTV NDE180 | — | |
| 16323-37021 note |
Housing, Water Inlet
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16323-WA010 |
Housing, Water Inlet
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16325-33010 |
Gasket, Water Inlet Housing, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16325-33010 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 16325-36040 |
Gasket, Water Inlet Housing, NO.1
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-26011 note |
Gasket, Water Inlet Housing, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16326-26020 note |
Gasket, Water Inlet Housing, NO.2
2012-10 → —
|
1ADFTV ADE186 | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16326-37020 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 16326-47010 |
Gasket, Water Inlet Housing, NO.2
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
1NDTV NDE180 | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16326-37020 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 16326-47010 |
Gasket, Water Inlet Housing, NO.2
2015-05 → 2015-09
ended
|
1NRFE NRE180 | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2015-05 → —
|
8NRFTS NRE185 | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2015-10 → —
|
1NRFE NRE180 | — | |
| 16331A — Thermostat | ||||
| 90916-03125 note |
Thermostat
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90916-03144 note |
Thermostat
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90916-03145 note |
Thermostat
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90916-03147 note |
Thermostat
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 90916-A3003 note |
Thermostat
2014-02 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 90916-03144 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 90916-03145 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 90916-03147 note |
Thermostat
2015-05 → —
|
1NRFE NRE180 | — | |
| 90916-03154 note |
Thermostat
2015-05 → —
|
8NRFTS NRE185 | — | |
| 90916-A3003 note |
Thermostat
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| SU004-00002 |
Thermostat
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-37030 |
Bar, Fan Belt Adjusting
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16381-37030 |
Bar, Fan Belt Adjusting
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16385 — Slider, Fan Belt Adjusting | ||||
| 16385-37010 |
Slider, Fan Belt Adjusting
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 16385-37010 |
Slider, Fan Belt Adjusting
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 16581 — Clamp, Hose(FOR WATER HOSE) | ||||
| 16581-0Y010 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16581-21060 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16581-36020 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 16581-36020 |
Clamp, Hose(FOR WATER HOSE)
2012-10 → —
|
1ADFTV ADE186 | — | |
| 90464-00763 note |
Clamp, Hose(FOR WATER HOSE)
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 CVT | — | |
| 16581-0Y010 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16581-21030 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16581-21060 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
| 16581-36020 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1NDTV NDE180 | — | |
| 16581-47080 |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
8NRFTS NRE185 6F | — | |
| 90464-00763 note |
Clamp, Hose(FOR WATER HOSE)
2015-05 → —
|
1ZRFAE ZRE185 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
