Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

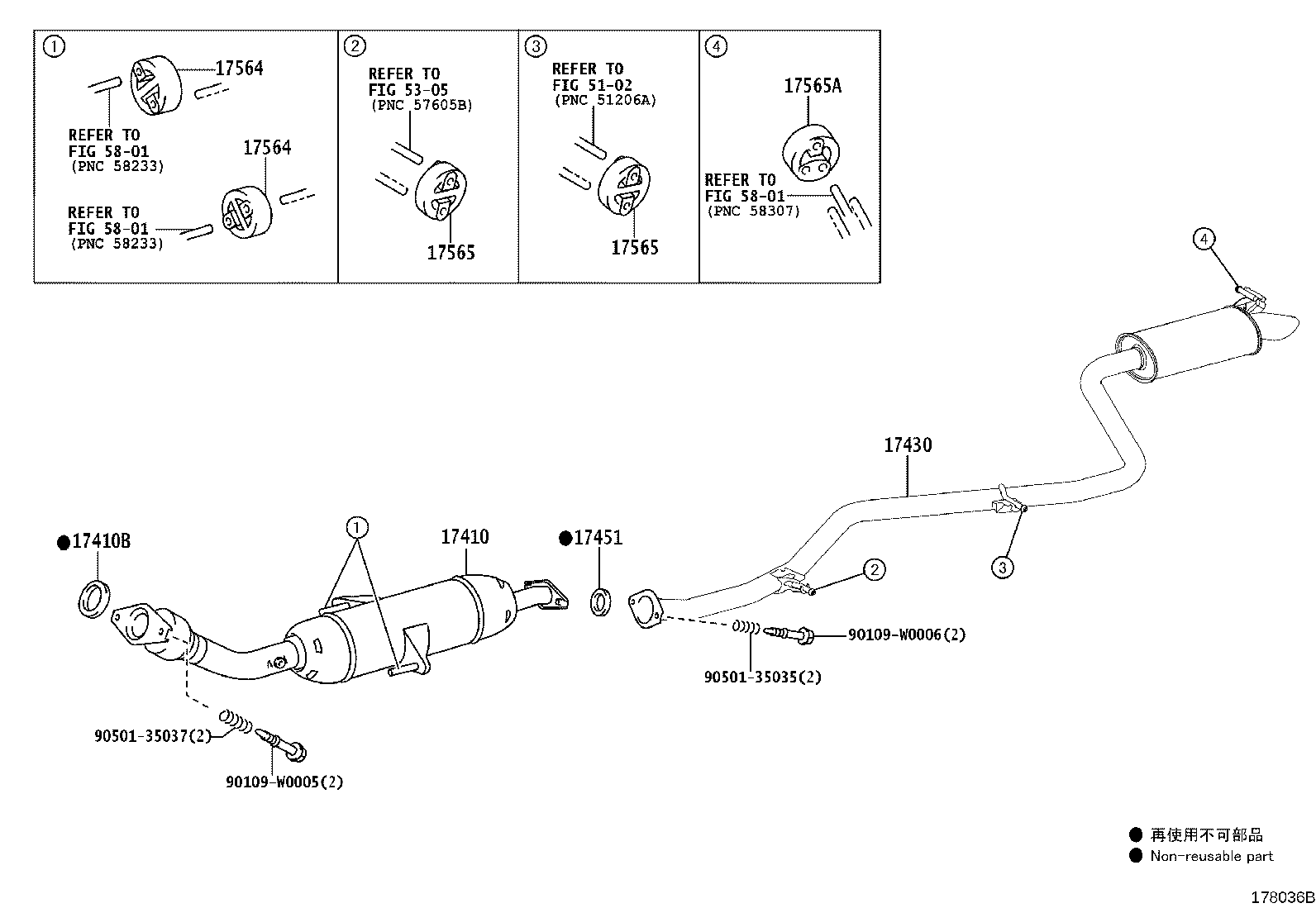

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-0N080 |
Pipe Assy, Exhaust, Front
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 17410-0R220 |
Pipe Assy, Exhaust, Front
2012-10 → 2015-05
ended
|
1ADFTV ADE186 | — | |
| 17410-0T110 note |
Pipe Assy, Exhaust, Front
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 | — | |
| 17410-0T510 note |
Pipe Assy, Exhaust, Front
2012-10 → 2013-07
ended
|
2ZRFXE ZWE186 LHD HB | — | |
| 17410-0T510 note |
Pipe Assy, Exhaust, Front
2014-12 → 2015-05
ended
|
2ZRFXE ZWE186 LHD HB | — | |
| 17410-0T510 note |
Pipe Assy, Exhaust, Front
2013-08 → 2014-11
ended
|
2ZRFXE ZWE186 LHD HB | — | |
| 17410-0T510 note |
Pipe Assy, Exhaust, Front
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 17410-0T520 note |
Pipe Assy, Exhaust, Front
2012-10 → 2013-07
ended
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0T520 note |
Pipe Assy, Exhaust, Front
2012-10 → 2013-07
ended
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0T521 note |
Pipe Assy, Exhaust, Front
2013-08 → 2014-11
ended
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0T521 note |
Pipe Assy, Exhaust, Front
2013-08 → 2014-11
ended
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0T522 note |
Pipe Assy, Exhaust, Front
2014-12 → 2015-05
ended
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0T522 note |
Pipe Assy, Exhaust, Front
2014-12 → 2015-05
ended
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0Y080 note |
Pipe Assy, Exhaust, Front
2012-10 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 17410-0N170 note |
Pipe Assy, Exhaust, Front
2015-05 → —
|
1NDTV NDE180 | — | |
| 17410-0T500 note |
Pipe Assy, Exhaust, Front
2015-05 → —
|
1ZRFAE ZRE185 | — | |
| 17410-0T510 note |
Pipe Assy, Exhaust, Front
2015-05 → 2017-07
ended
|
2ZRFXE ZWE186 LHD HB | — | |
| 17410-0T510 note |
Pipe Assy, Exhaust, Front
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 17410-0T522 note |
Pipe Assy, Exhaust, Front
2015-05 → —
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0T522 note |
Pipe Assy, Exhaust, Front
2015-05 → —
|
2ZRFXE ZWE186 LHD | — | |
| 17410-0X040 note |
Pipe Assy, Exhaust, Front
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 17410-0Y080 note |
Pipe Assy, Exhaust, Front
2015-05 → —
|
1NRFE NRE180 | — | |
| 17410-0Y320 note |
Pipe Assy, Exhaust, Front
2015-05 → 2018-05
ended
|
8NRFTS NRE185 | — | |
| 17410-0YA60 note |
Pipe Assy, Exhaust, Front
2018-05 → —
|
8NRFTS NRE185 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-0J030 |
Gasket, Exhaust Pipe
2013-05 → 2015-05
ended
|
1NRFE NRE180 | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2012-10 → 2015-05
ended
|
1ADFTV,1NDTV,1ZRFAE,2ZRFXE ADE186,NDE180,ZRE185,ZWE186 | — | |
| 17451-47020 |
Gasket, Exhaust Pipe
2012-10 → 2013-04
ended
|
1NRFE NRE180 | — | |
| 17451-0J030 |
Gasket, Exhaust Pipe
2015-05 → —
|
1NRFE NRE180 | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2015-05 → —
|
1NDTV,8NRFTS,1ZRFAE,2ZRFXE NDE180,NRE185,ZRE185,ZWE186 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-0N100 |
Pipe Assy, Exhaust, Tail
2012-10 → 2015-05
ended
|
1NDTV NDE180 HB | — | |
| 17430-0N110 |
Pipe Assy, Exhaust, Tail
2013-06 → 2015-05
ended
|
1NDTV NDE180 WG | — | |
| 17430-0R140 |
Pipe Assy, Exhaust, Tail
2013-06 → 2015-05
ended
|
1ADFTV ADE186 WG | — | |
| 17430-0R200 |
Pipe Assy, Exhaust, Tail
2012-10 → 2014-05
ended
|
1ADFTV ADE186 HB | — | |
| 17430-0R210 note |
Pipe Assy, Exhaust, Tail
2012-10 → 2014-05
ended
|
1ADFTV ADE186 HB | — | |
| 17430-0R210 |
Pipe Assy, Exhaust, Tail
2014-05 → 2015-05
ended
|
1ADFTV ADE186 HB | — | |
| 17430-0T190 |
Pipe Assy, Exhaust, Tail
2013-06 → 2015-05
ended
|
1ZRFAE ZRE185 WG | — | |
| 17430-0T200 |
Pipe Assy, Exhaust, Tail
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 HB | — | |
| 17430-0T210 |
Pipe Assy, Exhaust, Tail
2013-06 → 2015-05
ended
|
2ZRFXE ZWE186 WG | — | |
| 17430-0T220 |
Pipe Assy, Exhaust, Tail
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 HB | — | |
| 17430-0T230 note |
Pipe Assy, Exhaust, Tail
2012-10 → 2015-05
ended
|
1ZRFAE ZRE185 HB N | — | |
| 17430-0Y040 |
Pipe Assy, Exhaust, Tail
2012-10 → 2015-05
ended
|
1NRFE NRE180 HB | — | |
| 17430-0Y070 |
Pipe Assy, Exhaust, Tail
2013-06 → 2015-05
ended
|
1NRFE NRE180 WG | — | |
| 17430-0N100 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
1NDTV NDE180 HB | — | |
| 17430-0N110 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
1NDTV NDE180 WG | — | |
| 17430-0R141 |
Pipe Assy, Exhaust, Tail
2015-05 → 2018-04
ended
|
1WW WWE185 WG | — | |
| 17430-0R211 |
Pipe Assy, Exhaust, Tail
2015-05 → 2018-04
ended
|
1WW WWE185 HB | — | |
| 17430-0T191 |
Pipe Assy, Exhaust, Tail
2015-05 → 2016-12
ended
|
1ZRFAE ZRE185 WG | — | |
| 17430-0T192 |
Pipe Assy, Exhaust, Tail
2017-01 → —
|
1ZRFAE ZRE185 WG | — | |
| 17430-0T201 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
2ZRFXE ZWE186 HB | — | |
| 17430-0T211 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
2ZRFXE ZWE186 WG | — | |
| 17430-0T220 |
Pipe Assy, Exhaust, Tail
2015-05 → 2016-12
ended
|
1ZRFAE ZRE185 HB | — | |
| 17430-0T221 |
Pipe Assy, Exhaust, Tail
2017-01 → —
|
1ZRFAE ZRE185 HB | — | |
| 17430-0Y040 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
1NRFE NRE180 HB | — | |
| 17430-0Y070 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
1NRFE NRE180 WG | — | |
| 17430-0Y130 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
8NRFTS NRE185 HB | — | |
| 17430-0Y140 |
Pipe Assy, Exhaust, Tail
2015-05 → —
|
8NRFTS NRE185 WG | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-0D112 |
Gasket, Exhaust Pipe
2012-10 → 2015-05
ended
|
1ADFTV,1N#,1ZRFAE ADE186,NDE180,NRE180,ZRE185 | — | |
| 17451-0J022 |
Gasket, Exhaust Pipe
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 | — | |
| 17451-0D112 |
Gasket, Exhaust Pipe
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 17451-0D112 |
Gasket, Exhaust Pipe
2015-05 → —
|
1N#,8NRFTS,1ZRFAE NDE180,NRE18#,ZRE185 | — | |
| 17451-0J022 |
Gasket, Exhaust Pipe
2015-05 → —
|
2ZRFXE ZWE186 | — | |
| 17564 — Support,Exhaust Pipe, NO.4 | ||||
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2012-10 → 2015-05
ended
|
1N# NDE180,NRE180;2ZRFXE ZWE186 WG | — | |
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2012-10 → 2015-05
ended
|
2ZRFXE ZWE186 HB | — | |
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2012-10 → 2015-05
ended
|
1ADFTV,1ZRFAE ADE186,ZRE185 | — | |
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2015-05 → —
|
8NRFTS,1ZRFAE NRE185,ZRE185 | — | |
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2015-05 → —
|
1N# NDE180,NRE180;2ZRFXE ZWE186 WG | — | |
| 17565-0J031 |
Support,Exhaust Pipe, NO.4
2015-05 → —
|
2ZRFXE ZWE186 HB | — | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2012-10 → 2015-05
ended
|
1N#,2ZRFXE NDE180,NRE180,ZWE186 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2012-10 → 2015-05
ended
|
1ADFTV,1ZRFAE ADE186,ZRE185 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2015-05 → —
|
1N#,2ZRFXE NDE180,NRE180,ZWE186 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2015-05 → —
|
8NRFTS,1ZRFAE NRE185,ZRE185 | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-64180 |
Support, Exhaust Pipe, NO.4
2012-10 → 2015-05
ended
|
1ADFTV,1ZRFAE ADE186,ZRE185;1NRFE,2ZRFXE NRE180,ZWE186 WG | — | |
| 17565-64180 |
Support, Exhaust Pipe, NO.4
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 17565-64180 |
Support, Exhaust Pipe, NO.4
2015-05 → —
|
8NRFTS,1ZRFAE NRE185,ZRE185;1NRFE,2ZRFXE NRE180,ZWE186 WG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
