Factory parts data · Europe

Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04

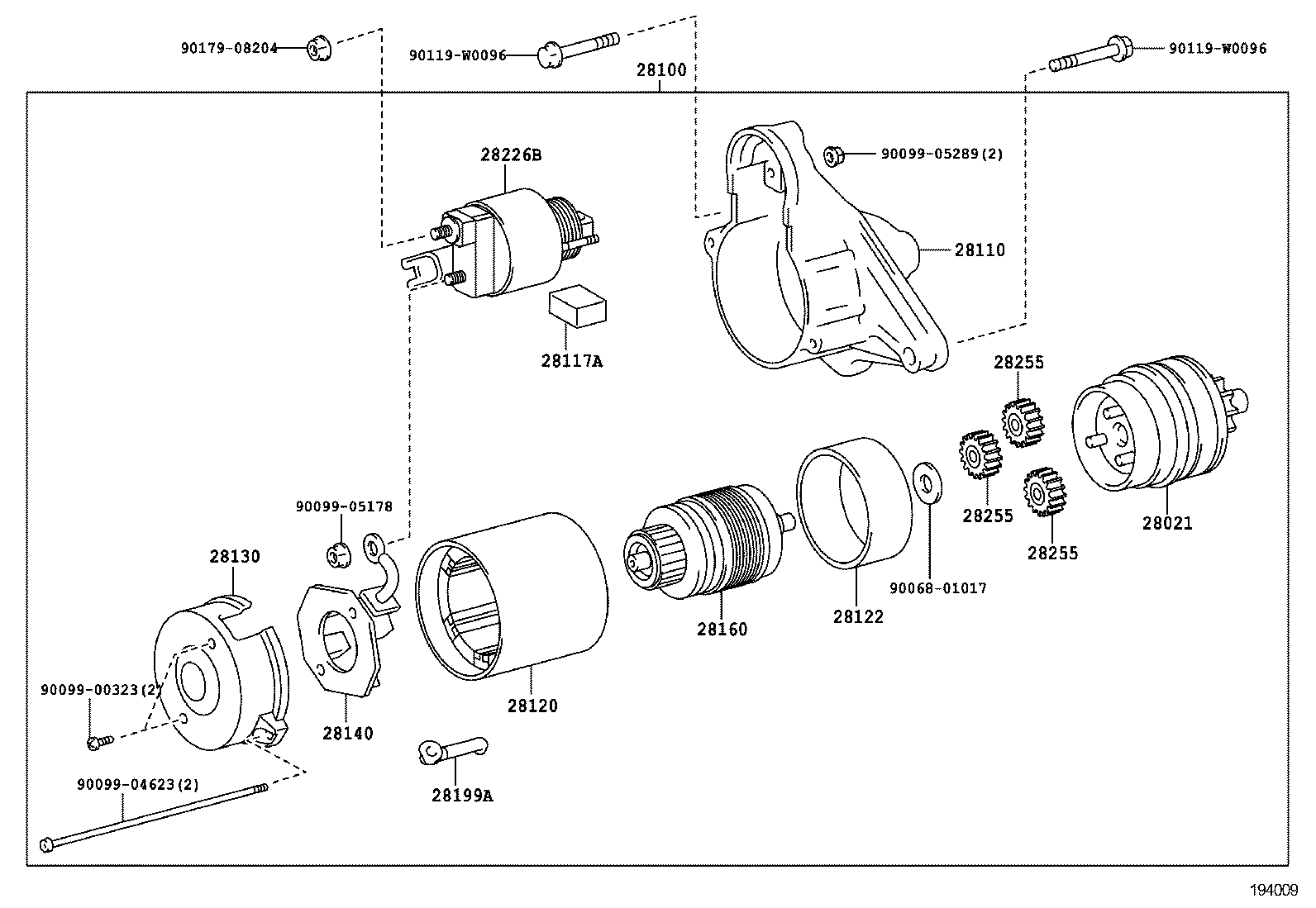

194009 · 14 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
229 parts on this figure
Part number Description Fitment Price
28021 — Clutch Sub-assy, Starter Center Bearing
28021-0N120 Clutch Sub-assy, Starter Center Bearing
2012-10 → 2014-05 ended
1NDTV NDE180 RHD 6F —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28021-26190 Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1ADFTV ADE186 —
28021-33090 Clutch Sub-assy, Starter Center Bearing
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28021-33090 Clutch Sub-assy, Starter Center Bearing
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28021-33090 Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28021-33090 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28021-47110 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28021-47110 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28021-47110 note Clutch Sub-assy, Starter Center Bearing
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28021-47110 Clutch Sub-assy, Starter Center Bearing
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2015-05 → —
1NDTV NDE180 LHD —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2015-05 → —
1NDTV NDE180 —
28021-0N120 note Clutch Sub-assy, Starter Center Bearing
2015-05 → —
1NDTV NDE180 —
28021-21100 Clutch Sub-assy, Starter Center Bearing
2015-05 → —
8NRFTS NRE185 CVT —
28021-21100 note Clutch Sub-assy, Starter Center Bearing
2015-05 → —
8NRFTS NRE185 6F —
28021-33090 Clutch Sub-assy, Starter Center Bearing
2015-05 → —
1NDTV NDE180 —
28021-47170 Clutch Sub-assy, Starter Center Bearing
2016-12 → —
1NRFE NRE180 —
28100 — Starter Assy
28100-0N040 note Starter Assy
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28100-0N040 note Starter Assy
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28100-0N040 note Starter Assy
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28100-0N110 note Starter Assy
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28100-0N110 note Starter Assy
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28100-0N110 note Starter Assy
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28100-0N110 note Starter Assy
2012-10 → 2015-05 ended
1NDTV NDE180 LHD —
28100-0N120 note Starter Assy
2012-10 → 2014-09 ended
1NDTV NDE180 LHD 6F —
28100-0N120 note Starter Assy
2014-05 → 2014-09 ended
1NDTV NDE180 RHD 6F —
28100-0N120 note Starter Assy
2014-05 → 2014-09 ended
1NDTV NDE180 RHD 6F —
28100-0N120 note Starter Assy
2012-10 → 2014-05 ended
1NDTV NDE180 RHD 6F —
28100-0N120 note Starter Assy
2012-10 → 2014-09 ended
1NDTV NDE180 LHD 6F —
28100-0N120 note Starter Assy
2012-10 → 2014-09 ended
1NDTV NDE180 LHD 6F —
28100-0N121 note Starter Assy
2014-10 → 2015-05 ended
1NDTV NDE180 6F —
28100-0N121 note Starter Assy
2014-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28100-0N121 note Starter Assy
2014-10 → 2015-05 ended
1NDTV NDE180 6F —
28100-0R060 note Starter Assy
2012-10 → 2014-09 ended
1ADFTV ADE186 —
28100-0R061 note Starter Assy
2014-10 → 2015-05 ended
1ADFTV ADE186 —
28100-0T030 note Starter Assy
2012-10 → 2015-05 ended
1ZRFAE ZRE185 —
28100-0Y090 note Starter Assy
2012-10 → 2014-09 ended
1NRFE NRE180 LHD —
28100-0Y090 note Starter Assy
2014-05 → 2014-09 ended
1NRFE NRE180 RHD —
28100-0Y091 note Starter Assy
2014-10 → 2015-05 ended
1NRFE NRE180 —
28100-0Y100 note Starter Assy
2012-10 → 2014-09 ended
1NRFE NRE180 LHD —
28100-0Y100 note Starter Assy
2014-05 → 2014-09 ended
1NRFE NRE180 RHD —
28100-0Y100 note Starter Assy
2012-10 → 2014-09 ended
1NRFE NRE180 LHD —
28100-0Y101 note Starter Assy
2014-10 → 2015-05 ended
1NRFE NRE180 LHD —
28100-0Y101 note Starter Assy
2014-10 → 2015-05 ended
1NRFE NRE180 —
28100-0Y180 note Starter Assy
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28100-0Y180 note Starter Assy
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28100-0Y180 note Starter Assy
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28100-0Y180 note Starter Assy
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28100-0N040 note Starter Assy
2015-05 → —
1NDTV NDE180 —
28100-0N110 note Starter Assy
2015-05 → —
1NDTV NDE180 —
28100-0N110 note Starter Assy
2015-05 → —
1NDTV NDE180 LHD —
28100-0N121 note Starter Assy
2015-05 → —
1NDTV NDE180 —
28100-0N121 note Starter Assy
2015-05 → —
1NDTV NDE180 LHD —
28100-0N121 note Starter Assy
2015-05 → —
1NDTV NDE180 —
28100-0T030 note Starter Assy
2015-05 → —
1ZRFAE ZRE185;8NRFTS NRE185 6F —
28100-0X040 note Starter Assy
2015-05 → 2018-04 ended
1WW WWE185 —
28100-0Y091 note Starter Assy
2015-05 → —
1NRFE NRE180 —
28100-0Y101 note Starter Assy
2015-05 → 2018-04 ended
1NRFE NRE180 LHD —
28100-0Y101 note Starter Assy
2015-05 → 2018-04 ended
1NRFE NRE180 —
28100-0Y230 note Starter Assy
2015-05 → —
8NRFTS NRE185 CVT —
28100-0Y240 note Starter Assy
2015-05 → —
8NRFTS NRE185 6F —
28110 — Housing Assy, Starter Drive
28110-0T030 Housing Assy, Starter Drive
2012-10 → 2015-05 ended
1ZRFAE ZRE185 —
28110-33110 Housing Assy, Starter Drive
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28110-33110 Housing Assy, Starter Drive
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28110-33110 Housing Assy, Starter Drive
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28110-47110 Housing Assy, Starter Drive
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28110-47110 note Housing Assy, Starter Drive
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28110-47110 note Housing Assy, Starter Drive
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28110-47110 note Housing Assy, Starter Drive
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28110-0T030 Housing Assy, Starter Drive
2015-05 → —
1ZRFAE ZRE185;8NRFTS NRE185 6F —
28110-0X040 Housing Assy, Starter Drive
2015-05 → 2018-04 ended
1WW WWE185 —
28110-33110 Housing Assy, Starter Drive
2015-05 → —
1NDTV NDE180 —
28117A — Seal, Rubber
28117-37050 Seal, Rubber
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28117-37050 Seal, Rubber
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28117-37050 Seal, Rubber
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28117-47110 Seal, Rubber
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28117-47110 note Seal, Rubber
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28117-47110 note Seal, Rubber
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28117-47110 note Seal, Rubber
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28117-37050 Seal, Rubber
2015-05 → —
1NDTV NDE180 —
28120 — Yoke Assy, Starter
28120-0D130 Yoke Assy, Starter
2012-10 → 2015-05 ended
1ZRFAE ZRE185 —
28120-0N110 note Yoke Assy, Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28120-0N110 note Yoke Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28120-0N110 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD —
28120-0N110 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28120-0N120 Yoke Assy, Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD 6F —
28120-0N120 note Yoke Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28120-0N120 note Yoke Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28120-0N120 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28120-0N120 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28120-0N120 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28120-26190 Yoke Assy, Starter
2012-10 → 2015-05 ended
1ADFTV ADE186 —
28120-33110 Yoke Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28120-33110 Yoke Assy, Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28120-33110 Yoke Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28120-47110 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28120-47110 note Yoke Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28120-47110 note Yoke Assy, Starter
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28120-47110 Yoke Assy, Starter
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28120-0D130 Yoke Assy, Starter
2015-05 → —
1ZRFAE ZRE185;8NRFTS NRE185 6F —
28120-0N110 note Yoke Assy, Starter
2015-05 → —
1NDTV NDE180 LHD —
28120-0N110 note Yoke Assy, Starter
2015-05 → —
1NDTV NDE180 —
28120-0N120 note Yoke Assy, Starter
2015-05 → —
1NDTV NDE180 —
28120-0N120 note Yoke Assy, Starter
2015-05 → —
1NDTV NDE180 LHD —
28120-0N120 note Yoke Assy, Starter
2015-05 → —
1NDTV NDE180 —
28120-0X040 Yoke Assy, Starter
2015-05 → 2018-04 ended
1WW WWE185 —
28120-33110 Yoke Assy, Starter
2015-05 → —
1NDTV NDE180 —
28120-37100 Yoke Assy, Starter
2015-05 → —
8NRFTS NRE185 CVT —
28120-47240 note Yoke Assy, Starter
2015-05 → —
8NRFTS NRE185 6F —
28122 — Collar, Space
28122-47110 Collar, Space
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28122-47110 note Collar, Space
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28122-47110 note Collar, Space
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28122-47110 note Collar, Space
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28122-0X040 Collar, Space
2015-05 → 2018-04 ended
1WW WWE185 —
28130 — Frame Assy, Starter Commutator End
28130-0D130 Frame Assy, Starter Commutator End
2012-10 → 2015-05 ended
1ZRFAE ZRE185 —
28130-33110 Frame Assy, Starter Commutator End
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28130-33110 Frame Assy, Starter Commutator End
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28130-33110 Frame Assy, Starter Commutator End
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28130-47160 note Frame Assy, Starter Commutator End
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28130-47160 note Frame Assy, Starter Commutator End
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28130-47160 note Frame Assy, Starter Commutator End
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28130-47160 Frame Assy, Starter Commutator End
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28130-0D130 Frame Assy, Starter Commutator End
2015-05 → —
1ZRFAE ZRE185;8NRFTS NRE185 6F —
28130-0X040 Frame Assy, Starter Commutator End
2015-05 → 2018-04 ended
1WW WWE185 —
28130-33110 Frame Assy, Starter Commutator End
2015-05 → —
1NDTV NDE180 —
28140 — Holder Assy, Starter Brush
28140-0D130 Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1ZRFAE ZRE185 —
28140-0N120 note Holder Assy, Starter Brush
2012-10 → 2014-10 ended
1NDTV NDE180 LHD 6F —
28140-0N120 note Holder Assy, Starter Brush
2014-05 → 2014-10 ended
1NDTV NDE180 RHD 6F —
28140-0N120 note Holder Assy, Starter Brush
2014-05 → 2014-10 ended
1NDTV NDE180 RHD 6F —
28140-0N120 note Holder Assy, Starter Brush
2012-10 → 2014-10 ended
1NDTV NDE180 LHD 6F —
28140-0N120 note Holder Assy, Starter Brush
2012-10 → 2014-10 ended
1NDTV NDE180 LHD 6F —
28140-0N120 Holder Assy, Starter Brush
2012-10 → 2014-05 ended
1NDTV NDE180 RHD 6F —
28140-21070 Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28140-21070 Holder Assy, Starter Brush
2014-05 → 2015-05 ended
1NRFE NRE180 RHD —
28140-21100 note Holder Assy, Starter Brush
2014-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28140-21100 note Holder Assy, Starter Brush
2014-10 → 2015-05 ended
1NDTV NDE180 6F —
28140-21100 note Holder Assy, Starter Brush
2014-10 → 2015-05 ended
1NDTV NDE180 6F —
28140-37050 Holder Assy, Starter Brush
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28140-37050 Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28140-37050 Holder Assy, Starter Brush
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28140-38070 note Holder Assy, Starter Brush
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28140-38070 note Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1NDTV NDE180 LHD —
28140-38070 note Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28140-38070 note Holder Assy, Starter Brush
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28140-47110 note Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28140-47110 note Holder Assy, Starter Brush
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28140-47110 Holder Assy, Starter Brush
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28140-47110 note Holder Assy, Starter Brush
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28140-0D130 Holder Assy, Starter Brush
2015-05 → —
1ZRFAE ZRE185;8NRFTS NRE185 6F —
28140-0X040 Holder Assy, Starter Brush
2015-05 → 2018-04 ended
1WW WWE185 —
28140-21070 Holder Assy, Starter Brush
2015-05 → —
1NRFE NRE180 —
28140-21100 Holder Assy, Starter Brush
2015-05 → —
8NRFTS NRE185 CVT —
28140-21100 note Holder Assy, Starter Brush
2015-05 → —
1NDTV,8NRFTS NDE180,NRE185 6F —
28140-21100 note Holder Assy, Starter Brush
2015-05 → —
1NDTV NDE180 LHD —
28140-21100 note Holder Assy, Starter Brush
2015-05 → —
1NDTV NDE180 —
28140-37050 Holder Assy, Starter Brush
2015-05 → —
1NDTV NDE180 —
28140-38070 note Holder Assy, Starter Brush
2015-05 → —
1NDTV NDE180 LHD —
28140-38070 note Holder Assy, Starter Brush
2015-05 → —
1NDTV NDE180 —
28160 — Armature Assy, Starter
28160-0D130 Armature Assy, Starter
2012-10 → 2015-05 ended
1ZRFAE ZRE185 —
28160-0N110 note Armature Assy, Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28160-0N110 note Armature Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28160-0N110 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD —
28160-0N110 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28160-21070 Armature Assy, Starter
2014-05 → 2015-05 ended
1NRFE NRE180 RHD —
28160-21070 Armature Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28160-21080 note Armature Assy, Starter
2014-05 → 2015-05 ended
1NRFE NRE180 RHD —
28160-21080 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28160-21080 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28160-26190 Armature Assy, Starter
2012-10 → 2015-05 ended
1ADFTV ADE186 —
28160-33090 Armature Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28160-33090 Armature Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28160-33090 Armature Assy, Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28160-38070 note Armature Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28160-38070 note Armature Assy, Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28160-38070 Armature Assy, Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD 6F —
28160-38070 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28160-38070 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28160-38070 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD 6F —
28180-47110 Armature Assy, Starter
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28180-47110 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28180-47110 note Armature Assy, Starter
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28180-47110 note Armature Assy, Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28160-0D130 Armature Assy, Starter
2015-05 → —
1ZRFAE ZRE185;8NRFTS NRE185 6F —
28160-0N110 note Armature Assy, Starter
2015-05 → 2018-07 ended
1NDTV NDE180 —
28160-0N110 note Armature Assy, Starter
2015-05 → 2018-07 ended
1NDTV NDE180 LHD —
28160-0X040 Armature Assy, Starter
2015-05 → 2018-04 ended
1WW WWE185 —
28160-21070 Armature Assy, Starter
2015-05 → —
1NRFE NRE180 —
28160-21080 note Armature Assy, Starter
2015-05 → 2018-04 ended
1NRFE NRE180 LHD —
28160-21080 note Armature Assy, Starter
2015-05 → 2018-04 ended
1NRFE NRE180 —
28160-26180 note Armature Assy, Starter
2015-05 → 2018-11 ended
1NDTV NDE180 LHD —
28160-26180 note Armature Assy, Starter
2015-05 → 2018-11 ended
1NDTV NDE180 —
28160-33090 Armature Assy, Starter
2015-05 → —
1NDTV NDE180 —
28160-38070 note Armature Assy, Starter
2015-05 → 2018-01 ended
1NDTV,8NRFTS NDE180,NRE185 6F —
28160-38070 note Armature Assy, Starter
2015-05 → 2018-01 ended
1NDTV NDE180 —
28160-38070 note Armature Assy, Starter
2015-05 → 2018-01 ended
1NDTV NDE180 LHD —
28160-38070 Armature Assy, Starter
2015-05 → 2018-01 ended
8NRFTS NRE185 CVT —
28160-38080 Armature Assy, Starter
2018-01 → —
8NRFTS NRE185 CVT —
28160-38080 note Armature Assy, Starter
2018-01 → —
1NDTV NDE180 —
28160-38080 note Armature Assy, Starter
2018-01 → —
1NDTV,8NRFTS NDE180,NRE185 6F —
28160-38080 note Armature Assy, Starter
2018-01 → —
1NDTV NDE180 LHD —
28199A — Protector, Dust Starter
28199-31090 Protector, Dust Starter
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28199-31090 note Protector, Dust Starter
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28199-31090 note Protector, Dust Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28199-31090 note Protector, Dust Starter
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28199-33110 Protector, Dust Starter
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28199-33110 Protector, Dust Starter
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28199-33110 Protector, Dust Starter
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28199-33110 Protector, Dust Starter
2015-05 → —
1NDTV NDE180 —
28226B — Starter Kit, Repair Service
28226-47170 Starter Kit, Repair Service
2014-05 → 2015-05 ended
1NRFE NRE180 RHD —
28226-47170 Starter Kit, Repair Service
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28226-47190 note Starter Kit, Repair Service
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28226-47190 note Starter Kit, Repair Service
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28226-47190 note Starter Kit, Repair Service
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28226-47190 Starter Kit, Repair Service
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28226-0X040 Starter Kit, Repair Service
2015-05 → 2018-04 ended
1WW WWE185 —
28226-47170 Starter Kit, Repair Service
2015-05 → 2016-12 ended
1NRFE NRE180 —
28255 — Gear, Planet
28255-33090 Gear, Planet
2012-10 → 2014-05 ended
1NDTV NDE180 RHD HB +1 —
28255-33090 Gear, Planet
2012-10 → 2015-05 ended
1NDTV NDE180 LHD;1NDTV NDE180 +2 —
28255-33090 Gear, Planet
2014-05 → 2015-05 ended
1NDTV NDE180 RHD 6F —
28255-47110 Gear, Planet
2012-10 → 2014-05 ended
1NRFE NRE180 RHD —
28255-47110 note Gear, Planet
2012-10 → 2014-10 ended
1NRFE NRE180 LHD —
28255-47110 note Gear, Planet
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28255-47110 note Gear, Planet
2012-10 → 2015-05 ended
1NRFE NRE180 LHD —
28255-33090 Gear, Planet
2015-05 → —
1NDTV NDE180 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
