Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

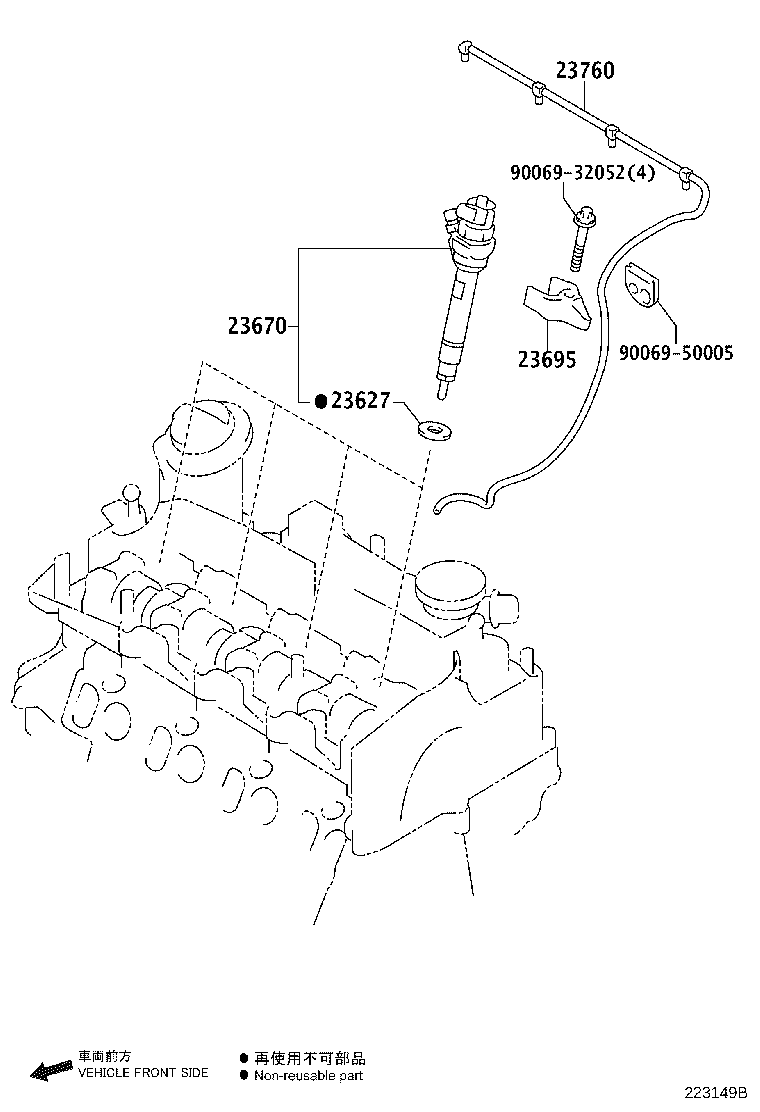

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23627 — Ring, Packing, NO.1(FOR NOZZLE) | ||||
| 23291-WA010 |
Ring, Packing, NO.1(FOR NOZZLE)
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 23670 — Injector Assy | ||||
| 23670-09390 |
Injector Assy
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 23670-29115 |
Injector Assy
2012-10 → 2014-03
ended
|
1ADFTV ADE186 | — | |
| 23670-29116 |
Injector Assy
2014-03 → —
|
1ADFTV ADE186 | — | |
| 23670-09410 |
Injector Assy
2015-05 → —
|
1NDTV NDE180 | — | |
| 23670-WA020 |
Injector Assy
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 23695 — Clamp, Nozzle Holder, NO.1 | ||||
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2012-10 → —
|
1ADFTV ADE186 | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2015-05 → —
|
1NDTV NDE180 | — | |
| 23695-WA010 |
Clamp, Nozzle Holder, NO.1
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 23760 — Pipe Assy, Nozzle Leakage | ||||
| 23760-0W010 |
Pipe Assy, Nozzle Leakage
2012-10 → 2015-05
ended
|
1NDTV NDE180 | — | |
| 23760-0N030 |
Pipe Assy, Nozzle Leakage
2015-05 → —
|
1NDTV NDE180 | — | |
| 23761-WA021 |
Pipe Assy, Nozzle Leakage
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
