Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

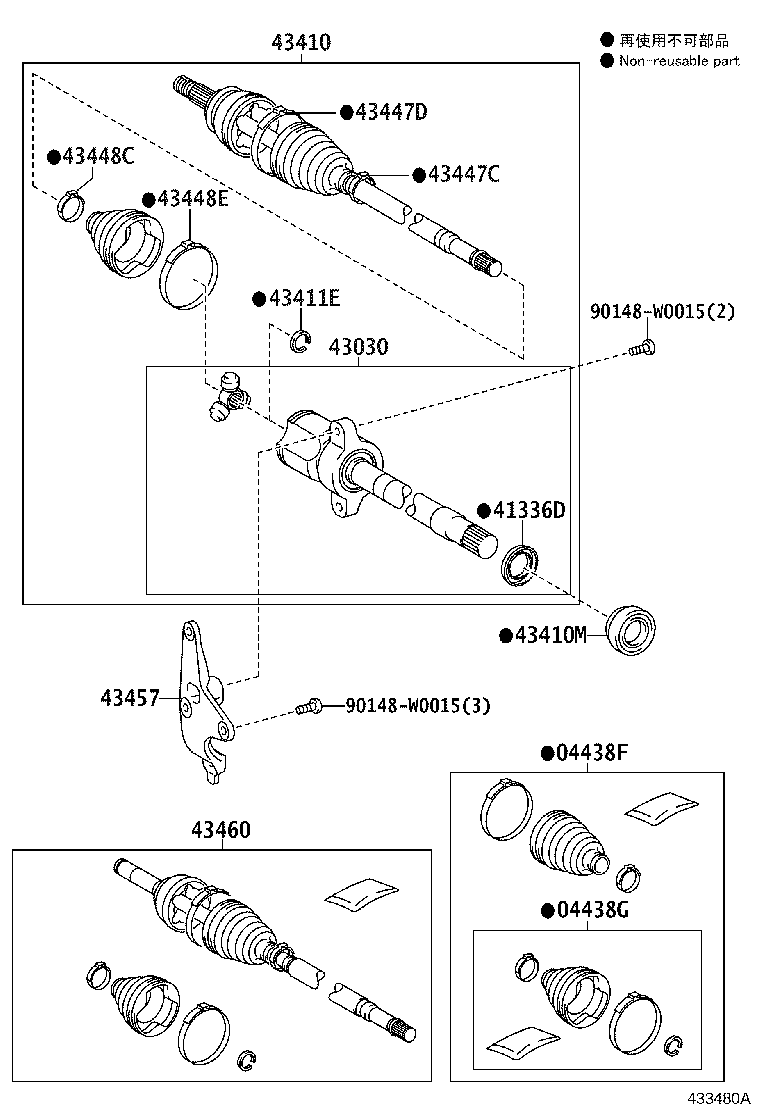

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH | ||||
| 04427-02580 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 04427-02590 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 04427-02580 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-05 → —
|
NRE180 | — | |
| 04427-05290 |
Boot Kit, Front Drive Shaft, IN & Outboard, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH | ||||
| 04437-02420 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 04437-02430 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 04437-02440 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 04437-02450 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 04437-0F010 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 04437-02420 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-05 → —
|
NRE180 | — | |
| 04437-02430 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 04437-02450 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-05 → —
|
ZWE186 | — | |
| 04437-0F010 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-05 → —
|
NDE180 | — | |
| 04438-0F050 |
Boot Kit, Front Drive Shaft Inboard Joint, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 41336D — Cover, Front Drive Shaft Dust, RH | ||||
| 41336-05010 |
Cover, Front Drive Shaft Dust, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 41336-05080 |
Cover, Front Drive Shaft Dust, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 41336-05100 |
Cover, Front Drive Shaft Dust, RH
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 41336-05140 |
Cover, Front Drive Shaft Dust, RH
2012-10 → 2015-05
ended
|
NDE180,ZRE185 | — | |
| 41336-05010 |
Cover, Front Drive Shaft Dust, RH
2015-05 → —
|
NRE180 | — | |
| 41336-05080 |
Cover, Front Drive Shaft Dust, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 41336-05100 |
Cover, Front Drive Shaft Dust, RH
2015-05 → —
|
ZWE186 | — | |
| 41336-05140 |
Cover, Front Drive Shaft Dust, RH
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 41336-05140 |
Cover, Front Drive Shaft Dust, RH
2015-05 → —
|
NDE180 | — | |
| 43030 — Joint Assy, Front Drive Inboard, RH | ||||
| 43030-02100 |
Joint Assy, Front Drive Inboard, RH
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 43030-05240 |
Joint Assy, Front Drive Inboard, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 43040-02030 |
Joint Assy, Front Drive Inboard, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 43040-05150 |
Joint Assy, Front Drive Inboard, RH
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 43040-0F020 |
Joint Assy, Front Drive Inboard, RH
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 43030-02100 |
Joint Assy, Front Drive Inboard, RH
2015-05 → —
|
ZWE186 | — | |
| 43030-0F020 |
Joint Assy, Front Drive Inboard, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 43040-02030 |
Joint Assy, Front Drive Inboard, RH
2015-05 → —
|
NRE180 | — | |
| 43040-05150 |
Joint Assy, Front Drive Inboard, RH
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 43040-0F020 |
Joint Assy, Front Drive Inboard, RH
2015-05 → —
|
NDE180 | — | |
| 43410 — Shaft Assy, Front Drive, RH | ||||
| 43410-02820 |
Shaft Assy, Front Drive, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 43410-02830 |
Shaft Assy, Front Drive, RH
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 43410-02840 |
Shaft Assy, Front Drive, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 43410-02850 |
Shaft Assy, Front Drive, RH
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 43410-0F041 |
Shaft Assy, Front Drive, RH
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 43410-02820 |
Shaft Assy, Front Drive, RH
2015-05 → —
|
NRE180 | — | |
| 43410-02850 |
Shaft Assy, Front Drive, RH
2015-05 → —
|
ZWE186 | — | |
| 43410-02890 |
Shaft Assy, Front Drive, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 43410-02B50 |
Shaft Assy, Front Drive, RH
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 43410-0F042 |
Shaft Assy, Front Drive, RH
2016-09 → —
|
NDE180 | — | |
| 43410-0F090 |
Shaft Assy, Front Drive, RH
2015-05 → 2016-08
ended
|
NDE180 | — | |
| 43410M — Oil Seal, Front Drive Shaft, RH | ||||
| 90311-34041 |
Oil Seal, Front Drive Shaft, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 90311-35055 |
Oil Seal, Front Drive Shaft, RH
2012-10 → 2015-04
ended
|
ZRE185 CVT | — | |
| 90311-35065 |
Oil Seal, Front Drive Shaft, RH
2012-10 → 2015-05
ended
|
NDE180,ZRE185 MTM | — | |
| 90311-40036 |
Oil Seal, Front Drive Shaft, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 90311-40037 |
Oil Seal, Front Drive Shaft, RH
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 90311-34041 |
Oil Seal, Front Drive Shaft, RH
2015-05 → 2018-11
ended
|
NRE180 | — | |
| 90311-35065 |
Oil Seal, Front Drive Shaft, RH
2015-05 → 2018-11
ended
|
NDE180,NRE185,ZRE185 6F | — | |
| 90311-35069 |
Oil Seal, Front Drive Shaft, RH
2015-05 → 2018-07
ended
|
ZRE185 CVT | — | |
| 90311-35069 |
Oil Seal, Front Drive Shaft, RH
2015-05 → 2018-08
ended
|
NRE185 CVT | — | |
| 90311-35076 |
Oil Seal, Front Drive Shaft, RH
2018-08 → 2018-11
ended
|
ZRE185 CVT | — | |
| 90311-35076 |
Oil Seal, Front Drive Shaft, RH
2018-09 → 2018-11
ended
|
NRE185 CVT | — | |
| 90311-40036 |
Oil Seal, Front Drive Shaft, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 90311-40037 |
Oil Seal, Front Drive Shaft, RH
2015-05 → 2018-11
ended
|
ZWE186 | — | |
| 43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 43425-02230 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 43425-05080 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 43425-05110 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 43425-05120 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 90080-52093 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 43425-02230 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-05 → —
|
ZWE186 | — | |
| 43425-05080 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 43425-05120 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-05 → —
|
NDE180 | — | |
| 43425-0F050 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 90080-52093 |
Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2015-05 → —
|
NRE180 | — | |
| 43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-02110 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NDE180,ZRE185 | — | |
| 42345-02820 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 42345-05140 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 42345-05230 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 42345-02110 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 42345-02110 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → —
|
NDE180 | — | |
| 42345-02820 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → —
|
ZWE186 | — | |
| 42345-05140 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → —
|
NRE180 | — | |
| 42345-05230 |
Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 42345-02100 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NDE180,ZRE185 | — | |
| 42345-02810 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 42345-05130 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 42345-05240 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 42345-02100 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 42345-02100 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → —
|
NDE180 | — | |
| 42345-02810 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → —
|
ZWE186 | — | |
| 42345-05130 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → —
|
NRE180 | — | |
| 42345-05240 |
Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02240 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 42345-05250 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 42345-05340 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 42345-05350 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 42345-0F060 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 42345-02090 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 42345-02240 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → —
|
NRE180 | — | |
| 42345-05250 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → —
|
ZWE186 | — | |
| 42345-05340 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 42345-0F060 |
Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → —
|
NDE180 | — | |
| 43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-02830 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 42345-05030 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 42345-05320 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 42345-05330 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 42345-0F050 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 42345-02830 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → —
|
ZWE186 | — | |
| 42345-05030 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → —
|
NRE180 | — | |
| 42345-05300 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 42345-05320 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 42345-0F050 |
Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2015-05 → —
|
NDE180 | — | |
| 43457 — Bracket, Drive Shaft Bearing | ||||
| 43457-05050 |
Bracket, Drive Shaft Bearing
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 43457-0F040 |
Bracket, Drive Shaft Bearing
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 43460 — Shaft Assy, Front Drive Outboard Joint, RH | ||||
| 43460-09U11 |
Shaft Assy, Front Drive Outboard Joint, RH
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 43460-09V80 |
Shaft Assy, Front Drive Outboard Joint, RH
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 43460-09V90 |
Shaft Assy, Front Drive Outboard Joint, RH
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 43460-09W00 |
Shaft Assy, Front Drive Outboard Joint, RH
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 43460-09W10 |
Shaft Assy, Front Drive Outboard Joint, RH
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 43460-09U11 |
Shaft Assy, Front Drive Outboard Joint, RH
2015-05 → —
|
NDE180 | — | |
| 43460-09V80 |
Shaft Assy, Front Drive Outboard Joint, RH
2015-05 → —
|
NRE180 | — | |
| 43460-09V90 |
Shaft Assy, Front Drive Outboard Joint, RH
2015-05 → 2018-11
ended
|
NRE185,ZRE185 | — | |
| 43460-09W10 |
Shaft Assy, Front Drive Outboard Joint, RH
2015-05 → 2017-01
ended
|
ZWE186 | — | |
| 43460-09W11 |
Shaft Assy, Front Drive Outboard Joint, RH
2017-01 → —
|
ZWE186 | — | |
| 43460-09Y80 |
Shaft Assy, Front Drive Outboard Joint, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
