Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

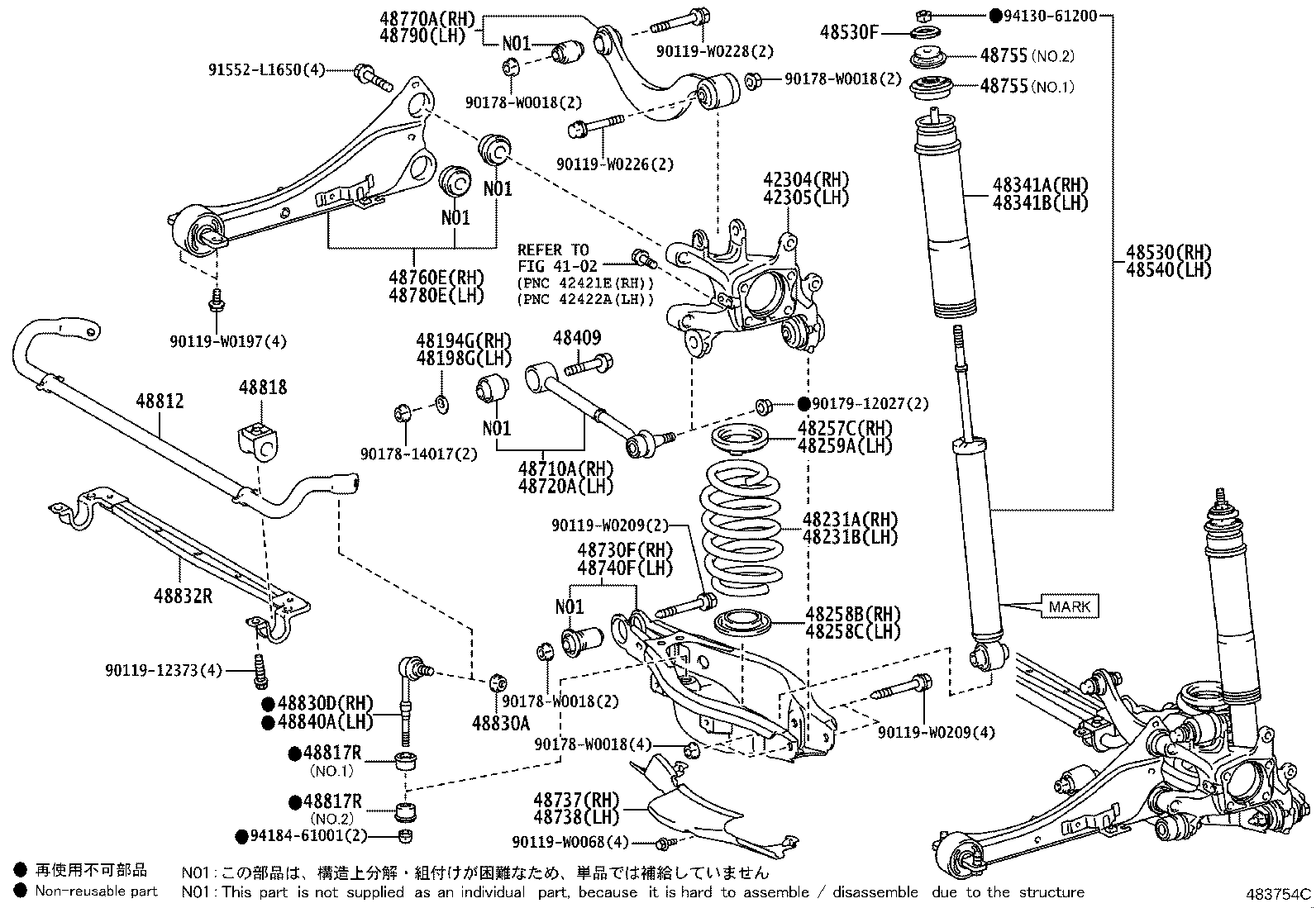

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42304 — Carrier Sub-assy, Rear Axle, RH | ||||
| 42304-02140 |
Carrier Sub-assy, Rear Axle, RH
2012-10 → 2015-04
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 42304-02140 |
Carrier Sub-assy, Rear Axle, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 42304-02140 |
Carrier Sub-assy, Rear Axle, RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 42305 — Carrier Sub-assy, Rear Axle, LH | ||||
| 42305-02140 |
Carrier Sub-assy, Rear Axle, LH
2012-10 → 2015-04
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 42305-02140 |
Carrier Sub-assy, Rear Axle, LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 42305-02140 |
Carrier Sub-assy, Rear Axle, LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48194G — Cam, Rear Suspension Camber Adjust, NO.1 RH | ||||
| 48198-42010 |
Cam, Rear Suspension Camber Adjust, NO.1 RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48198-42010 |
Cam, Rear Suspension Camber Adjust, NO.1 RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48198-42010 |
Cam, Rear Suspension Camber Adjust, NO.1 RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48198G — Cam, Rear Suspension Camber Adjust, NO.1 LH | ||||
| 48198-42010 |
Cam, Rear Suspension Camber Adjust, NO.1 LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48198-42010 |
Cam, Rear Suspension Camber Adjust, NO.1 LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48198-42010 |
Cam, Rear Suspension Camber Adjust, NO.1 LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48231A — Spring, Coil, Rear RH | ||||
| 48231-02870 |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
NDE180,NRE180 HB | — | |
| 48231-02B70 |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
ZRE185 HB | — | |
| 48231-02B80 |
Spring, Coil, Rear RH
2013-06 → 2015-05
ended
|
ADE186 WG | — | |
| 48231-02B90 |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
ADE186 HB | — | |
| 48231-02C00 |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
ZRE185 WG;ZWE186 HB | — | |
| 48231-02C10 |
Spring, Coil, Rear RH
2013-06 → 2015-05
ended
|
ZWE186 WG | — | |
| 48231-02C20 note |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
NRE180 LHD HB | — | |
| 48231-02C40 note |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
ZRE185 LHD HB | — | |
| 48231-02C60 note |
Spring, Coil, Rear RH
2012-10 → 2015-05
ended
|
ZWE186 LHD HB | — | |
| 48231-02J00 |
Spring, Coil, Rear RH
2013-06 → 2015-05
ended
|
NDE180,NRE180 WG D | — | |
| 48231-02J10 |
Spring, Coil, Rear RH
2013-06 → 2015-05
ended
|
NDE180,NRE180 WG N | — | |
| 48231-02870 |
Spring, Coil, Rear RH
2015-05 → 2016-07
ended
|
NDE180,NRE180 HB | — | |
| 48231-02871 |
Spring, Coil, Rear RH
2016-08 → —
|
NDE180,NRE180 HB | — | |
| 48231-02B70 |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
NRE185,ZRE185 HB | — | |
| 48231-02B71 |
Spring, Coil, Rear RH
2016-07 → —
|
NRE185,ZRE185 HB | — | |
| 48231-02B80 |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
WWE185 WG | — | |
| 48231-02B81 |
Spring, Coil, Rear RH
2016-07 → 2018-04
ended
|
WWE185 WG | — | |
| 48231-02B90 |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
WWE185 HB | — | |
| 48231-02B91 |
Spring, Coil, Rear RH
2016-07 → 2018-04
ended
|
WWE185 HB | — | |
| 48231-02C00 |
Spring, Coil, Rear RH
2015-05 → 2016-07
ended
|
ZWE186 HB;NRE185,ZRE185 WG | — | |
| 48231-02C01 |
Spring, Coil, Rear RH
2016-08 → —
|
ZWE186 HB;NRE185,ZRE185 WG | — | |
| 48231-02C10 |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
ZWE186 WG | — | |
| 48231-02C11 |
Spring, Coil, Rear RH
2016-07 → —
|
ZWE186 WG | — | |
| 48231-02C20 note |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
NDE180,NRE180 LHD HB | — | |
| 48231-02C21 note |
Spring, Coil, Rear RH
2016-07 → —
|
NDE180,NRE180 LHD HB | — | |
| 48231-02C40 note |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
NRE185,WWE185,ZRE185 LHD HB | — | |
| 48231-02C41 note |
Spring, Coil, Rear RH
2016-07 → 2018-04
ended
|
WWE185 LHD HB | — | |
| 48231-02C41 note |
Spring, Coil, Rear RH
2016-07 → —
|
NRE185,ZRE185 LHD HB | — | |
| 48231-02C60 note |
Spring, Coil, Rear RH
2015-05 → 2016-06
ended
|
ZWE186 LHD HB | — | |
| 48231-02C61 note |
Spring, Coil, Rear RH
2016-07 → —
|
ZWE186 LHD HB | — | |
| 48231-02J00 |
Spring, Coil, Rear RH
2015-05 → 2016-07
ended
|
NDE180,NRE180 WG D | — | |
| 48231-02J01 |
Spring, Coil, Rear RH
2016-08 → —
|
NDE180,NRE180 WG D | — | |
| 48231-02J10 |
Spring, Coil, Rear RH
2015-05 → 2016-07
ended
|
NDE180,NRE180 WG (G,N,S) | — | |
| 48231-02J11 |
Spring, Coil, Rear RH
2016-08 → —
|
NDE180,NRE180 WG (G,N,S) | — | |
| 48231B — Spring, Coil, Rear LH | ||||
| 48231-02870 |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
NDE180,NRE180 HB | — | |
| 48231-02B70 |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
ZRE185 HB | — | |
| 48231-02B80 |
Spring, Coil, Rear LH
2013-06 → 2015-05
ended
|
ADE186 WG | — | |
| 48231-02B90 |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
ADE186 HB | — | |
| 48231-02C00 |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
ZRE185 WG;ZWE186 HB | — | |
| 48231-02C10 |
Spring, Coil, Rear LH
2013-06 → 2015-05
ended
|
ZWE186 WG | — | |
| 48231-02C20 note |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
NRE180 LHD HB | — | |
| 48231-02C40 note |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
ZRE185 LHD HB | — | |
| 48231-02C60 note |
Spring, Coil, Rear LH
2012-10 → 2015-05
ended
|
ZWE186 LHD HB | — | |
| 48231-02J00 |
Spring, Coil, Rear LH
2013-06 → 2015-05
ended
|
NDE180,NRE180 WG D | — | |
| 48231-02J10 |
Spring, Coil, Rear LH
2013-06 → 2015-05
ended
|
NDE180,NRE180 WG N | — | |
| 48231-02870 |
Spring, Coil, Rear LH
2015-05 → 2016-07
ended
|
NDE180,NRE180 HB | — | |
| 48231-02871 |
Spring, Coil, Rear LH
2016-08 → —
|
NDE180,NRE180 HB | — | |
| 48231-02B70 |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
NRE185,ZRE185 HB | — | |
| 48231-02B71 |
Spring, Coil, Rear LH
2016-07 → —
|
NRE185,ZRE185 HB | — | |
| 48231-02B80 |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
WWE185 WG | — | |
| 48231-02B81 |
Spring, Coil, Rear LH
2016-07 → 2018-04
ended
|
WWE185 WG | — | |
| 48231-02B90 |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
WWE185 HB | — | |
| 48231-02B91 |
Spring, Coil, Rear LH
2016-07 → 2018-04
ended
|
WWE185 HB | — | |
| 48231-02C00 |
Spring, Coil, Rear LH
2015-05 → 2016-07
ended
|
ZWE186 HB;NRE185,ZRE185 WG | — | |
| 48231-02C01 |
Spring, Coil, Rear LH
2016-08 → —
|
ZWE186 HB;NRE185,ZRE185 WG | — | |
| 48231-02C10 |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
ZWE186 WG | — | |
| 48231-02C11 |
Spring, Coil, Rear LH
2016-07 → —
|
ZWE186 WG | — | |
| 48231-02C20 note |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
NDE180,NRE180 LHD HB | — | |
| 48231-02C21 note |
Spring, Coil, Rear LH
2016-07 → —
|
NDE180,NRE180 LHD HB | — | |
| 48231-02C40 note |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
NRE185,WWE185,ZRE185 LHD HB | — | |
| 48231-02C41 note |
Spring, Coil, Rear LH
2016-07 → 2018-04
ended
|
WWE185 LHD HB | — | |
| 48231-02C41 note |
Spring, Coil, Rear LH
2016-07 → —
|
NRE185,ZRE185 LHD HB | — | |
| 48231-02C60 note |
Spring, Coil, Rear LH
2015-05 → 2016-06
ended
|
ZWE186 LHD HB | — | |
| 48231-02C61 note |
Spring, Coil, Rear LH
2016-07 → —
|
ZWE186 LHD HB | — | |
| 48231-02J00 |
Spring, Coil, Rear LH
2015-05 → 2016-07
ended
|
NDE180,NRE180 WG D | — | |
| 48231-02J01 |
Spring, Coil, Rear LH
2016-08 → —
|
NDE180,NRE180 WG D | — | |
| 48231-02J10 |
Spring, Coil, Rear LH
2015-05 → 2016-07
ended
|
NDE180,NRE180 WG (G,N,S) | — | |
| 48231-02J11 |
Spring, Coil, Rear LH
2016-08 → —
|
NDE180,NRE180 WG (G,N,S) | — | |
| 48257C — Insulator, Rear Coil Spring, Upper RH | ||||
| 48257-0D010 |
Insulator, Rear Coil Spring, Upper RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 48257-0D010 |
Insulator, Rear Coil Spring, Upper RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48257-0D010 |
Insulator, Rear Coil Spring, Upper RH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48258B — Insulator, Rear Coil Spring, Lower RH | ||||
| 48258-05020 |
Insulator, Rear Coil Spring, Lower RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48258-0D050 |
Insulator, Rear Coil Spring, Lower RH
2012-10 → 2015-05
ended
|
NDE180,NRE180 | — | |
| 48258-05020 |
Insulator, Rear Coil Spring, Lower RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48258-05020 |
Insulator, Rear Coil Spring, Lower RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48258-0D050 |
Insulator, Rear Coil Spring, Lower RH
2015-05 → —
|
NDE180,NRE180 | — | |
| 48258C — Insulator, Rear Coil Spring, Lower LH | ||||
| 48258-05020 |
Insulator, Rear Coil Spring, Lower LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48258-0D050 |
Insulator, Rear Coil Spring, Lower LH
2012-10 → 2015-05
ended
|
NDE180,NRE180 | — | |
| 48258-05020 |
Insulator, Rear Coil Spring, Lower LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48258-05020 |
Insulator, Rear Coil Spring, Lower LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48258-0D050 |
Insulator, Rear Coil Spring, Lower LH
2015-05 → —
|
NDE180,NRE180 | — | |
| 48259A — Insulator, Rear Coil Spring, Upper LH | ||||
| 48257-0D010 |
Insulator, Rear Coil Spring, Upper LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 48257-0D010 |
Insulator, Rear Coil Spring, Upper LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48257-0D010 |
Insulator, Rear Coil Spring, Upper LH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48341A — Bumper, Rear Spring, NO.1 RH | ||||
| 48341-02080 |
Bumper, Rear Spring, NO.1 RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 48341-02080 |
Bumper, Rear Spring, NO.1 RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48341-02080 |
Bumper, Rear Spring, NO.1 RH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48341B — Bumper, Rear Spring, NO.1 LH | ||||
| 48341-02080 |
Bumper, Rear Spring, NO.1 LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 48341-02080 |
Bumper, Rear Spring, NO.1 LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48341-02080 |
Bumper, Rear Spring, NO.1 LH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48409 — Cam Sub-assy, Rear Suspension Toe Adjust | ||||
| 48409-42030 |
Cam Sub-assy, Rear Suspension Toe Adjust
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48409-42030 |
Cam Sub-assy, Rear Suspension Toe Adjust
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48409-42030 |
Cam Sub-assy, Rear Suspension Toe Adjust
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48530 — Absorber Assy, Shock, Rear RH | ||||
| 48530-09W10 note |
Absorber Assy, Shock, Rear RH
2012-10 → 2014-11
ended
|
NDE180,NRE180 HB | — | |
| 48530-09W11 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
NDE180,NRE180 HB | — | |
| 48530-09W20 note |
Absorber Assy, Shock, Rear RH
2013-06 → 2014-11
ended
|
NDE180,NRE180 WG | — | |
| 48530-09W21 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
NDE180,NRE180 WG | — | |
| 48530-09W30 note |
Absorber Assy, Shock, Rear RH
2012-10 → 2014-11
ended
|
ADE186,ZRE185 HB | — | |
| 48530-09W31 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
ADE186,ZRE185 HB | — | |
| 48530-09W40 note |
Absorber Assy, Shock, Rear RH
2013-06 → 2014-11
ended
|
ADE186,ZRE185 WG | — | |
| 48530-09W41 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
ADE186,ZRE185 WG | — | |
| 48530-09W50 note |
Absorber Assy, Shock, Rear RH
2012-10 → 2014-11
ended
|
ZWE186 HB | — | |
| 48530-09W51 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
ZWE186 HB | — | |
| 48530-09W60 note |
Absorber Assy, Shock, Rear RH
2013-06 → 2014-11
ended
|
ZWE186 WG | — | |
| 48530-09W61 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
ZWE186 WG | — | |
| 48530-09W70 note |
Absorber Assy, Shock, Rear RH
2012-10 → 2014-11
ended
|
NRE180 LHD HB | — | |
| 48530-09W72 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
NRE180 LHD HB | — | |
| 48530-09W90 note |
Absorber Assy, Shock, Rear RH
2012-10 → 2014-11
ended
|
ZRE185 LHD HB | — | |
| 48530-09W91 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
ZRE185 LHD HB | — | |
| 48530-09X20 note |
Absorber Assy, Shock, Rear RH
2012-10 → 2014-11
ended
|
ZWE186 LHD HB | — | |
| 48530-09X21 note |
Absorber Assy, Shock, Rear RH
2014-11 → 2015-05
ended
|
ZWE186 LHD HB | — | |
| 48530-09W71 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
NDE180,NRE180 LHD HB | — | |
| 48530-8Z023 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
NDE180,NRE180 HB | — | |
| 48530-8Z024 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
NDE180,NRE180 WG | — | |
| 48530-8Z025 note |
Absorber Assy, Shock, Rear RH
2015-05 → 2018-04
ended
|
WWE185 HB | — | |
| 48530-8Z025 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
NRE185,ZRE185 HB | — | |
| 48530-8Z026 note |
Absorber Assy, Shock, Rear RH
2015-05 → 2018-04
ended
|
WWE185 WG | — | |
| 48530-8Z026 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
NRE185,ZRE185 WG | — | |
| 48530-8Z027 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
ZWE186 HB | — | |
| 48530-8Z028 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
ZWE186 WG | — | |
| 48530-8Z030 note |
Absorber Assy, Shock, Rear RH
2015-05 → 2018-04
ended
|
WWE185 LHD HB | — | |
| 48530-8Z030 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
NRE185,ZRE185 LHD HB | — | |
| 48530-8Z031 note |
Absorber Assy, Shock, Rear RH
2015-05 → —
|
ZWE186 LHD HB | — | |
| 48530F — Retainer, Shock Absorber Cushion(FOR REAR) | ||||
| 90948-02159 |
Retainer, Shock Absorber Cushion(FOR REAR)
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 90948-02159 |
Retainer, Shock Absorber Cushion(FOR REAR)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 90948-02159 |
Retainer, Shock Absorber Cushion(FOR REAR)
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48540 — Absorber Assy, Shock, Rear LH | ||||
| 48530-09W10 note |
Absorber Assy, Shock, Rear LH
2012-10 → 2014-11
ended
|
NDE180,NRE180 HB | — | |
| 48530-09W11 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
NDE180,NRE180 HB | — | |
| 48530-09W20 note |
Absorber Assy, Shock, Rear LH
2013-06 → 2014-11
ended
|
NDE180,NRE180 WG | — | |
| 48530-09W21 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
NDE180,NRE180 WG | — | |
| 48530-09W30 note |
Absorber Assy, Shock, Rear LH
2012-10 → 2014-11
ended
|
ADE186,ZRE185 HB | — | |
| 48530-09W31 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
ADE186,ZRE185 HB | — | |
| 48530-09W40 note |
Absorber Assy, Shock, Rear LH
2013-06 → 2014-11
ended
|
ADE186,ZRE185 WG | — | |
| 48530-09W41 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
ADE186,ZRE185 WG | — | |
| 48530-09W50 note |
Absorber Assy, Shock, Rear LH
2012-10 → 2014-11
ended
|
ZWE186 HB | — | |
| 48530-09W51 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
ZWE186 HB | — | |
| 48530-09W60 note |
Absorber Assy, Shock, Rear LH
2013-06 → 2014-11
ended
|
ZWE186 WG | — | |
| 48530-09W61 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
ZWE186 WG | — | |
| 48530-09W70 note |
Absorber Assy, Shock, Rear LH
2012-10 → 2014-11
ended
|
NRE180 LHD HB | — | |
| 48530-09W72 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
NRE180 LHD HB | — | |
| 48530-09W90 note |
Absorber Assy, Shock, Rear LH
2012-10 → 2014-11
ended
|
ZRE185 LHD HB | — | |
| 48530-09W91 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
ZRE185 LHD HB | — | |
| 48530-09X20 note |
Absorber Assy, Shock, Rear LH
2012-10 → 2014-11
ended
|
ZWE186 LHD HB | — | |
| 48530-09X21 note |
Absorber Assy, Shock, Rear LH
2014-11 → 2015-05
ended
|
ZWE186 LHD HB | — | |
| 48530-09W71 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
NDE180,NRE180 LHD HB | — | |
| 48530-8Z023 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
NDE180,NRE180 HB | — | |
| 48530-8Z024 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
NDE180,NRE180 WG | — | |
| 48530-8Z025 note |
Absorber Assy, Shock, Rear LH
2015-05 → 2018-04
ended
|
WWE185 HB | — | |
| 48530-8Z025 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
NRE185,ZRE185 HB | — | |
| 48530-8Z026 note |
Absorber Assy, Shock, Rear LH
2015-05 → 2018-04
ended
|
WWE185 WG | — | |
| 48530-8Z026 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
NRE185,ZRE185 WG | — | |
| 48530-8Z027 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
ZWE186 HB | — | |
| 48530-8Z028 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
ZWE186 WG | — | |
| 48530-8Z030 note |
Absorber Assy, Shock, Rear LH
2015-05 → 2018-04
ended
|
WWE185 LHD HB | — | |
| 48530-8Z030 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
NRE185,ZRE185 LHD HB | — | |
| 48530-8Z031 note |
Absorber Assy, Shock, Rear LH
2015-05 → —
|
ZWE186 LHD HB | — | |
| 48710A — Arm Assy, Rear Suspension, NO.1 RH | ||||
| 48710-05090 |
Arm Assy, Rear Suspension, NO.1 RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48710-05090 |
Arm Assy, Rear Suspension, NO.1 RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48710-05090 |
Arm Assy, Rear Suspension, NO.1 RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48720A — Arm Assy, Rear Suspension, NO.1 LH | ||||
| 48710-05090 |
Arm Assy, Rear Suspension, NO.1 LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48710-05090 |
Arm Assy, Rear Suspension, NO.1 LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48710-05090 |
Arm Assy, Rear Suspension, NO.1 LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48730F — Arm Assy, Rear Suspension, NO.2 RH | ||||
| 48730-05070 |
Arm Assy, Rear Suspension, NO.2 RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48730-05070 |
Arm Assy, Rear Suspension, NO.2 RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48730-05070 |
Arm Assy, Rear Suspension, NO.2 RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48737 — Cover, Rear Suspension Arm, RH | ||||
| 48737-05010 |
Cover, Rear Suspension Arm, RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48737-05010 |
Cover, Rear Suspension Arm, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48737-05010 |
Cover, Rear Suspension Arm, RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48738 — Cover, Rear Suspension Arm, LH | ||||
| 48738-05010 |
Cover, Rear Suspension Arm, LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48738-05010 |
Cover, Rear Suspension Arm, LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48738-05010 |
Cover, Rear Suspension Arm, LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48740F — Arm Assy, Rear Suspension, NO.2 LH | ||||
| 48740-05060 |
Arm Assy, Rear Suspension, NO.2 LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48740-05060 |
Arm Assy, Rear Suspension, NO.2 LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48740-05060 |
Arm Assy, Rear Suspension, NO.2 LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48755 — Support, Rear Suspension | ||||
| 48755-02080 note |
Support, Rear Suspension
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 48755-02090 note |
Support, Rear Suspension
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 48755-02080 note |
Support, Rear Suspension
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48755-02080 note |
Support, Rear Suspension
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48755-02090 note |
Support, Rear Suspension
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48755-02090 note |
Support, Rear Suspension
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 48760E — Arm Assy, Trailing, Rear RH | ||||
| 48760-02011 |
Arm Assy, Trailing, Rear RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48760-02011 |
Arm Assy, Trailing, Rear RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48760-02011 |
Arm Assy, Trailing, Rear RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48770A — Arm Assy, Upper Control, Rear RH | ||||
| 48770-12010 |
Arm Assy, Upper Control, Rear RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48770-12010 |
Arm Assy, Upper Control, Rear RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48770-12010 |
Arm Assy, Upper Control, Rear RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48780E — Arm Assy, Trailing, Rear LH | ||||
| 48780-02061 |
Arm Assy, Trailing, Rear LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48780-02061 |
Arm Assy, Trailing, Rear LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48780-02061 |
Arm Assy, Trailing, Rear LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48790 — Arm Assy, Upper Control, Rear LH | ||||
| 48770-12010 |
Arm Assy, Upper Control, Rear LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48770-12010 |
Arm Assy, Upper Control, Rear LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48770-12010 |
Arm Assy, Upper Control, Rear LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48812 — Bar, Stabilizer, Rear | ||||
| 48812-05160 |
Bar, Stabilizer, Rear
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48812-05160 |
Bar, Stabilizer, Rear
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48812-05160 |
Bar, Stabilizer, Rear
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48817R — Cushion, Stabilizer(FOR REAR) | ||||
| 48817-05010 note |
Cushion, Stabilizer(FOR REAR)
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48817-05020 note |
Cushion, Stabilizer(FOR REAR)
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48817-05010 note |
Cushion, Stabilizer(FOR REAR)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48817-05010 note |
Cushion, Stabilizer(FOR REAR)
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48817-05020 note |
Cushion, Stabilizer(FOR REAR)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48817-05020 note |
Cushion, Stabilizer(FOR REAR)
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48818 — Bush, Stabilizer, Rear | ||||
| 48818-05120 |
Bush, Stabilizer, Rear
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48818-05120 |
Bush, Stabilizer, Rear
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48818-05120 |
Bush, Stabilizer, Rear
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48830A — Nut(FOR REAR STABILIZER LINK) | ||||
| 90178-W0051 |
Nut(FOR REAR STABILIZER LINK)
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 90178-W0051 |
Nut(FOR REAR STABILIZER LINK)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 90178-W0051 |
Nut(FOR REAR STABILIZER LINK)
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48830D — Link Assy, Rear Stabilizer, RH | ||||
| 48830-05030 |
Link Assy, Rear Stabilizer, RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48830-05030 |
Link Assy, Rear Stabilizer, RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48830-05030 |
Link Assy, Rear Stabilizer, RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48832R — Bracket, Rear Stabilizer Bar, NO.1 RH | ||||
| 48832-02041 |
Bracket, Rear Stabilizer Bar, NO.1 RH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48832-02041 |
Bracket, Rear Stabilizer Bar, NO.1 RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48832-02041 |
Bracket, Rear Stabilizer Bar, NO.1 RH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
| 48840A — Link Assy, Rear Stabilizer, LH | ||||
| 48830-05030 |
Link Assy, Rear Stabilizer, LH
2012-10 → 2015-05
ended
|
ADE186,ZRE185,ZWE186 | — | |
| 48830-05030 |
Link Assy, Rear Stabilizer, LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 48830-05030 |
Link Assy, Rear Stabilizer, LH
2015-05 → —
|
NRE185,ZRE185,ZWE186 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
