Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

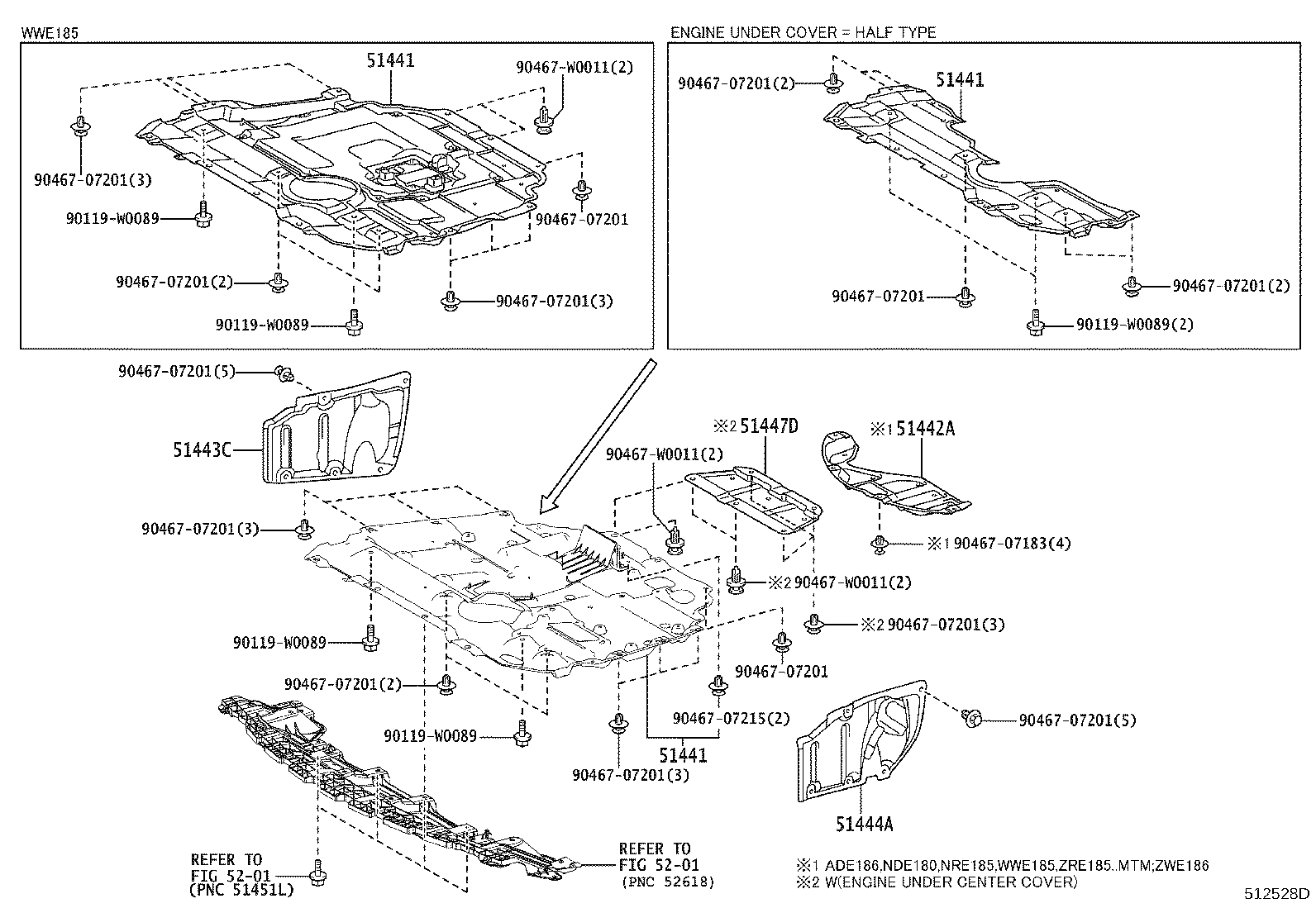

Exploded illustration 512528D 5201 — not listed in this catalogue 5201 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (11 parts) 51441 — COVER, ENGINE UNDER, NO.1 (11 parts) 51442A — COVER, ENGINE UNDER, FRONT NO.3 (3 parts) 51447D — COVER, ENGINE UNDER, NO.4 CENTER (6 parts) 51443C — COVER, ENGINE UNDER, REAR RH (4 parts) 51444A — COVER, ENGINE UNDER, REAR LH (4 parts) 90119W0089 — not listed in this catalogue 90119W0089 — not listed in this catalogue 90119W0089 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 90467W0011 — not listed in this catalogue 9046707183 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 90467W0011 — not listed in this catalogue 9046707201 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (11 parts) 90119W0089 — not listed in this catalogue 90119W0089 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 9046707201 — not listed in this catalogue 90467W0011 — not listed in this catalogue 9046707201 — not listed in this catalogue
512528D · 7 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
51441 — Cover, Engine Under, NO.1
51410-02180 Cover, Engine Under, NO.1
2012-10 → 2015-05 ended
ADE186,ZWE186 —
51410-02220 Cover, Engine Under, NO.1
2012-10 → 2015-05 ended
NDE180,ZRE185 MTM —
51441-02220 Cover, Engine Under, NO.1
2012-10 → 2015-05 ended
NRE180;ZRE185 CVT —
51441-02220 note Cover, Engine Under, NO.1
2012-10 → 2015-05 ended
ZRE185 LHD 6F —
51441-02220 note Cover, Engine Under, NO.1
2012-10 → 2015-05 ended
ZRE185 LHD 6F —
51410-02180 Cover, Engine Under, NO.1
2015-05 → —
ZWE186 —
51410-02220 Cover, Engine Under, NO.1
2015-05 → —
NDE180,NRE185,ZRE185 6F —
51410-05020 Cover, Engine Under, NO.1
2015-05 → 2018-04 ended
WWE185 —
51441-02220 Cover, Engine Under, NO.1
2015-05 → —
NRE180;NRE185,ZRE185 CVT —
51441-02220 note Cover, Engine Under, NO.1
2015-05 → —
NRE185,ZRE185 LHD 6F —
51441-02220 note Cover, Engine Under, NO.1
2015-05 → —
NRE185,ZRE185 LHD 6F —
51442A — Cover, Engine Under, Front NO.3
51442-02230 Cover, Engine Under, Front NO.3
2012-10 → 2015-05 ended
ZWE186;ADE186,NDE180,ZRE185 MTM —
51442-02230 Cover, Engine Under, Front NO.3
2015-05 → 2018-04 ended
WWE185 —
51442-02230 Cover, Engine Under, Front NO.3
2015-05 → —
ZWE186;NDE180,NRE185,ZRE185 6F —
51443C — Cover, Engine Under, Rear RH
51443-02050 Cover, Engine Under, Rear RH
2012-10 → 2014-10 ended
ADE186,NDE180,NRE180,ZRE185,ZWE186 —
51443-05030 Cover, Engine Under, Rear RH
2014-11 → 2015-05 ended
ADE186,NDE180,NRE180,ZRE185,ZWE186 —
51443-05030 Cover, Engine Under, Rear RH
2015-05 → 2018-04 ended
WWE185 —
51443-05030 Cover, Engine Under, Rear RH
2015-05 → —
NDE180,NRE18#,ZRE185,ZWE186 —
51444A — Cover, Engine Under, Rear LH
51444-02041 Cover, Engine Under, Rear LH
2012-10 → 2014-10 ended
ADE186,NDE180,NRE180,ZRE185,ZWE186 —
51444-05020 Cover, Engine Under, Rear LH
2014-11 → 2015-05 ended
ADE186,NDE180,NRE180,ZRE185,ZWE186 —
51444-05020 Cover, Engine Under, Rear LH
2015-05 → 2018-04 ended
WWE185 —
51444-05020 Cover, Engine Under, Rear LH
2015-05 → —
NDE180,NRE18#,ZRE185,ZWE186 —
51447D — Cover, Engine Under, NO.4 Center
51447-02010 Cover, Engine Under, NO.4 Center
2012-10 → 2015-05 ended
NDE180,NRE180 —
51447-02010 note Cover, Engine Under, NO.4 Center
2012-10 → 2015-05 ended
ZRE185 LHD 6F —
51447-02010 note Cover, Engine Under, NO.4 Center
2012-10 → 2015-05 ended
ZRE185 —
51447-02010 Cover, Engine Under, NO.4 Center
2015-05 → —
NDE180,NRE180 —
51447-02010 note Cover, Engine Under, NO.4 Center
2015-05 → —
NRE185,ZRE185 LHD 6F —
51447-02010 note Cover, Engine Under, NO.4 Center
2015-05 → —
NRE185,ZRE185 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
