Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

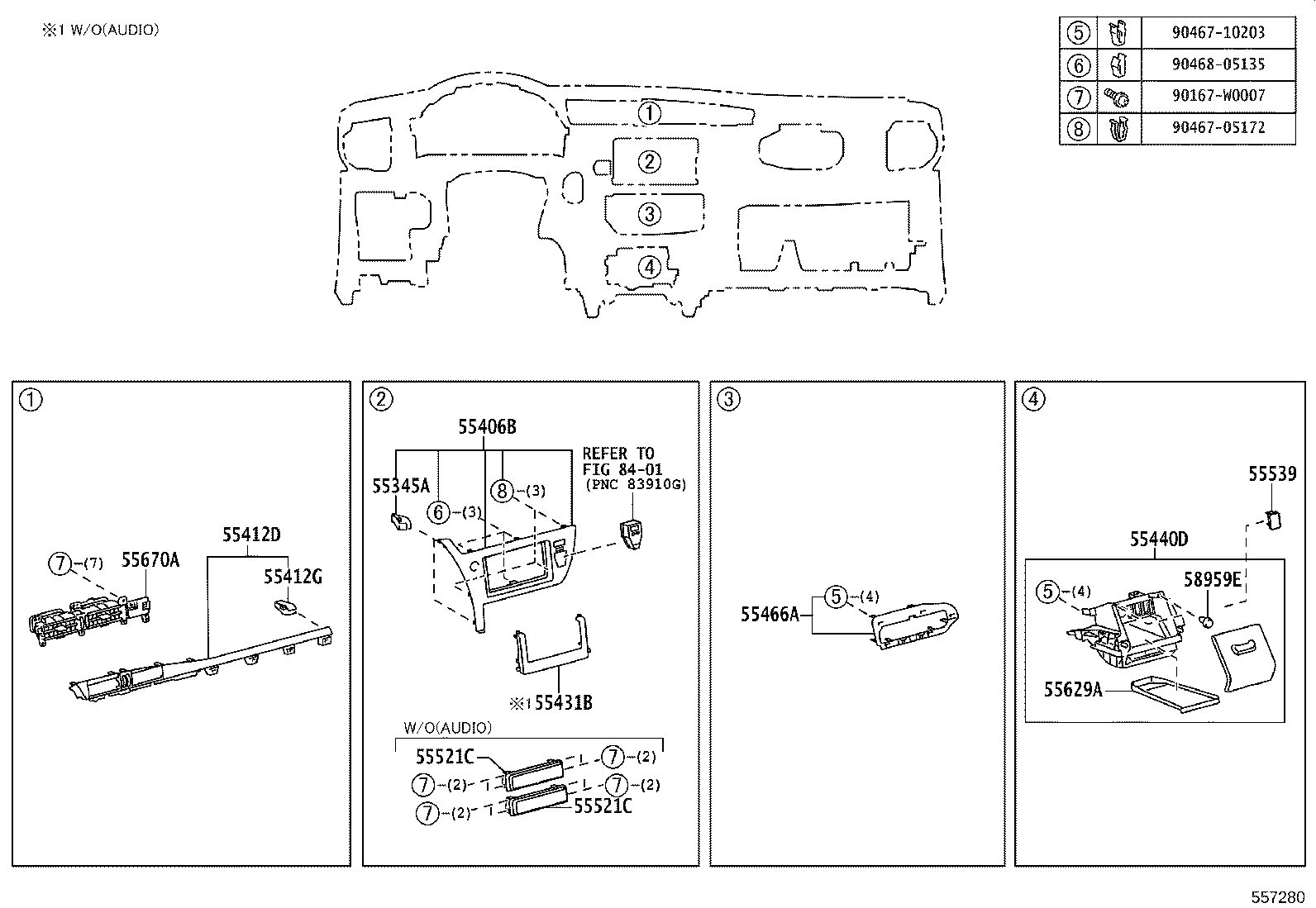

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55345A — Clip, Instrument Panel, NO.1 | ||||
| 90467-13082-A0 note |
Clip, Instrument Panel, NO.1
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 90467-13082-A0 note |
Clip, Instrument Panel, NO.1
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 | — | |
| 55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center | ||||
| 55406-02640 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 55406-02640 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 LHD | — | |
| 55406-02650 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 55406-02650 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 RHD | — | |
| 55412D — Panel, Instrument Cluster Finish, Center | ||||
| 55412-02230 |
Panel, Instrument Cluster Finish, Center
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD | — | |
| 55412-02240 |
Panel, Instrument Cluster Finish, Center
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD | — | |
| 55412-02430 |
Panel, Instrument Cluster Finish, Center
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 55412-02430 |
Panel, Instrument Cluster Finish, Center
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 LHD | — | |
| 55412-02440 |
Panel, Instrument Cluster Finish, Center
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 55412-02440 |
Panel, Instrument Cluster Finish, Center
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 RHD | — | |
| 55412G — Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082-A0 note |
Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 | — | |
| 55431B — Panel, Instrument Panel Finish, Upper | ||||
| 55431-02070 note |
Panel, Instrument Panel Finish, Upper
2015-05 → —
|
NRE180 LHD HB D;NDE180,ZRE185 +3 | — | |
| 55431-02070 note |
Panel, Instrument Panel Finish, Upper
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 55431-02070 note |
Panel, Instrument Panel Finish, Upper
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 G,N,S | — | |
| 55431-02070 note |
Panel, Instrument Panel Finish, Upper
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 D | — | |
| 55431-02070 note |
Panel, Instrument Panel Finish, Upper
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55431-02070 note |
Panel, Instrument Panel Finish, Upper
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55440D — Box Assy, Instrument Panel | ||||
| 55440-02420-C1 note |
Box Assy, Instrument Panel
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185 LHD G | — | |
| 55440-02420-C1 note |
Box Assy, Instrument Panel
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185 LHD (D,N,S) | — | |
| 55440-02430-C1 note |
Box Assy, Instrument Panel
2015-05 → —
|
NRE185,WWE185 RHD G | — | |
| 55440-02430-C1 note |
Box Assy, Instrument Panel
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185 RHD (D,N,S) | — | |
| 55466A — Retainer, Instrument Panel Safety Pad | ||||
| 55468-02030 |
Retainer, Instrument Panel Safety Pad
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 55468-02030 |
Retainer, Instrument Panel Safety Pad
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 LHD | — | |
| 55468-02040 |
Retainer, Instrument Panel Safety Pad
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 55468-02040 |
Retainer, Instrument Panel Safety Pad
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 RHD | — | |
| 55521C — Cover, Stereo Opening | ||||
| 55521-05030 note |
Cover, Stereo Opening
2014-05 → 2015-05
ended
|
NDE180,NRE180 RHD D | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-10 → 2015-05
ended
|
NDE180,NRE180 N;ADE186,ZRE185,ZWE186;NDE180,NRE180 LHD D | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-10 → 2014-05
ended
|
NDE180,NRE180 RHD D | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-10 → 2014-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-10 → 2014-05
ended
|
NDE180,NRE180 RHD D | — | |
| 55521-05030 note |
Cover, Stereo Opening
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 LHD D | — | |
| 55521-05030 note |
Cover, Stereo Opening
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55521-05030 note |
Cover, Stereo Opening
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55521-05030 note |
Cover, Stereo Opening
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 D | — | |
| 55521-05030 note |
Cover, Stereo Opening
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 G,N,S | — | |
| 55521-05030 note |
Cover, Stereo Opening
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD (D,N) | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 LHD D | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,ZRE185 RHD N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,ZRE185 RHD N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,ZRE185 RHD N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ZWE186 LHD HB N;ADE186,NDE180,NRE180,ZRE185 +2 | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ZWE186 LHD HB G | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2012-10 → 2015-05
ended
|
NDE180,ZRE185 RHD N | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2015-05 → 2018-03
ended
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2015-05 → 2018-03
ended
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 55539-05100 |
Cover, Spare Switch Hole
2018-03 → 2018-11
ended
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 | — | |
| 55629A — Cushion, Instrument Panel Under Tray | ||||
| 55629-12050 |
Cushion, Instrument Panel Under Tray
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55629-12050 |
Cushion, Instrument Panel Under Tray
2015-05 → —
|
NDE180,NRE18#,ZRE185 | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-02310 |
Register Assy, Instrument Panel, Center
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD | — | |
| 55670-02320 |
Register Assy, Instrument Panel, Center
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD | — | |
| 55670-02550-C1 note |
Register Assy, Instrument Panel, Center
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 LHD (D,N,S) | — | |
| 55670-02550-C1 note |
Register Assy, Instrument Panel, Center
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 55670-02560-C1 note |
Register Assy, Instrument Panel, Center
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RHD (D,N,S) | — | |
| 55670-02560-C1 note |
Register Assy, Instrument Panel, Center
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 58959E — Cushion, Console Compartment Door | ||||
| 58959-60060 |
Cushion, Console Compartment Door
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 58959-60060 |
Cushion, Console Compartment Door
2015-05 → —
|
NDE180,NRE18#,ZRE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
