Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

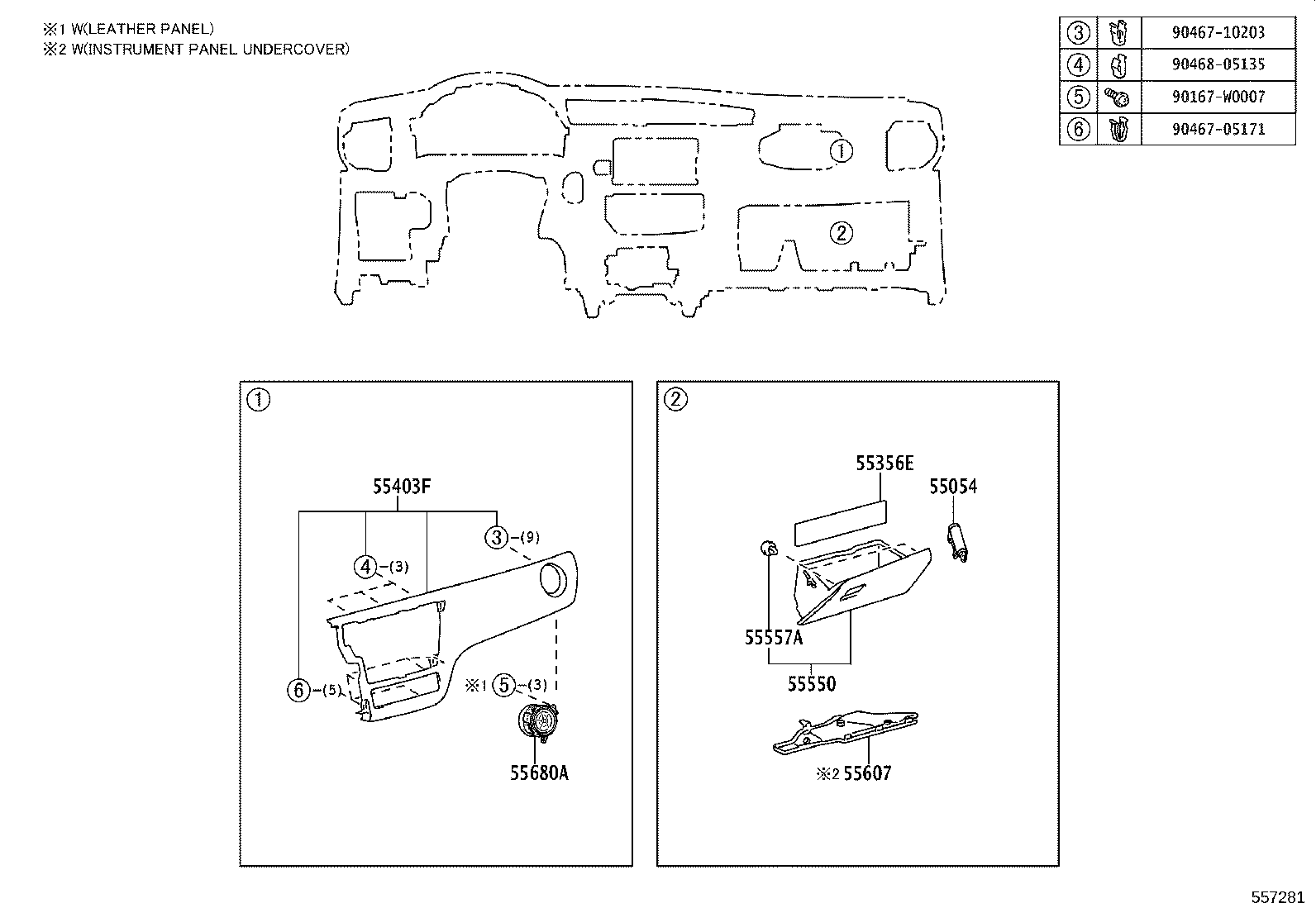

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55054 — Stopper Sub-assy, Glove Compartment Door | ||||
| 55054-35010 |
Stopper Sub-assy, Glove Compartment Door
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 55054-35010 |
Stopper Sub-assy, Glove Compartment Door
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55054-35010 |
Stopper Sub-assy, Glove Compartment Door
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 55356E — Cushion, Instrument Panel, NO.2 | ||||
| 55356-02450 |
Cushion, Instrument Panel, NO.2
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55356-02450 |
Cushion, Instrument Panel, NO.2
2015-05 → —
|
NDE180,NRE185,ZWE186 G,N,S | — | |
| 55403F — Panel Sub-assy, Instrument Panel Finish | ||||
| 55403-02200-C5 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 LHD D | — | |
| 55403-02220-J1 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → 2016-10
ended
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD S | — | |
| 55403-02220-J2 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → 2016-10
ended
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD S | — | |
| 55403-02230-20 note |
Panel Sub-assy, Instrument Panel Finish
2016-10 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD S | — | |
| 55403-02230-20 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 LHD N | — | |
| 55403-02230-21 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 LHD N | — | |
| 55403-02230-21 note |
Panel Sub-assy, Instrument Panel Finish
2016-10 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD S | — | |
| 55403-02240-C2 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE180,ZWE186 RHD D | — | |
| 55403-02250-J1 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → 2016-10
ended
|
NRE185,WWE185,ZWE186 RHD S | — | |
| 55403-02250-J2 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → 2016-10
ended
|
NRE185,WWE185,ZWE186 RHD S | — | |
| 55403-02260-C7 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RHD N | — | |
| 55403-02260-C7 note |
Panel Sub-assy, Instrument Panel Finish
2016-10 → —
|
NRE185,WWE185,ZWE186 RHD S | — | |
| 55403-02260-C8 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RHD N | — | |
| 55403-02260-C8 note |
Panel Sub-assy, Instrument Panel Finish
2016-10 → —
|
NRE185,WWE185,ZWE186 RHD S | — | |
| 55403-02270-22 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 55403-02270-23 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 55403-02270-24 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 55403-02280-20 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 55403-02280-21 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 55403-02280-C9 note |
Panel Sub-assy, Instrument Panel Finish
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 55550 — Door Assy, Glove Compartment | ||||
| 55550-02290-C0 note |
Door Assy, Glove Compartment
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD (D,N) | — | |
| 55550-02290-C0 note |
Door Assy, Glove Compartment
2012-10 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 55550-02350-C0 note |
Door Assy, Glove Compartment
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD (D,N) | — | |
| 55550-02350-C0 note |
Door Assy, Glove Compartment
2012-10 → 2015-05
ended
|
ZWE186 RHD G | — | |
| 55550-02290-C2 note |
Door Assy, Glove Compartment
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 LHD (D,N,S) | — | |
| 55550-02290-C2 note |
Door Assy, Glove Compartment
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 55550-02350-C2 note |
Door Assy, Glove Compartment
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 55550-02350-C2 note |
Door Assy, Glove Compartment
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RHD (D,N,S) | — | |
| 55557A — Cushion, Glove Compartment Door Check | ||||
| 55557-60050 |
Cushion, Glove Compartment Door Check
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 55557-60050 |
Cushion, Glove Compartment Door Check
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 55557-60050 |
Cushion, Glove Compartment Door Check
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 55607 — Cover Sub-assy, Instrument Panel Under, NO.2 | ||||
| 55607-02060 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-10 → 2012-11
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 55607-02061 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-11 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 55607-02071 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 55607-02140 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-10 → 2012-11
ended
|
ZWE186 LHD | — | |
| 55607-02141 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-11 → 2015-05
ended
|
ZWE186 LHD | — | |
| 55607-02151 |
Cover Sub-assy, Instrument Panel Under, NO.2
2012-10 → 2015-05
ended
|
ZWE186 RHD | — | |
| 55607-02061 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
NDE180,NRE18#,ZRE185 LHD (G,N,S) | — | |
| 55607-02061 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
NDE180,NRE18#,ZRE185 LHD (G,N,S) | — | |
| 55607-02071 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
NDE180,NRE18#,ZRE185 RHD (G,N,S) | — | |
| 55607-02071 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
NDE180,NRE18#,ZRE185 RHD (G,N,S) | — | |
| 55607-02141 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 55607-02141 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 55607-02141 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
ZWE186 LHD | — | |
| 55607-02141 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
ZWE186 LHD | — | |
| 55607-02151 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 55607-02151 |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
ZWE186 RHD | — | |
| 55607-02151 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → —
|
ZWE186 RHD | — | |
| 55607-02151 note |
Cover Sub-assy, Instrument Panel Under, NO.2
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 55680A — Register Assy, Instrument Panel, NO.4 | ||||
| 55680-02020-C0 note |
Register Assy, Instrument Panel, NO.4
2012-10 → 2014-04
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 55680-02020-C0 note |
Register Assy, Instrument Panel, NO.4
2014-09 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 55680-02020-C0 note |
Register Assy, Instrument Panel, NO.4
2014-09 → 2015-05
ended
|
ZWE186 G | — | |
| 55680-02020-C0 note |
Register Assy, Instrument Panel, NO.4
2012-10 → 2014-04
ended
|
ZWE186 G | — | |
| 55680-02070-C0 note |
Register Assy, Instrument Panel, NO.4
2014-05 → 2014-09
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 55680-02070-C0 note |
Register Assy, Instrument Panel, NO.4
2014-05 → 2014-09
ended
|
ZWE186 G | — | |
| 55680-12280-C0 note |
Register Assy, Instrument Panel, NO.4
2015-05 → 2017-10
ended
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 55680-12280-C0 note |
Register Assy, Instrument Panel, NO.4
2015-05 → 2017-10
ended
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 55680-12280-C2 note |
Register Assy, Instrument Panel, NO.4
2017-10 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 55680-12280-C2 note |
Register Assy, Instrument Panel, NO.4
2017-10 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
