Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

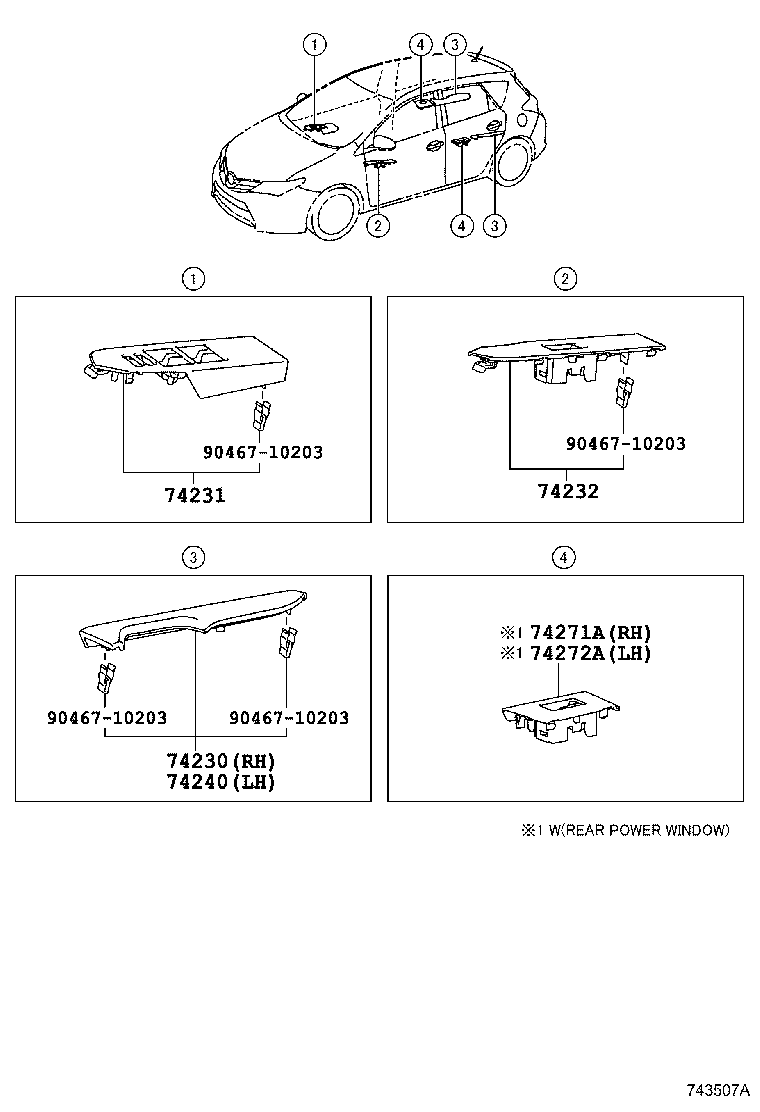

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74230 — Armrest Assy, Rear, RH | ||||
| 74250-02030-C2 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 D | — | |
| 74250-02040-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
NDE180 RHD 6FS | — | |
| 74250-02040-C3 note |
Armrest Assy, Rear, RH
2014-05 → 2015-05
ended
|
NDE180 RHD 6FS | — | |
| 74250-02040-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
NDE180 6F N;NRE180 LHD +4 | — | |
| 74250-02040-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
NRE180 RHD N | — | |
| 74250-02070-C4 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74250-02070-C4 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 74250-02070-C4 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74250-02070-C4 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74250-02120-C3 note |
Armrest Assy, Rear, RH
2014-05 → 2015-05
ended
|
ZWE186 RHD N | — | |
| 74250-02130-C2 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
NRE180 RHD N | — | |
| 74250-02130-C2 note |
Armrest Assy, Rear, RH
2012-10 → 2014-05
ended
|
NRE180 LHD N;ADE186,NDE180,ZRE185 N | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2015-05 → 2016-04
ended
|
ZRE185 LHD HB 6F +1 | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2015-05 → 2016-04
ended
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2015-05 → 2017-07
ended
|
NRE180 LHD HB N;ZRE185 +3 | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2017-07 → 2018-05
ended
|
NRE180 LHD N;ZRE185 HB +6 | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 D | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2015-05 → —
|
NDE180,ZRE185 G HB 6F +8 | — | |
| 74250-02030-C8 note |
Armrest Assy, Rear, RH
2016-04 → —
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74250-02050-C4 note |
Armrest Assy, Rear, RH
2015-05 → 2016-10
ended
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 S | — | |
| 74250-02050-C5 note |
Armrest Assy, Rear, RH
2016-10 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 S | — | |
| 74250-02080-C5 note |
Armrest Assy, Rear, RH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74250-02080-C6 note |
Armrest Assy, Rear, RH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74250-02340-C0 note |
Armrest Assy, Rear, RH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 N | — | |
| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-02D20-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
NDE180,NRE180 RHD D | — | |
| 74231-02D20-C0 note |
Panel, Front Armrest Base, Upper RH
2014-05 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD N | — | |
| 74231-02D20-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ZWE186 RHD G | — | |
| 74231-02D20-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74231-02D20-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 74231-02D30-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74231-02D30-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 74231-02D30-C0 note |
Panel, Front Armrest Base, Upper RH
2014-05 → 2015-05
ended
|
ZWE186 RHD N | — | |
| 74231-02D40-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
NDE180,ZRE185,ZWE186 RHD N | — | |
| 74231-02D40-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ZWE186 RHD G | — | |
| 74231-02D40-C0 note |
Panel, Front Armrest Base, Upper RH
2014-05 → 2015-05
ended
|
NDE180 RHD 6F N;ZRE185,ZWE186 +2 | — | |
| 74231-02D40-C0 note |
Panel, Front Armrest Base, Upper RH
2014-05 → 2015-05
ended
|
ZRE185 RHD;NDE180 RHD 6F +1 | — | |
| 74231-02D50-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
ZWE186 LHD G | — | |
| 74231-02D50-C0 note |
Panel, Front Armrest Base, Upper RH
2014-05 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 74231-02D50-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 74231-02D50-C0 note |
Panel, Front Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD (D,N) | — | |
| 74231-02D21 note |
Panel, Front Armrest Base, Upper RH
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 74231-02D21 |
Panel, Front Armrest Base, Upper RH
2015-05 → —
|
NDE180,NRE180,ZWE186 RHD D | — | |
| 74231-02D21 note |
Panel, Front Armrest Base, Upper RH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 RHD (G,N,S) | — | |
| 74231-02D31 |
Panel, Front Armrest Base, Upper RH
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 74231-02D31 |
Panel, Front Armrest Base, Upper RH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 RHD (G,N,S) | — | |
| 74231-02D51 |
Panel, Front Armrest Base, Upper RH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 LHD | — | |
| 74231-02D51 |
Panel, Front Armrest Base, Upper RH
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-02E00-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD (D,N) | — | |
| 74232-02E00-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 RHD G | — | |
| 74232-02E10-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2014-05
ended
|
ZWE186 LHD G | — | |
| 74232-02E10-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N;NDE180,NRE180,ZRE185 LHD +1 | — | |
| 74232-02E10-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 74232-02E10-C0 note |
Panel, Front Armrest Base, Upper LH
2014-05 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 74232-02E20-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 74232-02E20-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74232-02E30-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD N | — | |
| 74232-02E30-C0 note |
Panel, Front Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 74232-02E01 |
Panel, Front Armrest Base, Upper LH
2015-05 → 2018-04
ended
|
WWE185 RHD | — | |
| 74232-02E01 |
Panel, Front Armrest Base, Upper LH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 RHD | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → 2016-04
ended
|
ZRE185 LHD HB 6F +1 | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2016-04 → —
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → —
|
ZRE185 185 HB LHD +8 | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → —
|
NRE18# (G,N,S) LHD 6F +7 | — | |
| 74232-02E11 |
Panel, Front Armrest Base, Upper LH
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 LHD D | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2017-07 → 2018-05
ended
|
NRE180 LHD N;ZRE185 HB +6 | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → 2017-07
ended
|
NRE180 LHD HB N;ZRE185 +3 | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → 2016-04
ended
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74232-02E11 note |
Panel, Front Armrest Base, Upper LH
2015-05 → 2016-04
ended
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74232-02E21 |
Panel, Front Armrest Base, Upper LH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 LHD (G,N,S) | — | |
| 74232-02E21 |
Panel, Front Armrest Base, Upper LH
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 74240 — Armrest Assy, Rear, LH | ||||
| 74260-02020-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185 D | — | |
| 74260-02030-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
NDE180 6F N;NRE180 LHD +4 | — | |
| 74260-02030-C3 note |
Armrest Assy, Rear, LH
2014-05 → 2015-05
ended
|
NDE180 RHD 6FS | — | |
| 74260-02030-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
NRE180 RHD N | — | |
| 74260-02030-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
NDE180 RHD 6FS | — | |
| 74260-02060-C4 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
NDE180,NRE180,ZRE185 RHD N | — | |
| 74260-02060-C4 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74260-02060-C4 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 74260-02060-C4 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2014-05 → 2015-05
ended
|
ZWE186 RHD N | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74260-02090-C3 note |
Armrest Assy, Rear, LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74260-02100-C2 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
NRE180 RHD N | — | |
| 74260-02100-C2 note |
Armrest Assy, Rear, LH
2012-10 → 2014-05
ended
|
NRE180 LHD N;ADE186,NDE180,ZRE185 N | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2015-05 → 2016-04
ended
|
ZRE185 LHD HB 6F +1 | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2015-05 → 2016-04
ended
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2015-05 → 2017-07
ended
|
NRE180 LHD HB N;ZRE185 +3 | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2017-07 → 2018-05
ended
|
NRE180 LHD N;ZRE185 HB +6 | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 D | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2015-05 → —
|
NDE180,ZRE185 G HB 6F +8 | — | |
| 74260-02020-C9 note |
Armrest Assy, Rear, LH
2016-04 → —
|
NDE180,ZRE185 LHD HB 6F +1 | — | |
| 74260-02040-C4 note |
Armrest Assy, Rear, LH
2015-05 → 2016-10
ended
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 S | — | |
| 74260-02040-C5 note |
Armrest Assy, Rear, LH
2016-10 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 S | — | |
| 74260-02340-C0 note |
Armrest Assy, Rear, LH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 N | — | |
| 74260-02620-C5 note |
Armrest Assy, Rear, LH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74260-02620-C6 note |
Armrest Assy, Rear, LH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74271A — Panel, Rear Door Armrest Base, Upper RH | ||||
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74271-02630-C0 note |
Panel, Rear Door Armrest Base, Upper RH
2014-05 → 2015-05
ended
|
ZWE186 RHD N | — | |
| 74271-02631 |
Panel, Rear Door Armrest Base, Upper RH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 74271-02631 |
Panel, Rear Door Armrest Base, Upper RH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 G,N,S | — | |
| 74272A — Panel, Rear Door Armrest Base, Upper LH | ||||
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2012-10 → 2014-05
ended
|
ZWE186 RHD N | — | |
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2012-10 → 2015-05
ended
|
ZWE186 LHD N | — | |
| 74272-02630-C0 note |
Panel, Rear Door Armrest Base, Upper LH
2014-05 → 2015-05
ended
|
ZWE186 RHD N | — | |
| 74272-02631 |
Panel, Rear Door Armrest Base, Upper LH
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 74272-02631 |
Panel, Rear Door Armrest Base, Upper LH
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 G,N,S | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
