Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

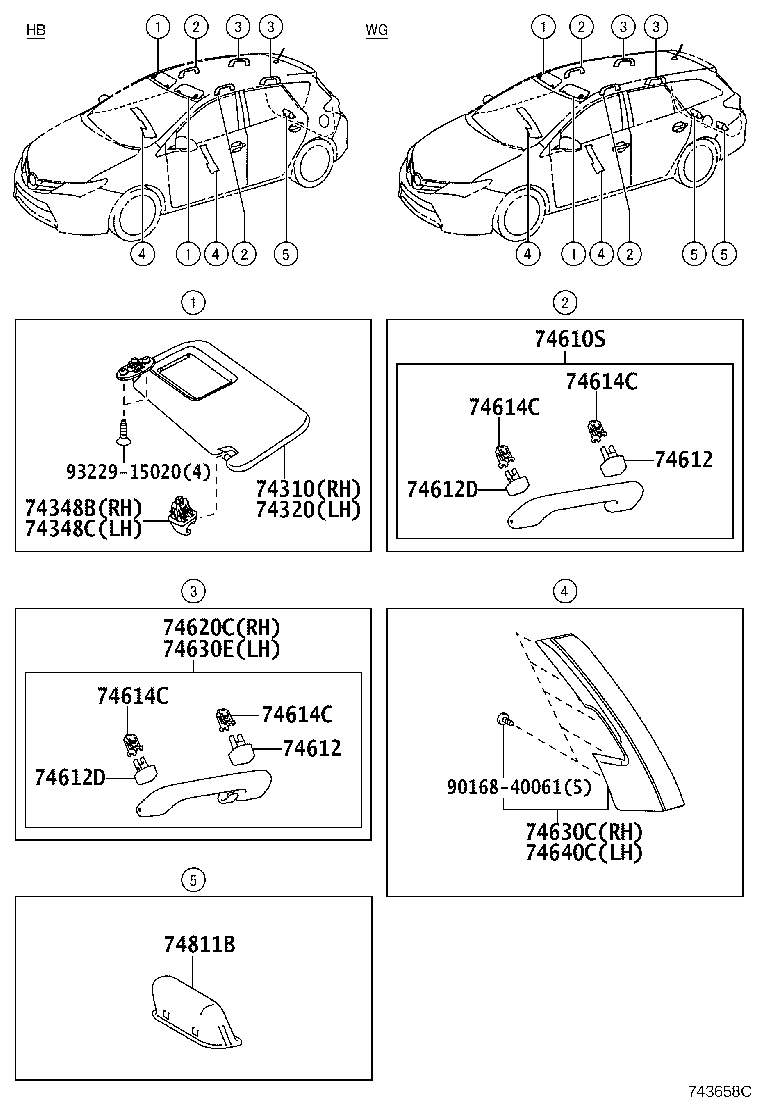

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-02K80-B0 note |
Visor Assy, RH
2012-10 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 74310-02K80-B0 note |
Visor Assy, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD (D,N) | — | |
| 74310-0D660-B1 note |
Visor Assy, RH
2012-10 → 2015-05
ended
|
ZWE186 RHD G | — | |
| 74310-0D660-B1 note |
Visor Assy, RH
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD (D,N) | — | |
| 74310-02K80-B0 note |
Visor Assy, RH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 74310-02K80-B0 note |
Visor Assy, RH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 LHD (D,N,S) | — | |
| 74310-0D660-B1 note |
Visor Assy, RH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RHD (D,N,S) | — | |
| 74310-0D660-B1 note |
Visor Assy, RH
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-02D70-B0 note |
Visor Assy, LH
2012-10 → 2015-05
ended
|
NDE180,NRE180,ZRE185,ZWE186 RHD (D,N) | — | |
| 74320-02D70-B0 note |
Visor Assy, LH
2012-10 → 2015-05
ended
|
ZWE186 RHD G | — | |
| 74320-0D600-B1 note |
Visor Assy, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD (D,N) | — | |
| 74320-0D600-B1 note |
Visor Assy, LH
2012-10 → 2015-05
ended
|
ZWE186 LHD G | — | |
| 74320-02D70-B0 note |
Visor Assy, LH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 RHD (D,N,S) | — | |
| 74320-02D70-B0 note |
Visor Assy, LH
2015-05 → —
|
NRE185,WWE185,ZWE186 RHD G | — | |
| 74320-0D600-B1 note |
Visor Assy, LH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 LHD (D,N,S) | — | |
| 74320-0D600-B1 note |
Visor Assy, LH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 LHD G | — | |
| 74348B — Holder, Visor, RH | ||||
| 74348-33040-B1 note |
Holder, Visor, RH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74348-33040-B1 note |
Holder, Visor, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74348-33040-B1 note |
Holder, Visor, RH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74348-33040-B1 note |
Holder, Visor, RH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74348C — Holder, Visor, LH | ||||
| 74348-33040-B1 note |
Holder, Visor, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74348-33040-B1 note |
Holder, Visor, LH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74348-33040-B1 note |
Holder, Visor, LH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74348-33040-B1 note |
Holder, Visor, LH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74610S — Grip Assy, Assist | ||||
| 74610-02170-B0 note |
Grip Assy, Assist
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74610-02170-B0 note |
Grip Assy, Assist
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74610-02170-B0 note |
Grip Assy, Assist
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74610-02170-B0 note |
Grip Assy, Assist
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74612 — Cover, Assist Grip | ||||
| 74611-02150-B0 note |
Cover, Assist Grip
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74611-02150-B0 note |
Cover, Assist Grip
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74611-02150-B0 note |
Cover, Assist Grip
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74611-02150-B0 note |
Cover, Assist Grip
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74612D — Cover, Assist Grip | ||||
| 74612-02060-B0 note |
Cover, Assist Grip
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74612-02060-B0 note |
Cover, Assist Grip
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74612-02060-B0 note |
Cover, Assist Grip
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74612-02060-B0 note |
Cover, Assist Grip
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74614C — Plate, Assist Grip Lock | ||||
| 74614-12010 |
Plate, Assist Grip Lock
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 | — | |
| 74614-12010 |
Plate, Assist Grip Lock
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 74614-12010 |
Plate, Assist Grip Lock
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 | — | |
| 74620C — Grip Assy, Assist, Rear RH | ||||
| 74610-02180-B0 note |
Grip Assy, Assist, Rear RH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74610-02180-B0 note |
Grip Assy, Assist, Rear RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74610-02180-B0 note |
Grip Assy, Assist, Rear RH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74610-02180-B0 note |
Grip Assy, Assist, Rear RH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74630C — Grip Assy, Door Assist, RH | ||||
| 74630-02040-B0 note |
Grip Assy, Door Assist, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74630-02050-B0 note |
Grip Assy, Door Assist, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74630-02060-B1 note |
Grip Assy, Door Assist, RH
2012-10 → 2014-05
ended
|
NDE180 RHD 6FS | — | |
| 74630-02060-B1 note |
Grip Assy, Door Assist, RH
2014-05 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74630-02060-B1 note |
Grip Assy, Door Assist, RH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74630-02060-B1 note |
Grip Assy, Door Assist, RH
2012-10 → 2015-05
ended
|
NDE180 6F N;NRE180 LHD +4 | — | |
| 74630-02060-B1 note |
Grip Assy, Door Assist, RH
2012-10 → 2015-05
ended
|
ZWE186 N;NDE180,NRE180,ZRE185 D | — | |
| 74630-02060-B1 note |
Grip Assy, Door Assist, RH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74630-02100-C1 note |
Grip Assy, Door Assist, RH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74630-02100-C1 note |
Grip Assy, Door Assist, RH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 N,S | — | |
| 74630-02110-C2 note |
Grip Assy, Door Assist, RH
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 D | — | |
| 74630E — Grip Assy, Assist, Rear LH | ||||
| 74610-02180-B0 note |
Grip Assy, Assist, Rear LH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74610-02180-B0 note |
Grip Assy, Assist, Rear LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74610-02180-B0 note |
Grip Assy, Assist, Rear LH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 D,N,S | — | |
| 74610-02180-B0 note |
Grip Assy, Assist, Rear LH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74640C — Grip Assy, Door Assist, LH | ||||
| 74640-02030-B0 note |
Grip Assy, Door Assist, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74640-02040-B0 note |
Grip Assy, Door Assist, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74640-02050-B1 note |
Grip Assy, Door Assist, LH
2012-10 → 2015-05
ended
|
ZWE186 G | — | |
| 74640-02050-B1 note |
Grip Assy, Door Assist, LH
2012-10 → 2015-05
ended
|
ZWE186 N;NDE180,NRE180,ZRE185 D | — | |
| 74640-02050-B1 note |
Grip Assy, Door Assist, LH
2012-10 → 2015-05
ended
|
NDE180 6F N;NRE180 LHD +4 | — | |
| 74640-02050-B1 note |
Grip Assy, Door Assist, LH
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74640-02050-B1 note |
Grip Assy, Door Assist, LH
2014-05 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 N | — | |
| 74640-02050-B1 note |
Grip Assy, Door Assist, LH
2012-10 → 2014-05
ended
|
NDE180 RHD 6FS | — | |
| 74640-02090-C1 note |
Grip Assy, Door Assist, LH
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 G | — | |
| 74640-02090-C1 note |
Grip Assy, Door Assist, LH
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 N,S | — | |
| 74640-02100-C2 note |
Grip Assy, Door Assist, LH
2015-05 → —
|
NDE180,NRE180,ZRE185,ZWE186 D | — | |
| 74811B — Handle, Door Pull | ||||
| 74811-02030-C0 note |
Handle, Door Pull
2013-06 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 WG (D,N) | — | |
| 74811-02030-C0 note |
Handle, Door Pull
2013-05 → 2015-05
ended
|
ZWE186 HB G | — | |
| 74811-02030-C0 note |
Handle, Door Pull
2013-05 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 HB (D,N) | — | |
| 74811-02030-C0 note |
Handle, Door Pull
2013-06 → 2015-05
ended
|
ZWE186 WG G | — | |
| 74811-28020-C0 note |
Handle, Door Pull
2012-10 → 2013-04
ended
|
ZWE186 G | — | |
| 74811-28020-C0 note |
Handle, Door Pull
2012-10 → 2013-04
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 D,N | — | |
| 74811-02030-C1 note |
Handle, Door Pull
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 HB G | — | |
| 74811-02030-C1 note |
Handle, Door Pull
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 HB (D,N,S) | — | |
| 74811-02030-C1 note |
Handle, Door Pull
2015-05 → —
|
NDE180,NRE185,WWE185,ZRE185,ZWE186 WG G | — | |
| 74811-02030-C1 note |
Handle, Door Pull
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185,ZWE186 WG (D,N,S) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
