Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04
Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

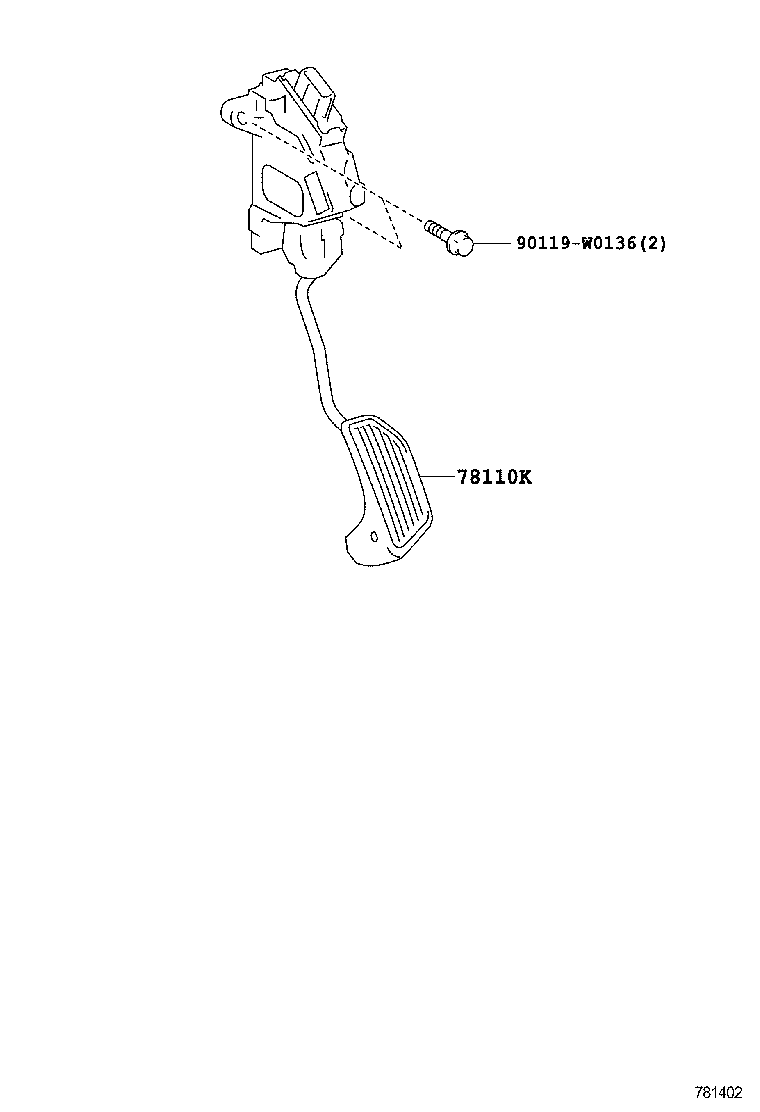

| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-02120 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2012-10 → 2015-05
ended
|
NDE180,ZRE185 LHD 6F;ADE186,NRE180,ZWE186 LHD | — | |
| 78110-02140 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2012-10 → 2015-05
ended
|
NRE180,ZWE186 RHD;NDE180,ZRE185 RHD 6F | — | |
| 78110-02150 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2012-10 → 2015-05
ended
|
NDE180 RHD 6FS;ZRE185 RHD +1 | — | |
| 78110-02150 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2012-10 → 2015-05
ended
|
NRE180,ZRE185 RHD 6F N | — | |
| 78110-0W040 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2012-10 → 2015-05
ended
|
NDE180 LHD 6FS;ZRE185 LHD +1 | — | |
| 78110-0W040 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2012-10 → 2015-05
ended
|
ADE186,NRE180,ZRE185 LHD 6F N | — | |
| 78110-02120 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 LHD (N,S) | — | |
| 78110-02120 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 LHD G | — | |
| 78110-02120 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NDE180,NRE185,ZRE185 LHD 6F G | — | |
| 78110-02120 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NRE180,ZWE186 LHD;NDE180,NRE185,ZRE185 LHD 6F +1 | — | |
| 78110-02140 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NRE185 RHD 6F (N,S);NDE180,NRE180,ZRE185,ZWE186 +1 | — | |
| 78110-02140 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NRE185 RHD 6F G | — | |
| 78110-02140 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 RHD G | — | |
| 78110-02140 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 RHD (N,S) | — | |
| 78110-02150 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NRE185 RHD CVT;NRE185 RHD +2 | — | |
| 78110-02150 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NDE180,NRE18#,ZRE185 RHD 6F (N,S) | — | |
| 78110-02150 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 RHD (N,S) | — | |
| 78110-02150 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 RHD G | — | |
| 78110-0W040 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 LHD (N,S) | — | |
| 78110-0W040 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → 2018-04
ended
|
WWE185 LHD G | — | |
| 78110-0W040 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NRE185,ZRE185 LHD CVT;NDE180,NRE185,ZRE185 LHD +2 | — | |
| 78110-0W040 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2015-05 → —
|
NDE180,NRE18#,ZRE185 LHD 6F (N,S) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
