Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

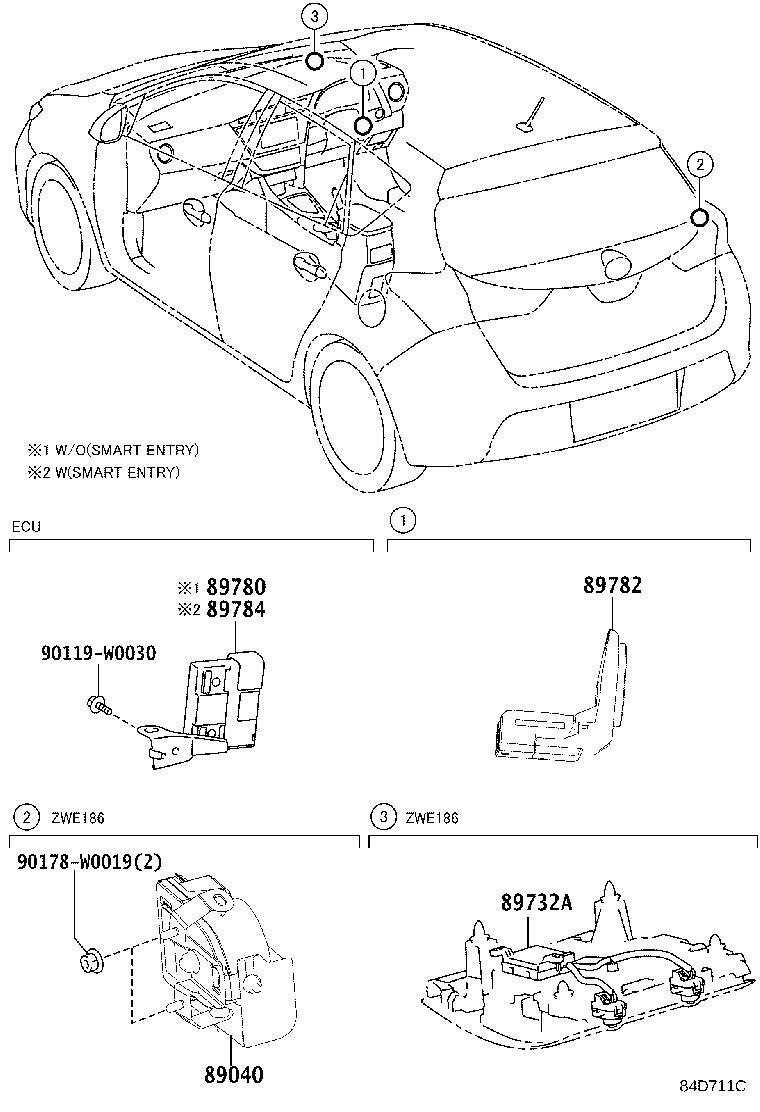

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89040 — Siren Assy, Theft Warning | ||||
| 89040-02020 |
Siren Assy, Theft Warning
2012-10 → 2015-05
ended
|
ZWE186 RHD HB | — | |
| 89040-02030 |
Siren Assy, Theft Warning
2013-06 → 2015-05
ended
|
ZWE186 RHD WG | — | |
| 89040-02020 |
Siren Assy, Theft Warning
2015-05 → —
|
ZWE186 RHD HB | — | |
| 89040-02030 |
Siren Assy, Theft Warning
2015-05 → —
|
ZWE186 RHD WG | — | |
| 89732A — Sensor, Theft Warning Ultrasonic | ||||
| 89732-12070 |
Sensor, Theft Warning Ultrasonic
2012-10 → 2015-05
ended
|
ZWE186 RHD | — | |
| 89732-12070 |
Sensor, Theft Warning Ultrasonic
2015-05 → —
|
ZWE186 RHD | — | |
| 89780 — Computer Assy, Transponder Key | ||||
| 89780-02130 |
Computer Assy, Transponder Key
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 | — | |
| 89780-02130 note |
Computer Assy, Transponder Key
2015-05 → 2018-04
ended
|
WWE185 G | — | |
| 89780-02130 note |
Computer Assy, Transponder Key
2015-05 → —
|
NDE180,NRE185,ZRE185 G | — | |
| 89780-02130 note |
Computer Assy, Transponder Key
2015-05 → —
|
NDE180,NRE185,ZRE185 LHD 6F G | — | |
| 89780-02130 |
Computer Assy, Transponder Key
2015-05 → —
|
NDE180,NRE18#,ZRE185 D,N,S | — | |
| 89780-02130 note |
Computer Assy, Transponder Key
2017-07 → 2018-05
ended
|
ZRE185 6F G | — | |
| 89780-02130 note |
Computer Assy, Transponder Key
2015-05 → 2018-04
ended
|
WWE185 LHD G | — | |
| 89780-02130 |
Computer Assy, Transponder Key
2015-05 → 2018-04
ended
|
WWE185 N,S | — | |
| 89780-02130 note |
Computer Assy, Transponder Key
2015-05 → 2017-07
ended
|
ZRE185 HB 6F G | — | |
| 89782 — Coil, Transponder Key | ||||
| 89782-02010 |
Coil, Transponder Key
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 | — | |
| 89782-02010 note |
Coil, Transponder Key
2015-05 → 2018-04
ended
|
WWE185 LHD G | — | |
| 89782-02010 note |
Coil, Transponder Key
2015-05 → —
|
NDE180,NRE185,ZRE185 G | — | |
| 89782-02010 note |
Coil, Transponder Key
2015-05 → —
|
NDE180,NRE185,ZRE185 LHD 6F G | — | |
| 89782-02010 |
Coil, Transponder Key
2015-05 → —
|
NDE180,NRE18#,ZRE185 D,N,S | — | |
| 89782-02010 note |
Coil, Transponder Key
2015-05 → 2018-04
ended
|
WWE185 G | — | |
| 89782-02010 |
Coil, Transponder Key
2015-05 → 2018-04
ended
|
WWE185 N,S | — | |
| 89782-02010 note |
Coil, Transponder Key
2015-05 → 2017-07
ended
|
ZRE185 HB 6F G | — | |
| 89782-02010 note |
Coil, Transponder Key
2017-07 → 2018-05
ended
|
ZRE185 6F G | — | |
| 89784 — Computer, Immobilizer Code | ||||
| 89784-02071 note |
Computer, Immobilizer Code
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 LHD N | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2012-10 → 2015-05
ended
|
ZRE185 RHD;NDE180 RHD 6F +1 | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2012-10 → 2015-05
ended
|
ZRE185 RHD;NDE180 RHD 6F +1 | — | |
| 89784-02071 |
Computer, Immobilizer Code
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2012-10 → 2014-05
ended
|
NDE180 RHD 6FS | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2012-10 → 2014-05
ended
|
NDE180 RHD 6FS | — | |
| 89784-02071 |
Computer, Immobilizer Code
2015-05 → 2018-04
ended
|
WWE185 G | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2015-05 → 2018-04
ended
|
WWE185 RHD (N,S) | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2015-05 → 2018-04
ended
|
WWE185 LHD (N,S) | — | |
| 89784-02071 |
Computer, Immobilizer Code
2015-05 → —
|
ZWE186;NDE180,NRE185,ZRE185 G | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2015-05 → —
|
NDE180,NRE185,ZRE185 RHD (N,S) | — | |
| 89784-02071 note |
Computer, Immobilizer Code
2015-05 → —
|
NDE180,NRE18#,ZRE185 LHD (N,S) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
