Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

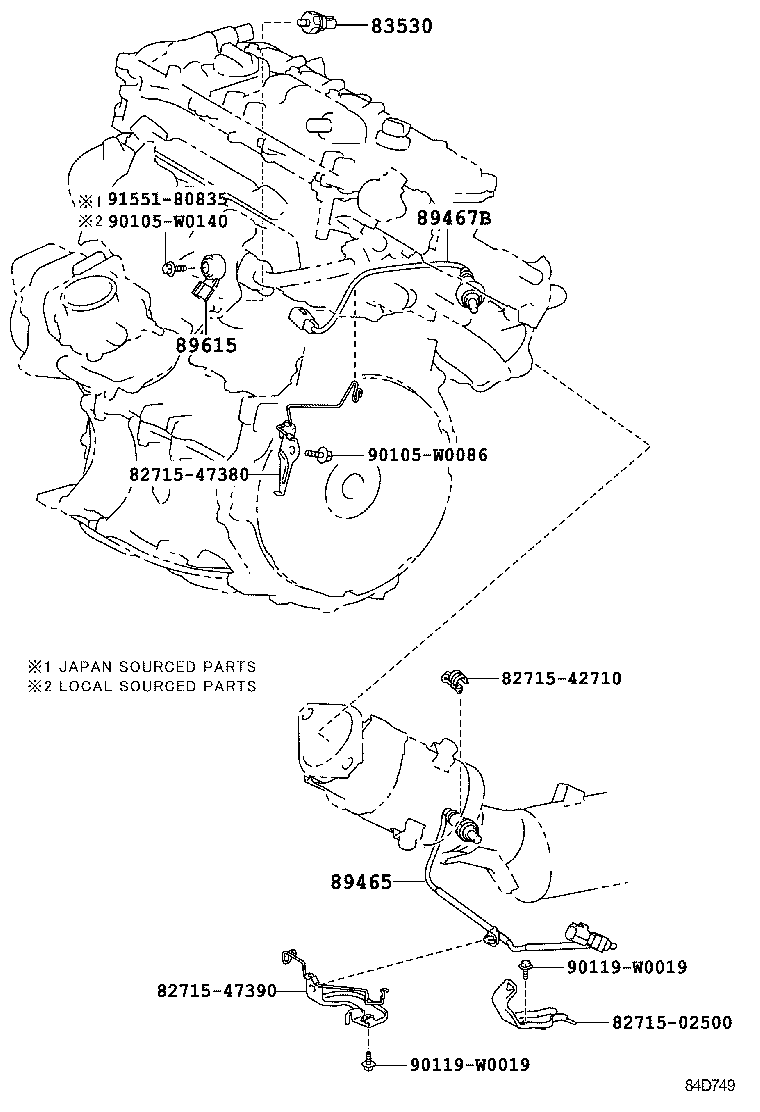

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-10 → 2015-05
ended
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-10 → 2015-05
ended
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-05 → —
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-05 → —
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-WA011 |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-02280 |
Sensor, Oxygen
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 89465-02380 |
Sensor, Oxygen
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 89465-12A50 |
Sensor, Oxygen
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89465-02380 |
Sensor, Oxygen
2015-05 → —
|
ZWE186 | — | |
| 89465-12A40 |
Sensor, Oxygen
2015-05 → —
|
ZRE185 | — | |
| 89465-12B70 |
Sensor, Oxygen
2015-05 → —
|
NRE180 | — | |
| 89465-12B80 |
Sensor, Oxygen
2015-05 → 2018-05
ended
|
NRE185 | — | |
| 89467-02260 |
Sensor, Oxygen
2018-05 → —
|
NRE185 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-02080 note |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89467-12030 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 89467-12130 note |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89467-20100 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89467-02100 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NDE180 | — | |
| 89467-12270 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NRE185 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2015-05 → —
|
ZRE185,ZWE186 | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NRE180 | — | |
| 89467-YV010 |
Sensor, Air Fuel Ratio
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-02020 note |
Sensor, Knock Control
2012-10 → 2015-05
ended
|
ZRE185,ZWE186 | — | |
| 89615-20090 note |
Sensor, Knock Control
2012-10 → 2015-05
ended
|
ZRE185,ZWE186 | — | |
| 89615-20090 |
Sensor, Knock Control
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89615-20090 |
Sensor, Knock Control
2015-05 → —
|
NRE18#,ZRE185,ZWE186 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
