Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

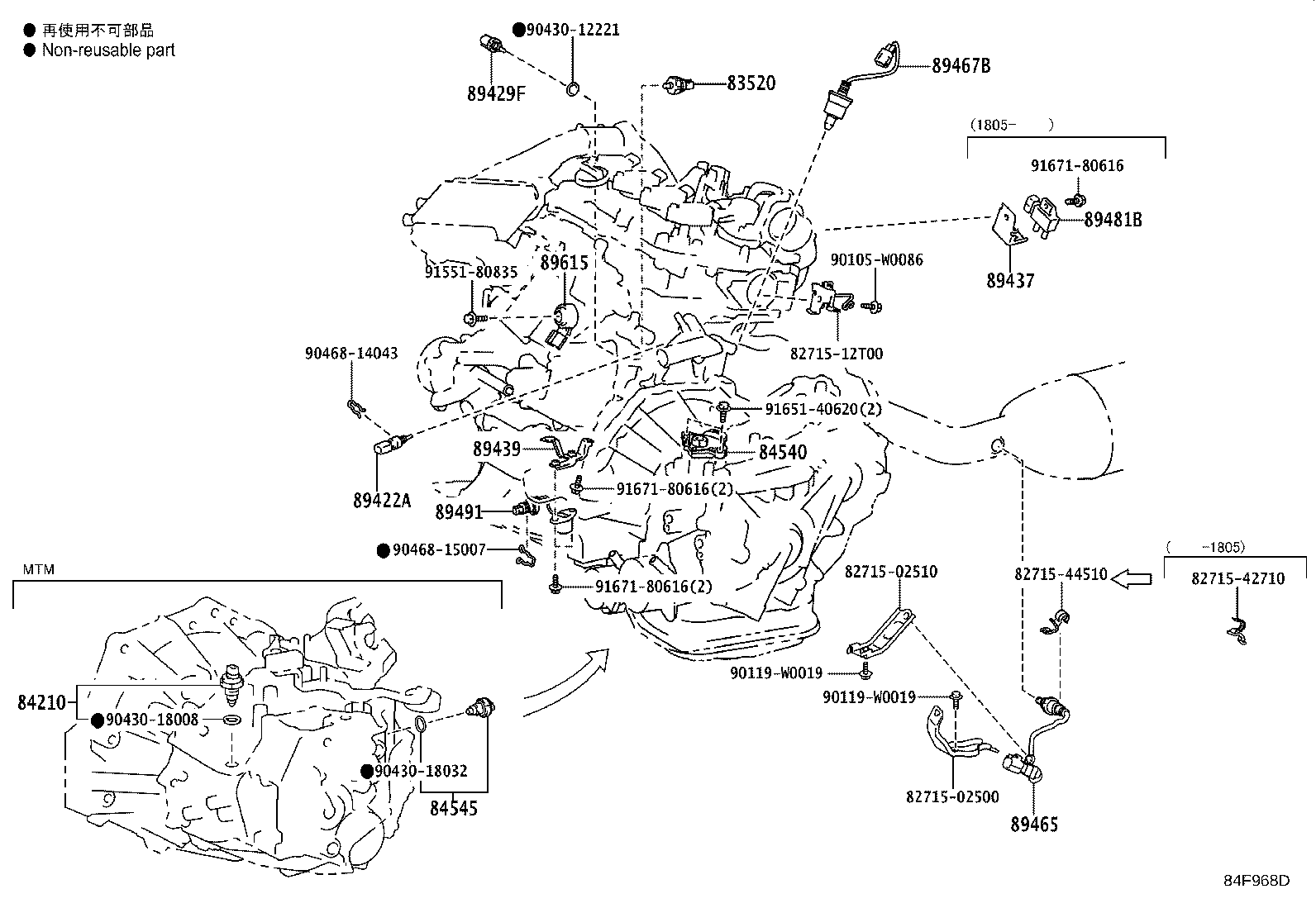

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83520 — Gage Assy,Oil Pressure Sender | ||||
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2012-10 → 2015-05
ended
|
ADE186,NDE180 | — | |
| 83520-60060 |
Gage Assy,Oil Pressure Sender
2015-05 → —
|
NDE180,NRE185 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-52050 |
Switch Assy, Back-up Lamp
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 MTM | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185 6F | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-52070 |
Switch Assy, Neutral Start
2012-10 → 2015-05
ended
|
ZRE185 CVT | — | |
| 84540-52070 |
Switch Assy, Neutral Start
2015-05 → —
|
NRE185,ZRE185 CVT | — | |
| 84545 — Switch, Neutral Position | ||||
| 84545-12010 |
Switch, Neutral Position
2012-10 → 2015-05
ended
|
NDE180 6FS | — | |
| 84545-52010 |
Switch, Neutral Position
2012-10 → 2014-05
ended
|
NDE180,NRE180 RHD 6F | — | |
| 84545-52010 note |
Switch, Neutral Position
2012-10 → 2014-05
ended
|
NDE180 RHD HB D | — | |
| 84545-52010 note |
Switch, Neutral Position
2014-05 → 2014-09
ended
|
NRE180 RHD | — | |
| 84545-52010 |
Switch, Neutral Position
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 84545-52010 note |
Switch, Neutral Position
2012-10 → 2015-05
ended
|
NDE180,NRE180 LHD 6F | — | |
| 84545-52010 note |
Switch, Neutral Position
2014-05 → 2015-05
ended
|
NDE180 RHD 6F | — | |
| 84545-52010 note |
Switch, Neutral Position
2015-05 → —
|
NDE180,NRE185 6F | — | |
| 84545-52010 |
Switch, Neutral Position
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89422A — Sensor, Water Temperature | ||||
| 89422-47010 |
Sensor, Water Temperature
2015-05 → —
|
NRE185 | — | |
| 89429F — Sensor, Temperature | ||||
| 89429-12010 |
Sensor, Temperature
2015-05 → —
|
NRE185 | — | |
| 89429-WA010 |
Sensor, Temperature
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89437 — Cover, Sensor | ||||
| 89437-12110 |
Cover, Sensor
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89437-10040 |
Cover, Sensor
2018-05 → —
|
NRE185 | — | |
| 89439 — Bracket, Sensor | ||||
| 89439-52010 |
Bracket, Sensor
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 15367-47010 |
Bracket, Sensor
2017-12 → —
|
NRE185 | — | |
| 89439-12070 |
Bracket, Sensor
2015-05 → 2017-11
ended
|
NRE185 | — | |
| 89439-12090 |
Bracket, Sensor
2015-05 → —
|
NDE180 | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-02280 |
Sensor, Oxygen
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 89465-02380 |
Sensor, Oxygen
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 89465-12A50 |
Sensor, Oxygen
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89465-02380 |
Sensor, Oxygen
2015-05 → —
|
ZWE186 | — | |
| 89465-12A40 |
Sensor, Oxygen
2015-05 → —
|
ZRE185 | — | |
| 89465-12B70 |
Sensor, Oxygen
2015-05 → —
|
NRE180 | — | |
| 89465-12B80 |
Sensor, Oxygen
2015-05 → 2018-05
ended
|
NRE185 | — | |
| 89467-02260 |
Sensor, Oxygen
2018-05 → —
|
NRE185 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-02080 note |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89467-12030 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 89467-12130 note |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89467-20100 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89467-02100 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NDE180 | — | |
| 89467-12270 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NRE185 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2015-05 → —
|
ZRE185,ZWE186 | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NRE180 | — | |
| 89467-YV010 |
Sensor, Air Fuel Ratio
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89481B — Sensor, Differential Pressure | ||||
| 89481-12050 |
Sensor, Differential Pressure
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89481-71010 |
Sensor, Differential Pressure
2015-05 → —
|
NDE180 | — | |
| 89481-71010 |
Sensor, Differential Pressure
2018-05 → —
|
NRE185 | — | |
| 89481-YV020 |
Sensor, Differential Pressure
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89491 — Sensor, Engine Oil Level | ||||
| 89491-20140 |
Sensor, Engine Oil Level
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 89491-52051 |
Sensor, Engine Oil Level
2012-10 → 2015-02
ended
|
NDE180 | — | |
| 89491-52052 |
Sensor, Engine Oil Level
2015-03 → 2015-05
ended
|
NDE180 | — | |
| 89491-12040 |
Sensor, Engine Oil Level
2015-05 → 2017-10
ended
|
NRE185 | — | |
| 89491-50080 |
Sensor, Engine Oil Level
2017-11 → 2018-05
ended
|
NRE185 | — | |
| 89491-50081 |
Sensor, Engine Oil Level
2018-06 → —
|
NRE185 | — | |
| 89491-52052 |
Sensor, Engine Oil Level
2015-05 → —
|
NDE180 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-02020 note |
Sensor, Knock Control
2012-10 → 2015-05
ended
|
ZRE185,ZWE186 | — | |
| 89615-20090 note |
Sensor, Knock Control
2012-10 → 2015-05
ended
|
ZRE185,ZWE186 | — | |
| 89615-20090 |
Sensor, Knock Control
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89615-20090 |
Sensor, Knock Control
2015-05 → —
|
NRE18#,ZRE185,ZWE186 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
