Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

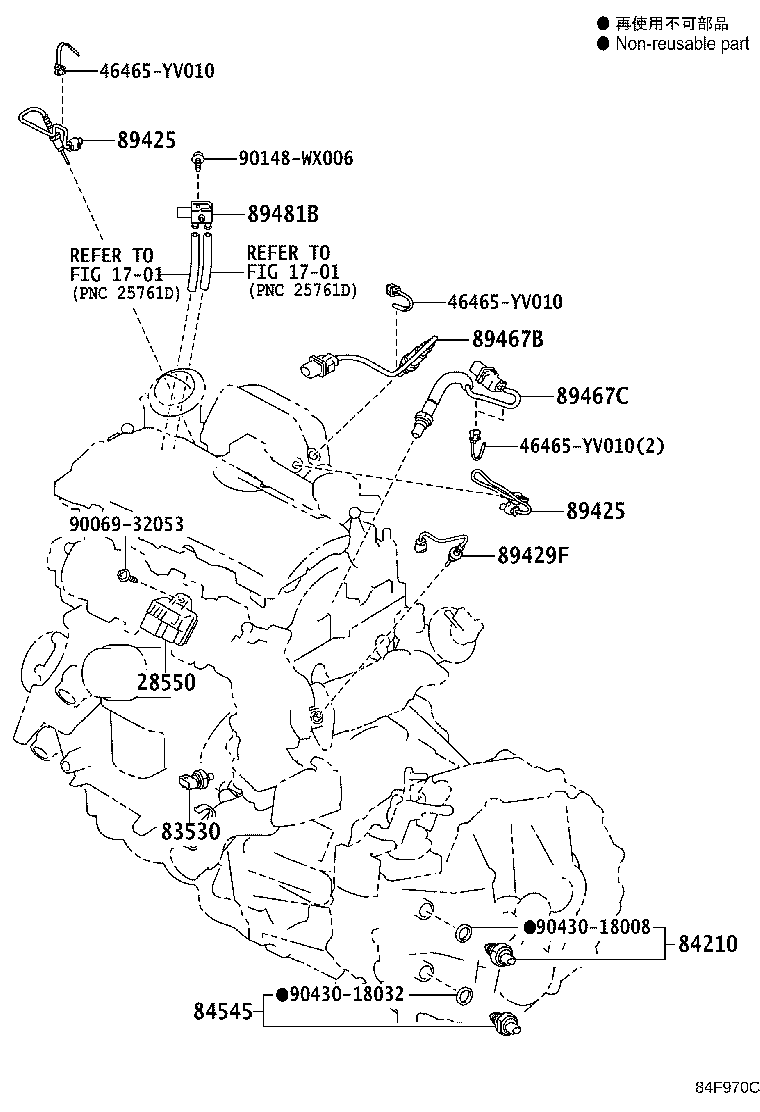

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28550 — Controller Assy, Glow Plug | ||||
| 28550-WA020 |
Controller Assy, Glow Plug
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-10 → 2015-05
ended
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2012-10 → 2015-05
ended
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-05 → —
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-05 → —
|
NRE180,ZRE185,ZWE186 | — | |
| 83530-WA011 |
Switch Assy, Oil Pressure (FOR ENGINE)
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-52050 |
Switch Assy, Back-up Lamp
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185 MTM | — | |
| 84210-52050 |
Switch Assy, Back-up Lamp
2015-05 → —
|
NDE180,NRE18#,WWE185,ZRE185 6F | — | |
| 84545 — Switch, Neutral Position | ||||
| 84545-12010 |
Switch, Neutral Position
2012-10 → 2015-05
ended
|
NDE180 6FS | — | |
| 84545-52010 note |
Switch, Neutral Position
2012-10 → 2014-05
ended
|
NDE180 RHD HB D | — | |
| 84545-52010 note |
Switch, Neutral Position
2014-05 → 2014-09
ended
|
NRE180 RHD | — | |
| 84545-52010 |
Switch, Neutral Position
2012-10 → 2014-05
ended
|
NDE180,NRE180 RHD 6F | — | |
| 84545-52010 |
Switch, Neutral Position
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 84545-52010 note |
Switch, Neutral Position
2012-10 → 2015-05
ended
|
NDE180,NRE180 LHD 6F | — | |
| 84545-52010 note |
Switch, Neutral Position
2014-05 → 2015-05
ended
|
NDE180 RHD 6F | — | |
| 84545-52010 |
Switch, Neutral Position
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 84545-52010 note |
Switch, Neutral Position
2015-05 → —
|
NDE180,NRE185 6F | — | |
| 89425 — Sensor, Exhaust Gas Temperature | ||||
| 89425-20400 |
Sensor, Exhaust Gas Temperature
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 89425-52031 |
Sensor, Exhaust Gas Temperature
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89425-02010 |
Sensor, Exhaust Gas Temperature
2015-05 → —
|
NDE180 | — | |
| 89425-YV010 |
Sensor, Exhaust Gas Temperature
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89429F — Sensor, Temperature | ||||
| 89429-12010 |
Sensor, Temperature
2015-05 → —
|
NRE185 | — | |
| 89429-WA010 |
Sensor, Temperature
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-02080 note |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89467-12030 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ZRE185 | — | |
| 89467-12130 note |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89467-20100 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ADE186 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
ZWE186 | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2012-10 → 2015-05
ended
|
NRE180 | — | |
| 89467-02100 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NDE180 | — | |
| 89467-12270 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NRE185 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2015-05 → —
|
ZRE185,ZWE186 | — | |
| 89467-52110 |
Sensor, Air Fuel Ratio
2015-05 → —
|
NRE180 | — | |
| 89467-YV010 |
Sensor, Air Fuel Ratio
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89467C — Sensor, Air Fuel Ratio, NO.2 | ||||
| 89467-02110 |
Sensor, Air Fuel Ratio, NO.2
2015-05 → —
|
NDE180 | — | |
| 89467-YV020 |
Sensor, Air Fuel Ratio, NO.2
2015-05 → 2018-04
ended
|
WWE185 | — | |
| 89481B — Sensor, Differential Pressure | ||||
| 89481-12050 |
Sensor, Differential Pressure
2012-10 → 2015-05
ended
|
NDE180 | — | |
| 89481-71010 |
Sensor, Differential Pressure
2015-05 → —
|
NDE180 | — | |
| 89481-71010 |
Sensor, Differential Pressure
2018-05 → —
|
NRE185 | — | |
| 89481-YV020 |
Sensor, Differential Pressure
2015-05 → 2018-04
ended
|
WWE185 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
