Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

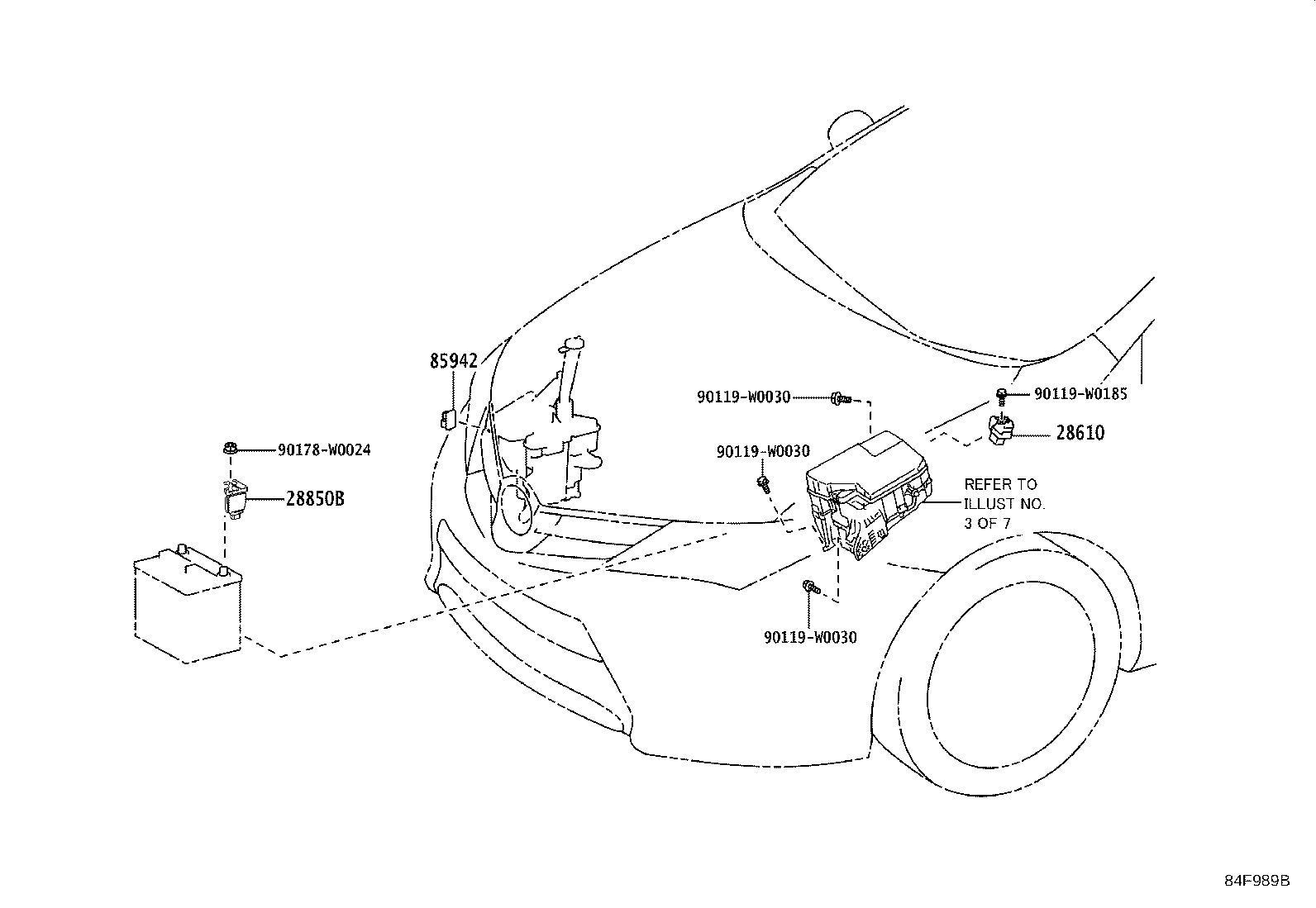

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28610 — Relay Assy, Intake Heater OR Glow Plug | ||||
| 28601-26030 |
Relay Assy, Intake Heater OR Glow Plug
2012-10 → 2015-05
ended
|
1ADFTV,1NDTV ADE186,NDE180 | — | |
| 28601-26030 |
Relay Assy, Intake Heater OR Glow Plug
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 28601-26030 |
Relay Assy, Intake Heater OR Glow Plug
2015-05 → —
|
1NDTV NDE180 | — | |
| 28850B — Computer Assy, Alternator Control | ||||
| 28850-26011 |
Computer Assy, Alternator Control
2012-10 → 2013-10
ended
|
1ADFTV,1NDTV ADE186,NDE180 | — | |
| 28850-26012 |
Computer Assy, Alternator Control
2013-11 → 2015-05
ended
|
1ADFTV,1NDTV ADE186,NDE180 | — | |
| 28850-37021 |
Computer Assy, Alternator Control
2012-10 → 2015-05
ended
|
1NRFE,1ZRFAE NRE180,ZRE185 | — | |
| 28850-26012 |
Computer Assy, Alternator Control
2015-05 → —
|
1NDTV NDE180 | — | |
| 28850-37010 |
Computer Assy, Alternator Control
2015-05 → 2018-04
ended
|
1WW WWE185 | — | |
| 28850-37021 |
Computer Assy, Alternator Control
2015-05 → —
|
1NRFE NRE180 | — | |
| 28850-37021 note |
Computer Assy, Alternator Control
2015-05 → —
|
1NRFE NRE180 LHD | — | |
| 28850-37021 note |
Computer Assy, Alternator Control
2015-05 → —
|
1NRFE NRE180 LHD | — | |
| 28850-37021 note |
Computer Assy, Alternator Control
2015-05 → —
|
1NRFE NRE180 LHD | — | |
| 28850-37021 note |
Computer Assy, Alternator Control
2015-05 → —
|
1NRFE NRE180 LHD | — | |
| 28850-37021 note |
Computer Assy, Alternator Control
2015-05 → —
|
1NRFE NRE180 LHD HB | — | |
| 85942 — Relay, Headlamp Cleaner Control | ||||
| 85942-02060 note |
Relay, Headlamp Cleaner Control
2012-10 → 2015-05
ended
|
ADE186,NDE180,NRE180,ZRE185,ZWE186 LHD | — | |
| 85942-02060 note |
Relay, Headlamp Cleaner Control
2015-05 → 2018-04
ended
|
WWE185 LHD | — | |
| 85942-02060 note |
Relay, Headlamp Cleaner Control
2015-05 → —
|
NDE180,NRE18#,ZRE185,ZWE186 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
