Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 15 illustrations

Illustrations

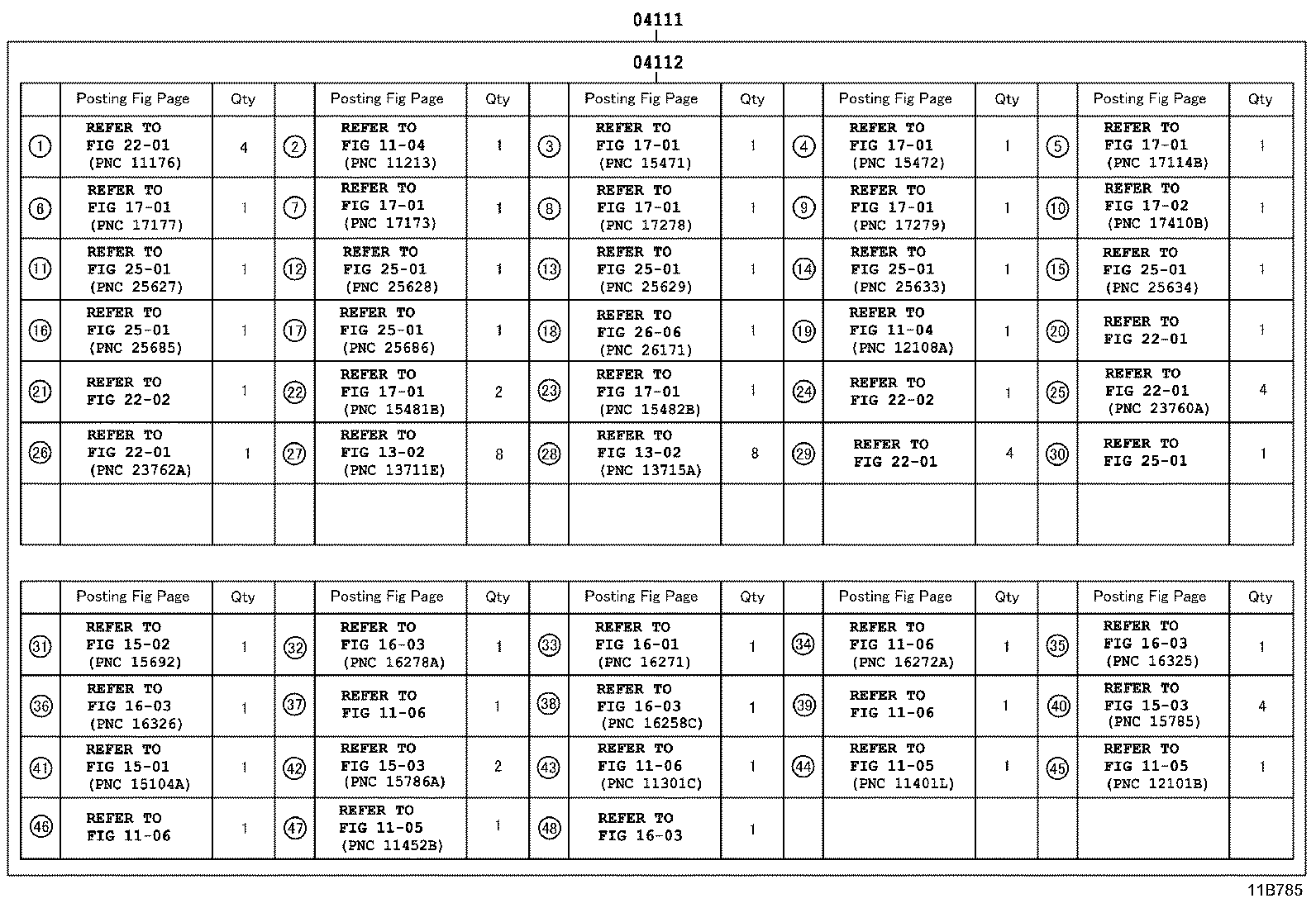

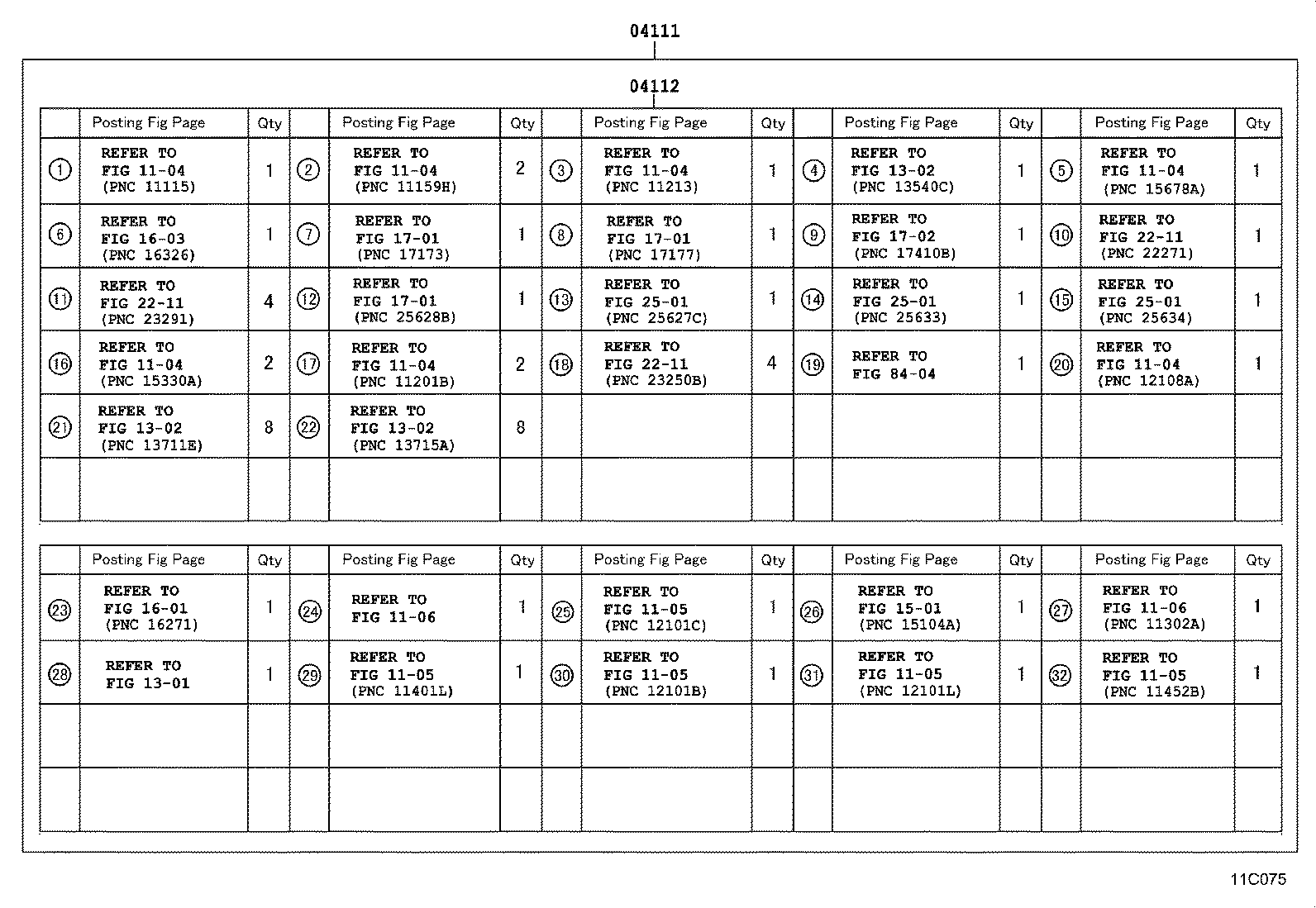

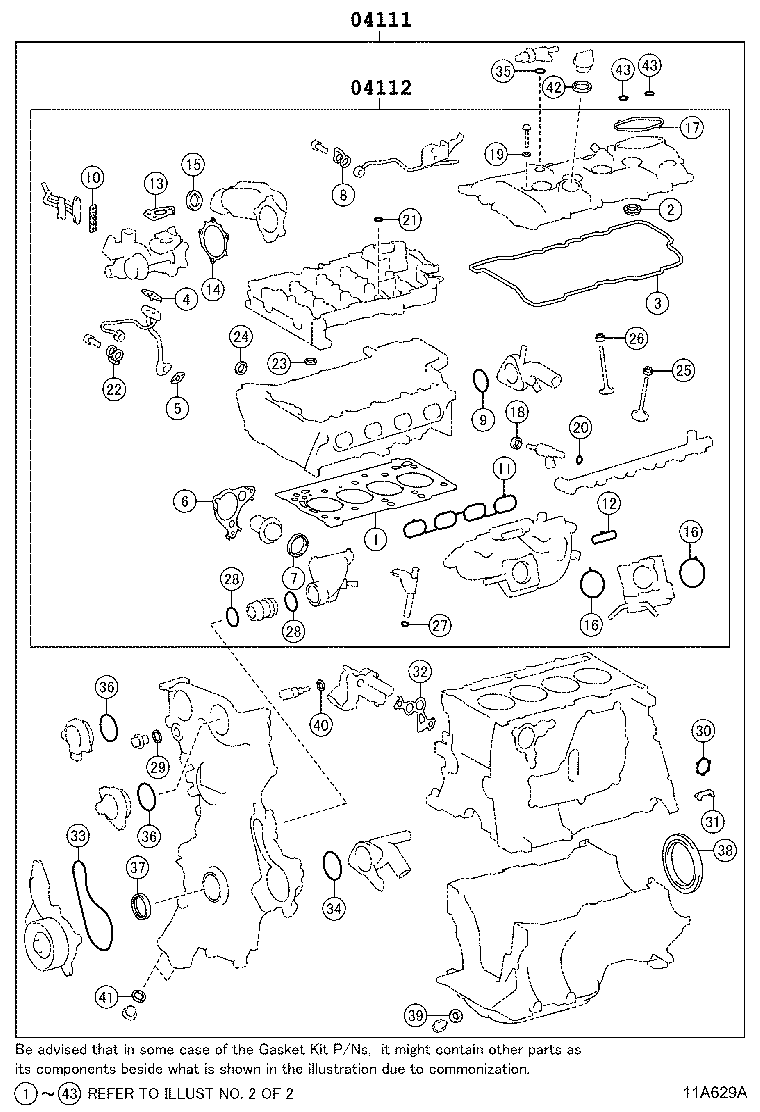

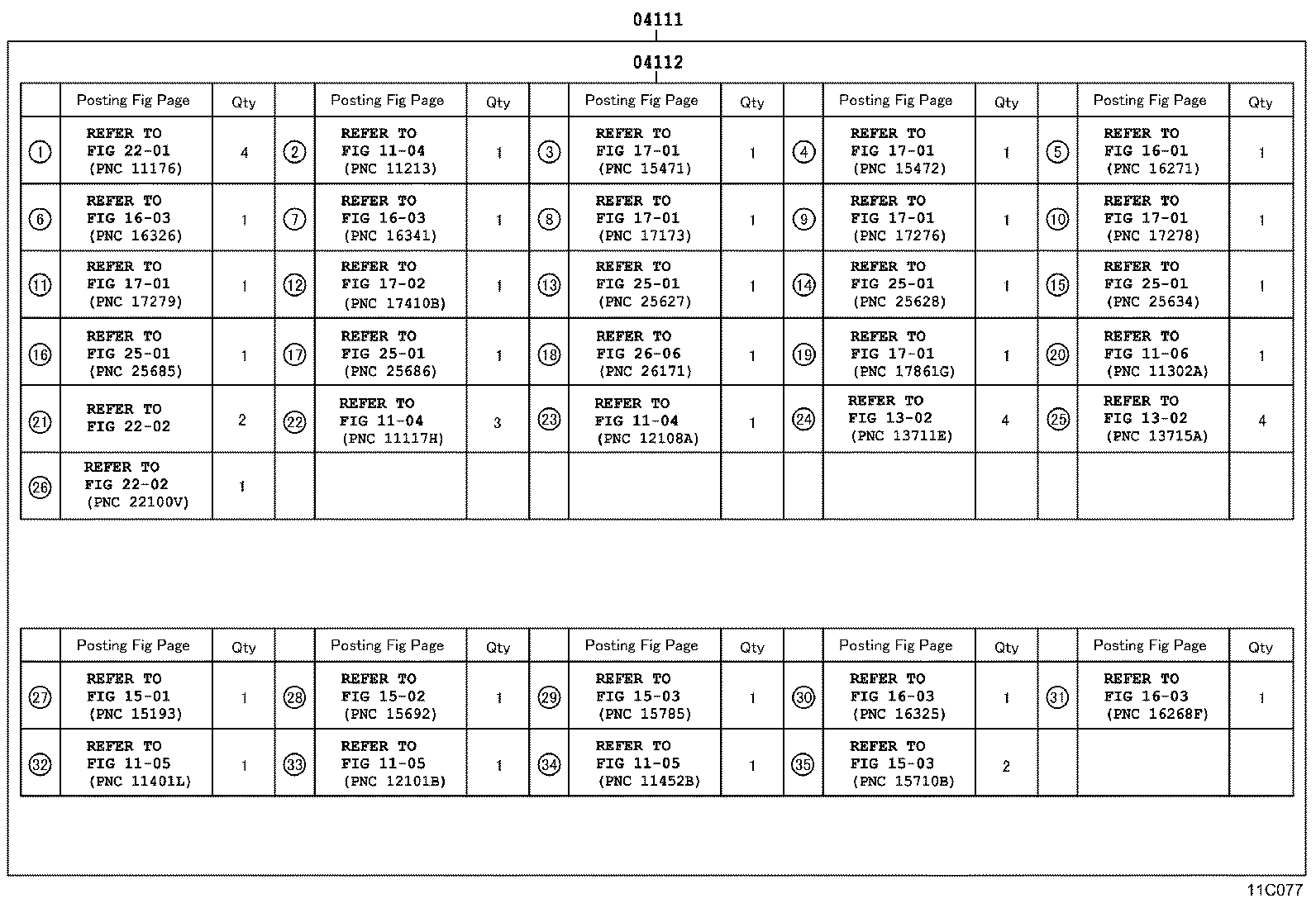

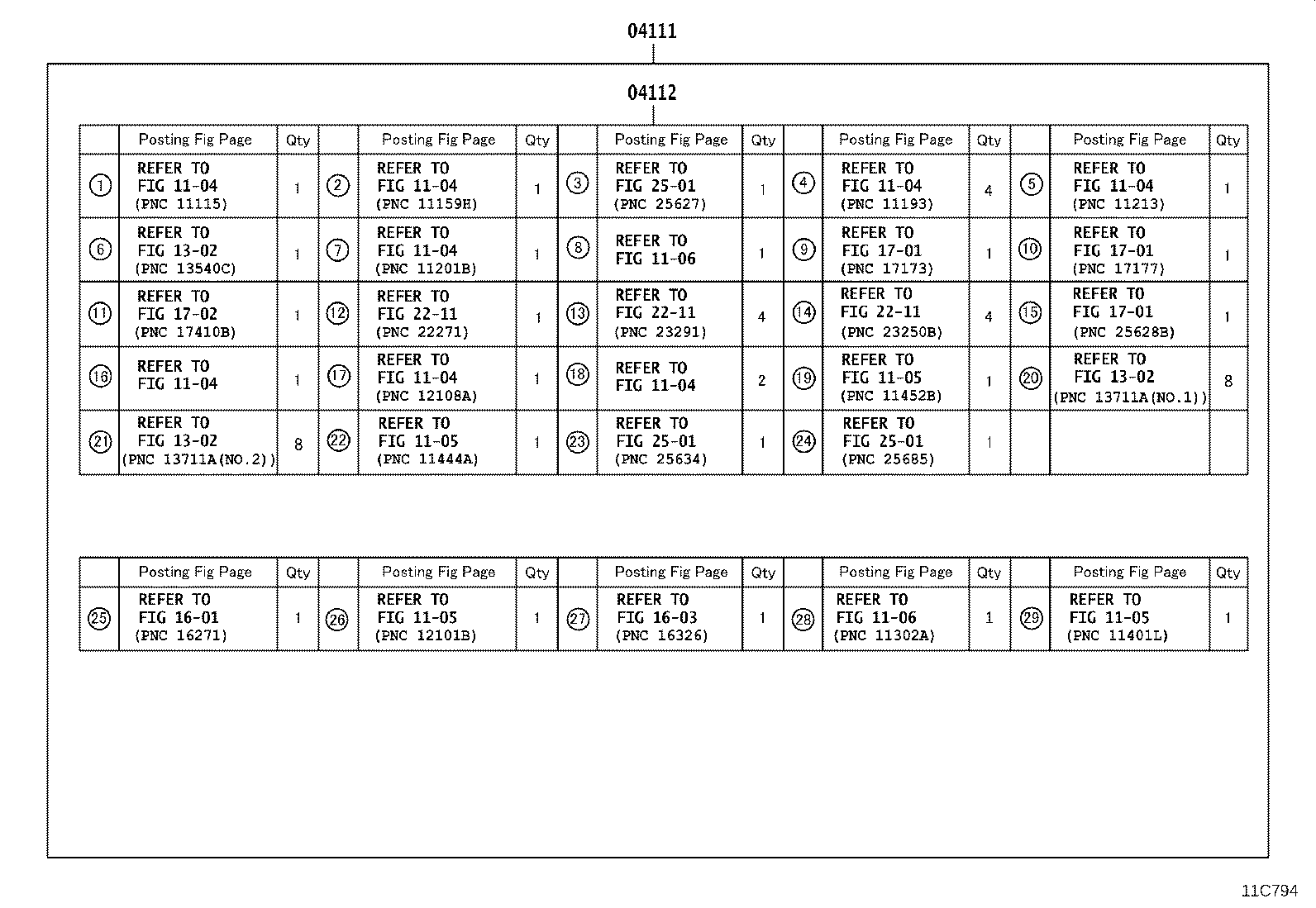

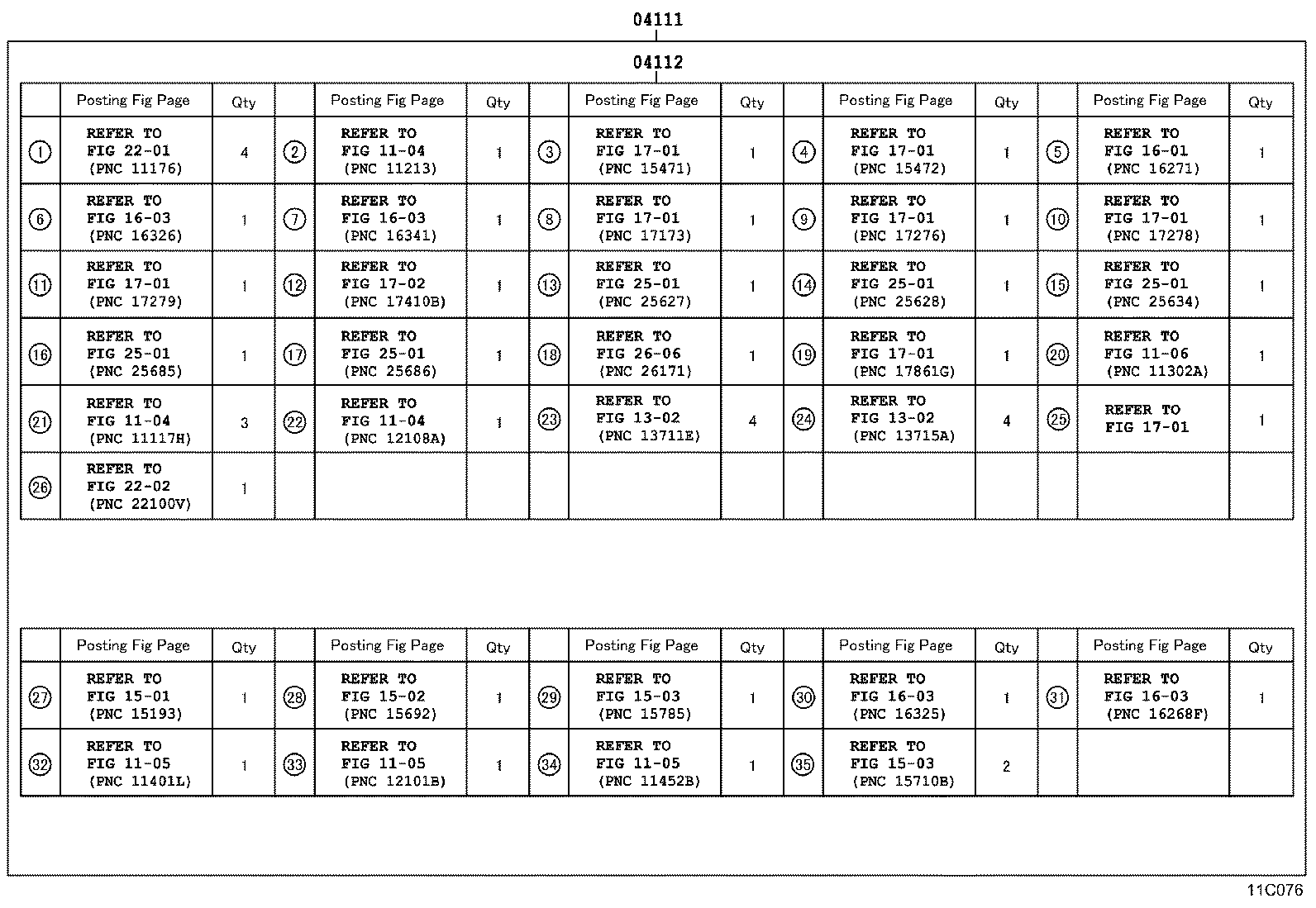

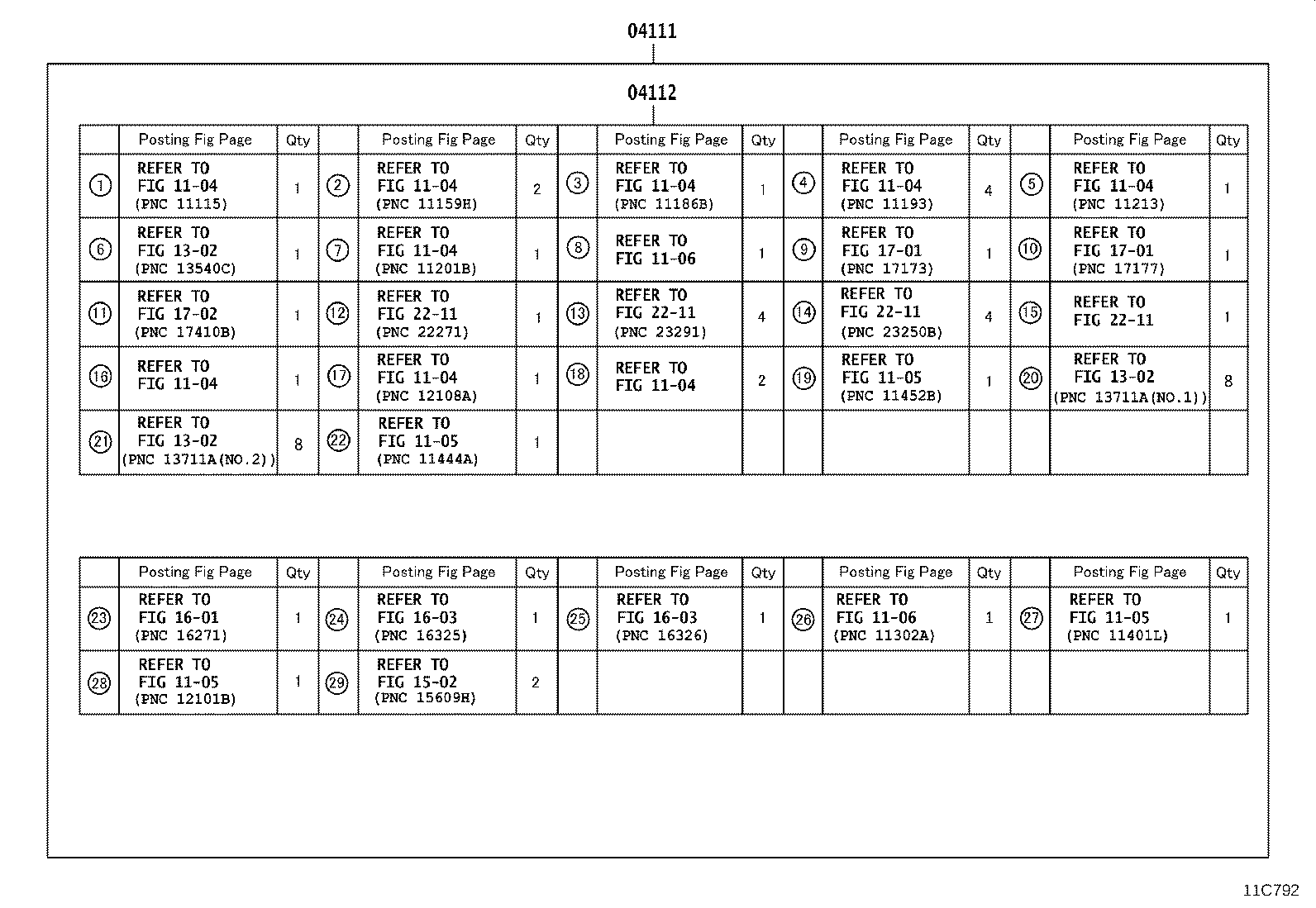

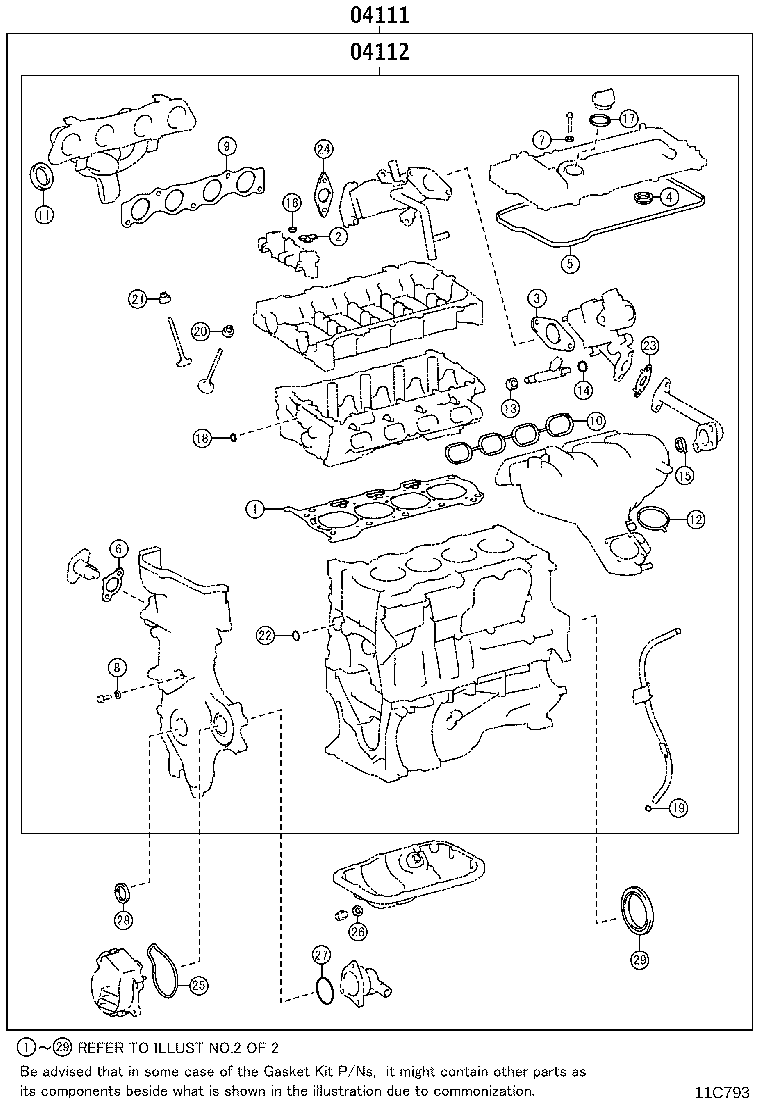

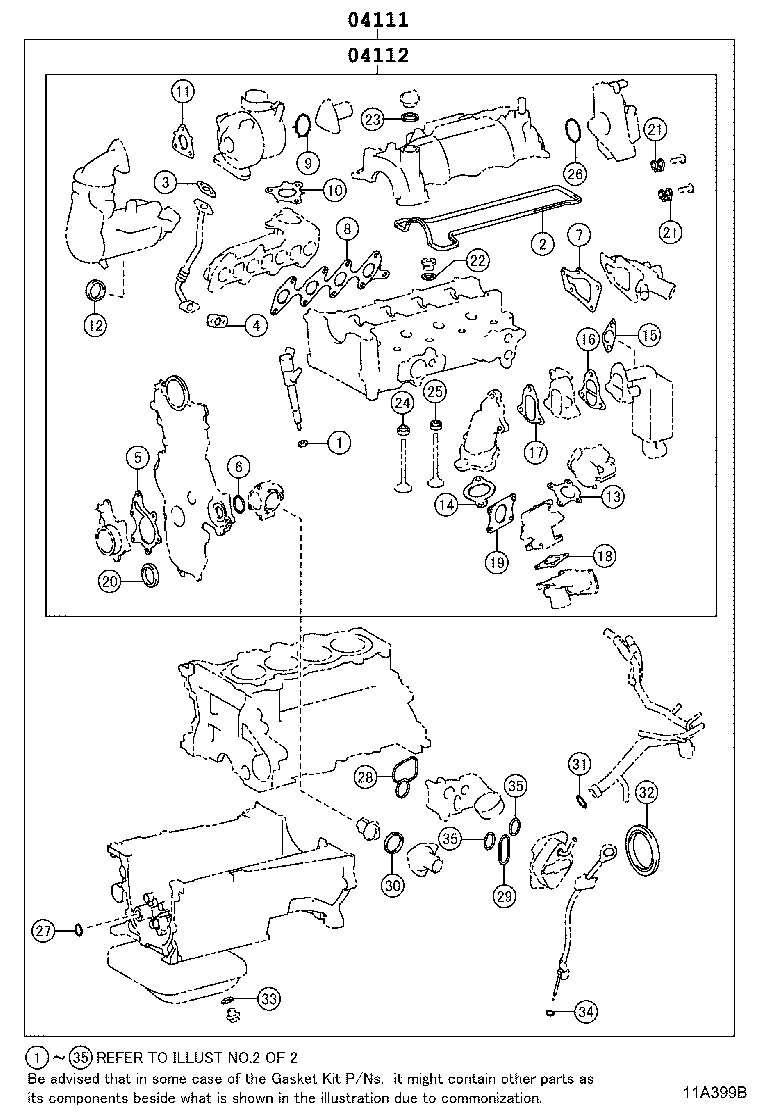

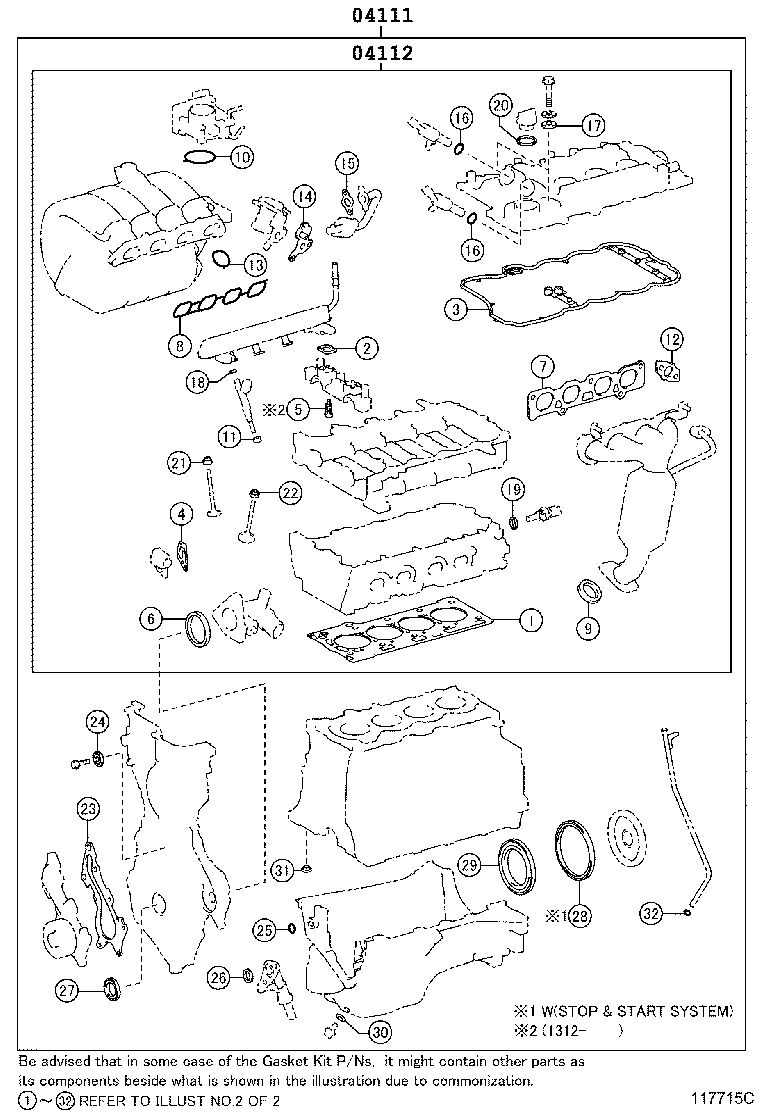

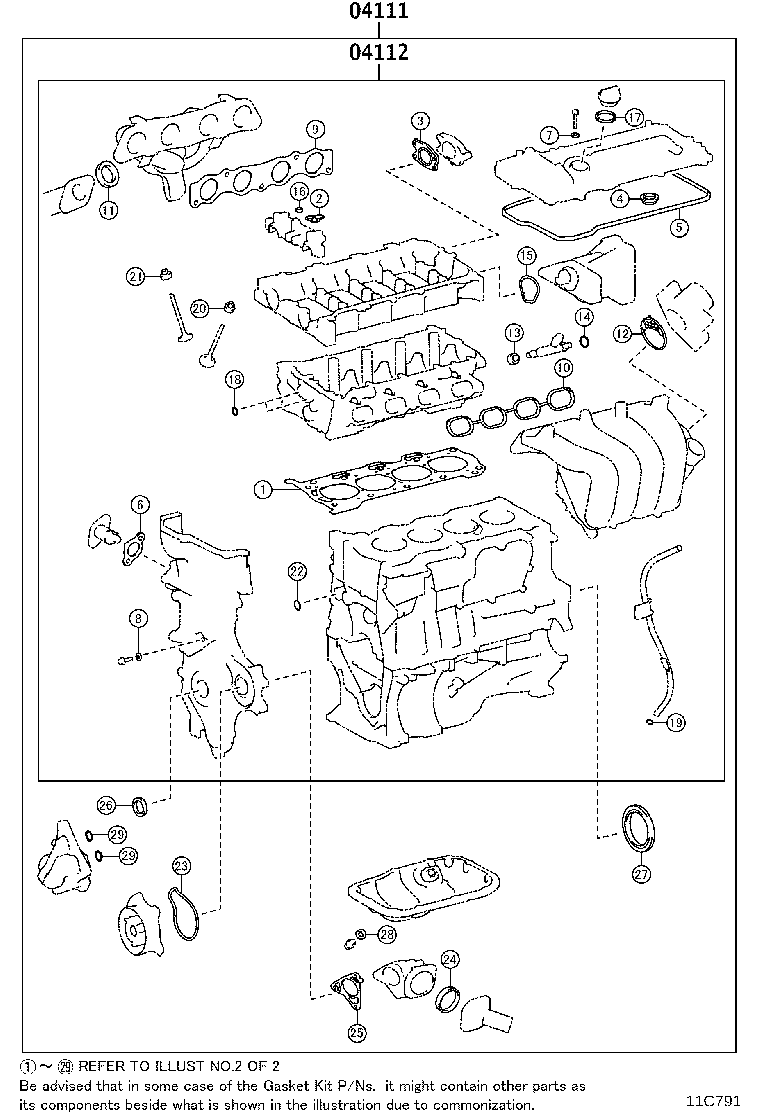

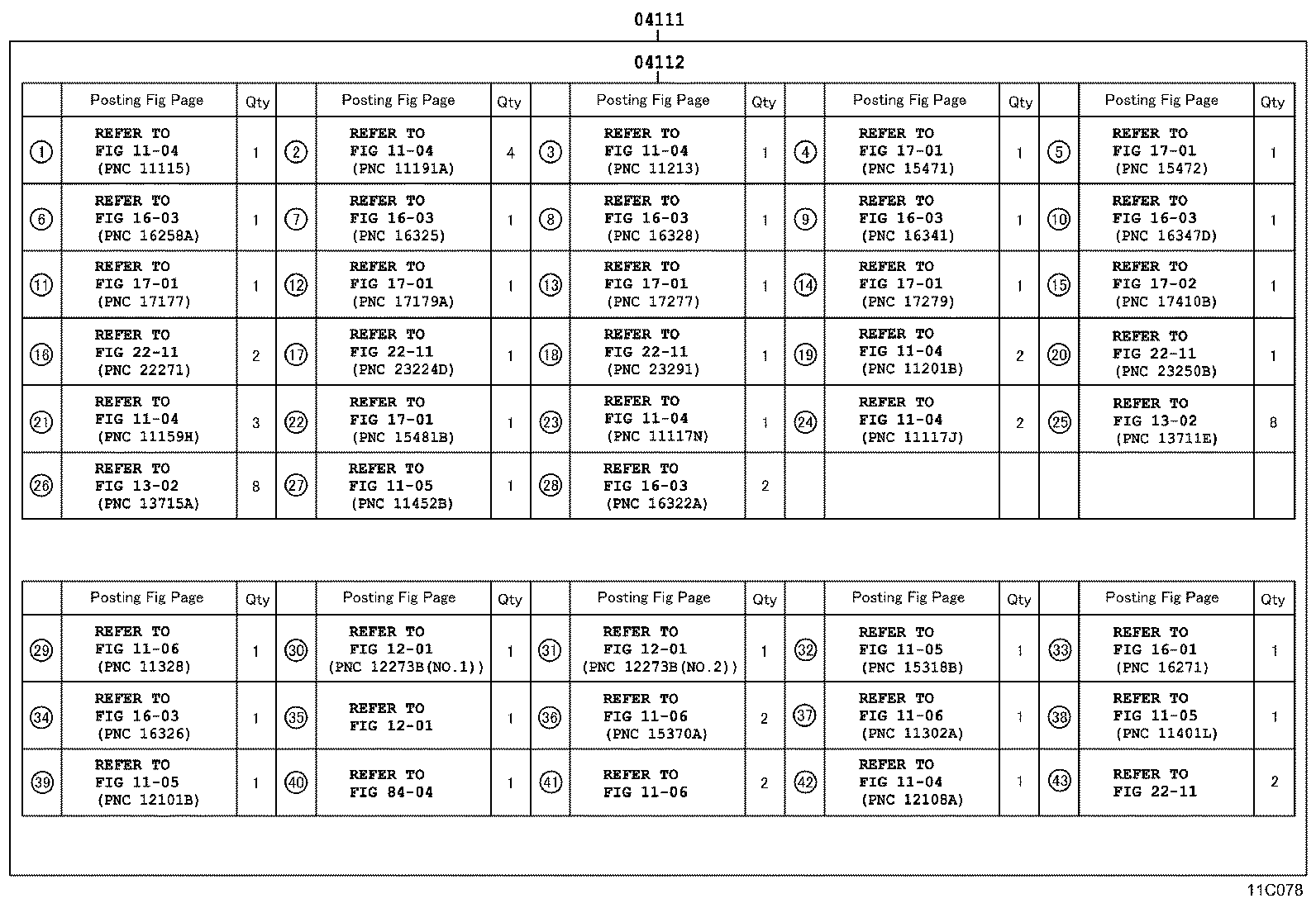

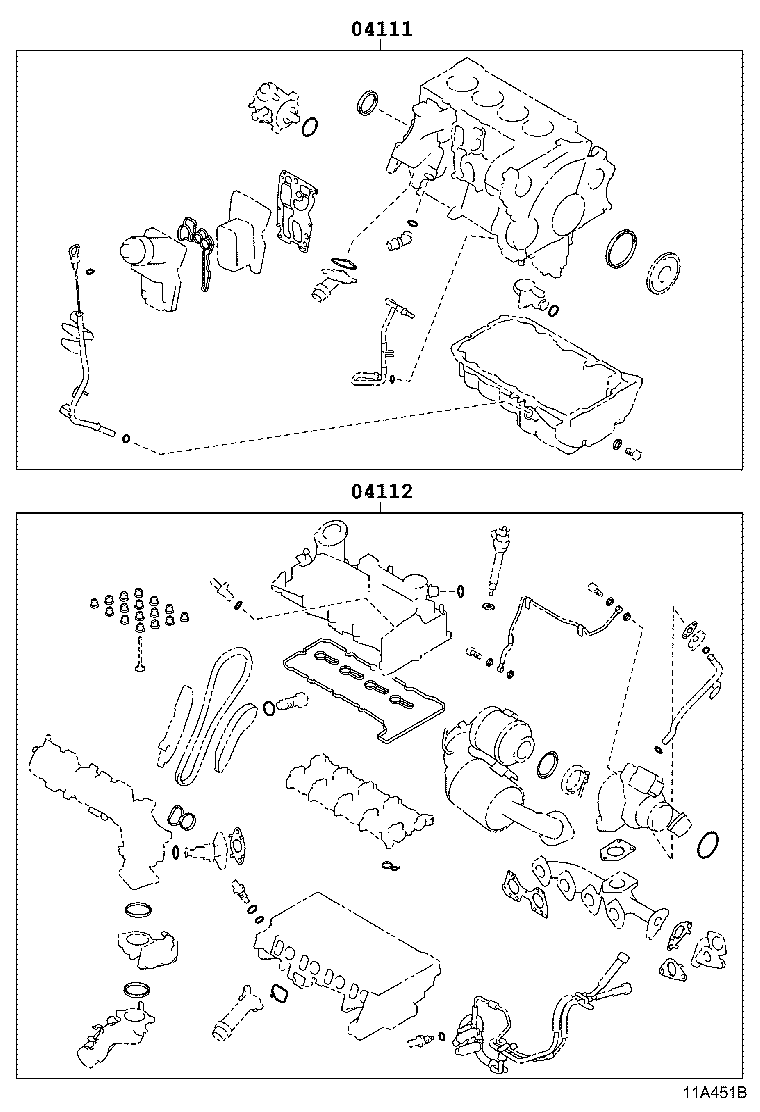

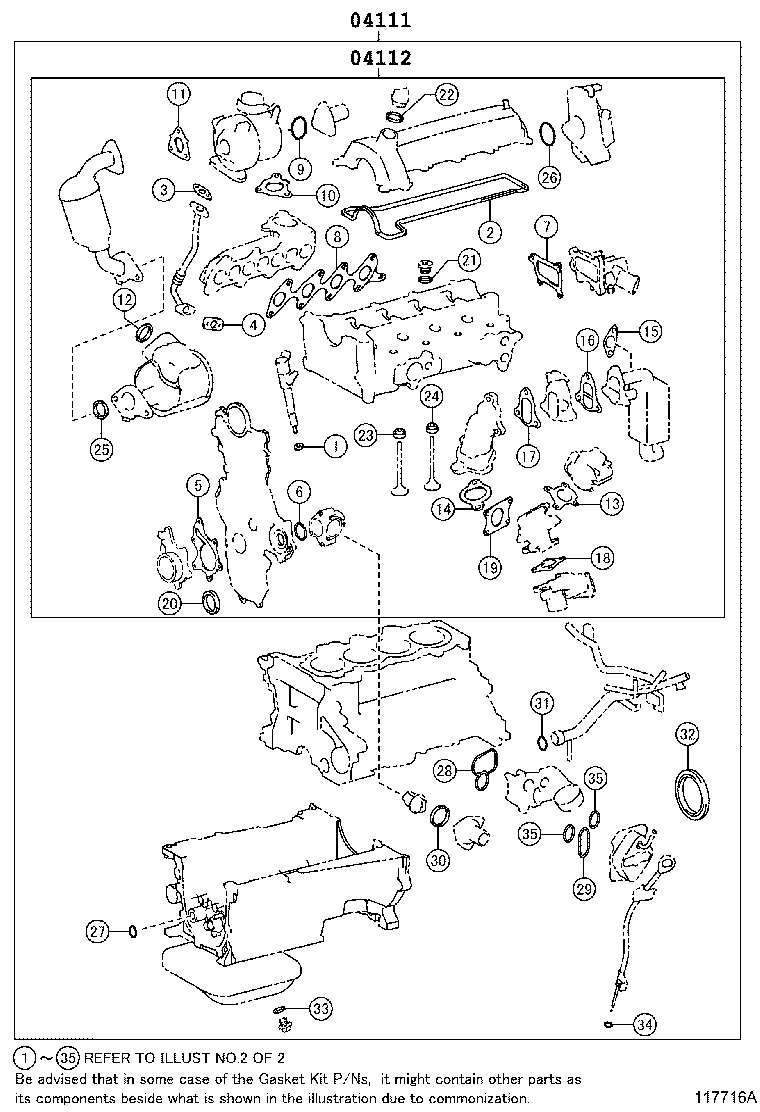

Figure 11B784 11B784 2012-10 → — Figure 11B785 11B785 2012-10 → — Figure 117715C 117715C 2012-10 → — Figure 11C075 11C075 2012-10 → — Figure 117716A 117716A 2012-10 → 2015-05 Figure 11C076 11C076 2012-10 → 2015-05 Figure 11A399B 11A399B 2015-05 → — Figure 11C077 11C077 2015-05 → — Figure 11A629A 11A629A 2015-05 → — Figure 11C078 11C078 2015-05 → — Figure 11A451B 11A451B 2015-05 → — Figure 11C791 11C791 2012-10 → — Figure 11C792 11C792 2012-10 → — Figure 11C793 11C793 2012-10 → — Figure 11C794 11C794 2012-10 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
