Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

52 part groups · 12 illustrations

Illustrations

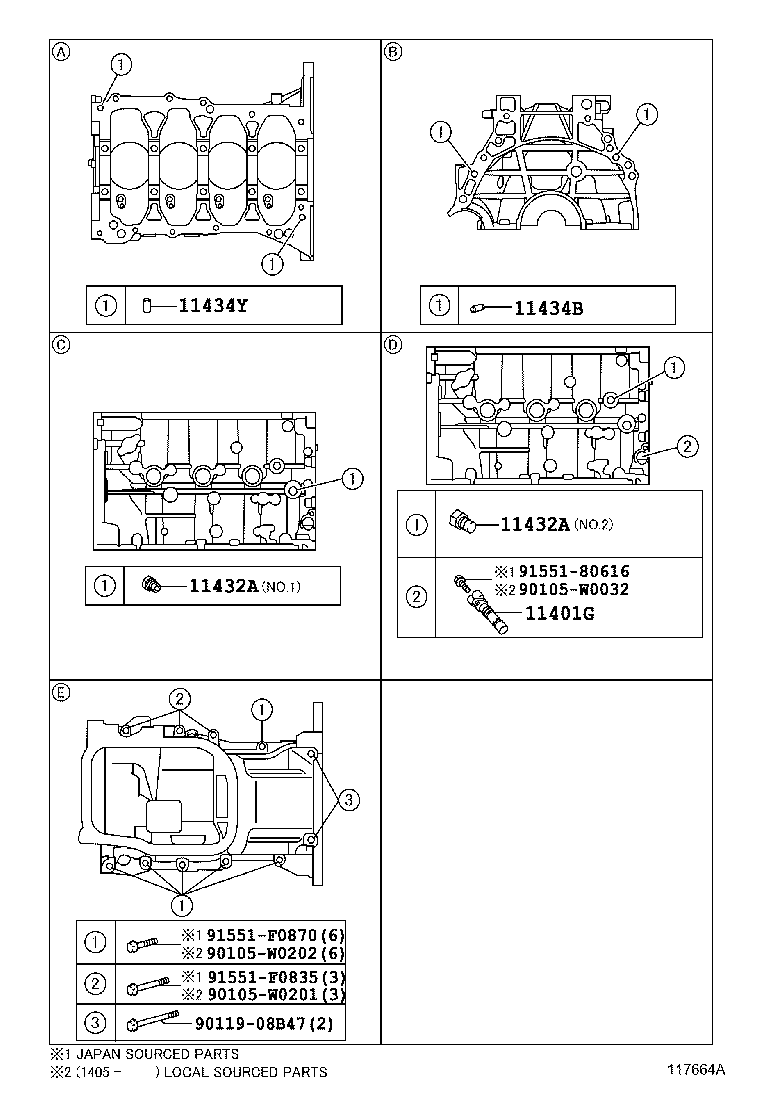

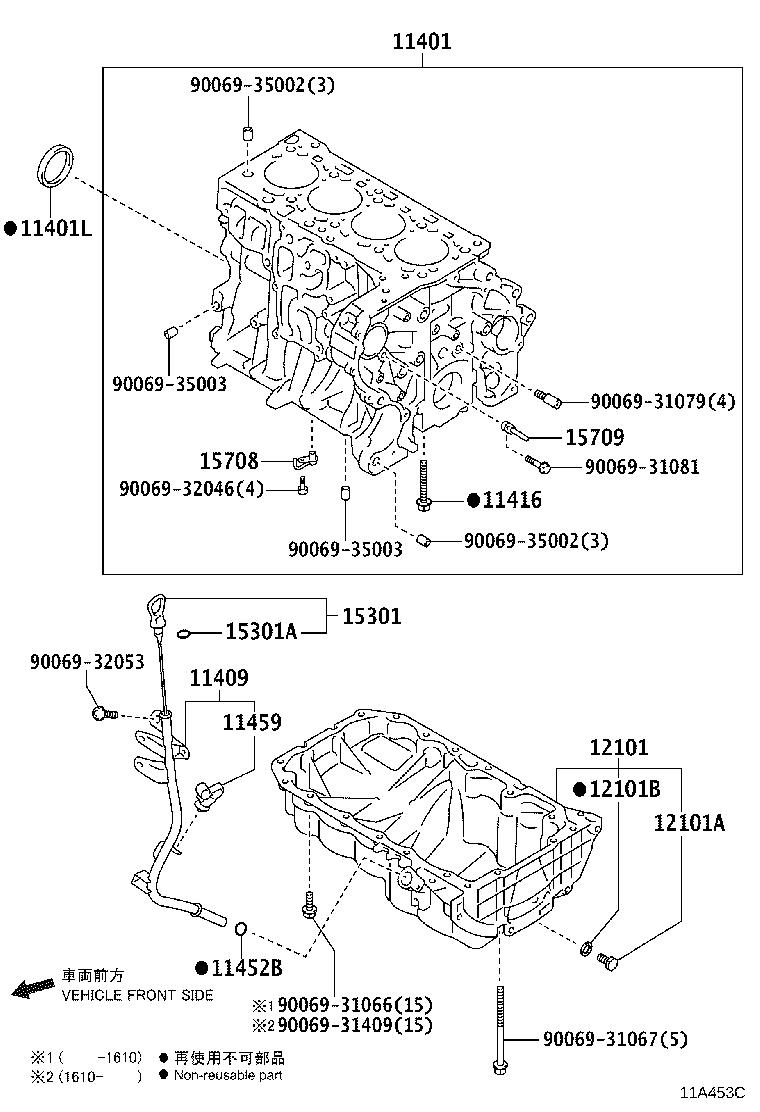

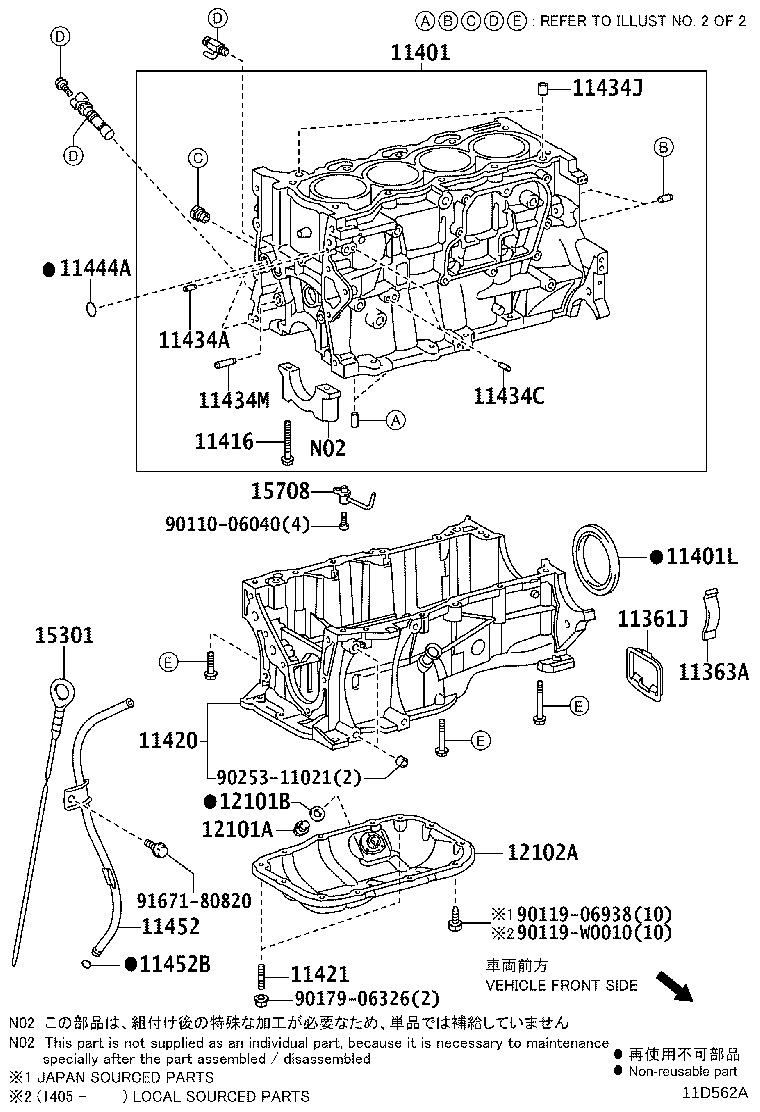

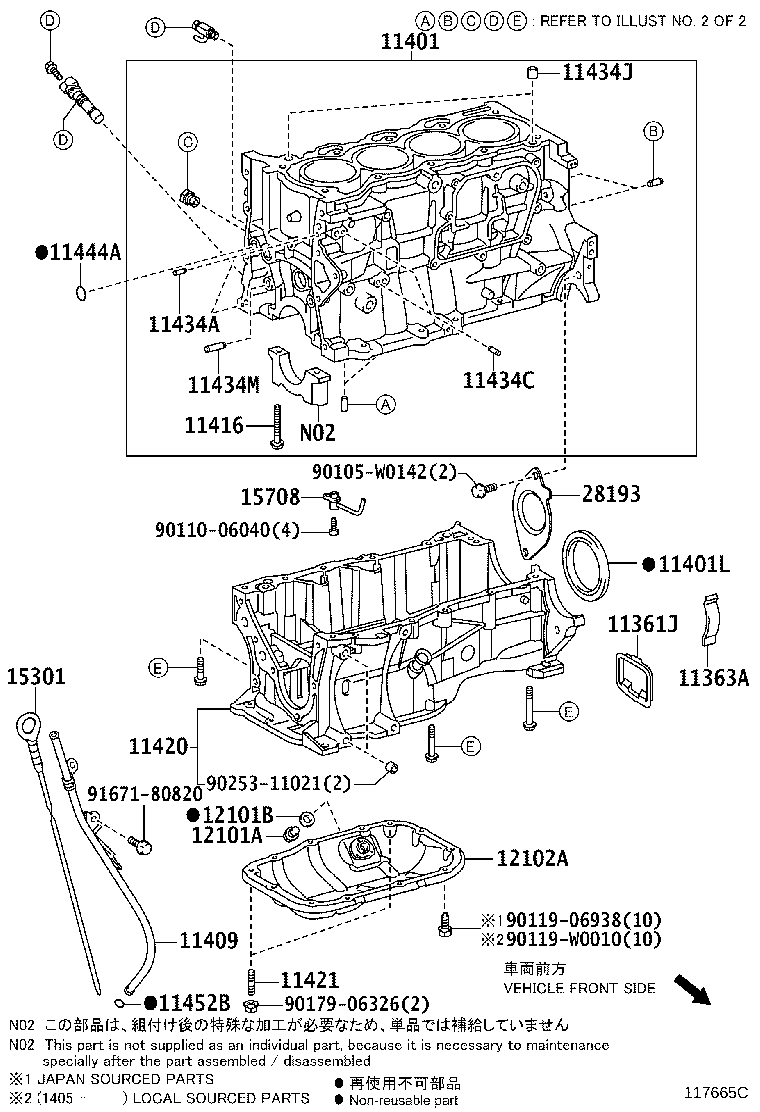

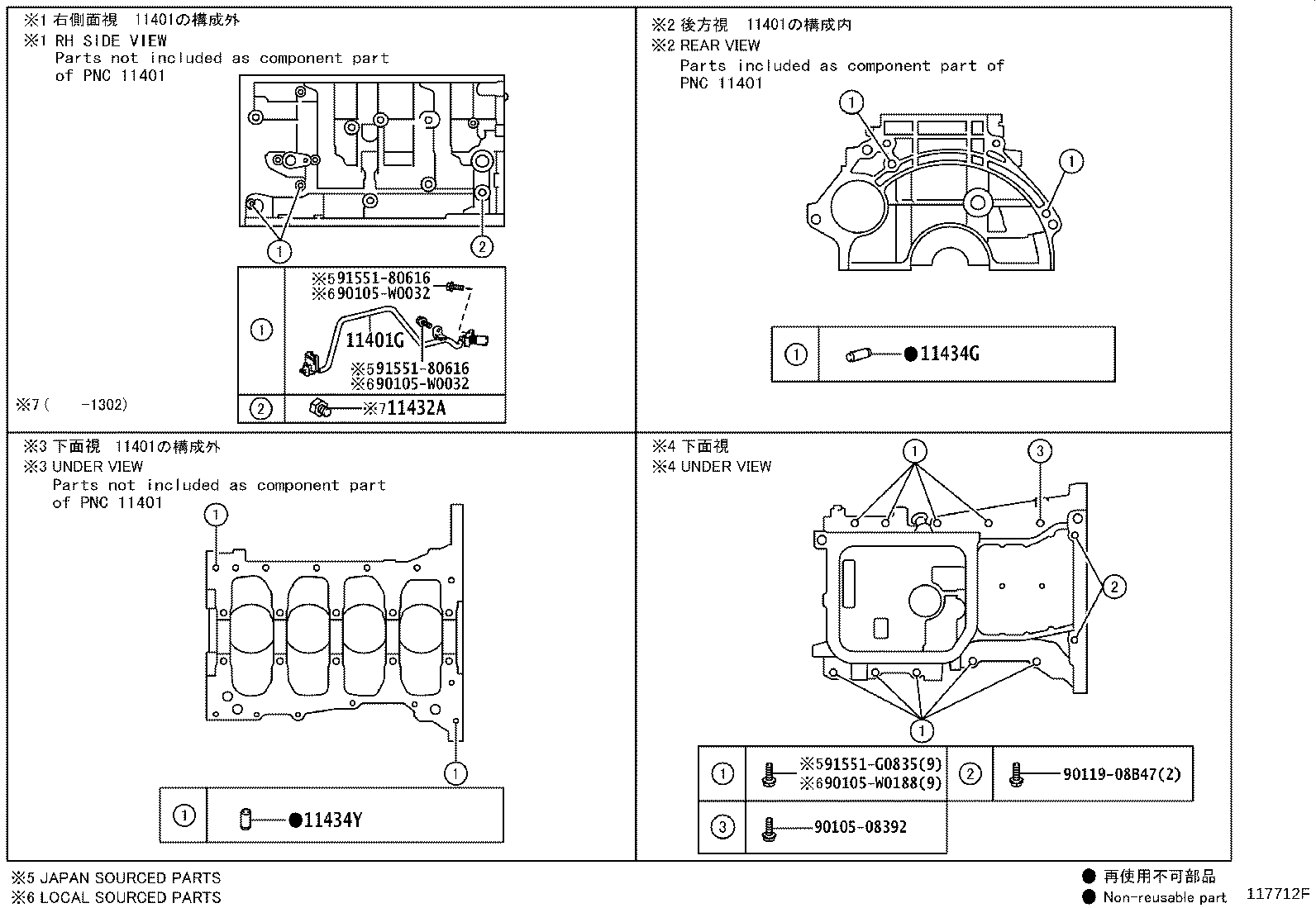

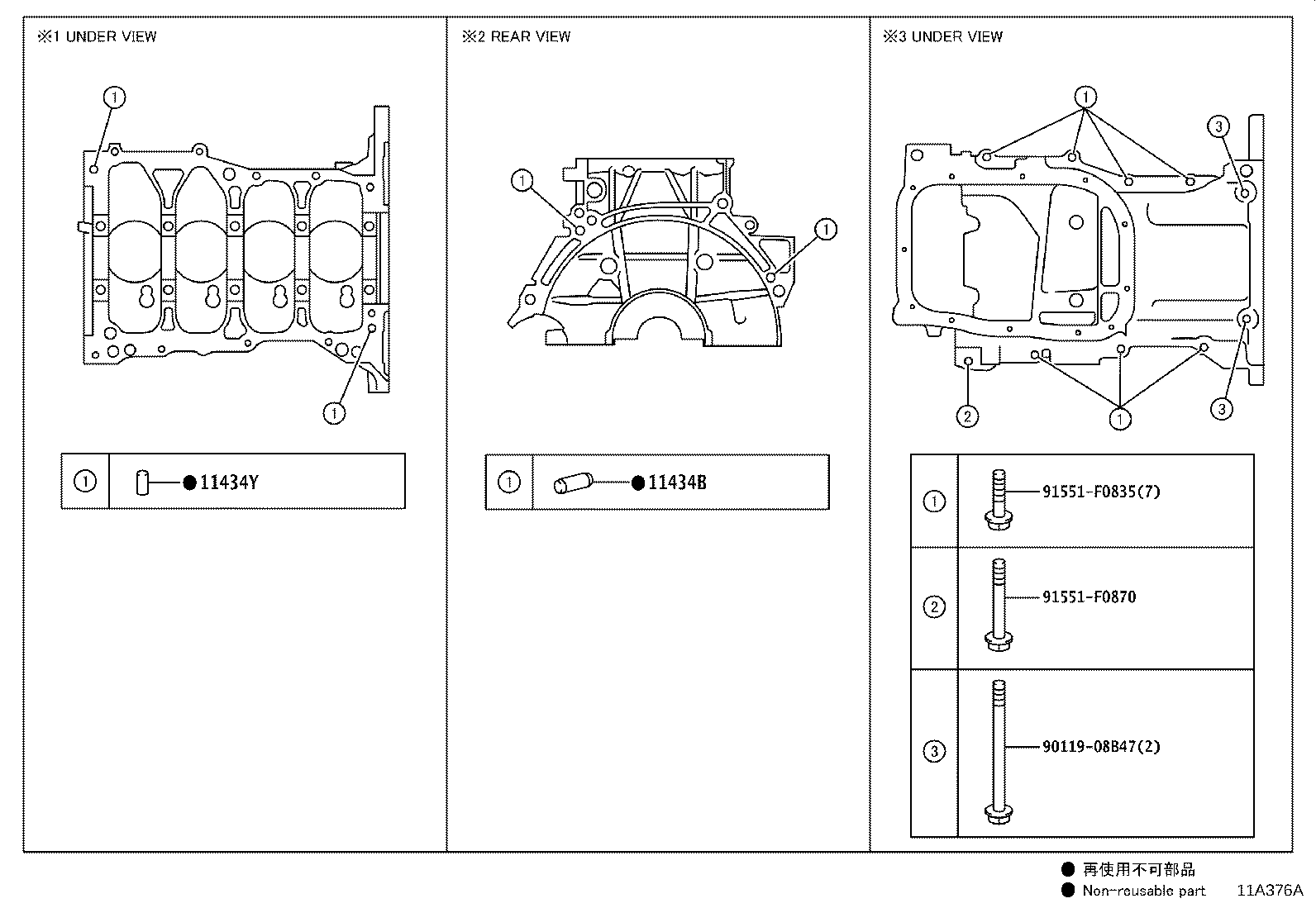

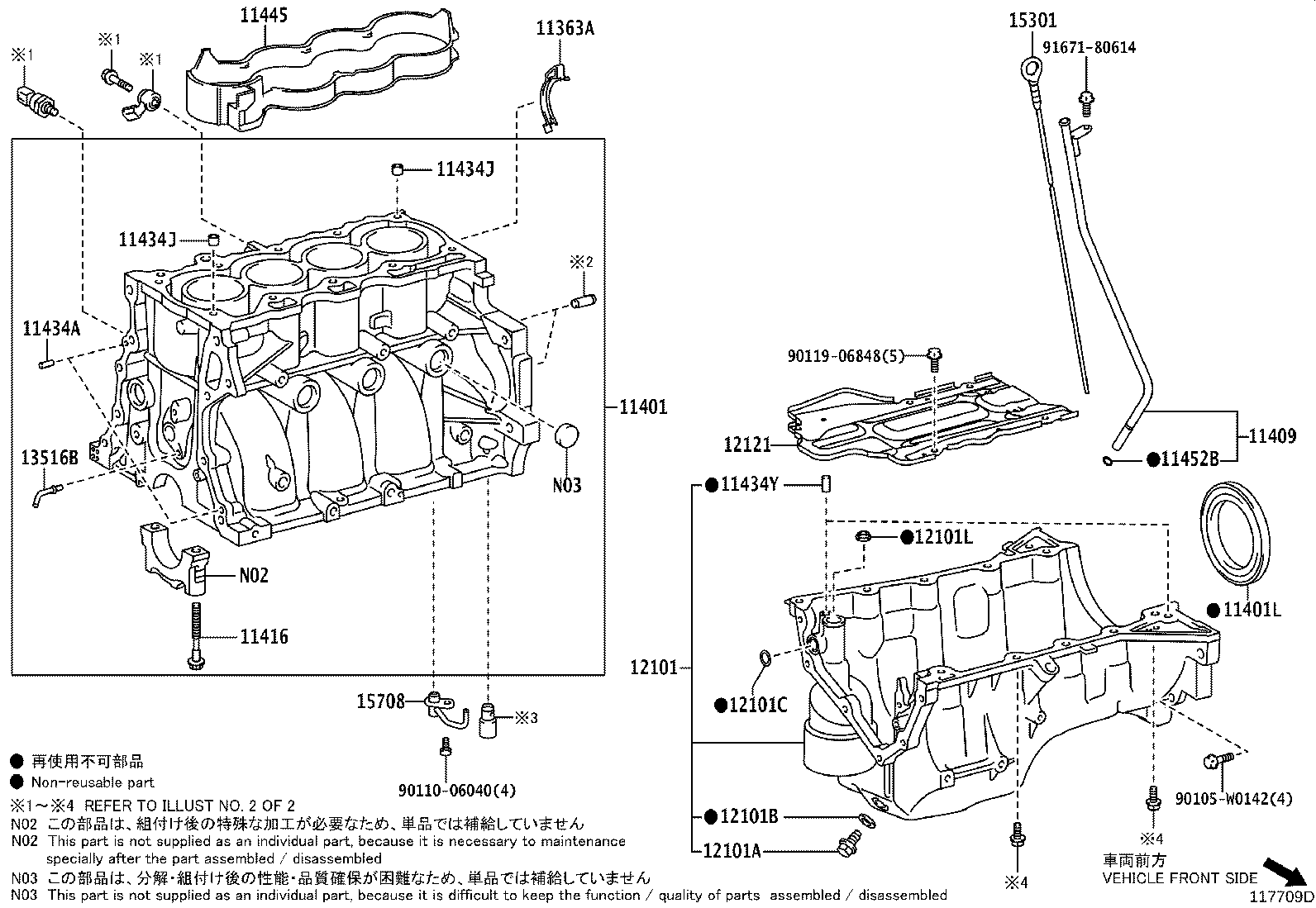

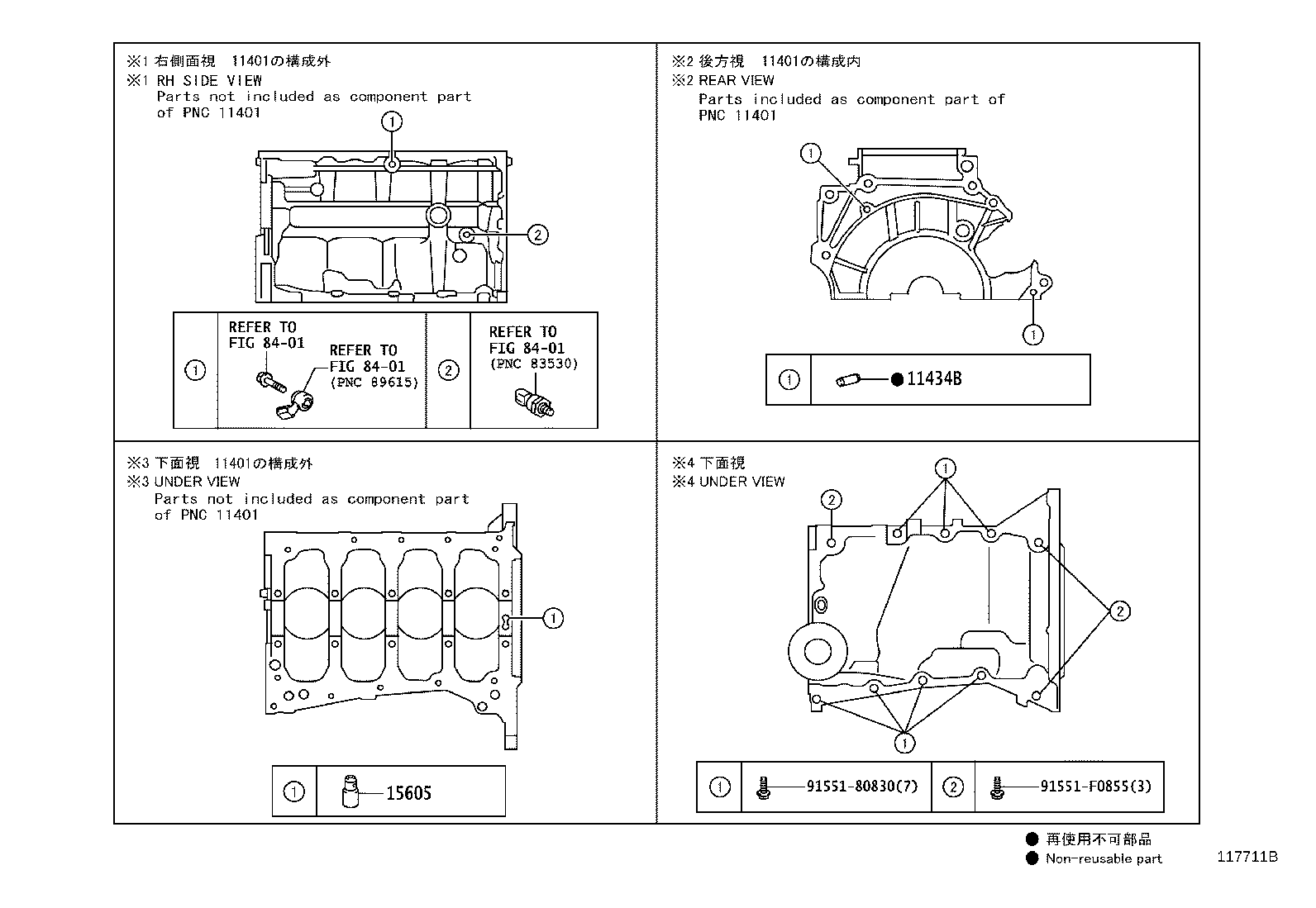

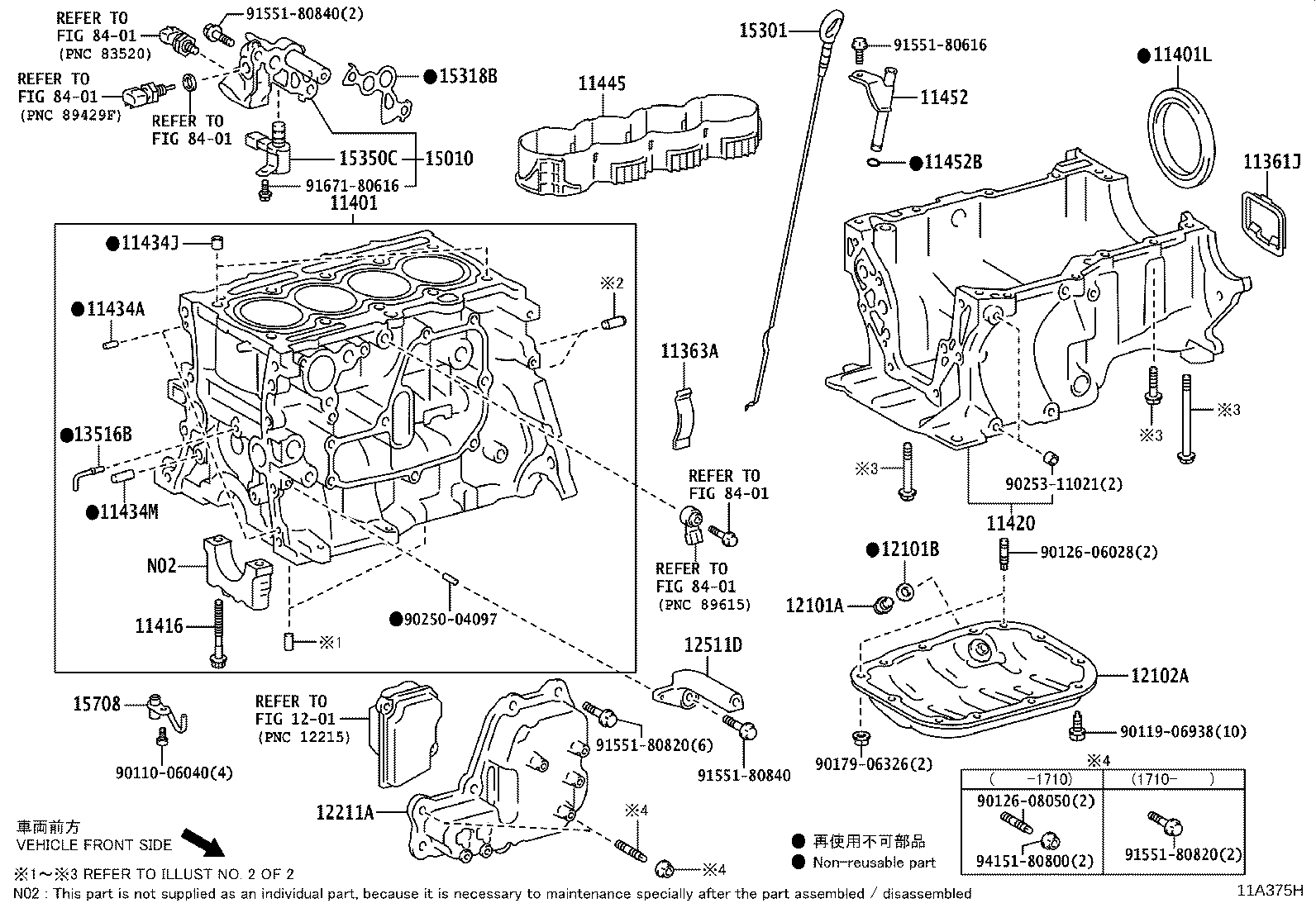

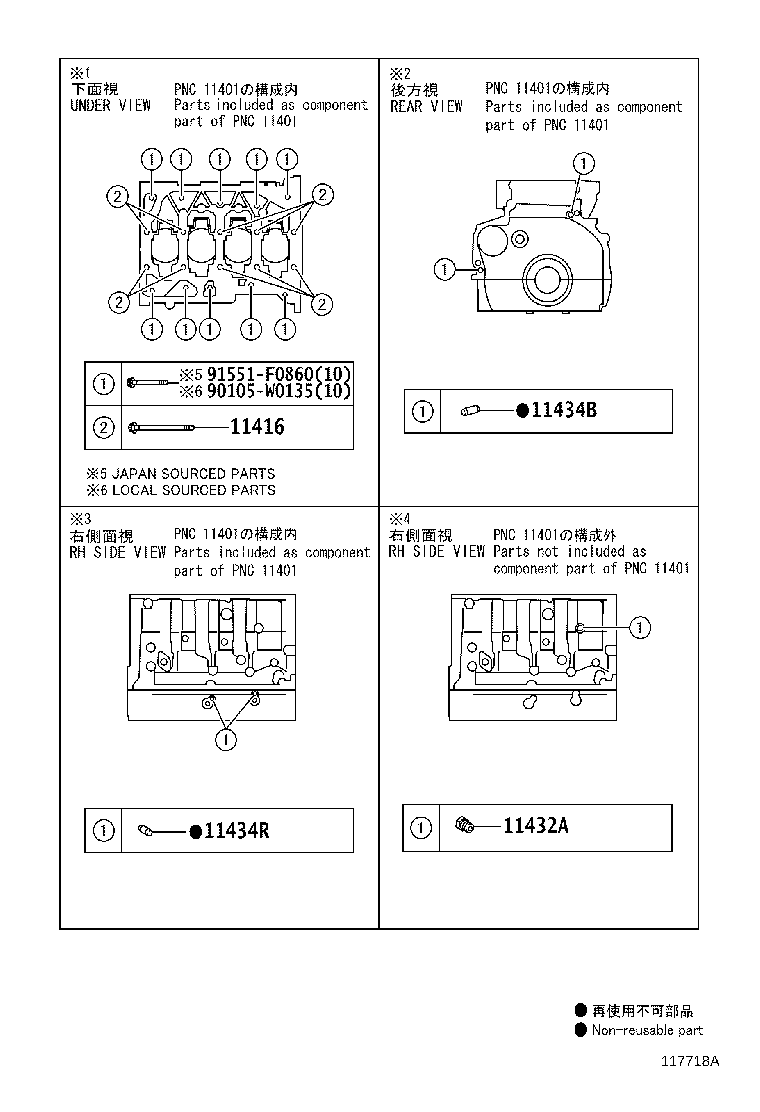

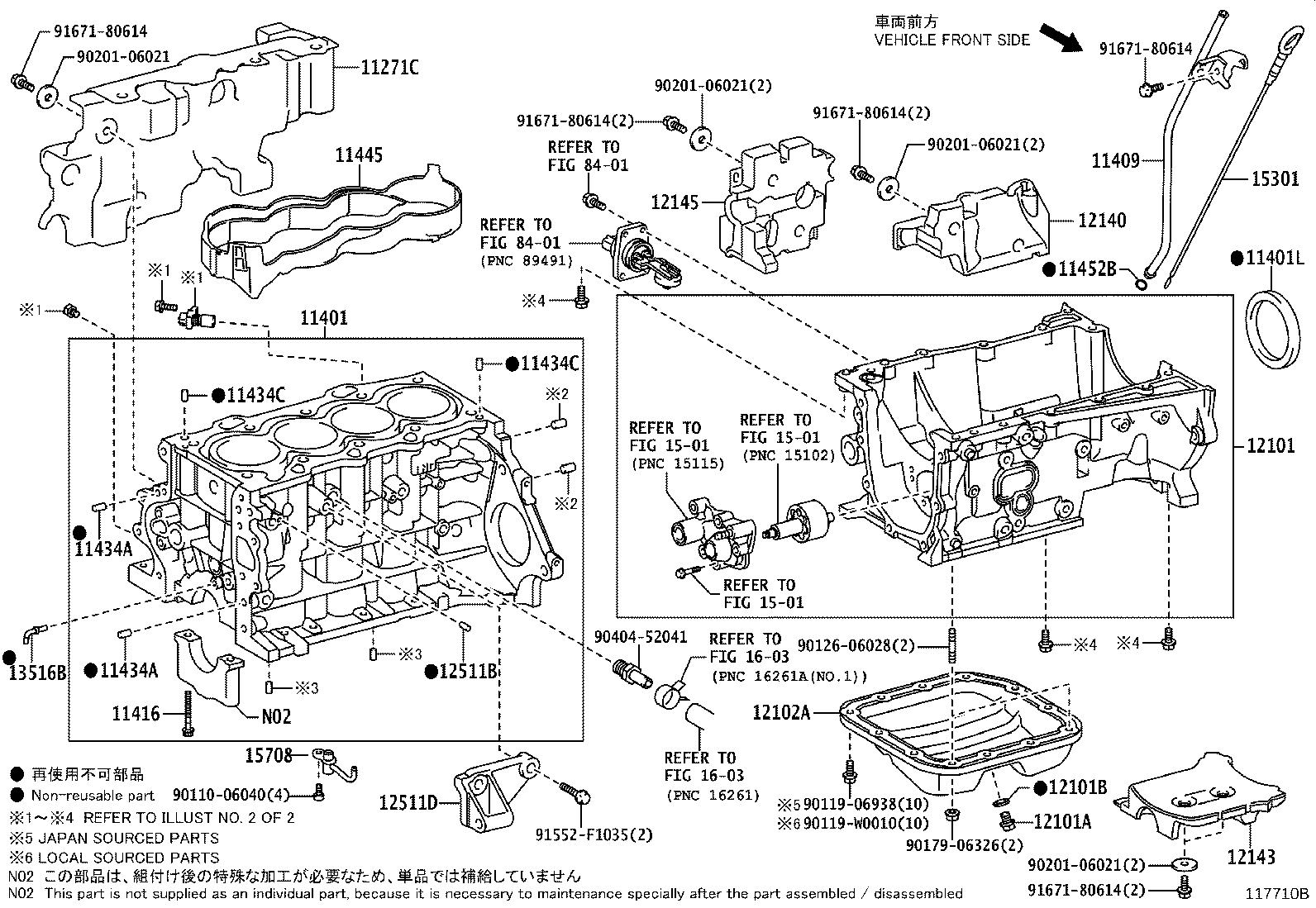

Figure 117717D 117717D 2012-10 → — Figure 117718A 117718A 2012-10 → — Figure 117709D 117709D 2012-10 → — Figure 117711B 117711B 2012-10 → — Figure 117710B 117710B 2012-10 → — Figure 117712F 117712F 2012-10 → — Figure 11A375H 11A375H 2015-05 → — Figure 11A376A 11A376A 2015-05 → — Figure 11A453C 11A453C 2015-05 → — Figure 11D562A 11D562A 2012-10 → — Figure 117665C 117665C 2012-10 → — Figure 117664A 117664A 2012-10 → —

Part groups

PNCDescription
11271C Cover, Cylivder Block Side
11361J Cover, Flywheel Housing Under
11363A Cover, Flywheel Housing Side
11401 Block Sub-assy, Cylinder
11401G Sensor, Crank Position
11401L Seal, Engine Rear Oil
11409 Guide Sub-assy, Oil Level Gage
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11420 Crankcase Assy, Stiffening
11421 Bolt, Stud(FOR OIL PAN)
11432A Plug, W/Head Taper Screw, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434G Pin, Straight(FOR END PLATE)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434M Pin, Straight(FOR CHAIN TENSIONER)
11434R Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET)
11434Y Pin, Straight(FOR OIL PAN)
11444A Ring, O
11445 Spacer, Cylinder Block Water Jacket
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11573 Plate, Oil Reflector
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12101C Ring, O(FOR OIL PAN)
12101L Gasket NO.1(FOR OIL PAN)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12140 Cover, Oil Pan
12143 Cover, Oil Pan
12145 Silencer, Oil Pan Cover, NO.2
12156 Insulator, Oil Pan
12211A Case, Ventilation, NO.1
12511B Pin, Ring(FOR ALTERNATOR BRACKET)
12511D Bracket, Alternator
12581A Insulator, Cylinder Block, NO.1
13516B Jet, Oil
15010 Housing Assy, Oil Pump Relief Valve
15301 Gage Sub-assy, Oil Level
15301A Ring, O(FOR OIL LEVEL GAGE)
15318B Gasket, Oil Regulator Body
15350C Valve Assy, Oil Pressure Switching
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
15709 Nozzle Sub-assy, Oil, NO.2
28193 Insulator, Starter Hole
33118D Plate, Stiffener, RH
33119C Plate, Stiffener, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
