Timing Gear Cover & Rear End Plate

18 part groups · 7 illustrations

Illustrations

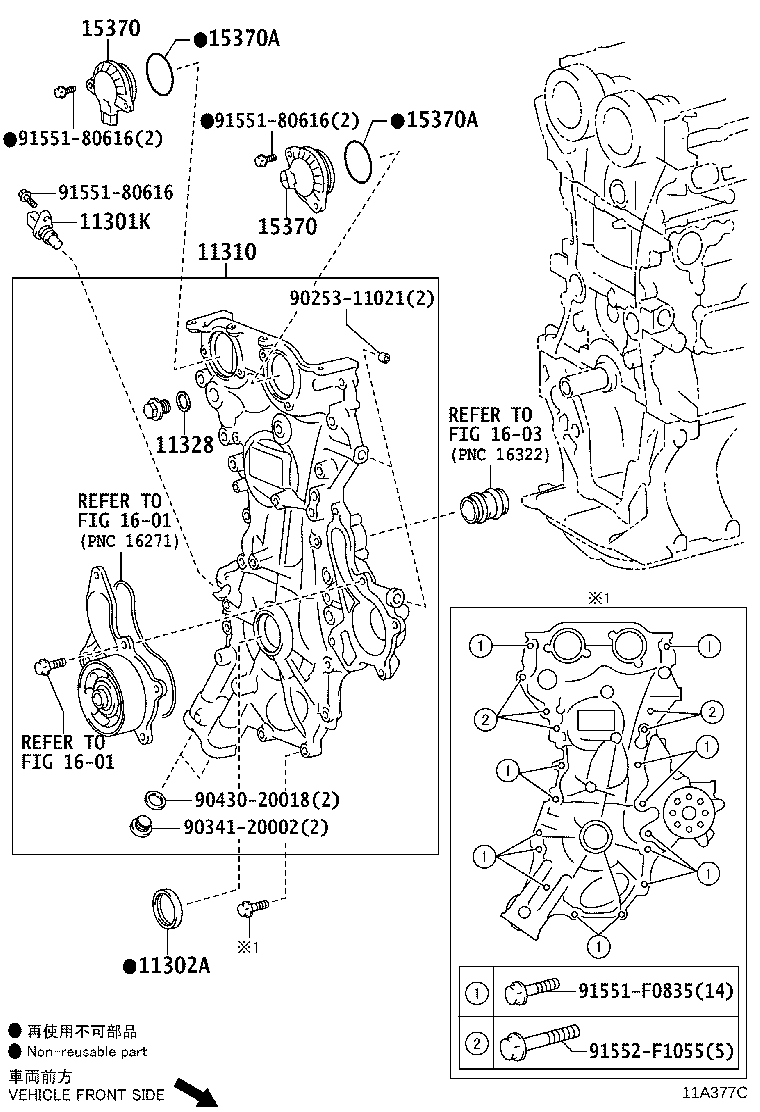

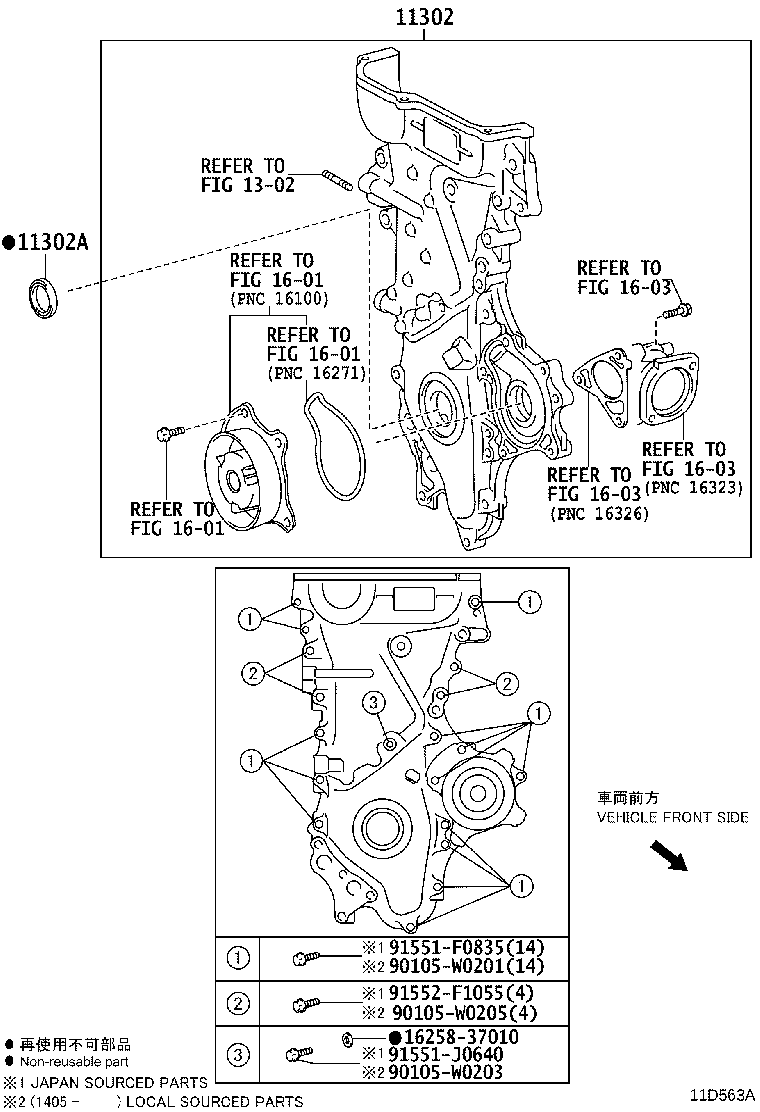

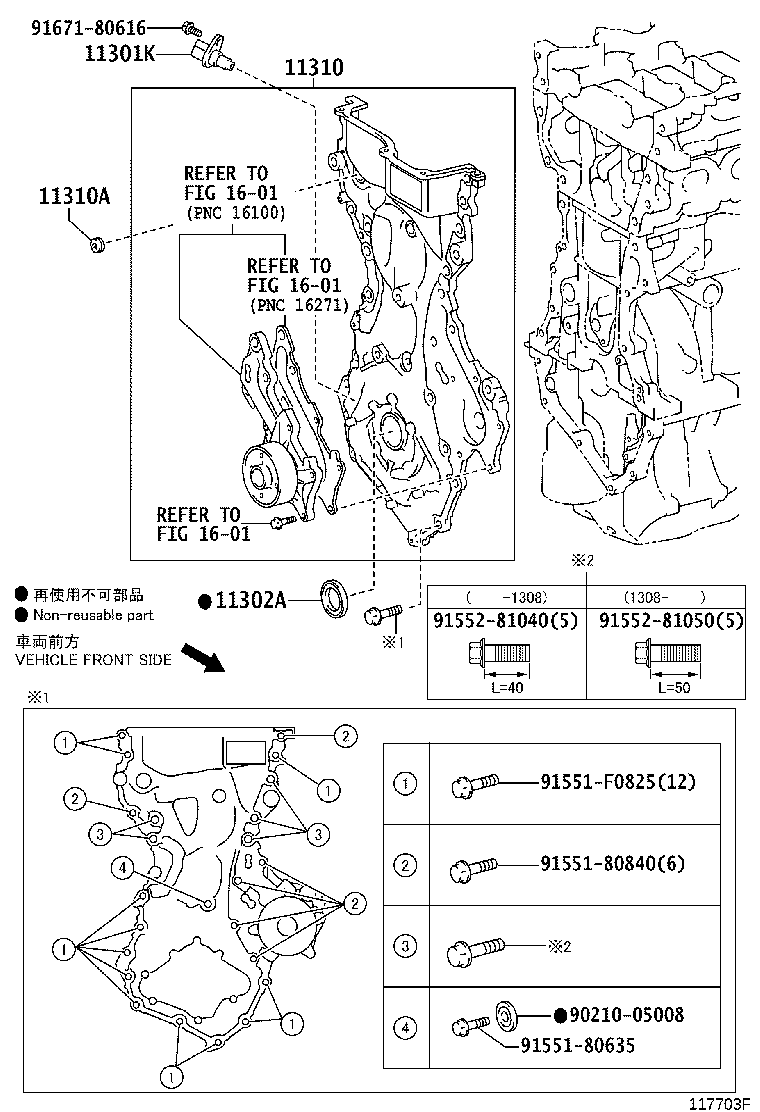

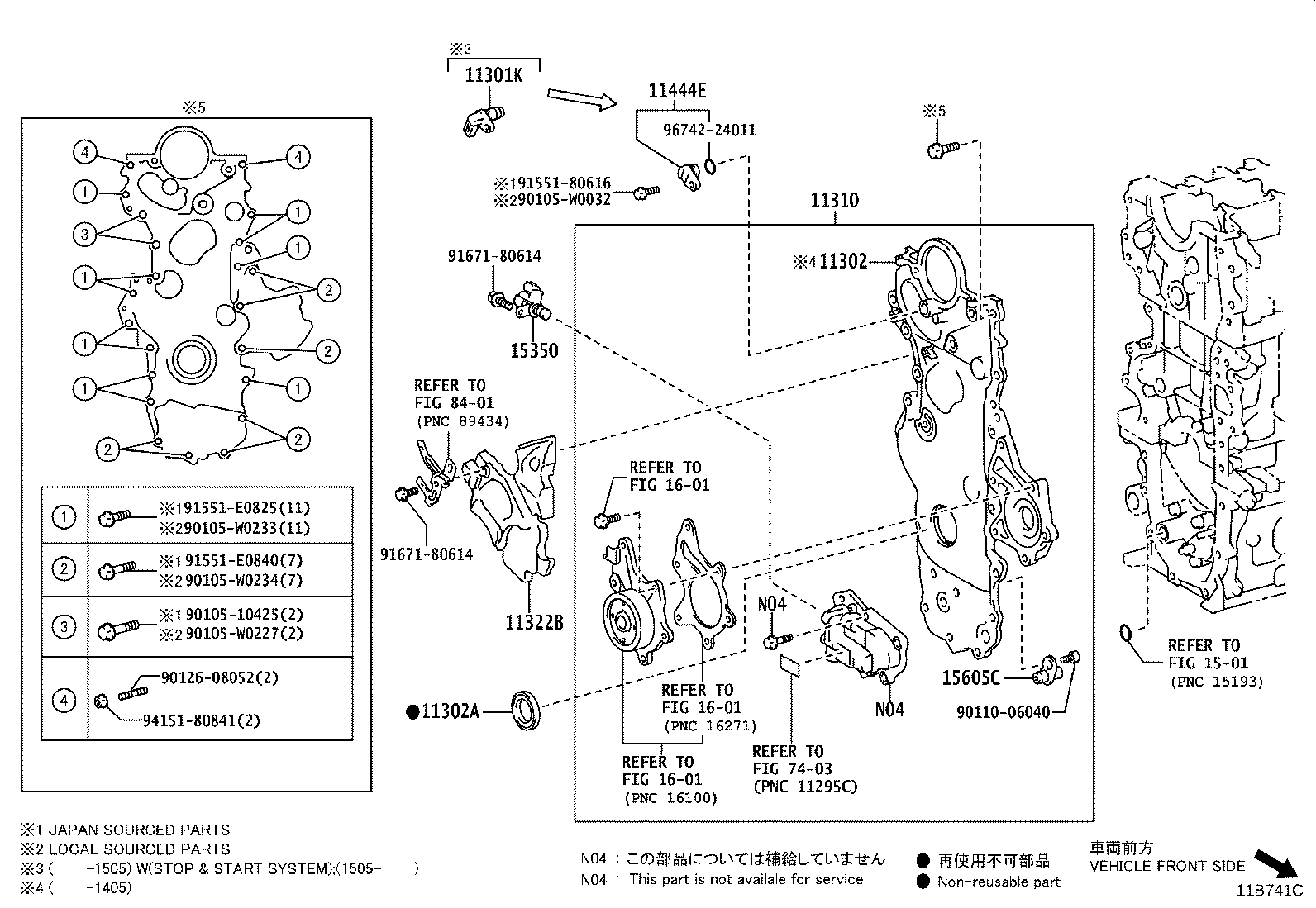

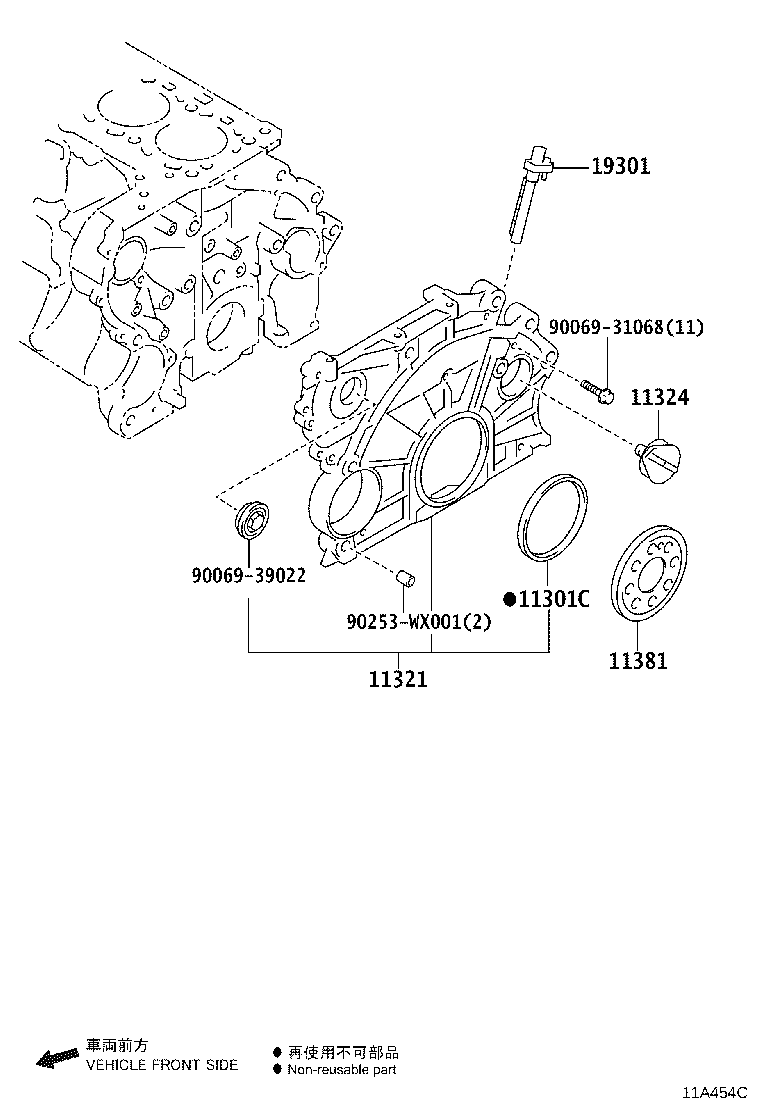

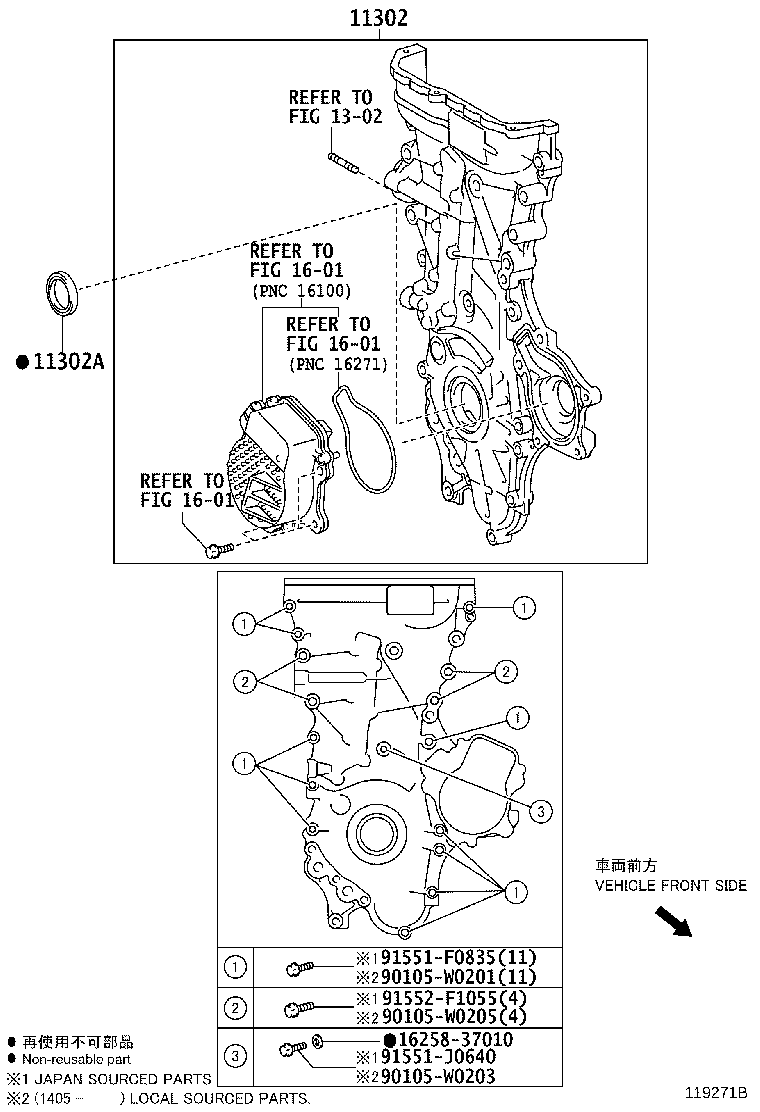

Figure 117699C 117699C 2012-10 → — Figure 117703F 117703F 2012-10 → — Figure 11B741C 11B741C 2012-10 → — Figure 11A377C 11A377C 2015-05 → — Figure 11A454C 11A454C 2015-05 → — Figure 11D563A 11D563A 2012-10 → — Figure 119271B 119271B 2012-10 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
11310A Plug, Taper Screw(FOR TIMING CHAIN COVER)
11321 Case, Timing Gear
11322B Cover, Timing Belt, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11444E Plug, Hole
15350 Valve Assy, Oil Pressure Switching
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
15605C Valve Sub-assy, Oil Check
16272A Gasket, Water Pump NO.2
19301 Sensor Assy, Crank Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
