Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

15 part groups · 7 illustrations

Illustrations

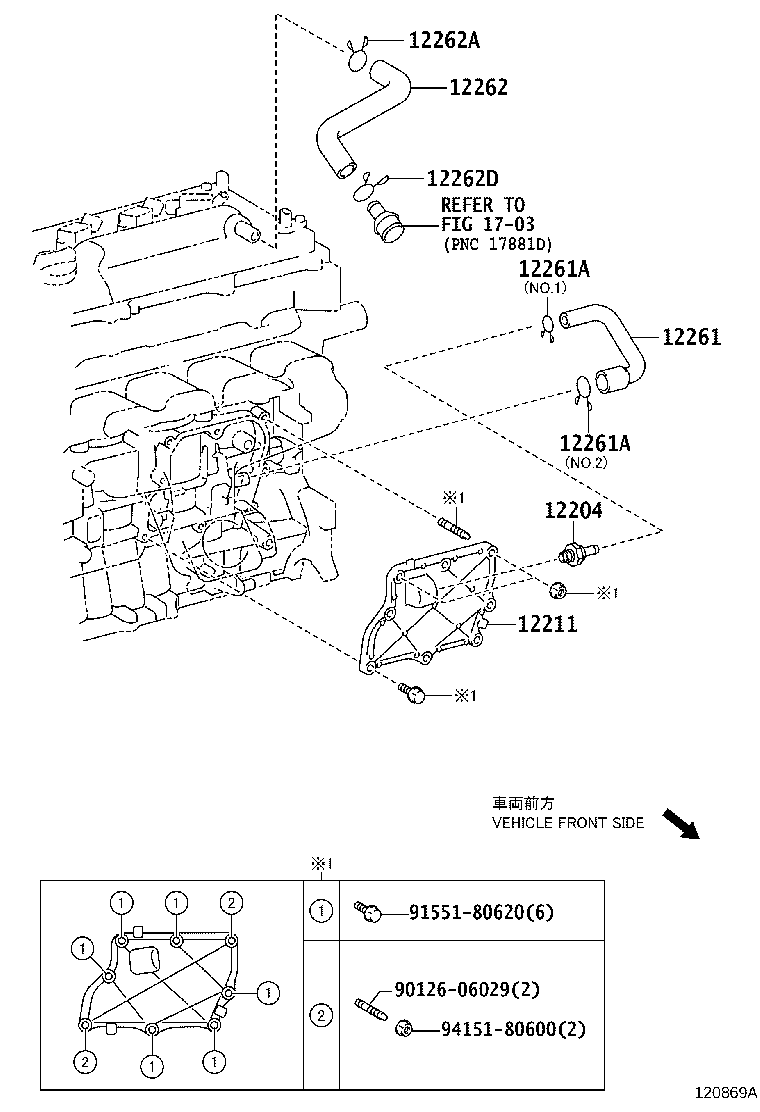

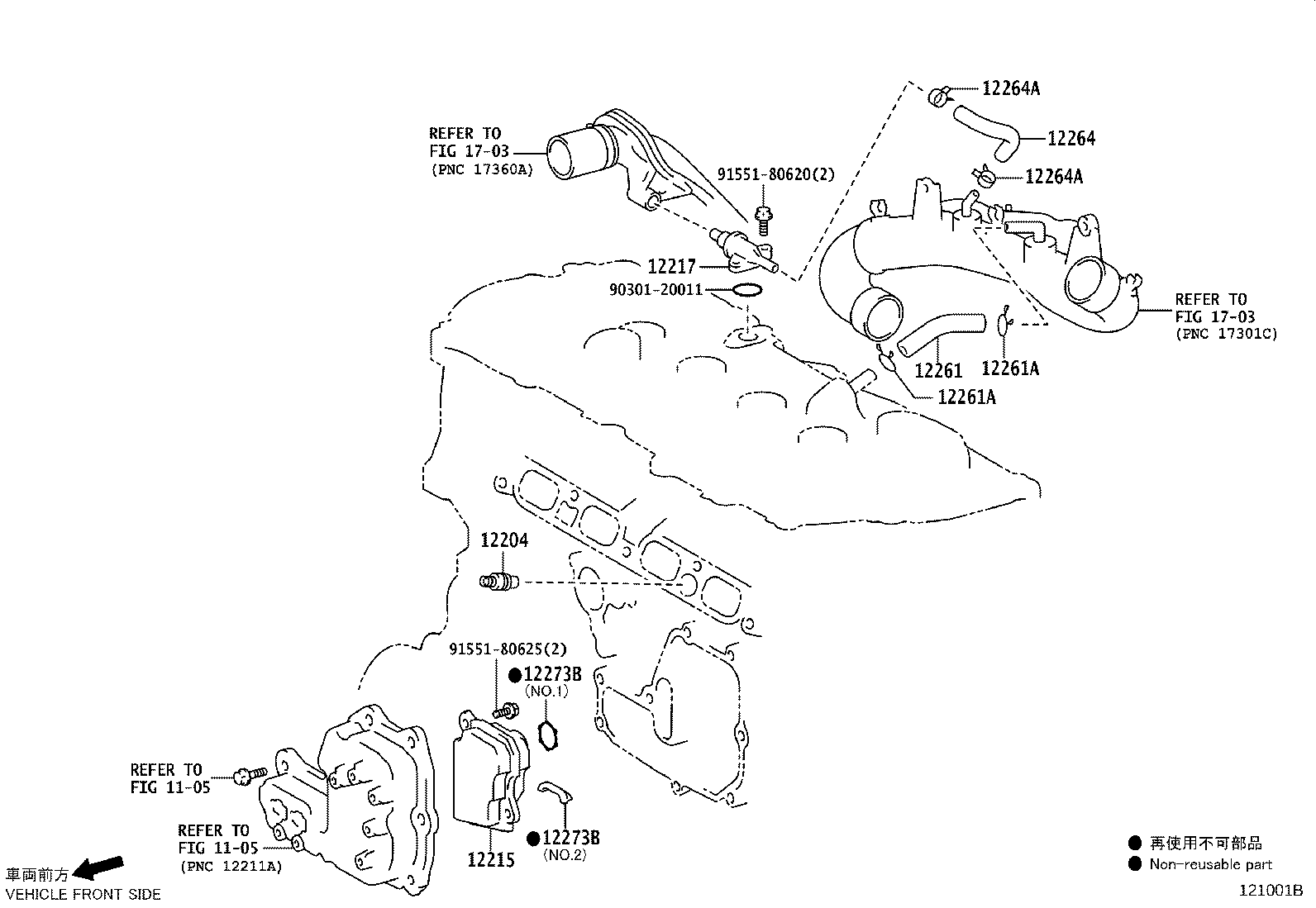

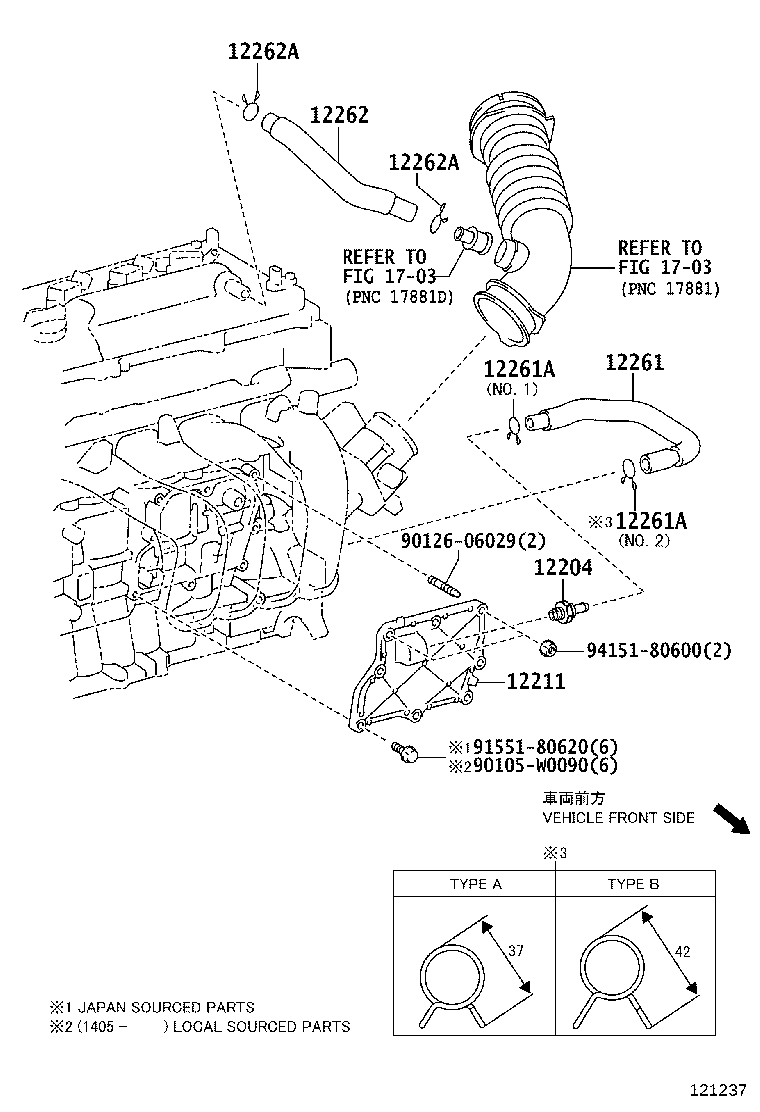

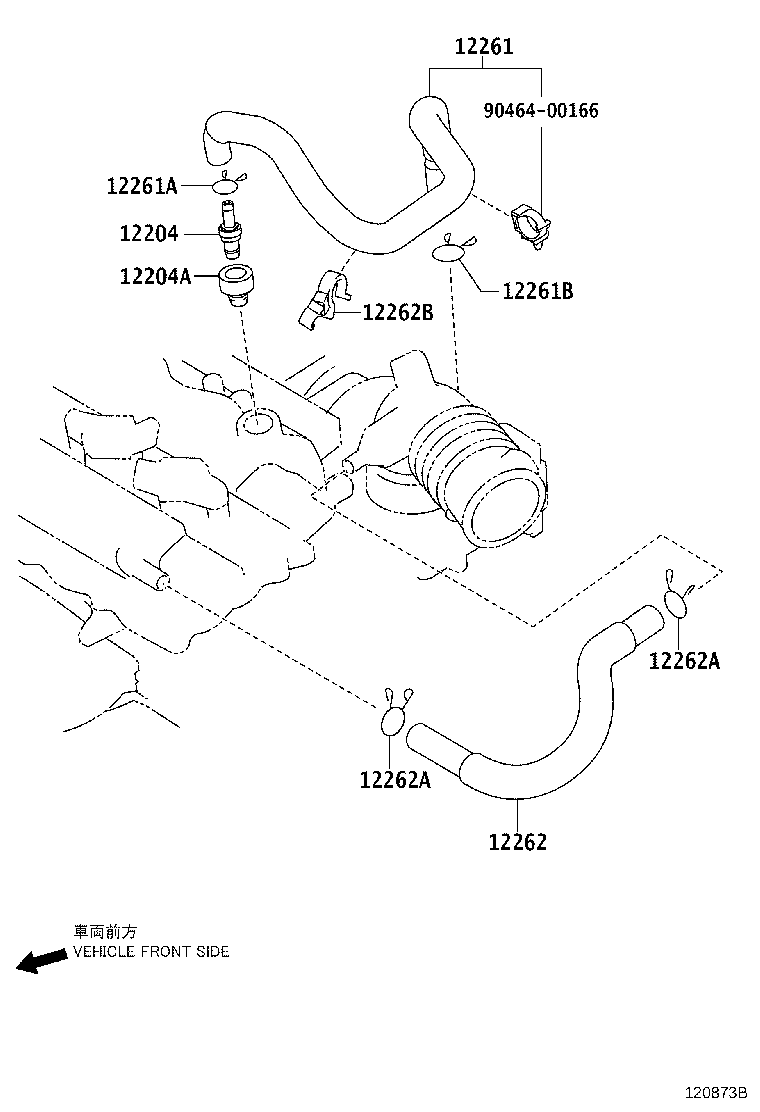

Figure 120872A 120872A 2012-10 → — Figure 120873B 120873B 2012-10 → — Figure 120874A 120874A 2012-10 → 2015-05 Figure 121000A 121000A 2015-05 → — Figure 121001B 121001B 2015-05 → — Figure 121237 121237 2012-10 → — Figure 120869A 120869A 2012-10 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12211 Case, Ventilation, NO.1
12215 Separator, Case
12217 Ejector, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262B Clamp(FOR VENTILATION HOSE)
12262D Clip(FOR VENTILATION HOSE NO.2)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12273B Gasket, Oil Separator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
