Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

12 part groups · 7 illustrations

Illustrations

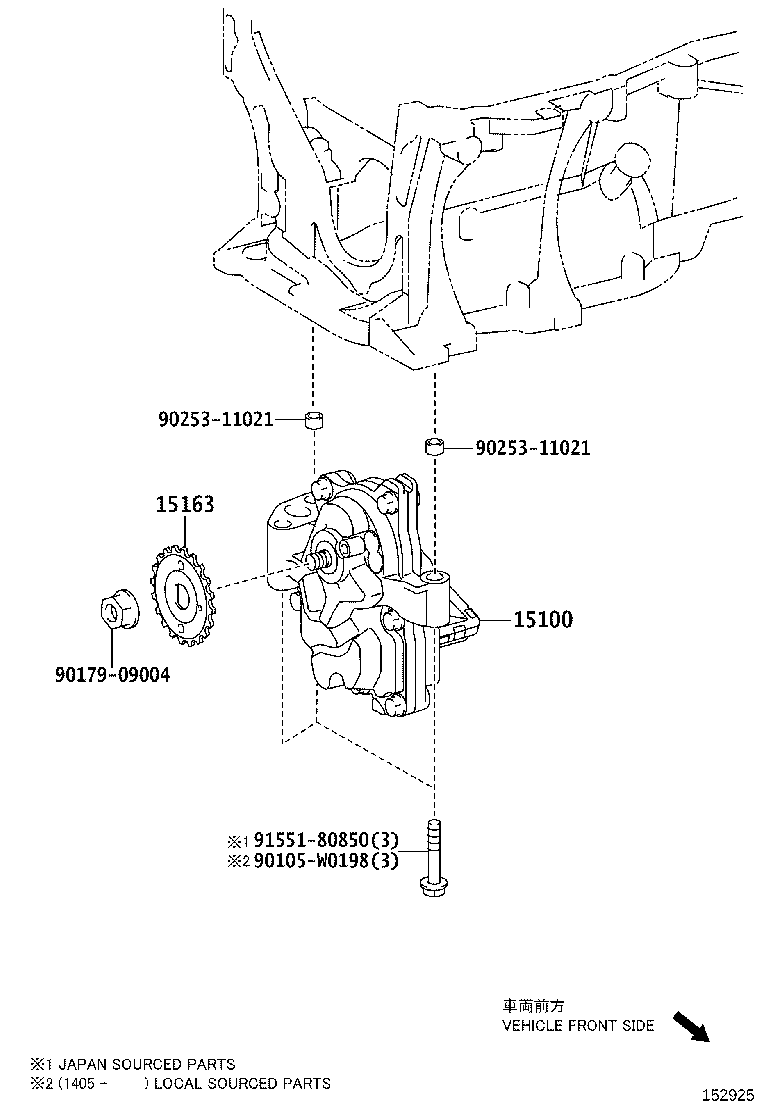

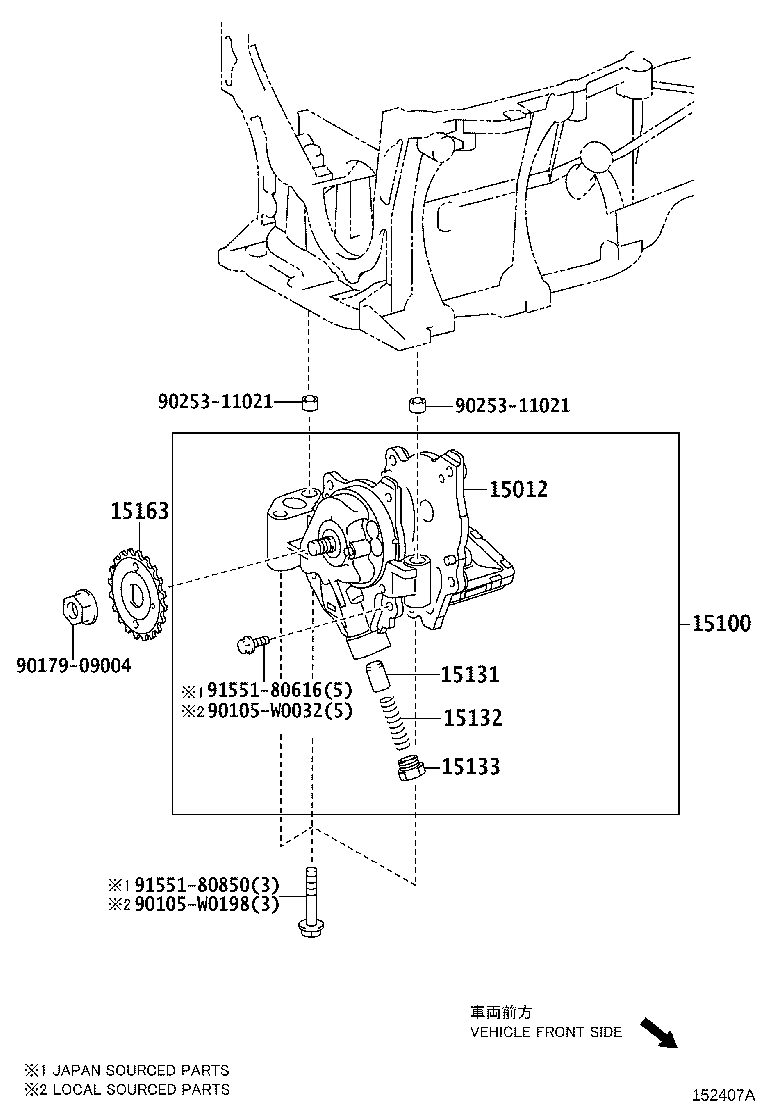

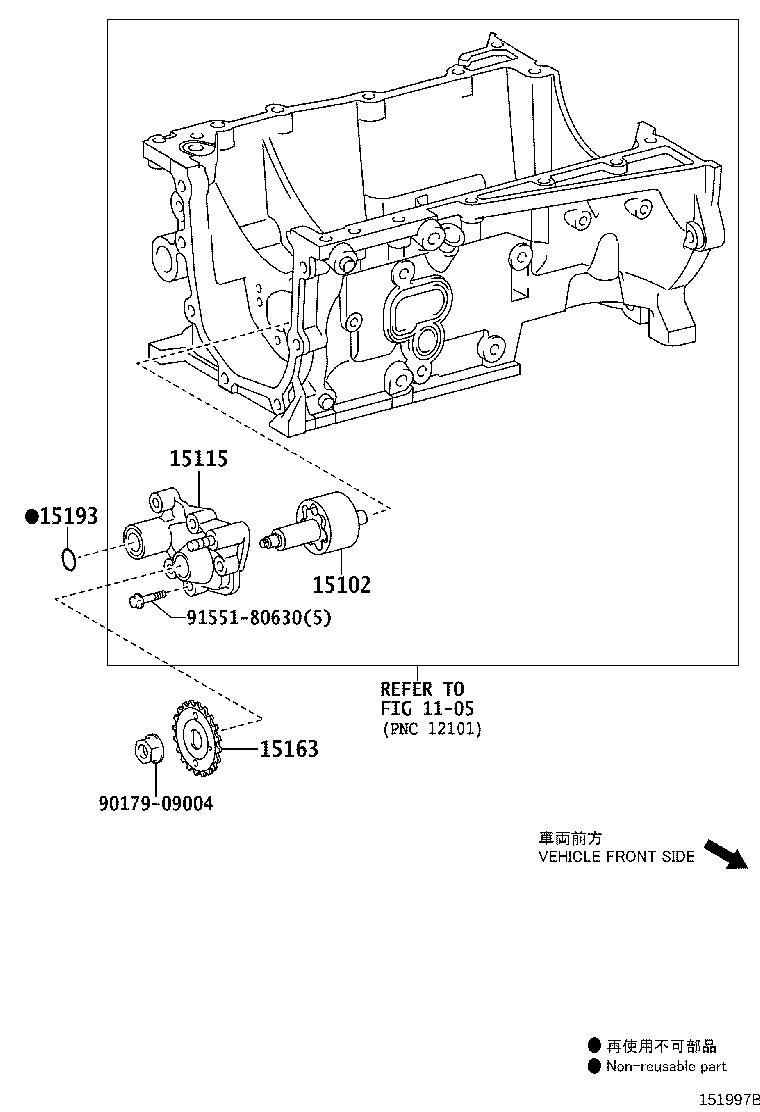

Figure 152001B 152001B 2012-10 → — Figure 151996B 151996B 2012-10 → — Figure 151997B 151997B 2012-10 → — Figure 152298A 152298A 2015-05 → — Figure 152322A 152322A 2015-05 → — Figure 152925 152925 2012-10 → — Figure 152407A 152407A 2012-10 → —

Part groups

PNCDescription
13507A Chain Sub-assy, Oil Pump Drive
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15115 Cover, Oil Pump
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15163 Gear, Oil Pump Drive Shaft
15193 Gasket, Oil Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
