Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

21 part groups · 6 illustrations

Illustrations

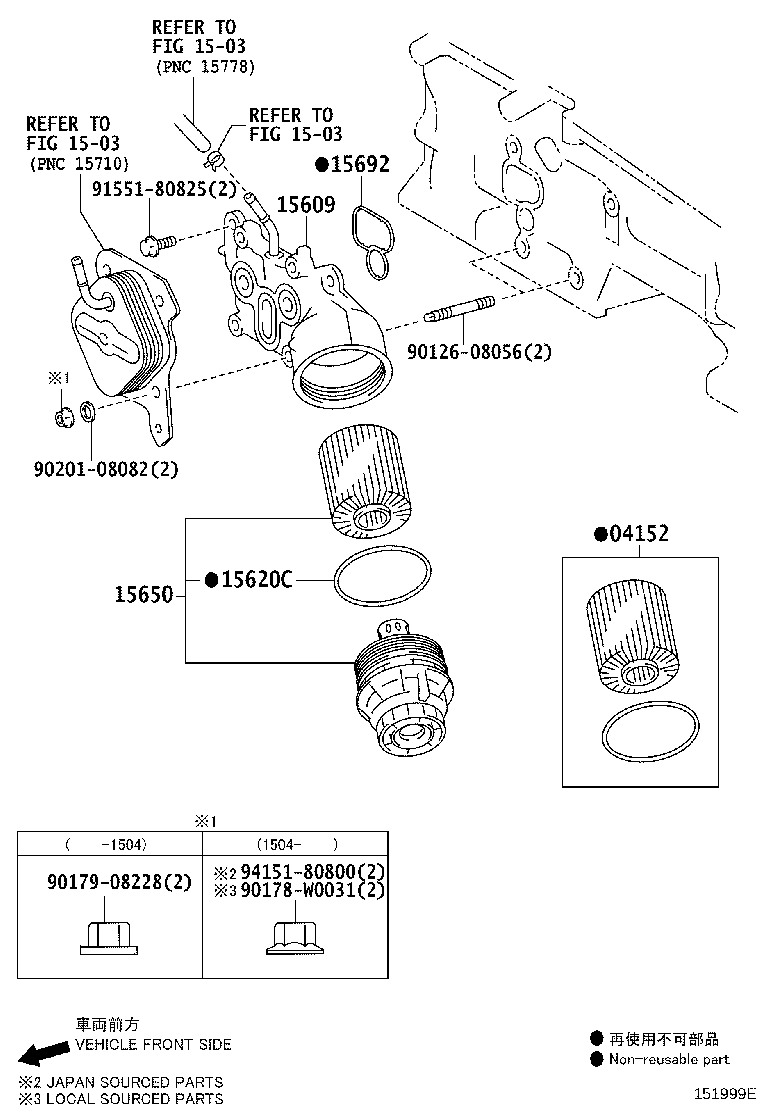

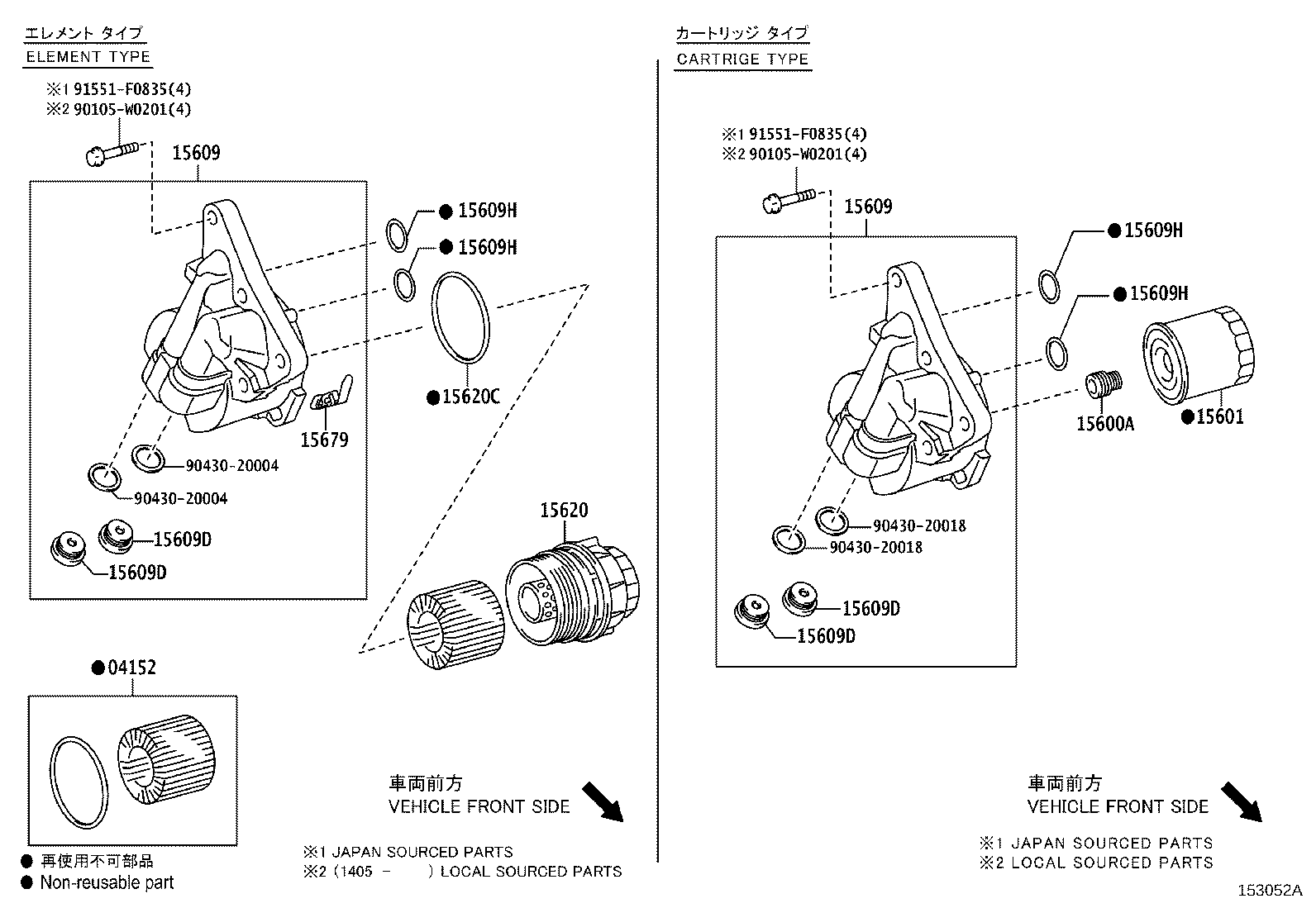

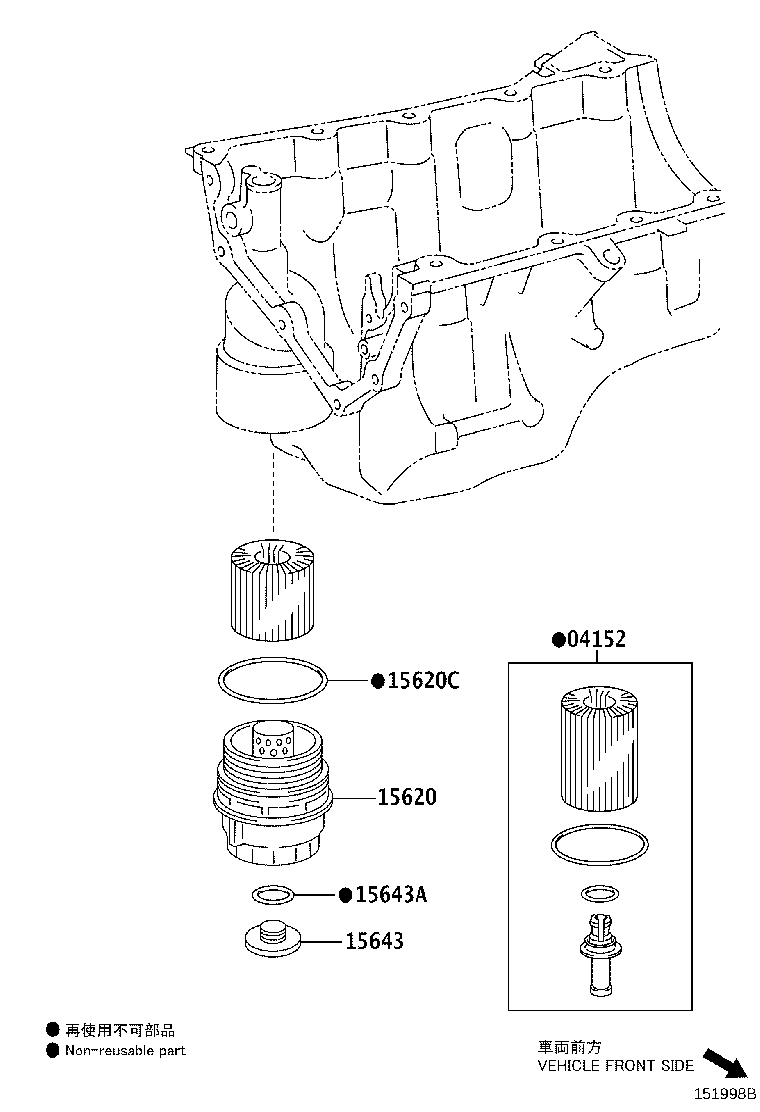

Figure 152002C 152002C 2012-10 → — Figure 151998B 151998B 2012-10 → — Figure 151999E 151999E 2012-10 → — Figure 152299B 152299B 2015-05 → — Figure 152323B 152323B 2015-05 → — Figure 153052A 153052A 2012-10 → —

Part groups

PNCDescription
04152 Element Kit, Oil Filter
15350A Valve Assy, Oil Pressure Switching
15600 Filter Assy, Oil
15600A Union(FOR OIL FILTER)
15600G Gasket(FOR OIL FILTER COVER)
15601 Filter Sub-assy, Oil
15601B Cover, Oil Filter
15605A Valve Sub-assy, Oil Check
15609 Bracket Sub-assy, Oil Filter
15609D Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
15609H Ring, O(FOR OIL FILTER BRACKET)
15620 Cap Assy, Oil Filter
15620C Gasket(FOR OIL FILTER CAP)
15621 Gasket, Oil Filter Body
15643 Plug, Oil Filter Drain
15643A Ring, O(FOR OIL FILTER DRAIN PLUG)
15650 Cap Assy, Oil Filter W/Elememt
15677 Bracket, Oil Filter
15679 Clip, Oil Filter Bracket
15692 Gasket, Oil Filter Bracket
15701C Cover Sub-assy, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
