Engine Oil Cooler

7 part groups · 2 illustrations

Illustrations

Figure 152007C

152007C 2012-10 → —

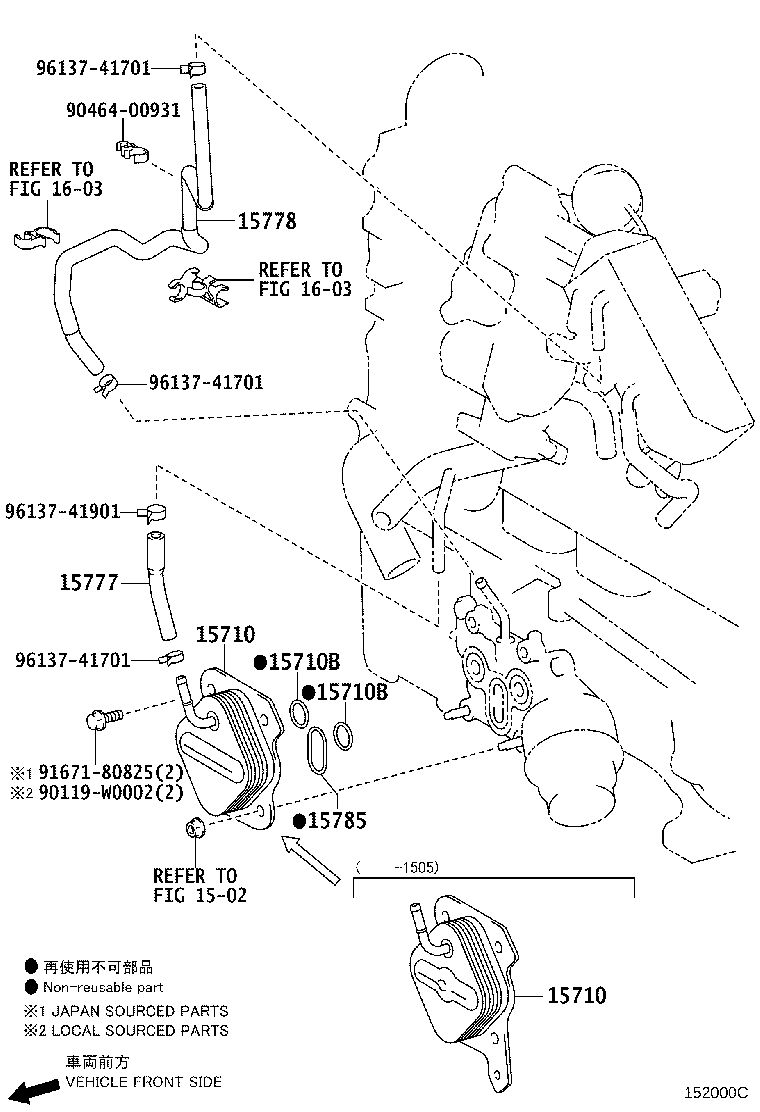

Figure 152000C

152000C 2012-10 → —

Part groups

PNC	Description
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15777	Hose, Oil Cooler
15778	Hose, Oil Cooler, NO.2
15781	Bracket, Oil Cooler, NO.1
15785	Gasket, Oil Cooler
15786A	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
