Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 7 illustrations

Illustrations

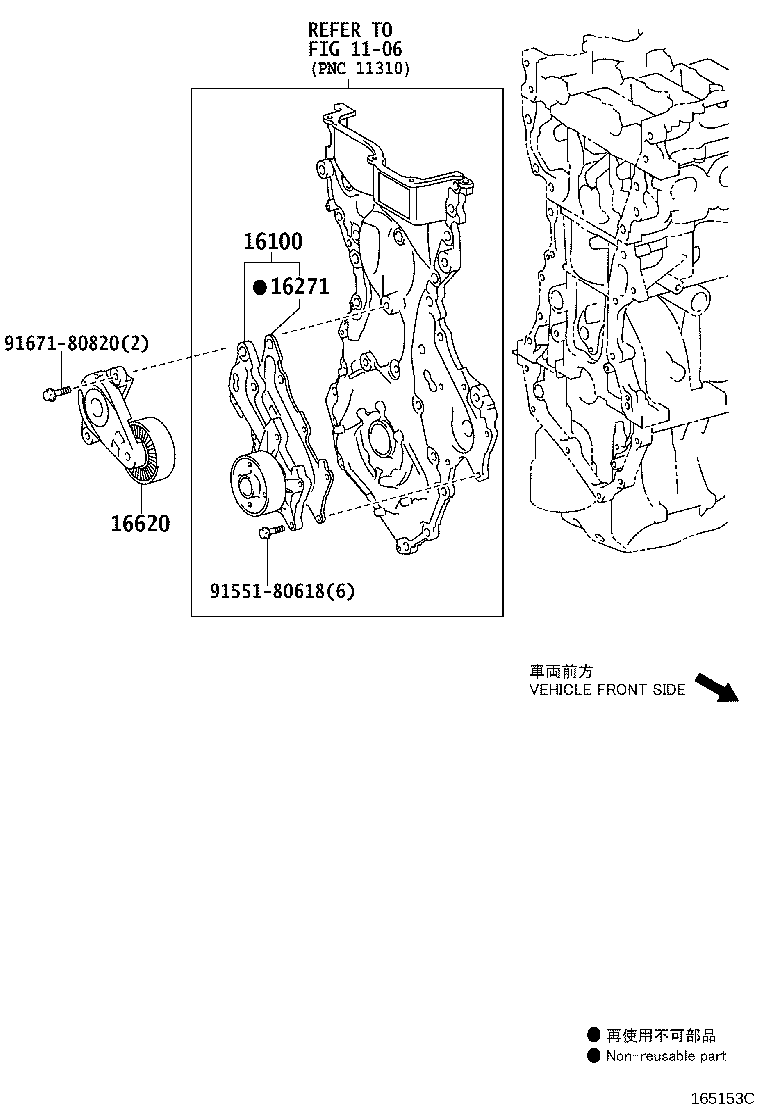

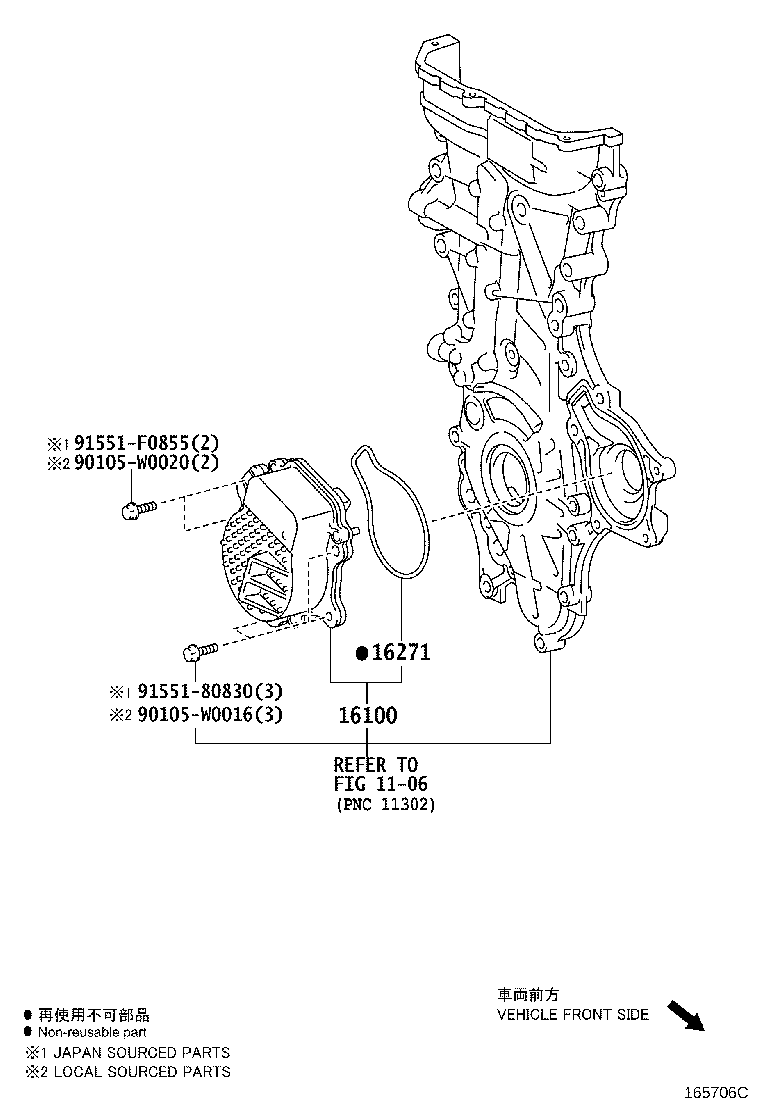

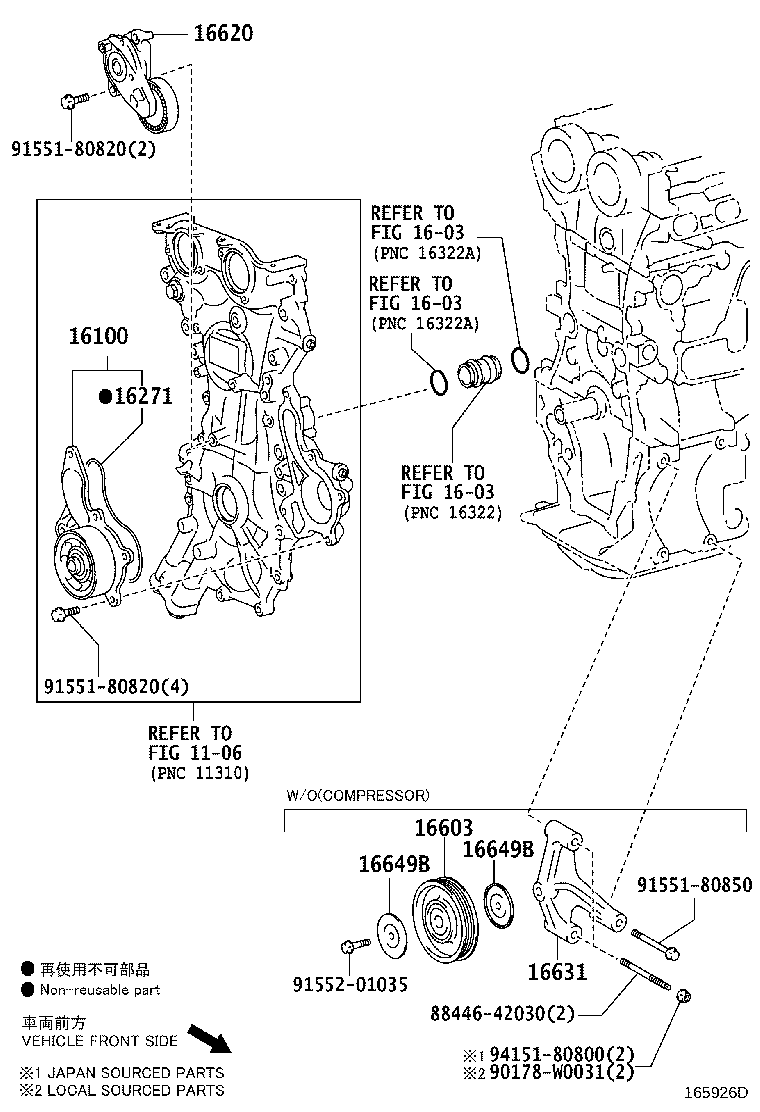

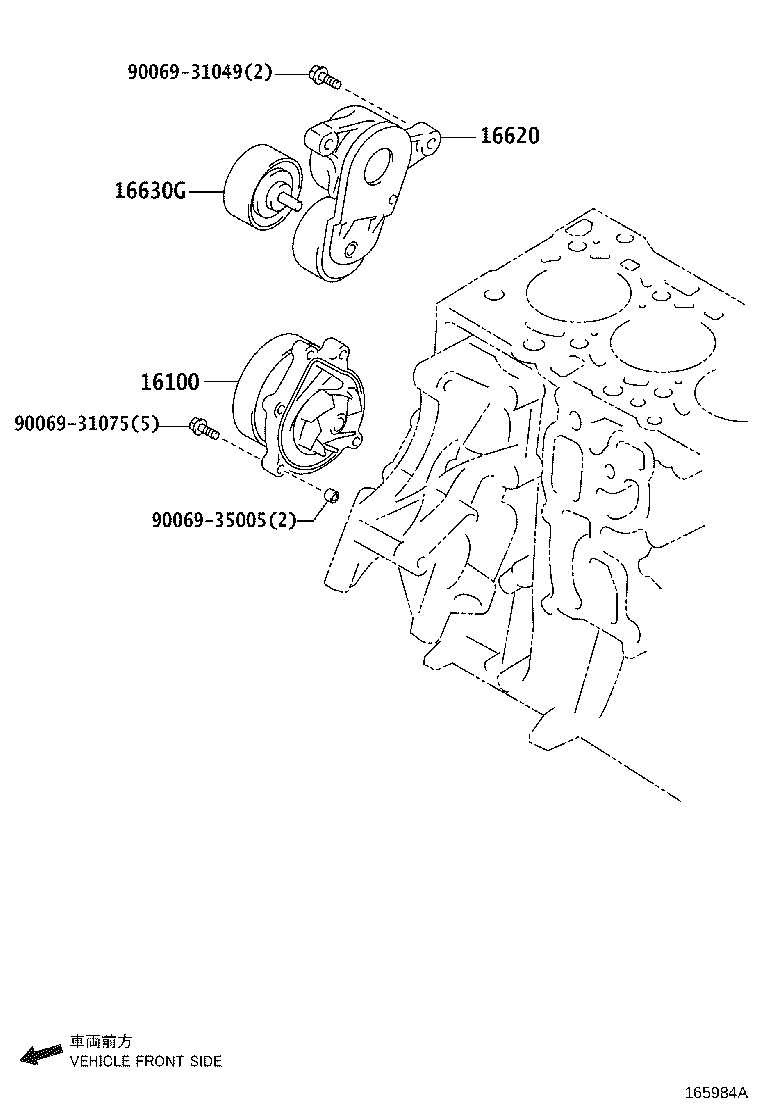

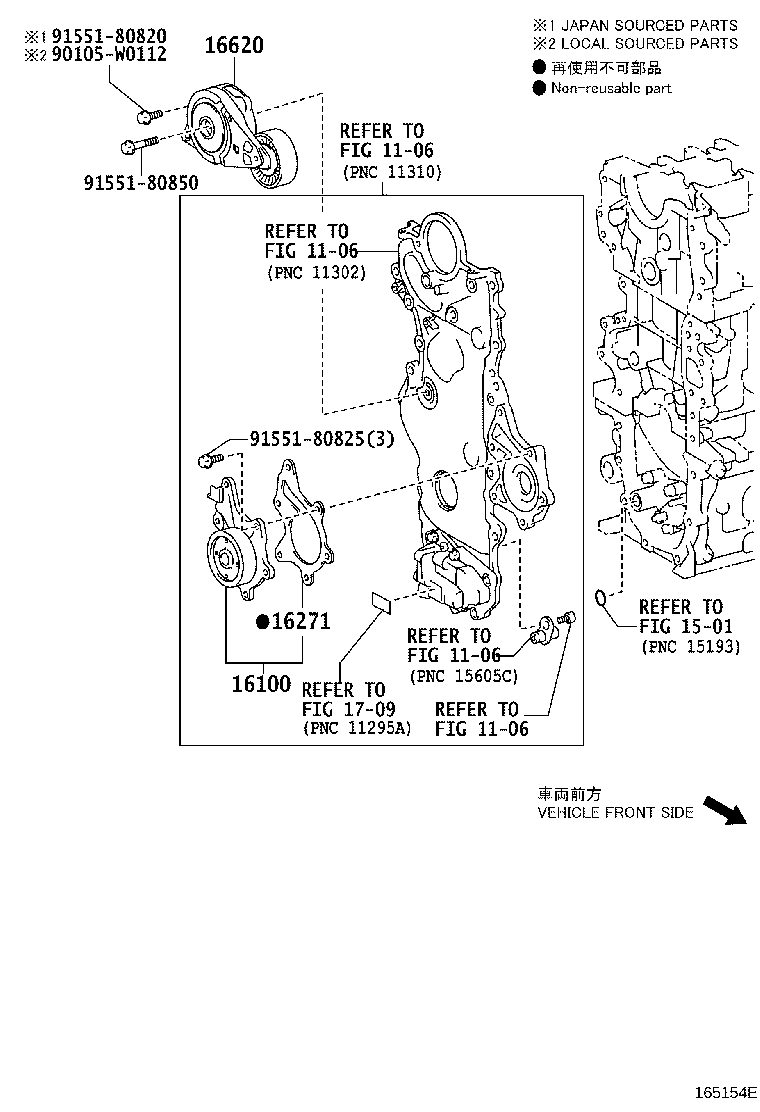

Figure 165140D 165140D 2012-10 → — Figure 165153C 165153C 2012-10 → — Figure 165154E 165154E 2012-10 → — Figure 165926D 165926D 2015-05 → — Figure 165984A 165984A 2015-05 → — Figure 167043A 167043A 2012-10 → — Figure 165706C 165706C 2012-10 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16271 Gasket, Water Pump
16603 Pulley Sub-assy, Idler, NO.1
16604 Pulley Sub-assy, Idler, NO.2
16620 Tensioner Assy, V-ribbed Belt
16630G Pulley Assy, Idler
16631 Bracket, Idler Pulley
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
