Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

60 part groups · 11 illustrations

Illustrations

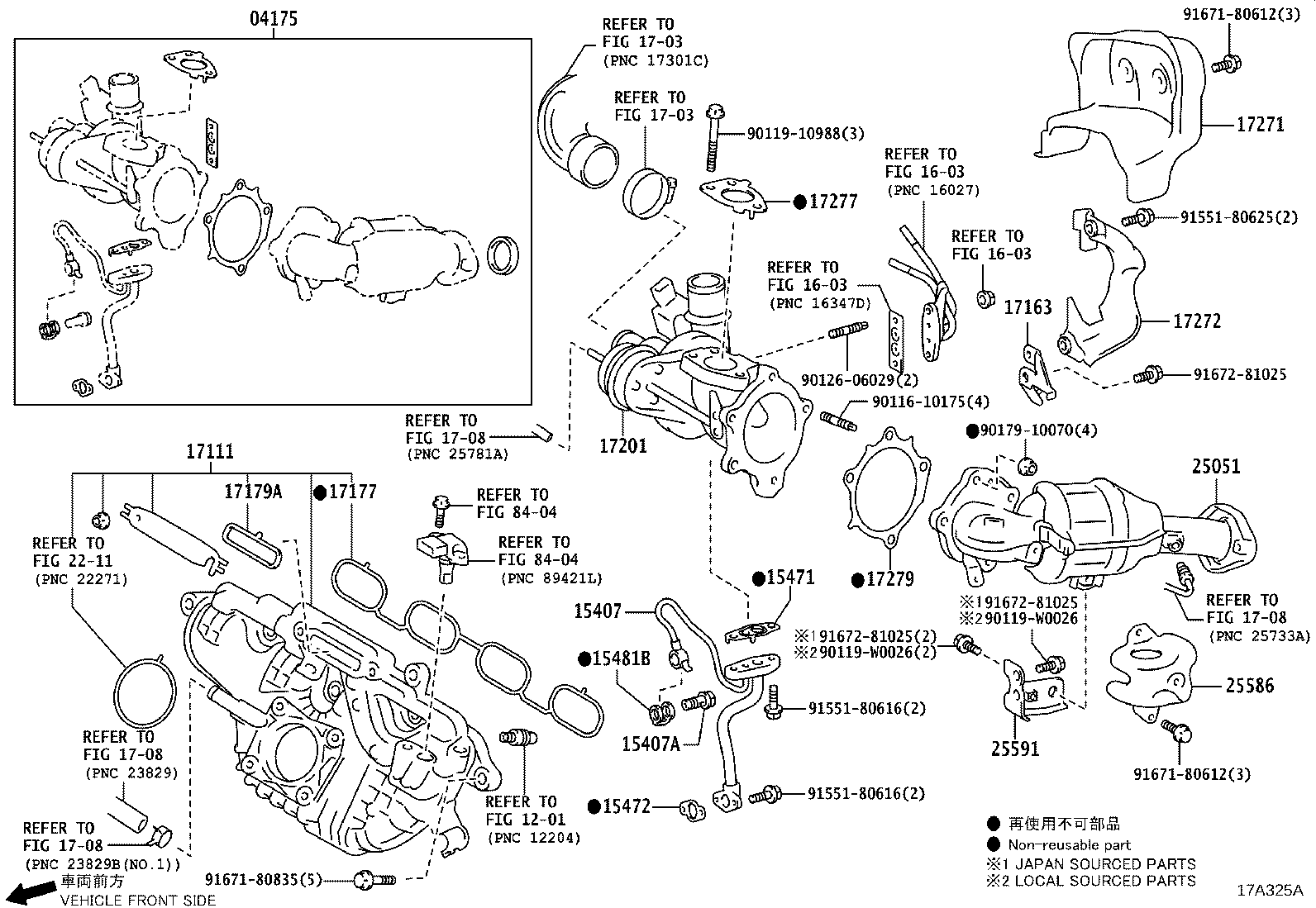

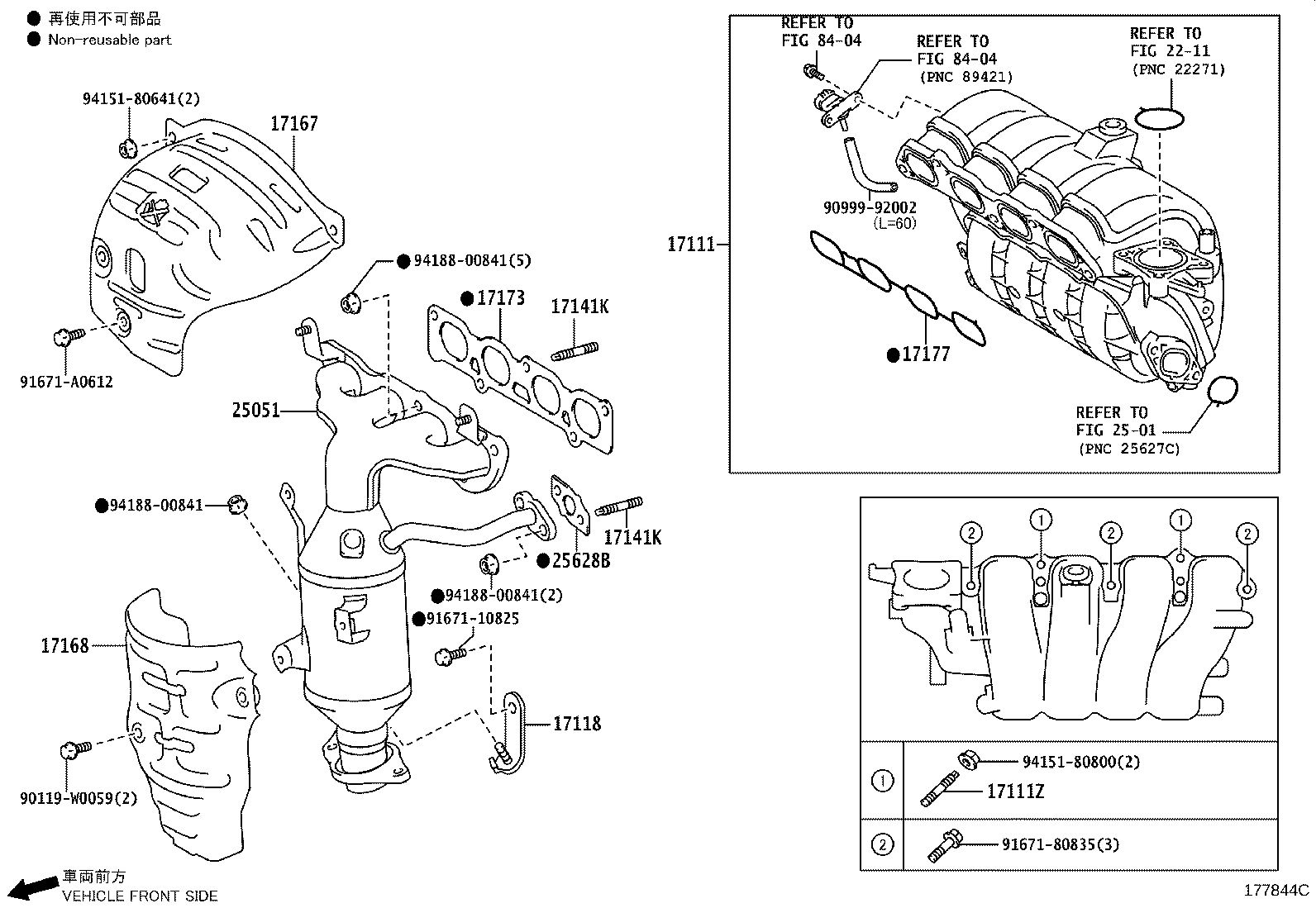

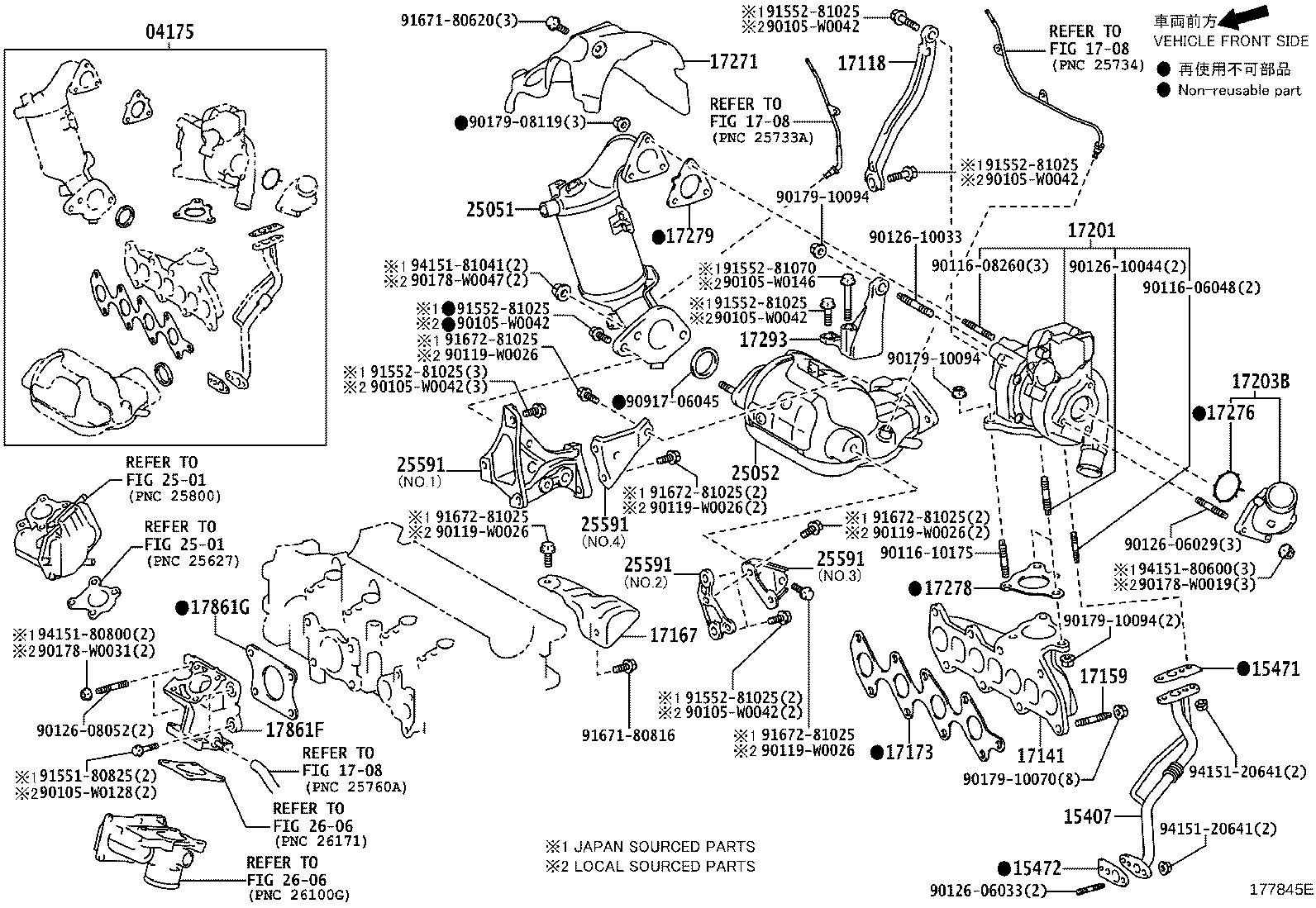

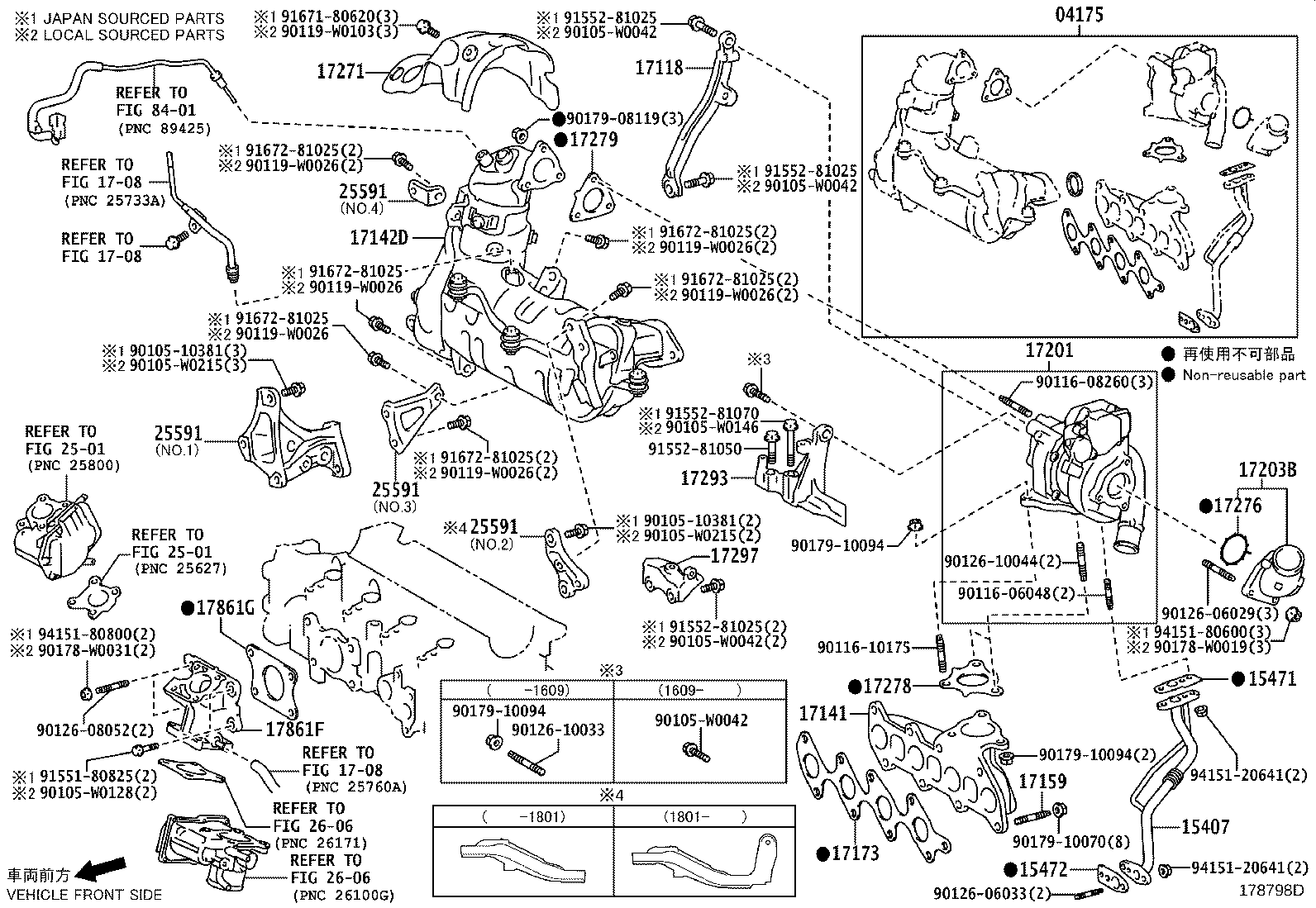

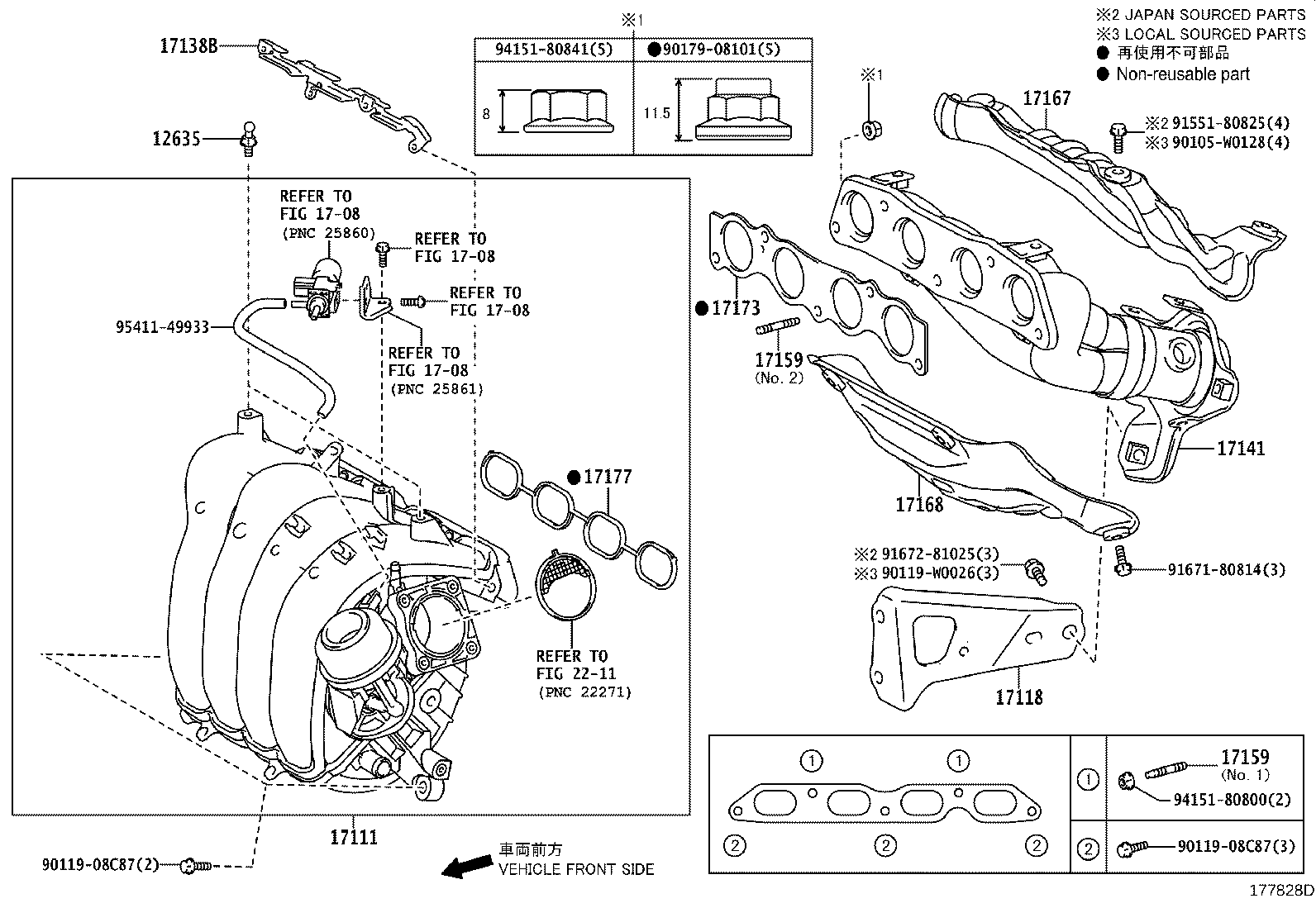

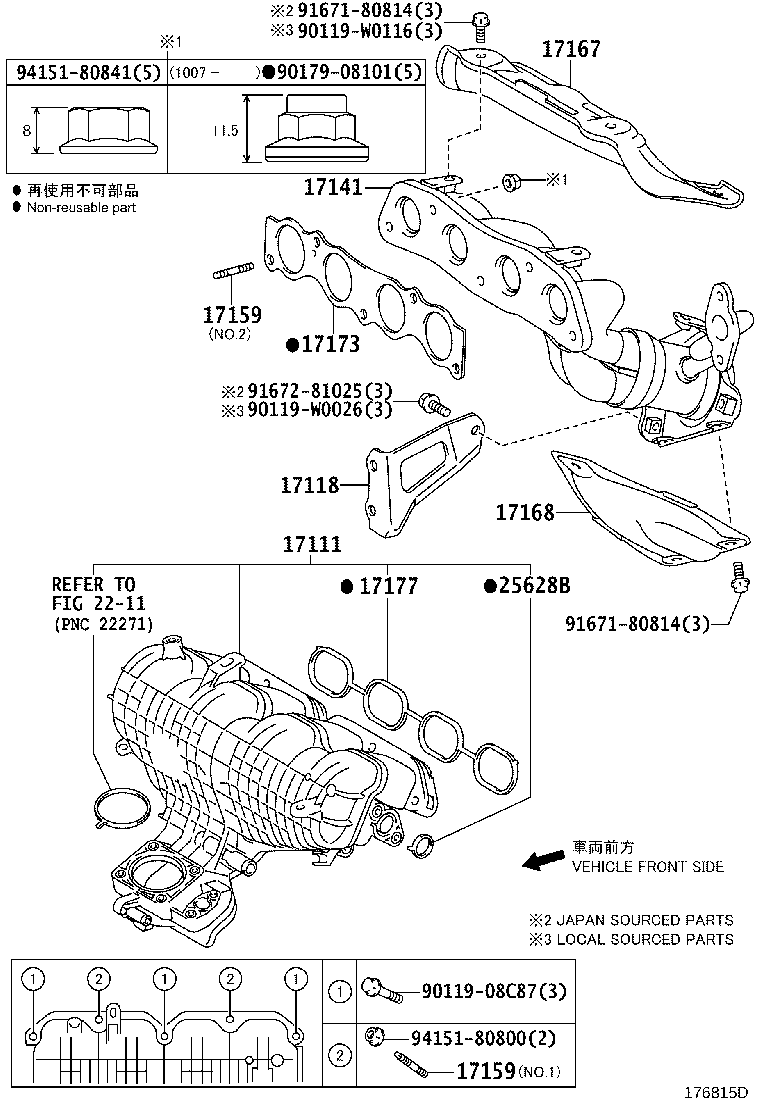

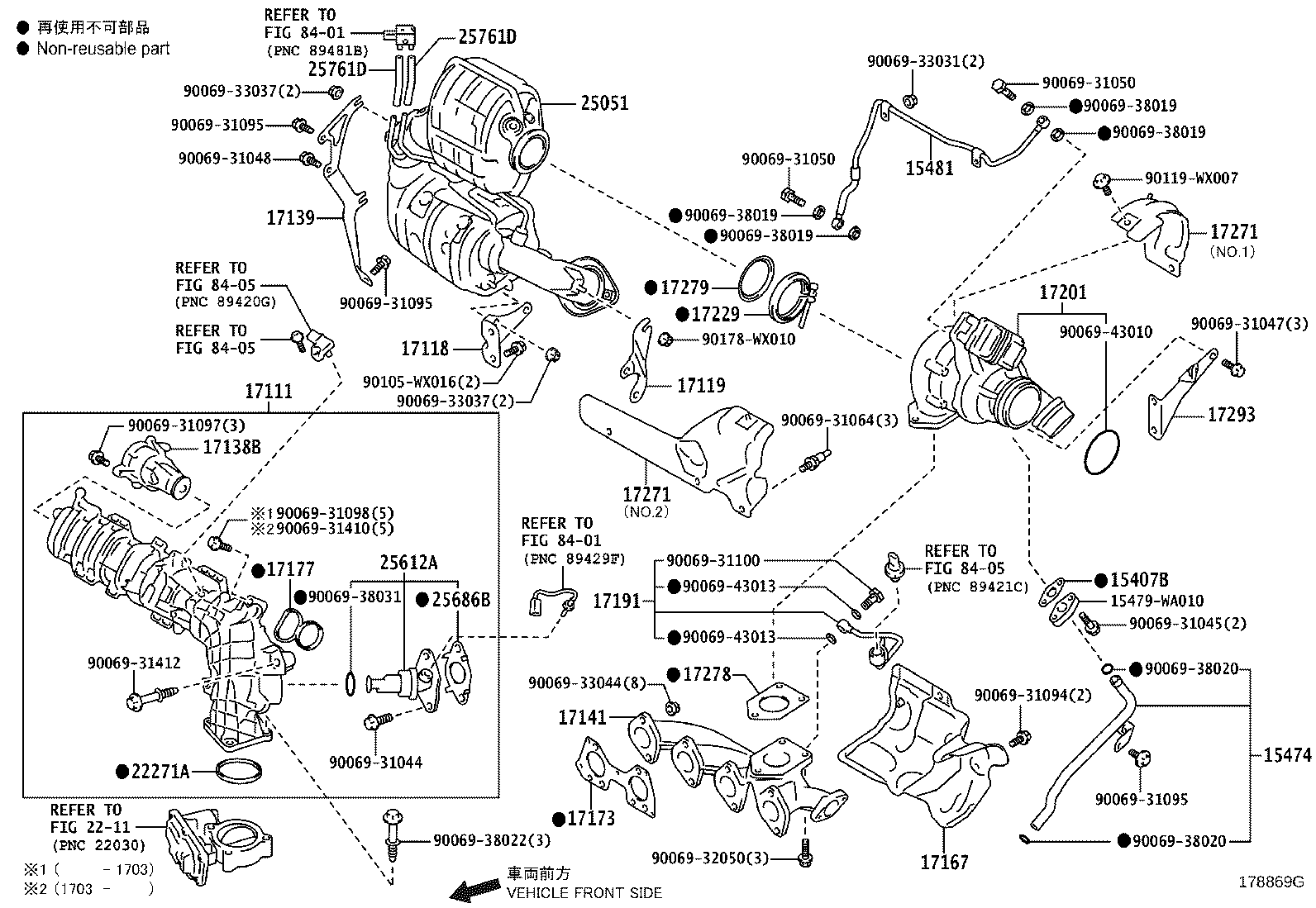

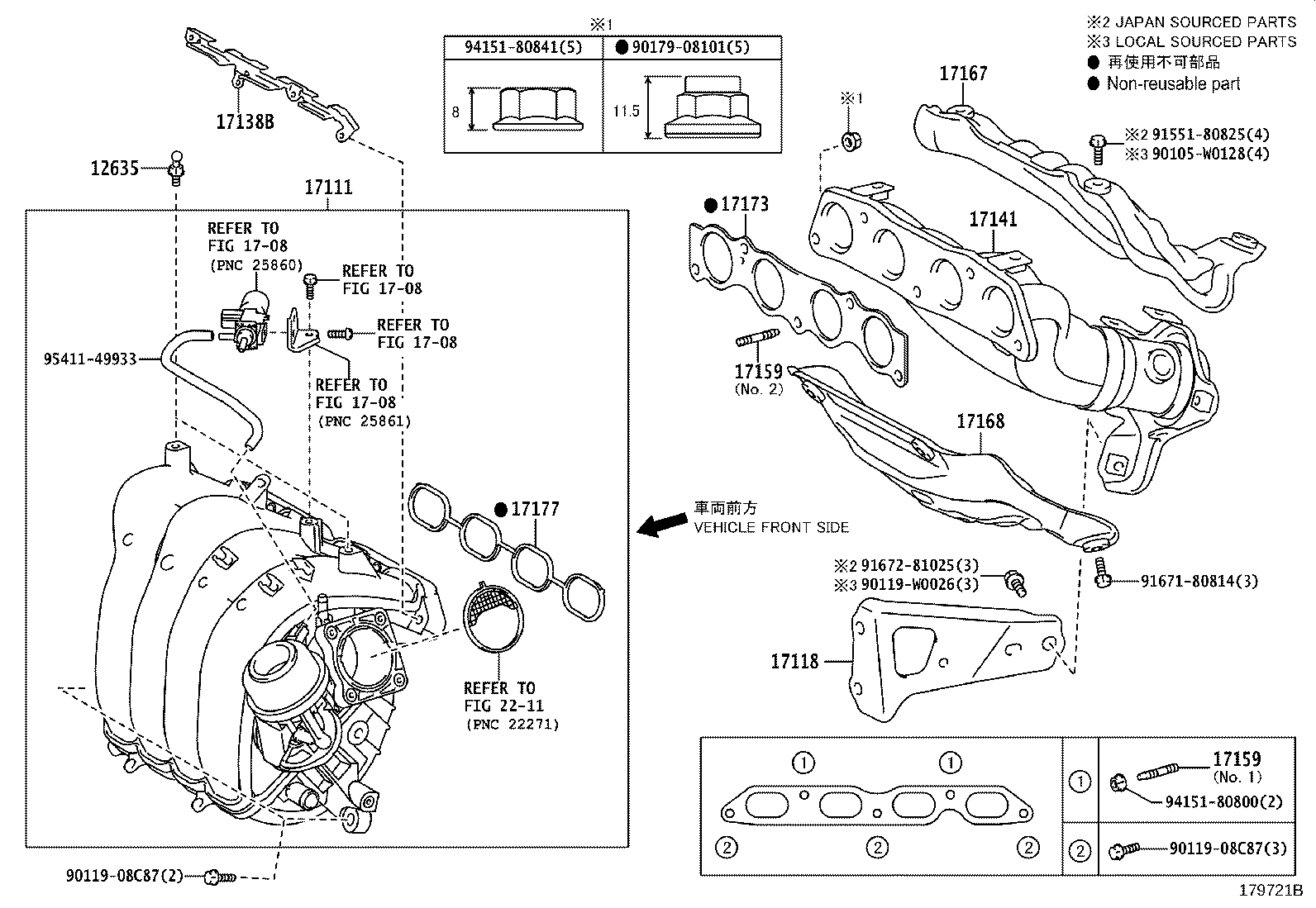

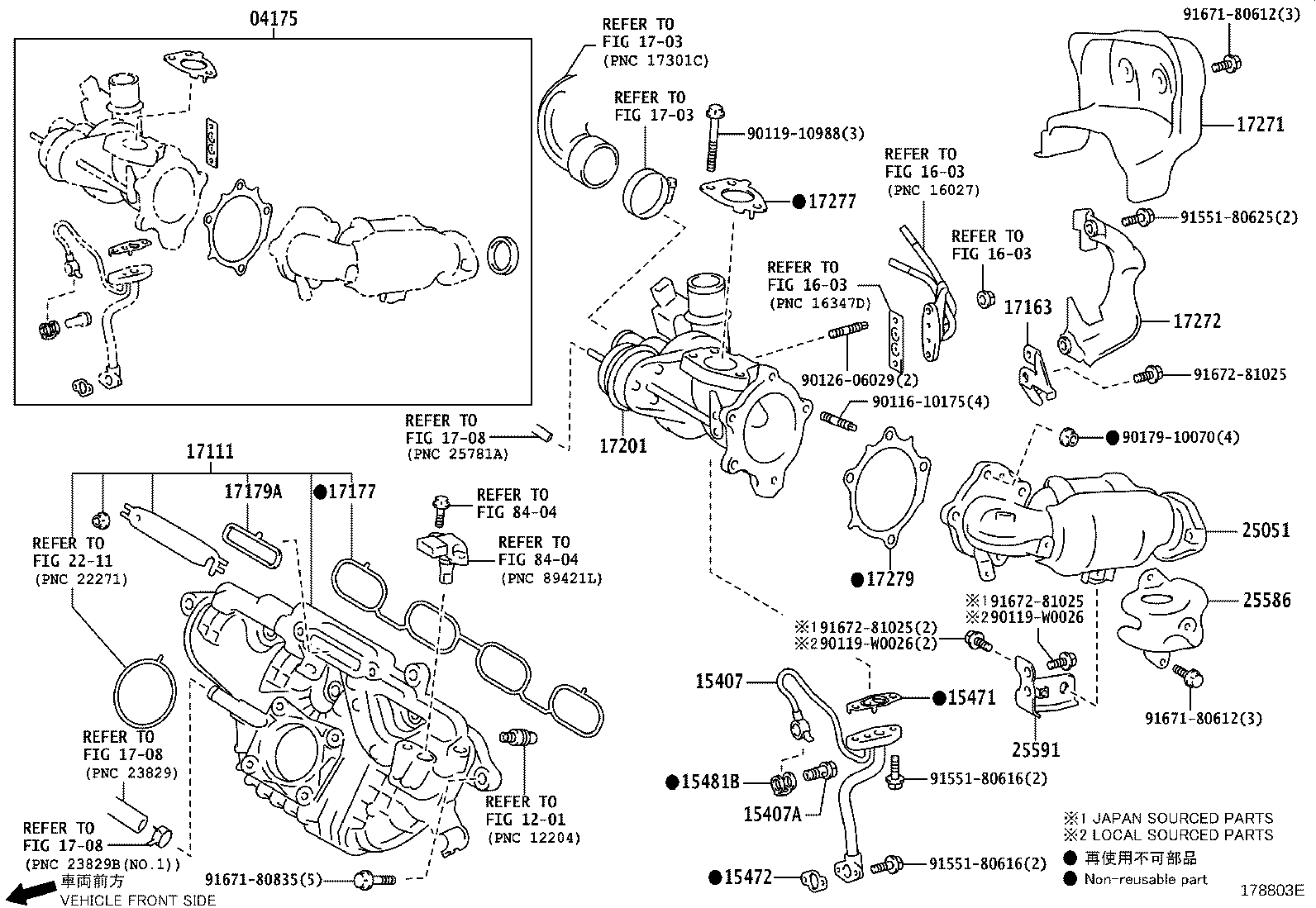

Figure 177829D 177829D 2012-10 → — Figure 177850A 177850A 2012-10 → — Figure 177844C 177844C 2012-10 → — Figure 177845E 177845E 2012-10 → 2015-05 Figure 178798D 178798D 2015-05 → — Figure 178803E 178803E 2015-05 → 2018-05 Figure 17A325A 17A325A 2018-05 → — Figure 178869G 178869G 2015-05 → — Figure 177828D 177828D 2012-10 → 2018-05 Figure 179721B 179721B 2018-05 → — Figure 176815D 176815D 2012-10 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12635 Joint, Engine Cover
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15474 Pipe, Turbo Oil Outlet
15474A Hose, Turbo Oil Outlet
15476 Pipe, Turbo Oil Outlet, NO.2
15481 Pipe, Turbo Oil, NO.1
15481A Bolt, Union, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
15482A Bolt, Union, NO.2
15482B Gasket(FOR UNION BOLT NO.2)
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17112 Manifold, Intake, NO.2
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17142D Manifold, Exhaust, NO.2
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17163 Bracket, Heat Insulator, NO.1
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17179A Gasket, Intake Manifold, NO.2
17191 Pipe, Exhaust Manifold, NO.1
17201 Turbocharger Sub-assy
17203B Elbow Sub-assy, Compressor Inlet
17229 Band, V
17271 Insulator, Turbo, NO.1
17272 Insulator, Turbo, NO.2
17276 Gasket, Compressor Inlet
17277 Gasket, Compressor Outlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17297 Stay, Turbocharger, NO.2
17853B Insulator, Intake Manifold
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
22271A Gasket, Throttle Body
25051 Converter Sub-assy, Exhaust Manifold
25052 Converter Sub-assy, Exhaust Manifold, NO.2
25509 Insulator Sub-assy, Manifold Convertor
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25589 Insulator, Manifold Converter, NO.4
25591 Bracket, Manifold Support
25612A Pipe, Egr, NO.2
25628B Gasket, Egr Inlet
25686B Gasket, Egr Cooler, NO.2
25761D Hose, Vaccum Transmitting, NO.1
