Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

17 part groups · 9 illustrations

Illustrations

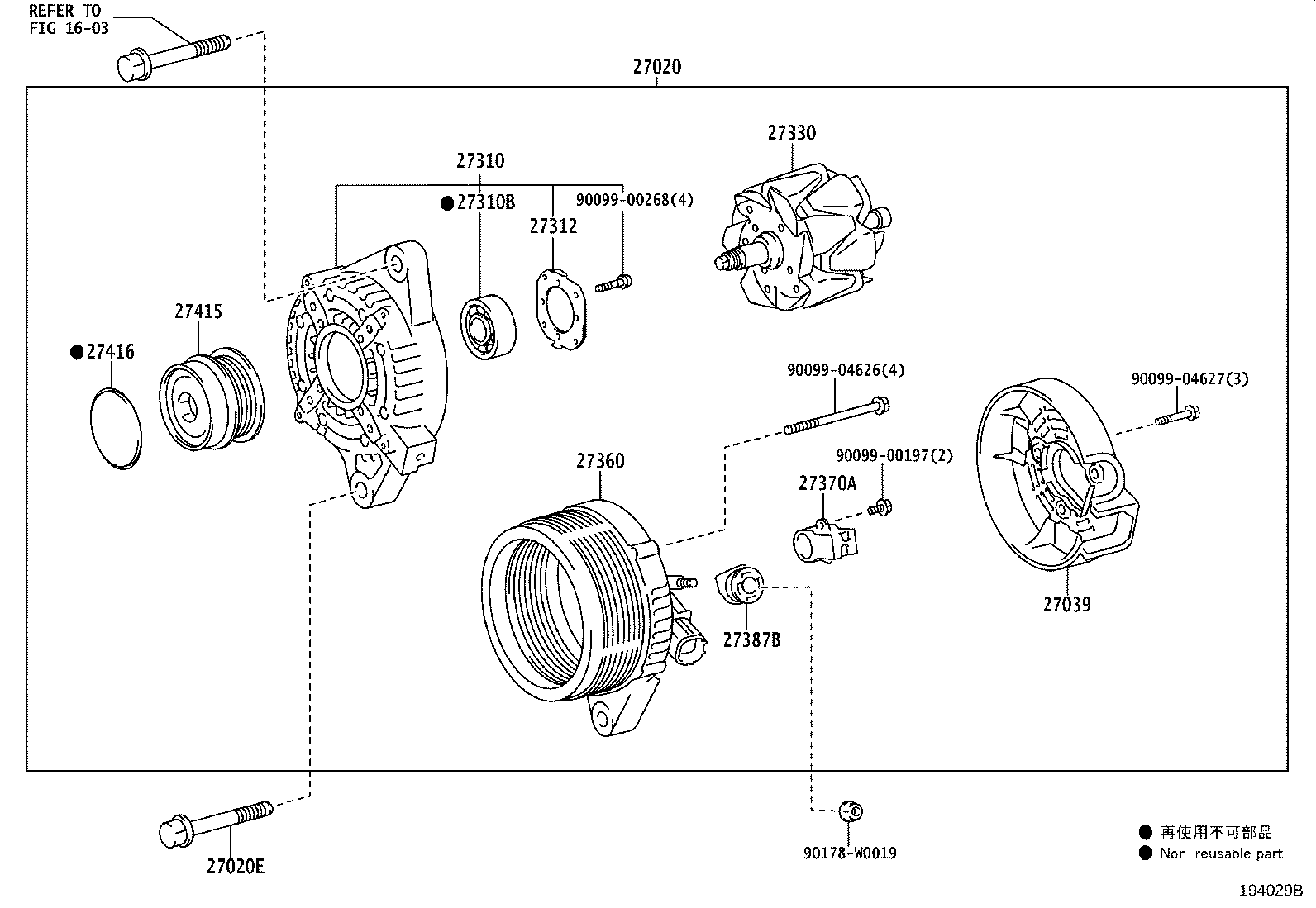

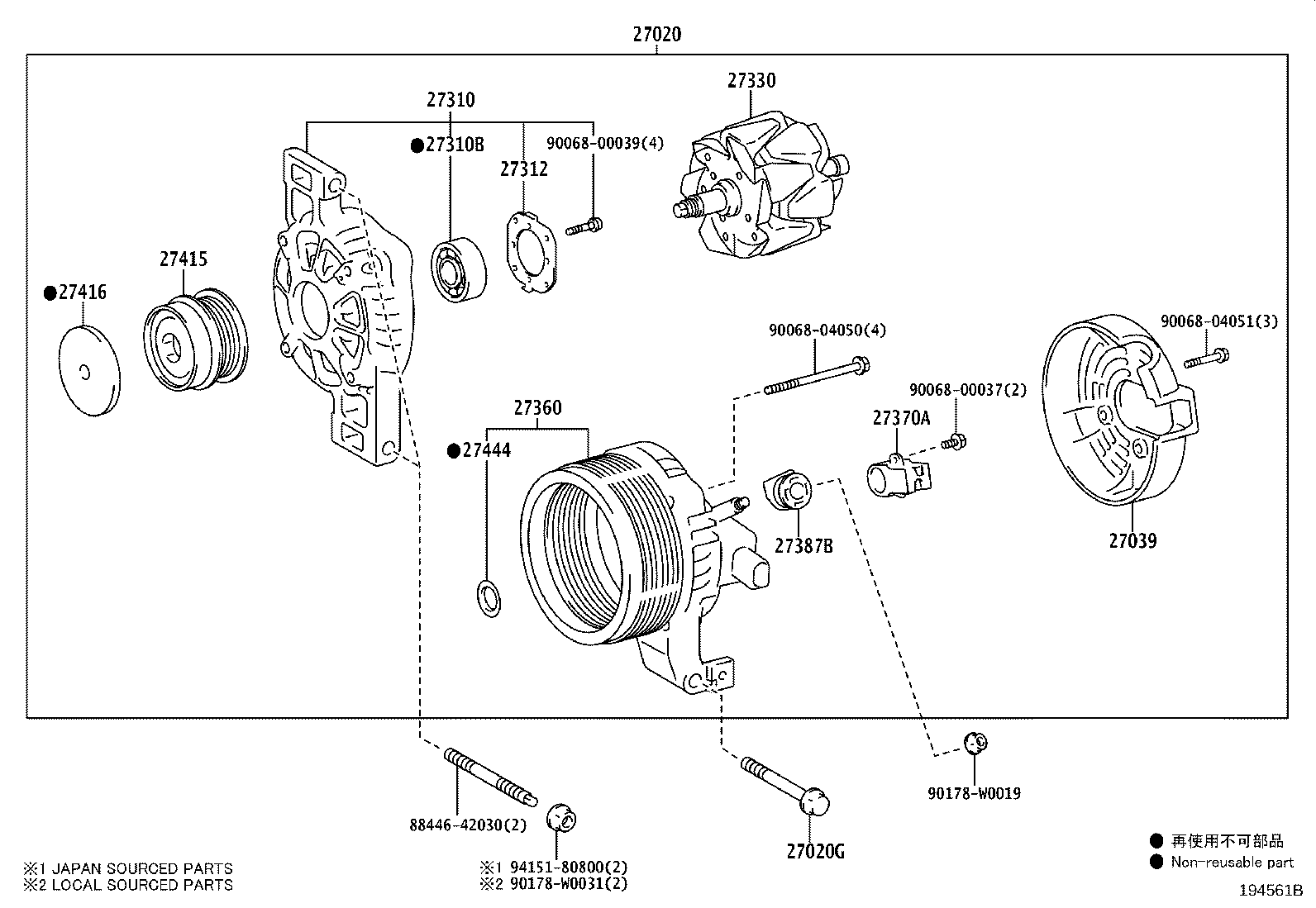

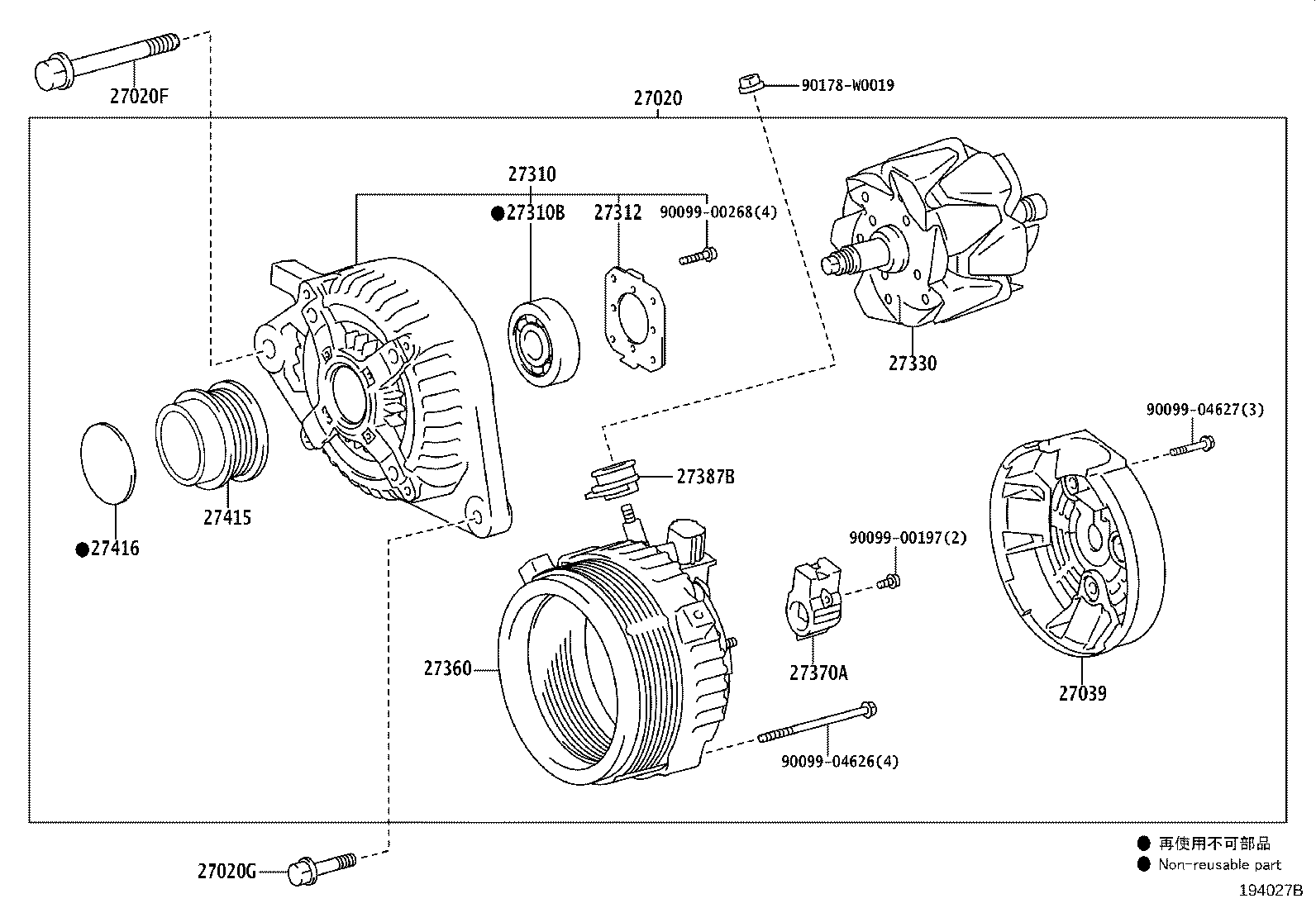

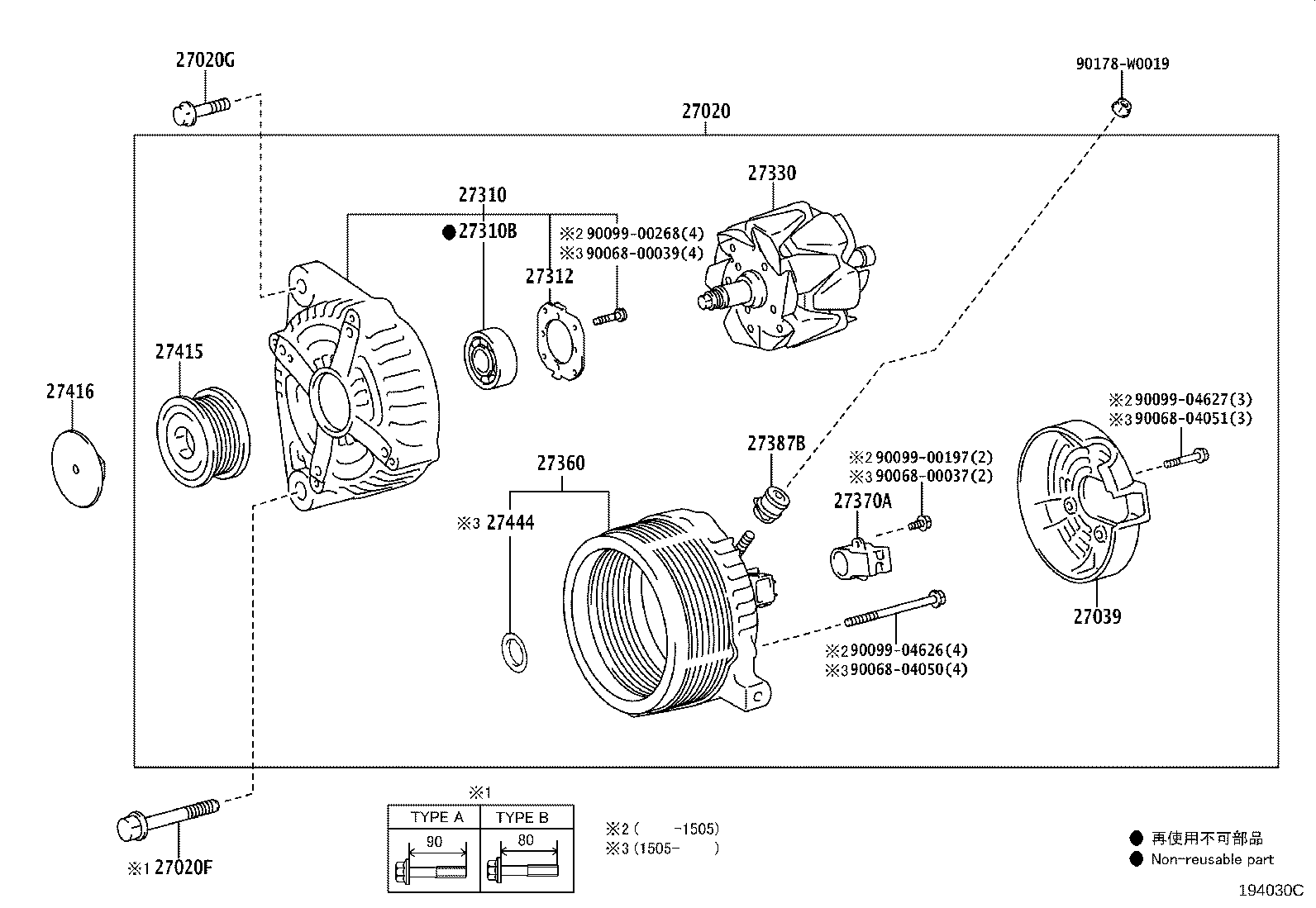

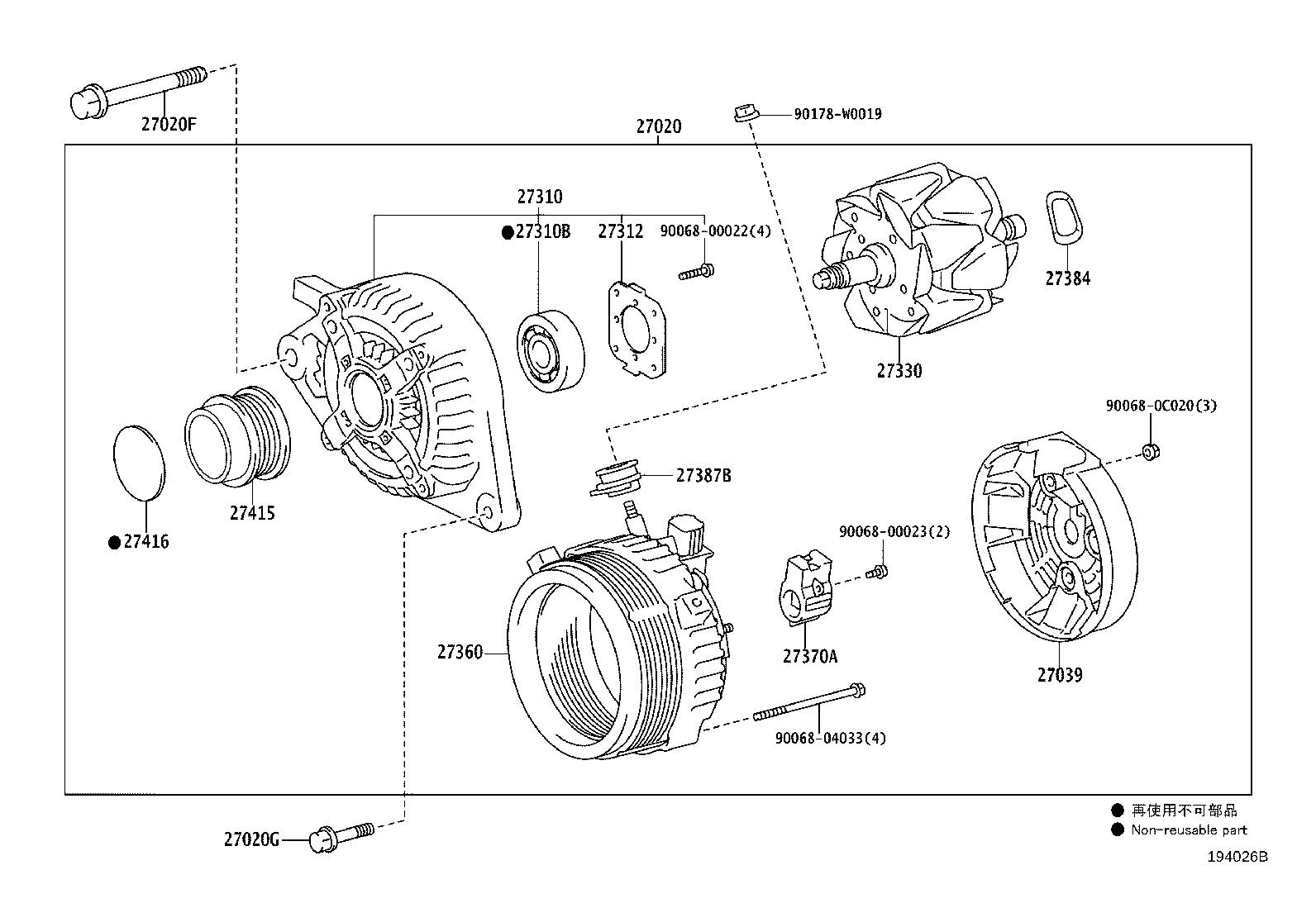

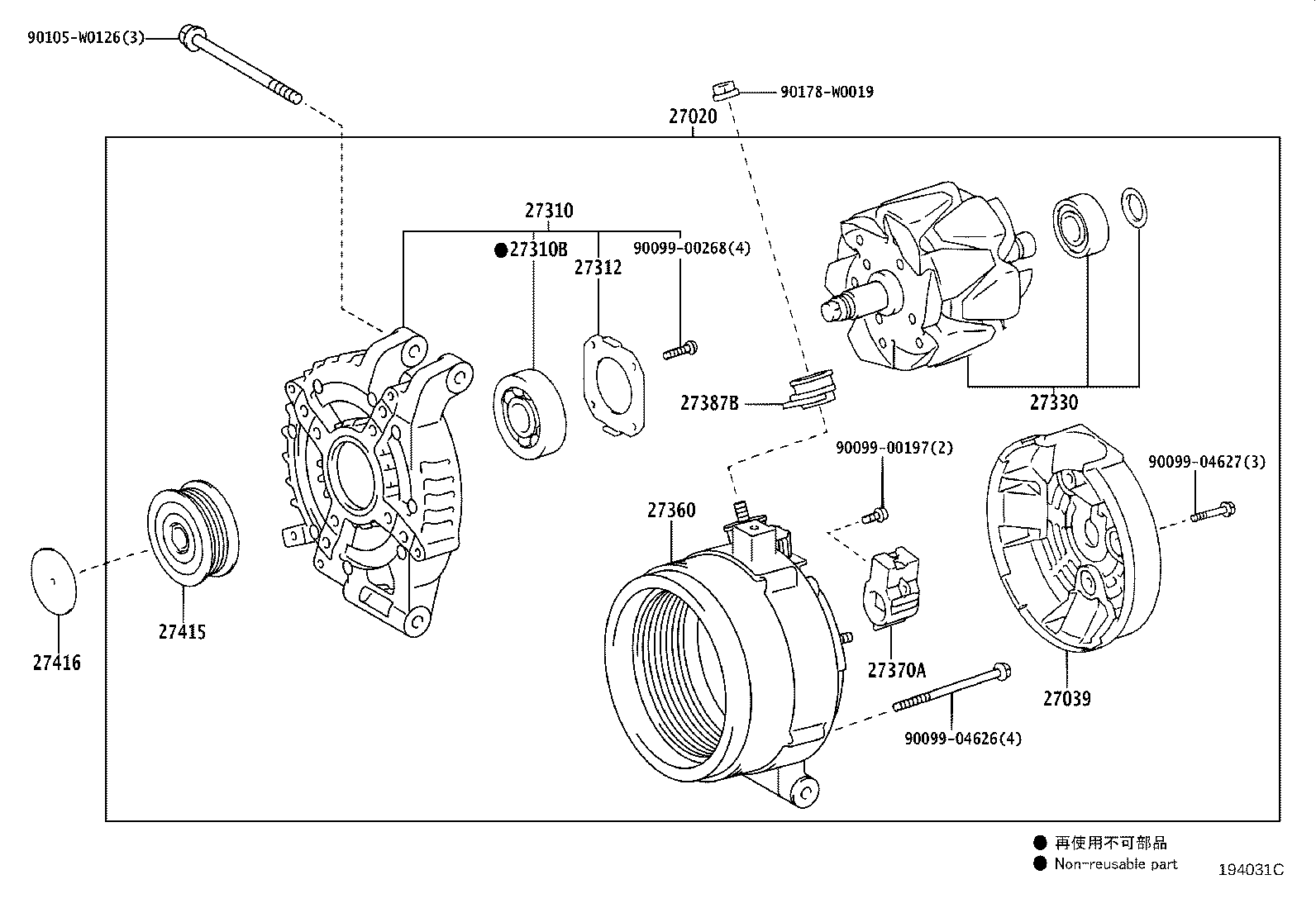

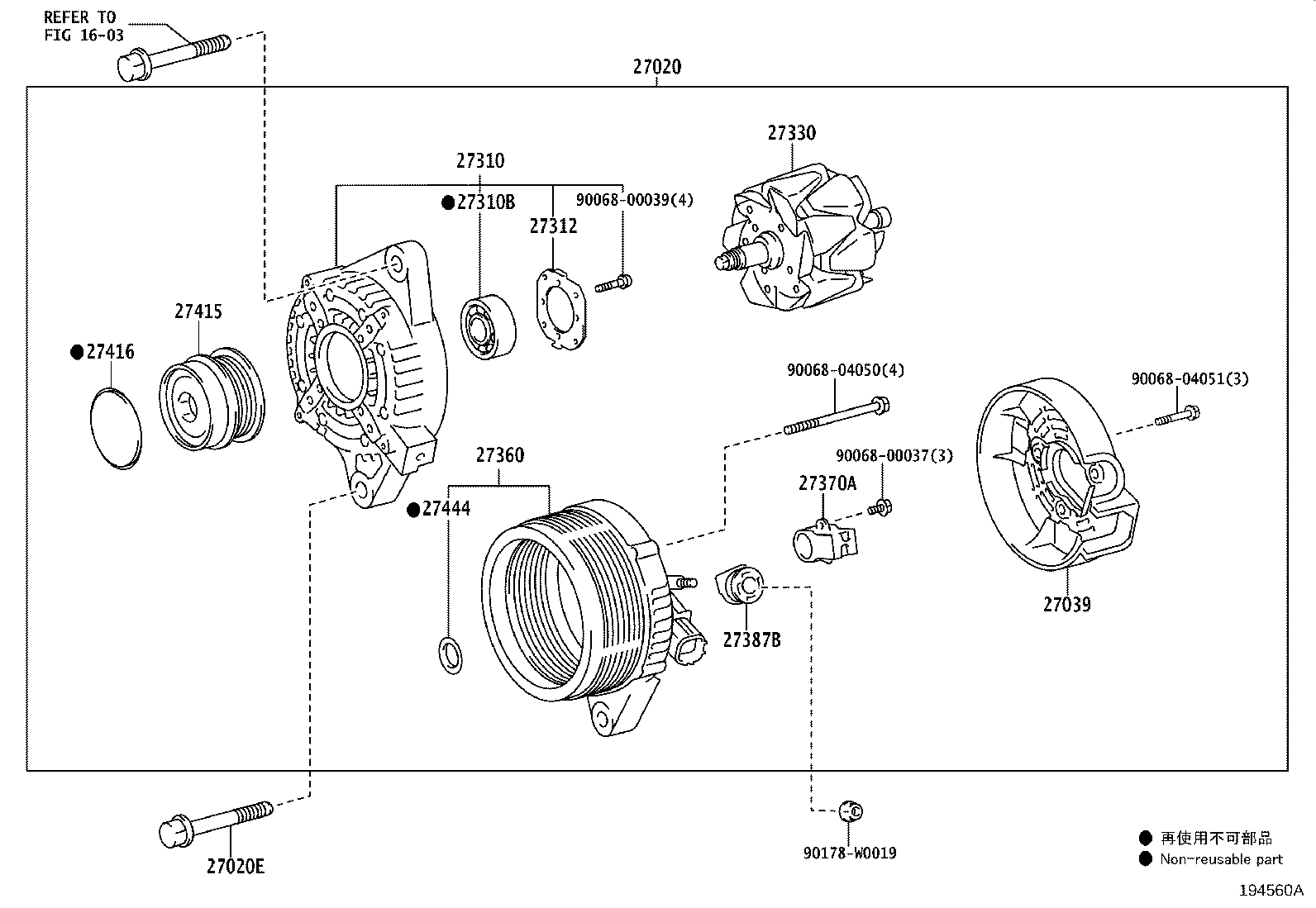

Figure 194028C 194028C 2012-10 → 2015-05 Figure 194029B 194029B 2012-10 → 2015-05 Figure 194031C 194031C 2012-10 → 2015-05 Figure 194026B 194026B 2012-10 → — Figure 194027B 194027B 2012-10 → — Figure 194030C 194030C 2012-10 → — Figure 194560A 194560A 2015-05 → — Figure 194561B 194561B 2015-05 → — Figure 194562A 194562A 2015-05 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27020F Bolt, NO.1(FOR ALTERNATOR)
27020G Bolt, NO.2(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27310B Bearing(FOR ALTERNATOR DRIVE END FRAME)
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27360 Coil Assy, Alternator
27370A Holder Assy, Alternator Brush
27384 Washer
27387B Insulator, Alternator Terminal
27415 Pulley, Alternator W/Clutch
27416 Cap, Alternator Pulley
27444 Packing, Alternator Bearing Cover
27702 Regulator Sub-assy Generator W/Brush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
