Vacuum Pump

7 part groups · 4 illustrations

Illustrations

Figure 194014C

194014C 2012-10 → 2015-05

Figure 194015E

194015E 2012-10 → —

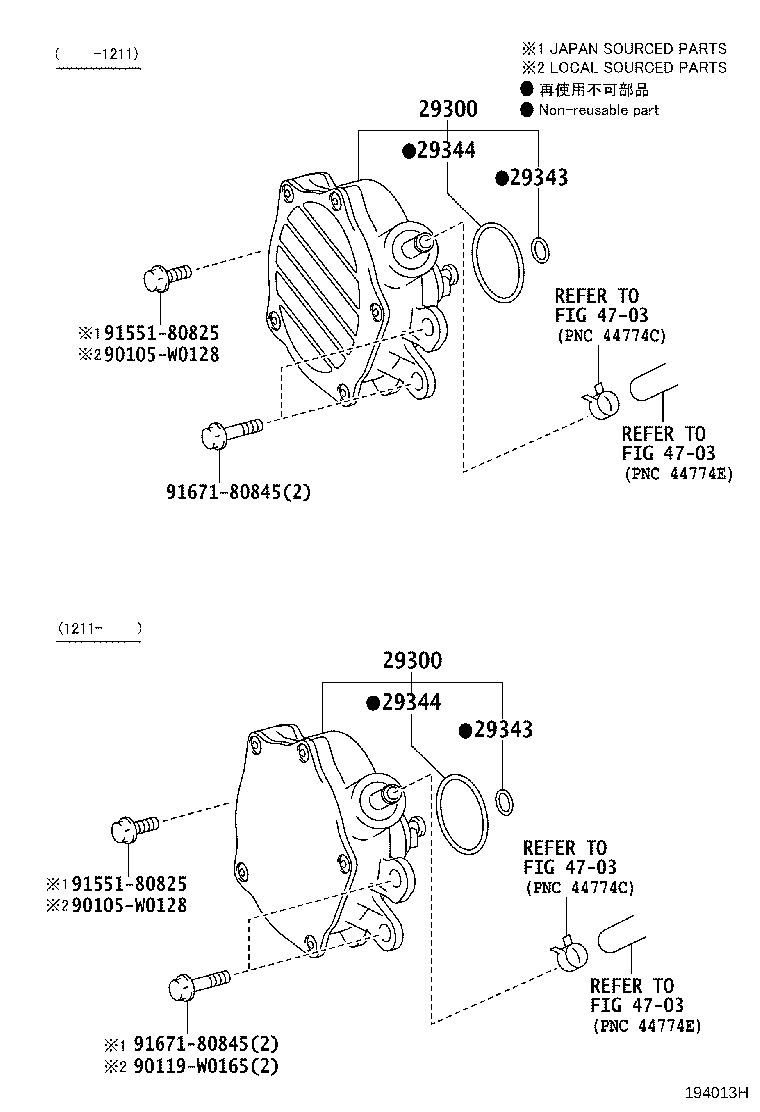

Figure 194013H

194013H 2012-10 → —

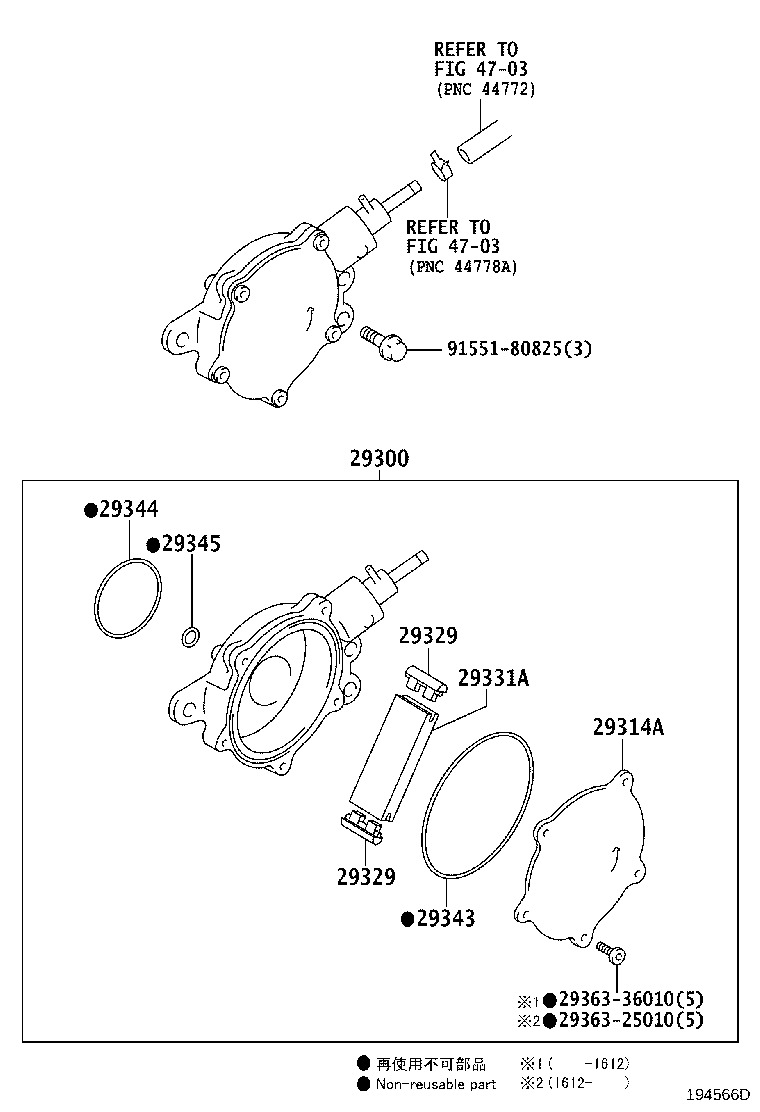

Figure 194566D

194566D 2015-05 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump
29343	Ring, O Vacuum Pump, NO.1
29344	Ring, O Vacuum Pump, NO.2
29345	Ring, O Vacuum Pump, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
