Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

23 part groups · 7 illustrations

Illustrations

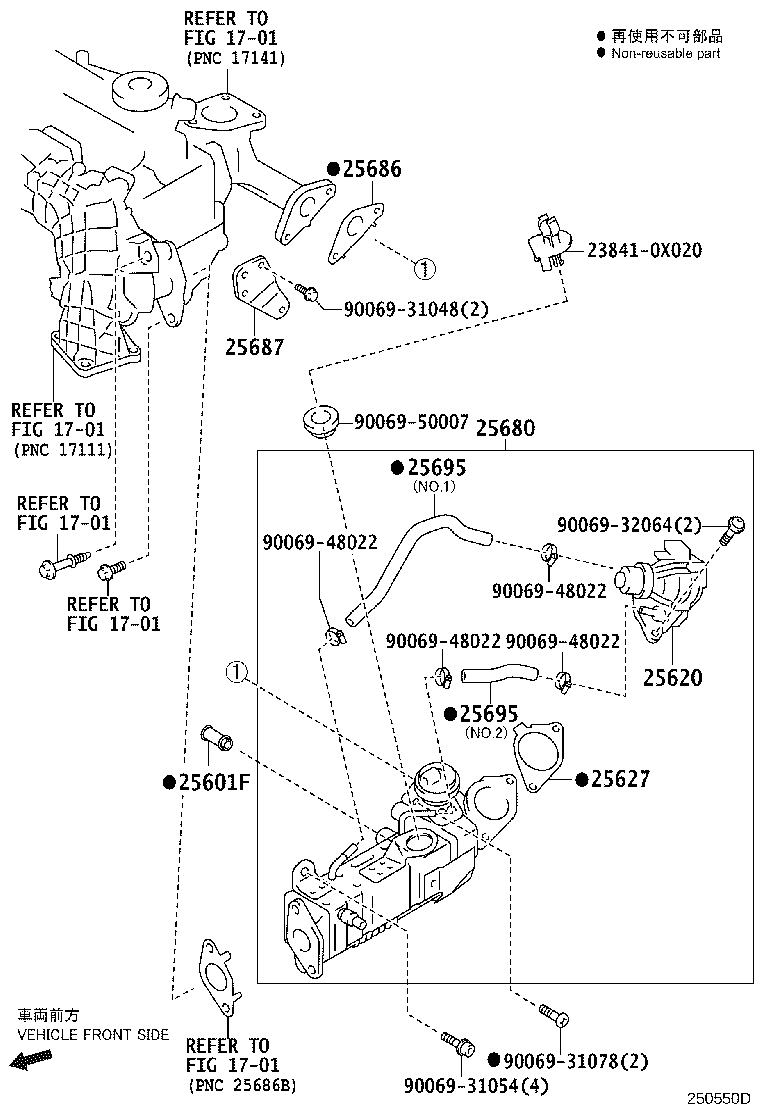

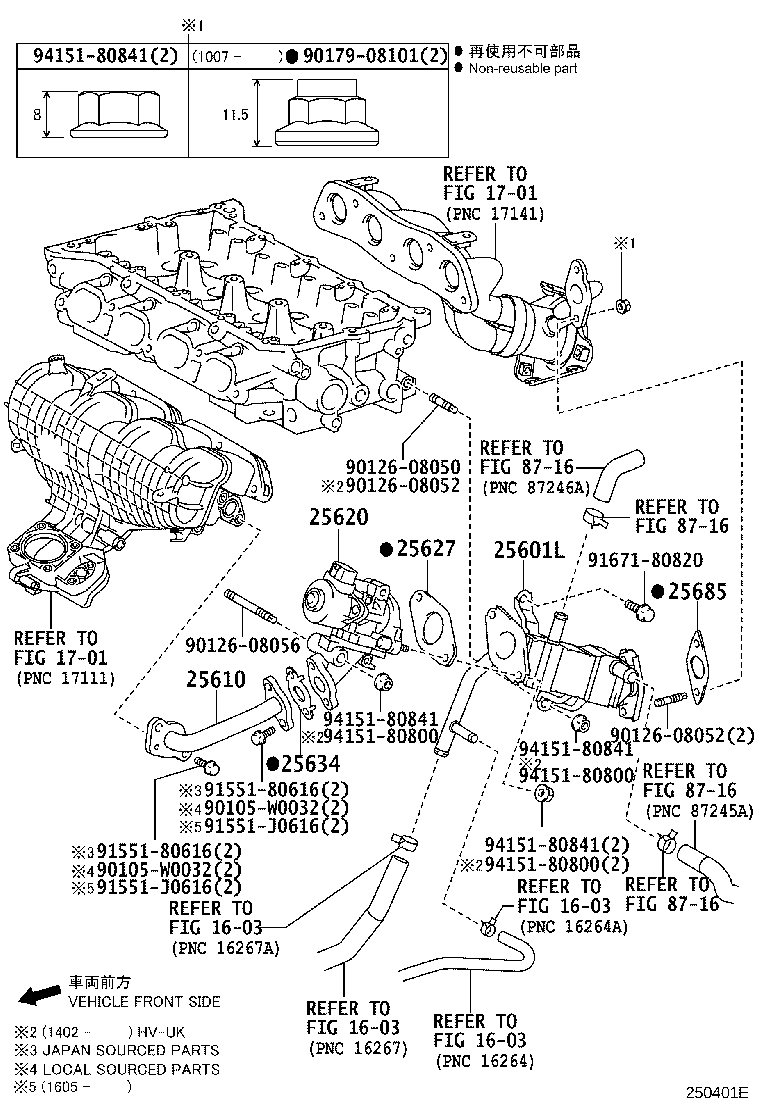

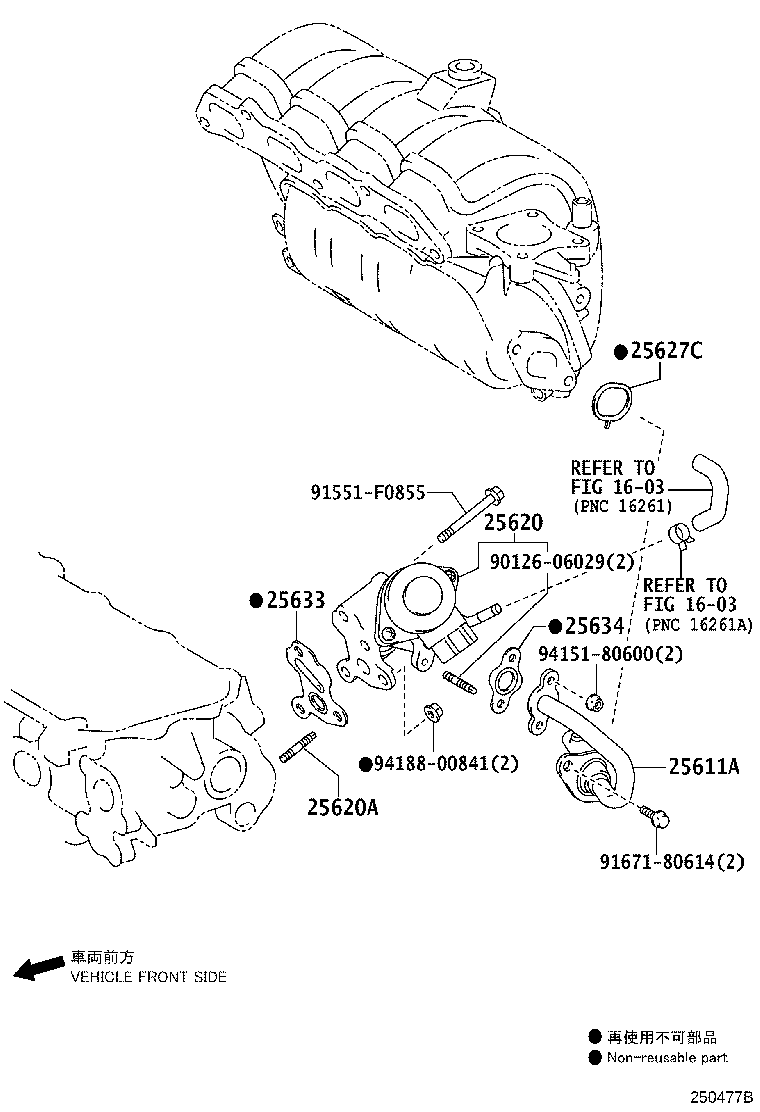

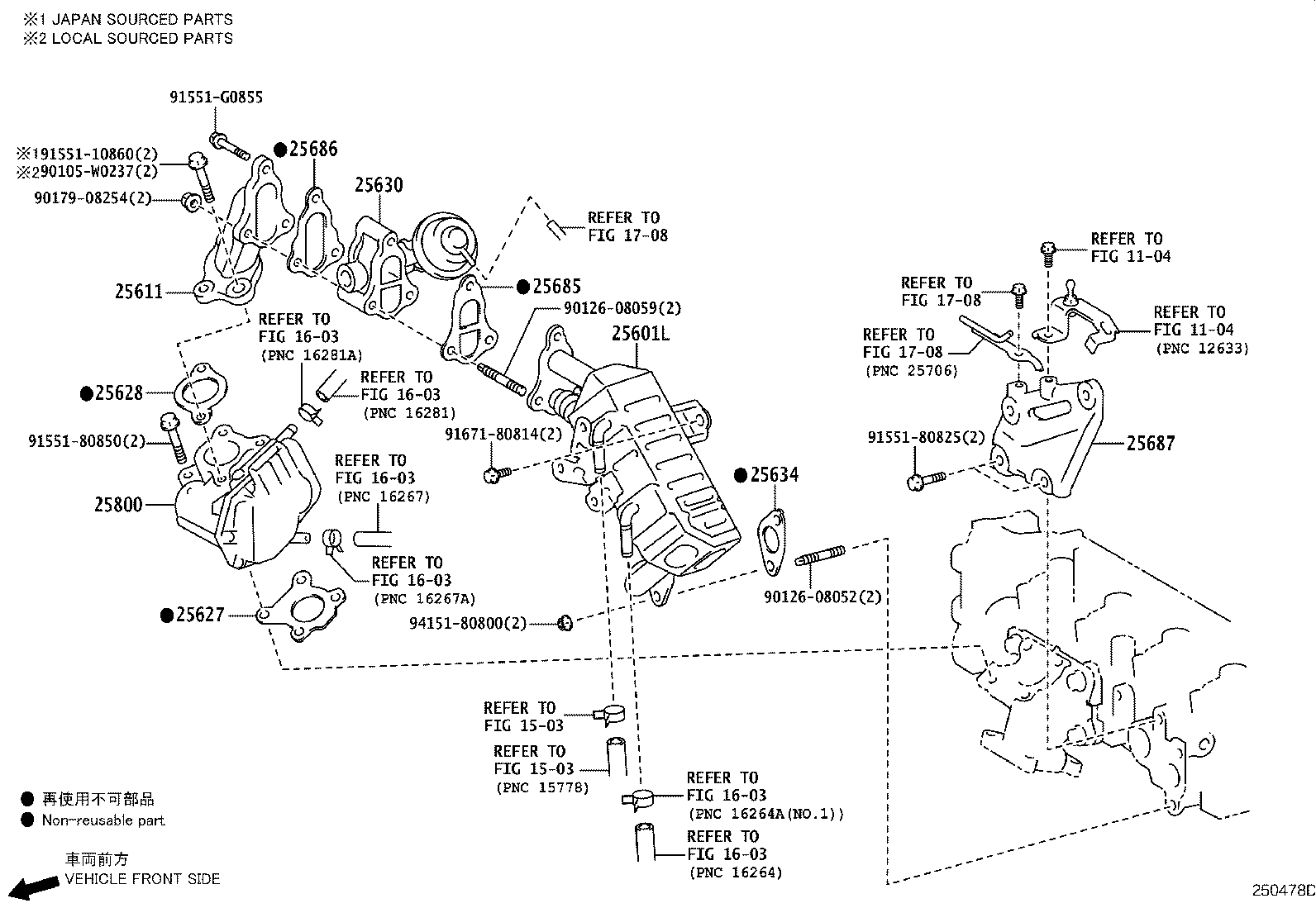

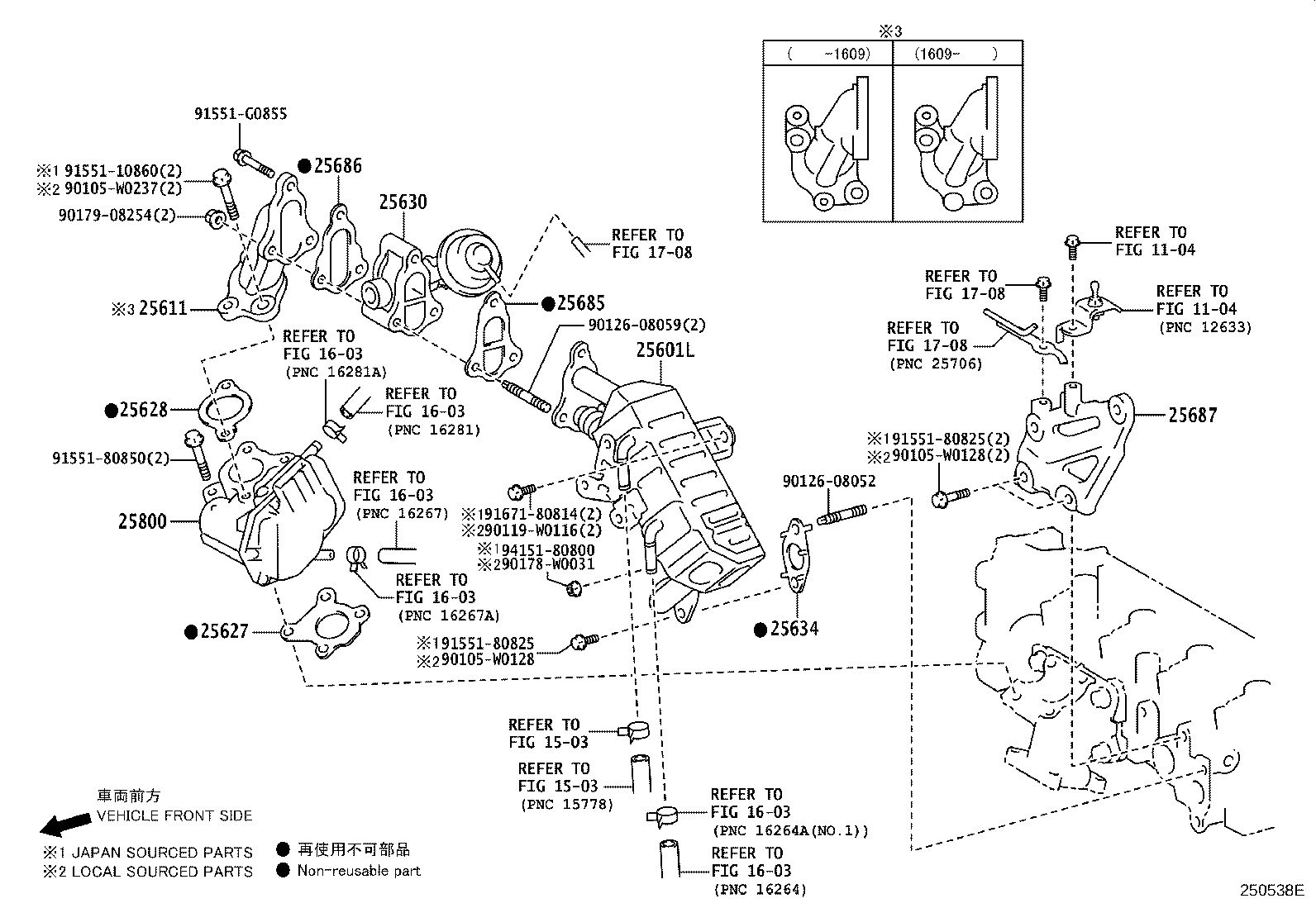

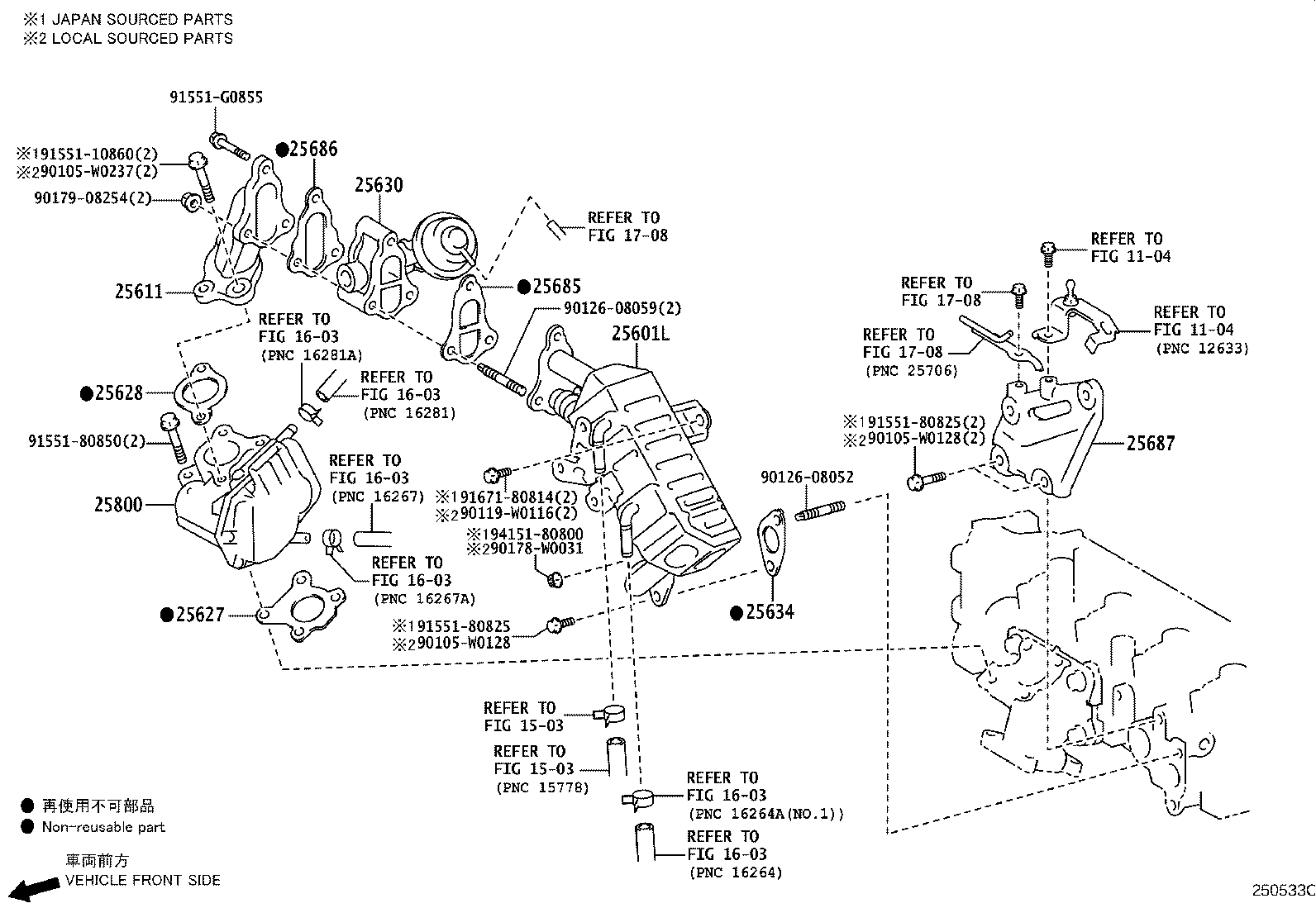

Figure 250476B 250476B 2012-10 → — Figure 250477B 250477B 2012-10 → — Figure 250478D 250478D 2012-10 → 2014-11 Figure 250533C 250533C 2014-11 → 2015-05 Figure 250538E 250538E 2015-05 → — Figure 250550D 250550D 2015-05 → — Figure 250401E 250401E 2012-10 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601F Union(FOR EGR PIPE, NO.1)
25601L Pipe Sub-assy, Egr W/Cooler
25602 Pipe Sub-assy, Egr, NO.2
25610 Pipe Assy, Egr
25611 Connector, Egr Pipe
25611A Pipe, Egr, NO.1
25620 Valve Assy, Egr
25620A Bolt, Stud(FOR EGR VALVE)
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25627C Gasket(FOR EGR PIPE NO.2)
25628 Gasket, Egr Inlet
25629 Gasket, Egr Valve Adapter
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25687 Bracket, Egr Cooler, NO.1
25695 Hose, Egr Vacuum Modulator
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
