Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

9 part groups · 6 illustrations

Illustrations

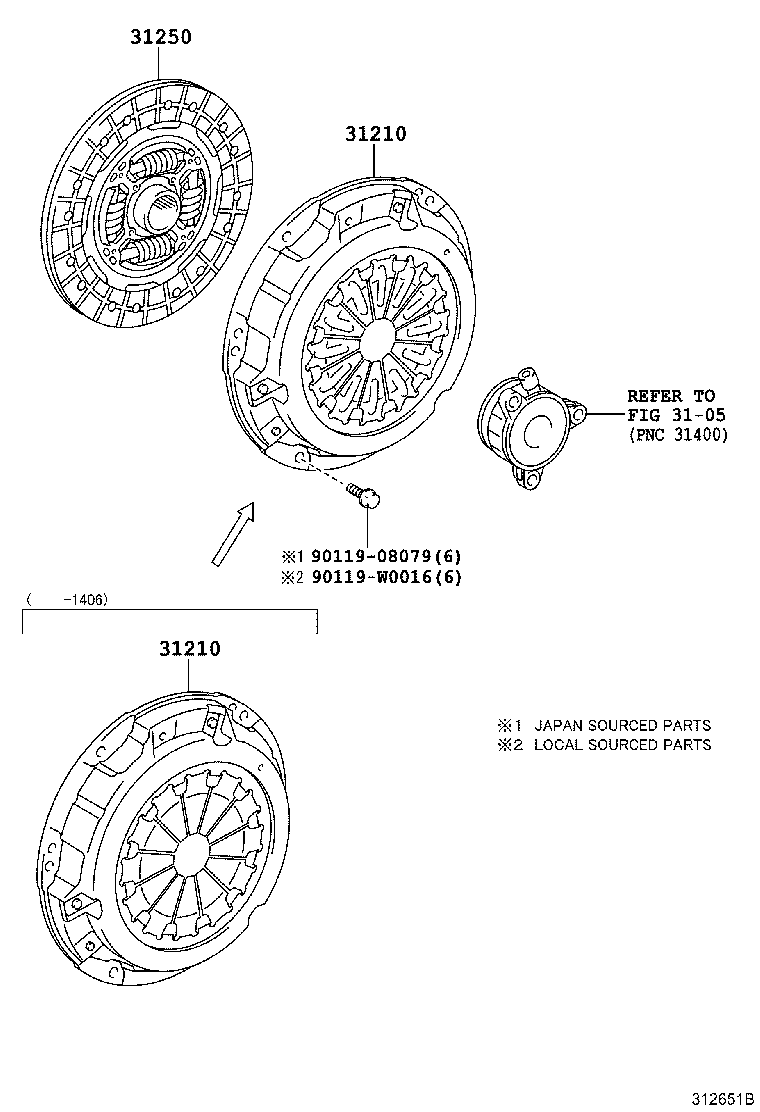

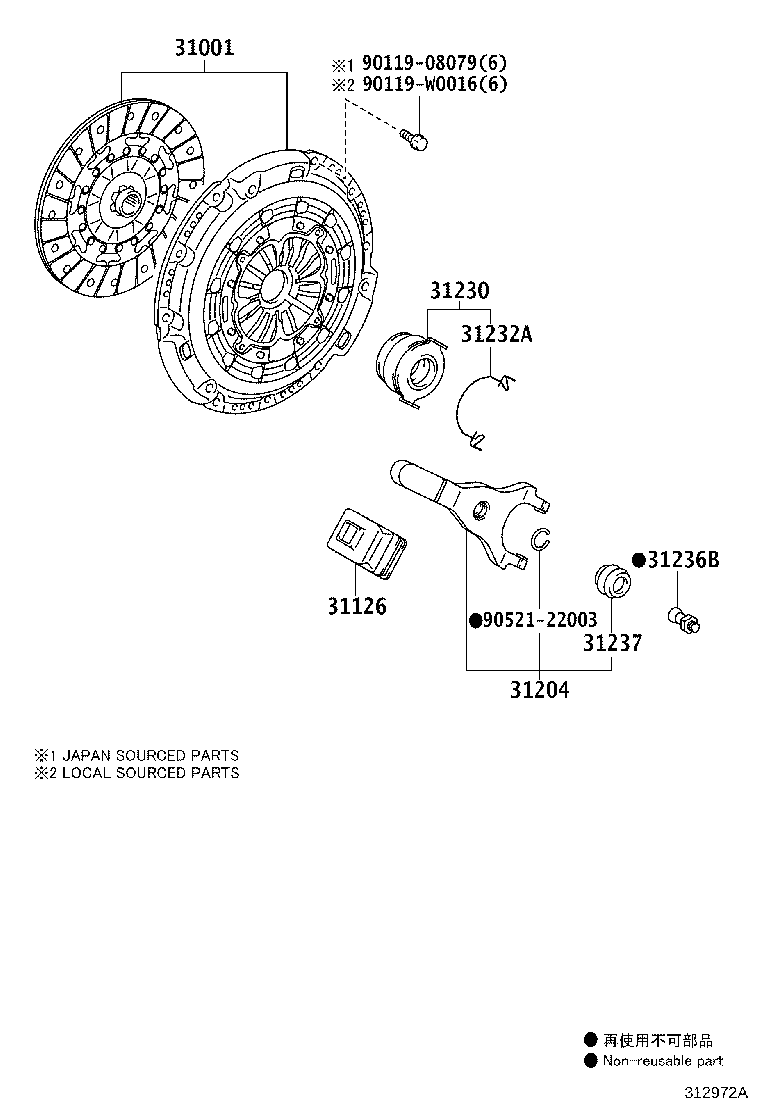

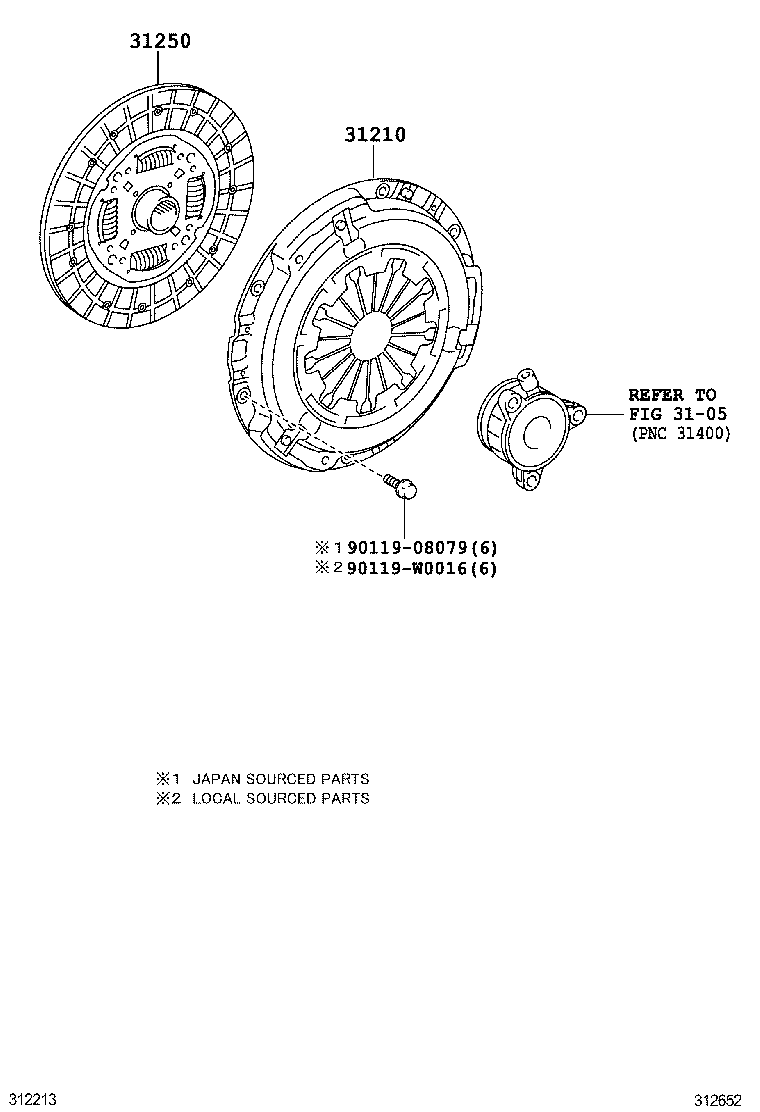

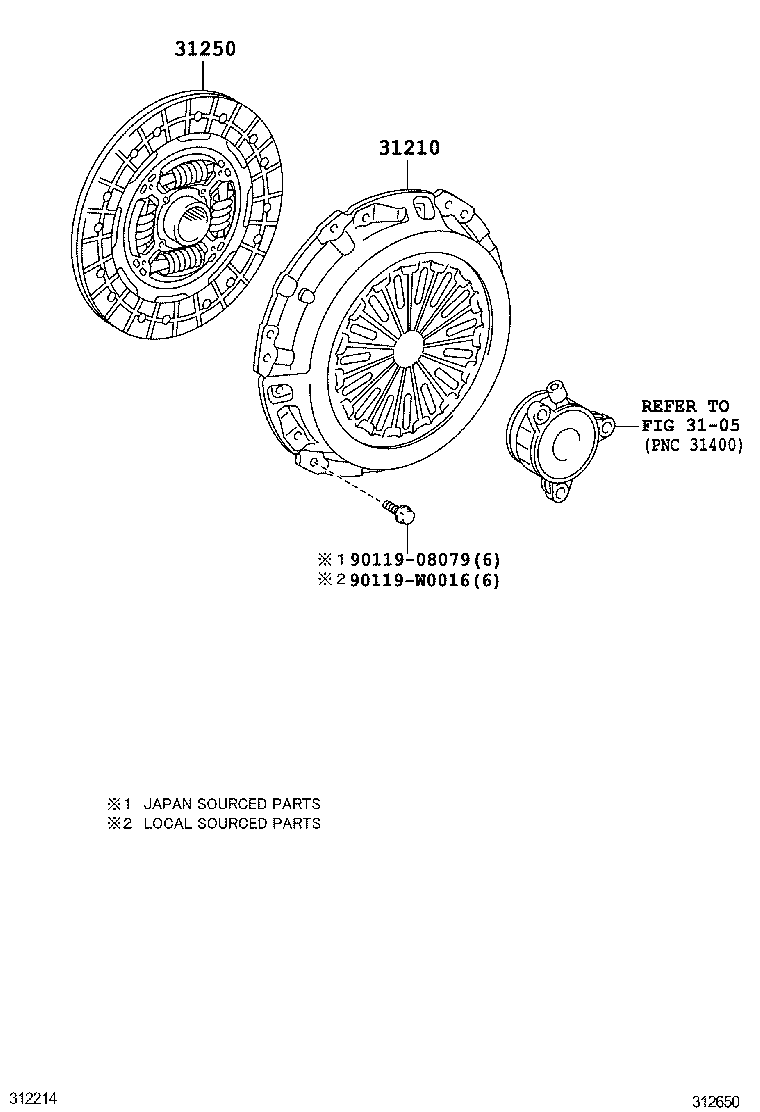

Figure 312649 312649 2012-10 → 2015-05 Figure 312650 312650 2012-10 → 2015-05 Figure 312971 312971 2015-05 → — Figure 312651B 312651B 2012-10 → — Figure 312652 312652 2012-10 → — Figure 312972A 312972A 2015-05 → —

Part groups

PNCDescription
31001 Clutch Set, Cover & Disc
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
