Brake Master Cylinder

14 part groups · 3 illustrations

Illustrations

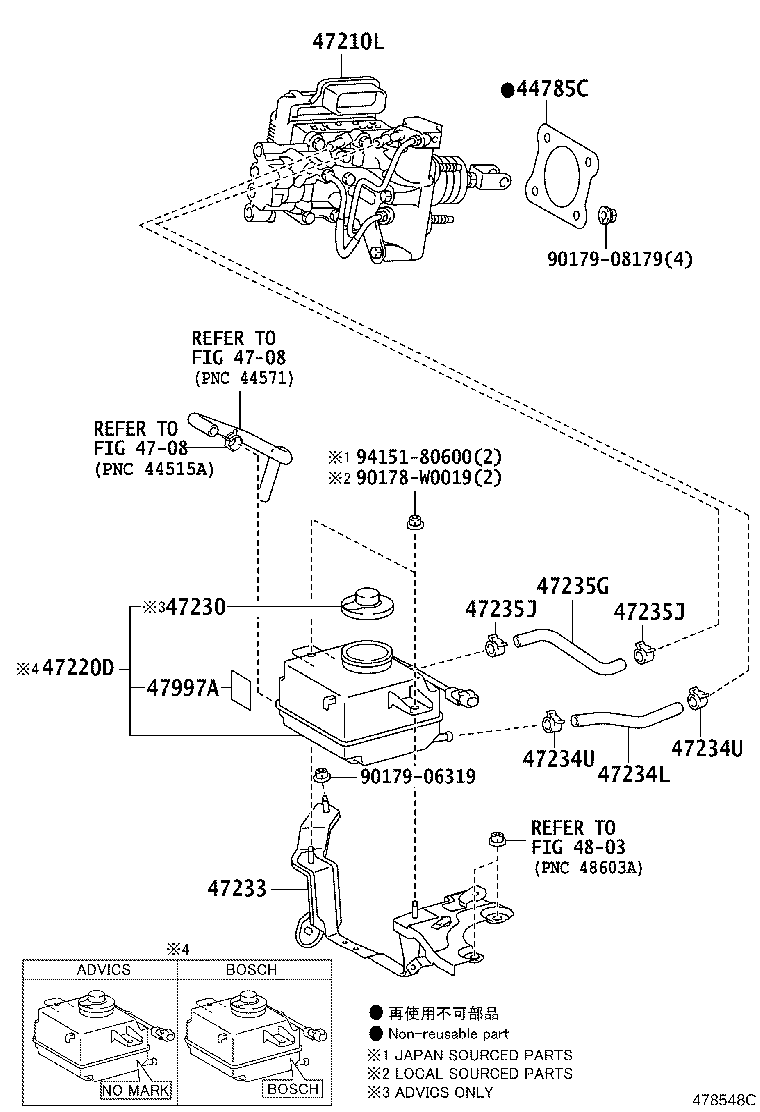

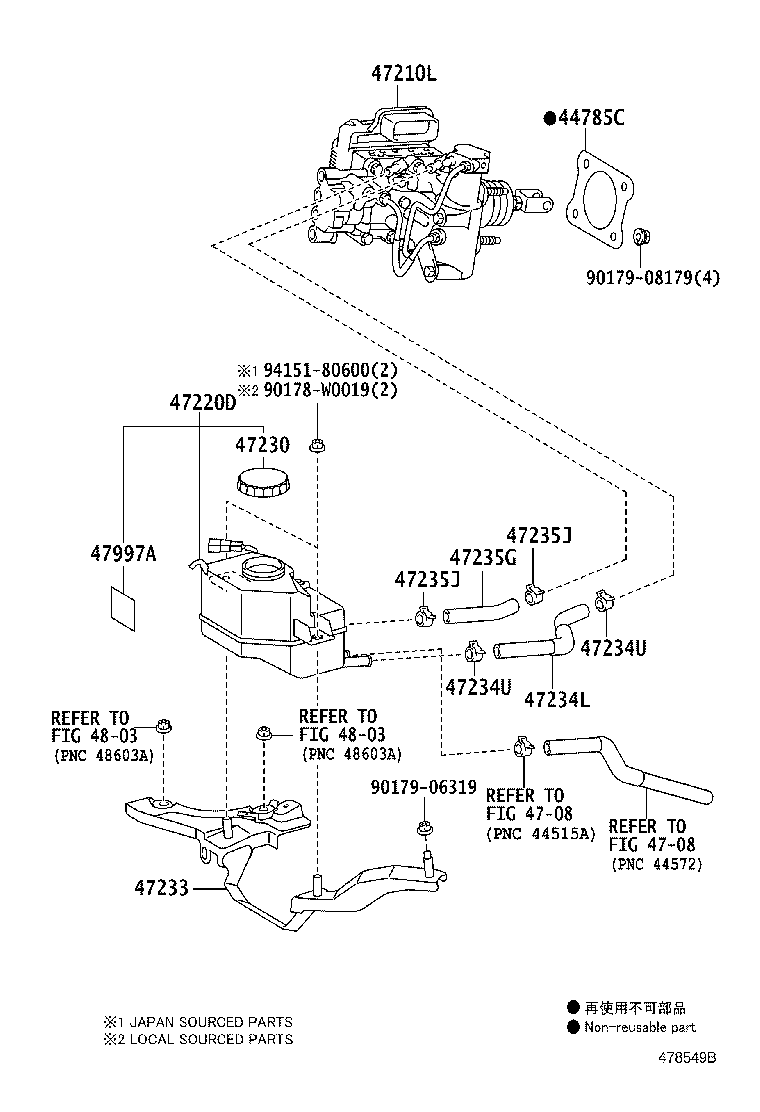

Figure 478546C 478546C 2012-10 → — Figure 478548C 478548C 2012-10 → — Figure 478549B 478549B 2012-10 → —

Part groups

PNCDescription
44785C Gasket, Brake Booster
47201 Cylinder Sub-assy, Brake Master
47210L Brake Booster Assy, W/Master Cylinder
47220D Reservoir Assy, Brake Master Cylinder
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47233 Bracket, Reservoir
47234L Hose, Reservoir, NO.1
47234U Clip(FOR RESERVOIR HOSE NO.1)
47235G Hose, Reservoir, NO.2
47235J Clip(FOR RESERVOIR HOSE NO.2)
47255 Grommet, Master Cylinder Reservoir
47275 Gasket, Brake Master Cylinder
47299 Strainer, Brake Master Cylinder Reservoir
47997A Label, Accumulator Caution, NO.1
