Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 11 illustrations

Illustrations

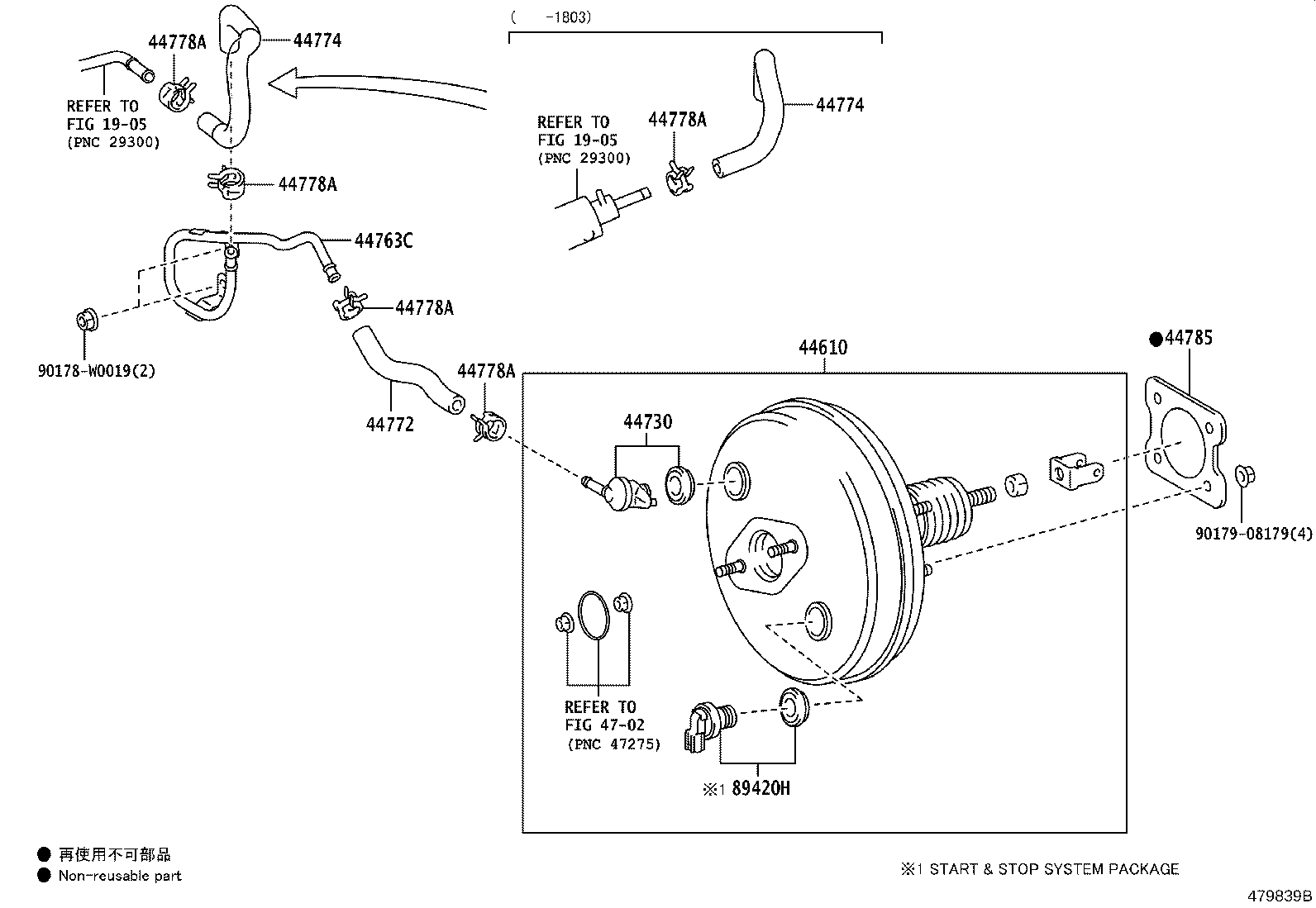

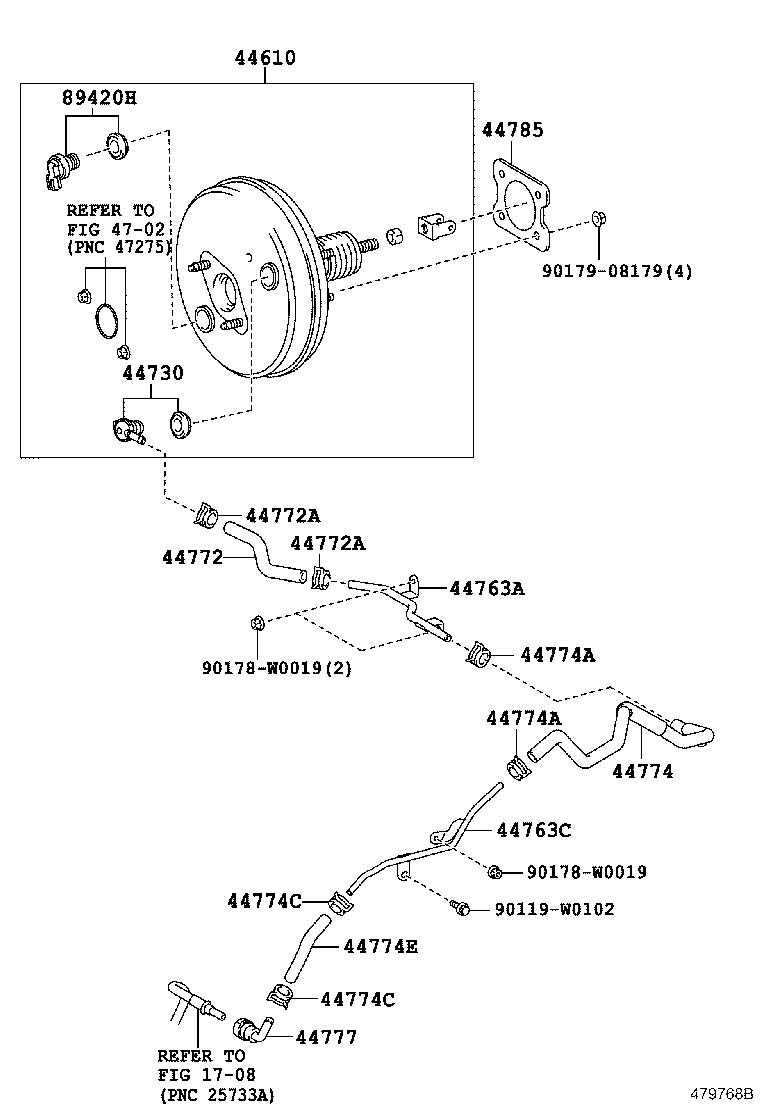

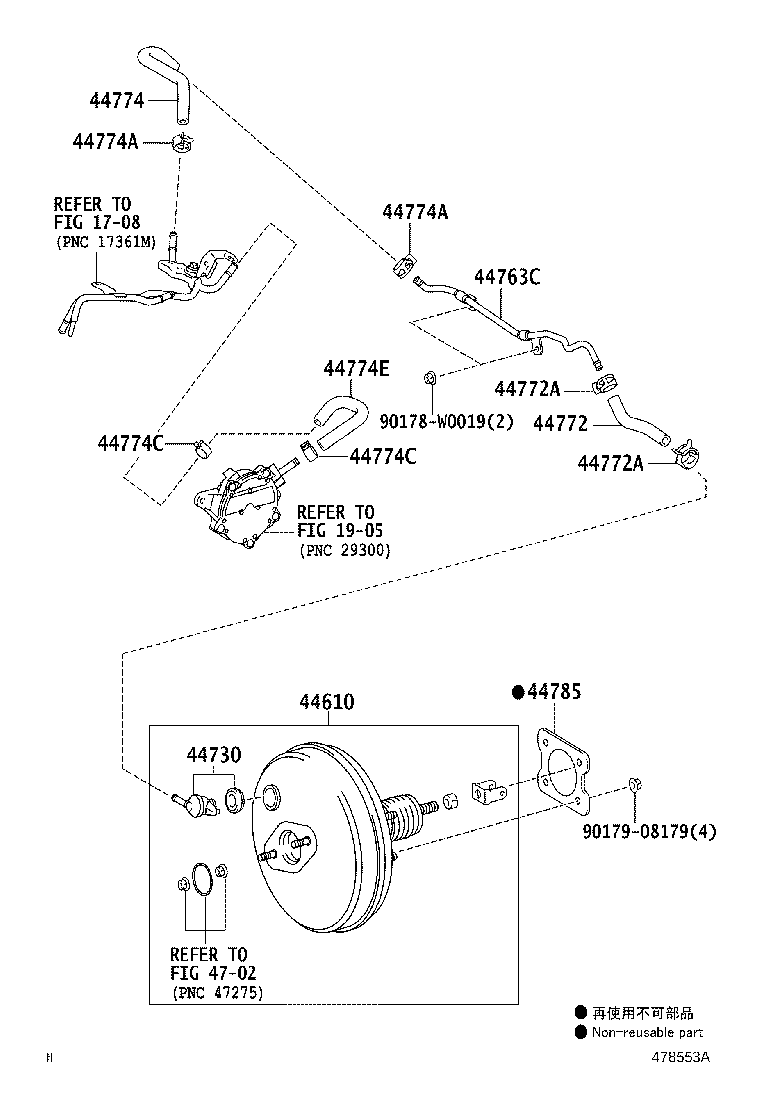

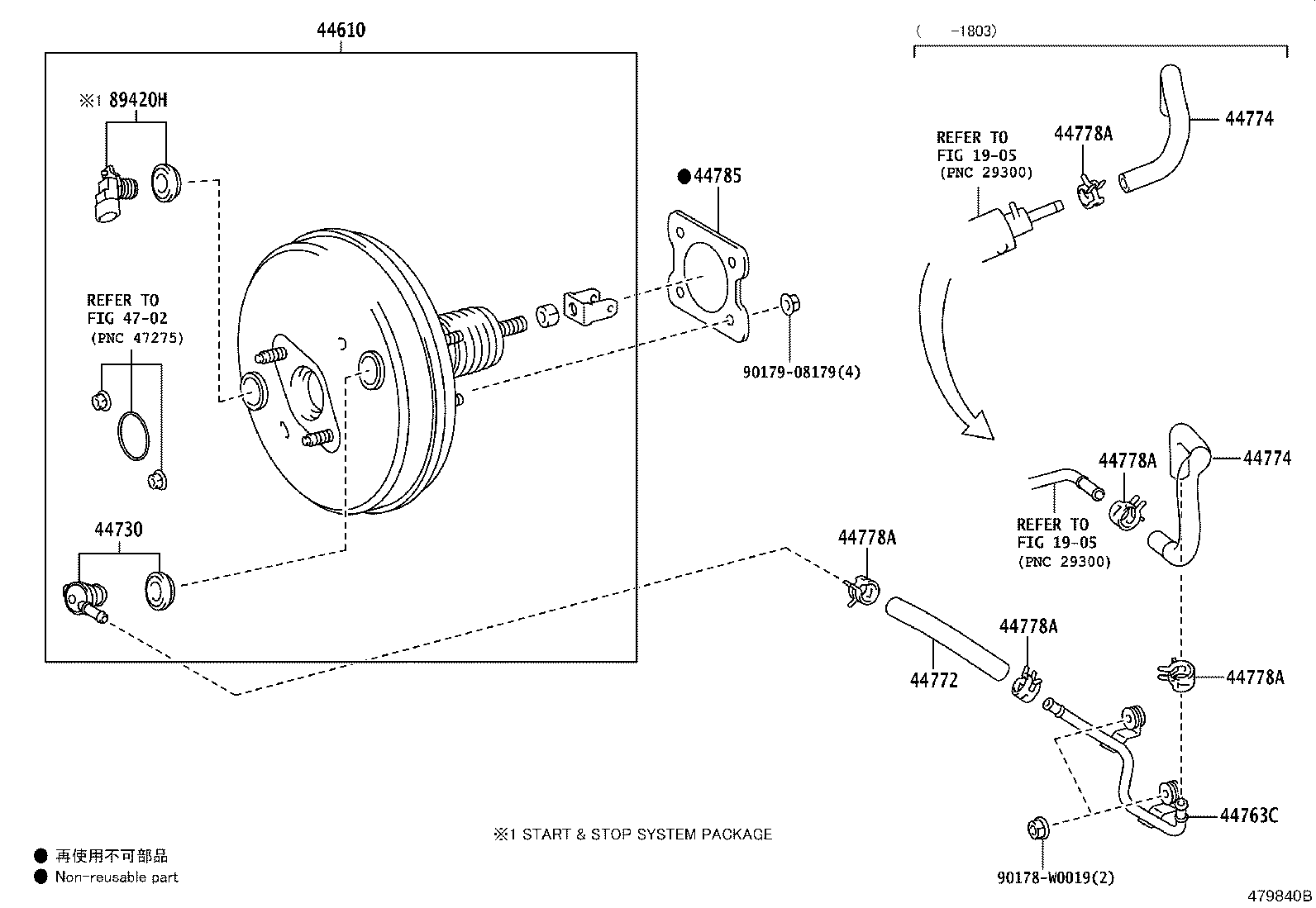

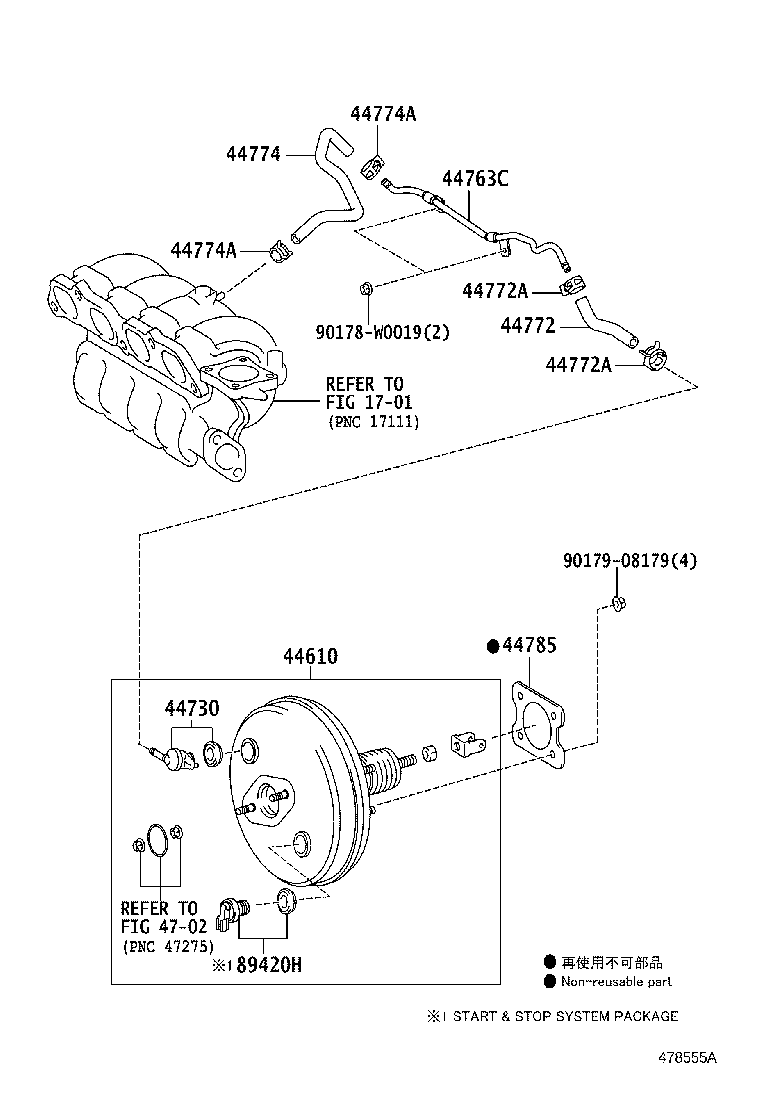

Figure 478565A 478565A 2012-10 → 2015-05 Figure 478566B 478566B 2012-10 → — Figure 478554A 478554A 2012-10 → — Figure 478556C 478556C 2012-10 → — Figure 478555A 478555A 2012-10 → — Figure 478557A 478557A 2012-10 → — Figure 478553A 478553A 2012-10 → — Figure 479839B 479839B 2015-05 → — Figure 479840B 479840B 2015-05 → — Figure 479767B 479767B 2015-05 → — Figure 479768B 479768B 2015-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44777 Connector, Vacuum Hose, NO.1
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44785 Gasket, Brake Booster
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
