Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

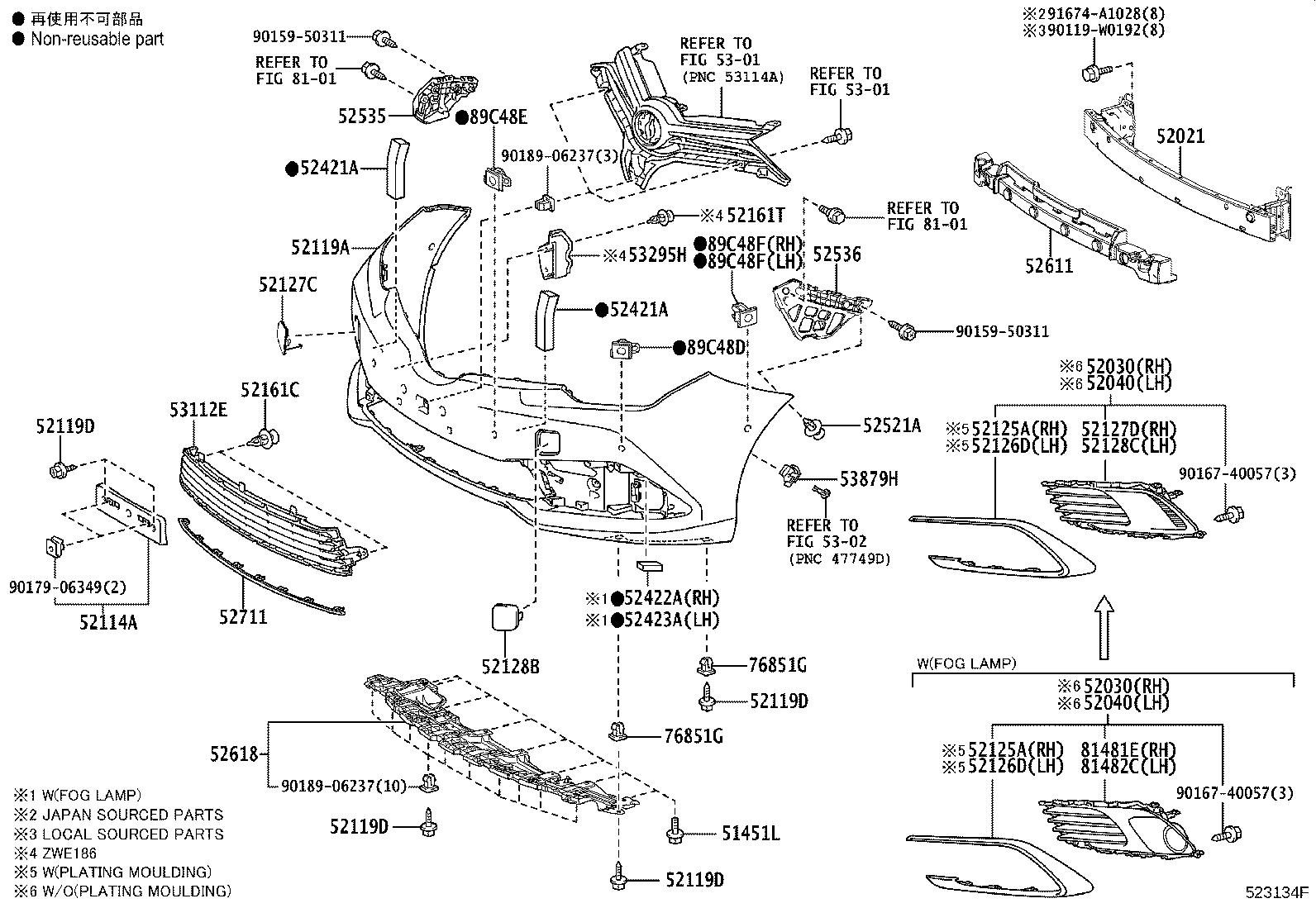

Front Bumper & Bumper Stay
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51451L | Bolt, NO.1 |
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52112C | Extension, Front Bumper |
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126D | Bracket, Fog Lamp Mounting, LH |
| 52127C | Cover, Front Bumper Hole |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52128C | Cover, Front Bumper Hole, LH |
| 52161C | Piece, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52421A | Pad, Front Bumper |
| 52422A | Pad, Front Bumper, RH |
| 52423A | Pad, Front Bumper, LH |
| 52521A | Clip(FOR FRONT BUMPER RETAINER) |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52711 | Moulding, Front Bumper |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53295H | Deflector, Radiator Lower Air |
| 53879H | Retainer, Front Fender Liner |
| 75392J | Retainer, Outside Moulding |
| 76851G | Grommet, Screw, NO.1 |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
| 89C48D | Retainer, Ultrasonic Sensor, Front Corner |
| 89C48E | Retainer, Ultrasonic Sensor, Front Center |
| 89C48F | Retainer, Ultrasonic Sensor, Front Side |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
