Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04
Hood & Front Fender
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47749D | Clip, Pin Hold |
| 53153K | Guide, Radiator Grille Side Air, RH |
| 53154L | Guide, Radiator Grille Side Air, LH |
| 53155C | Seal, Radiator Grille, NO.1 |
| 53301 | Hood Sub-assy |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381E | Seal, Hood TO Radiator Support |
| 53383A | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53813B | Extension, Front Fender, RH |
| 53814B | Extension, Front Fender, LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |

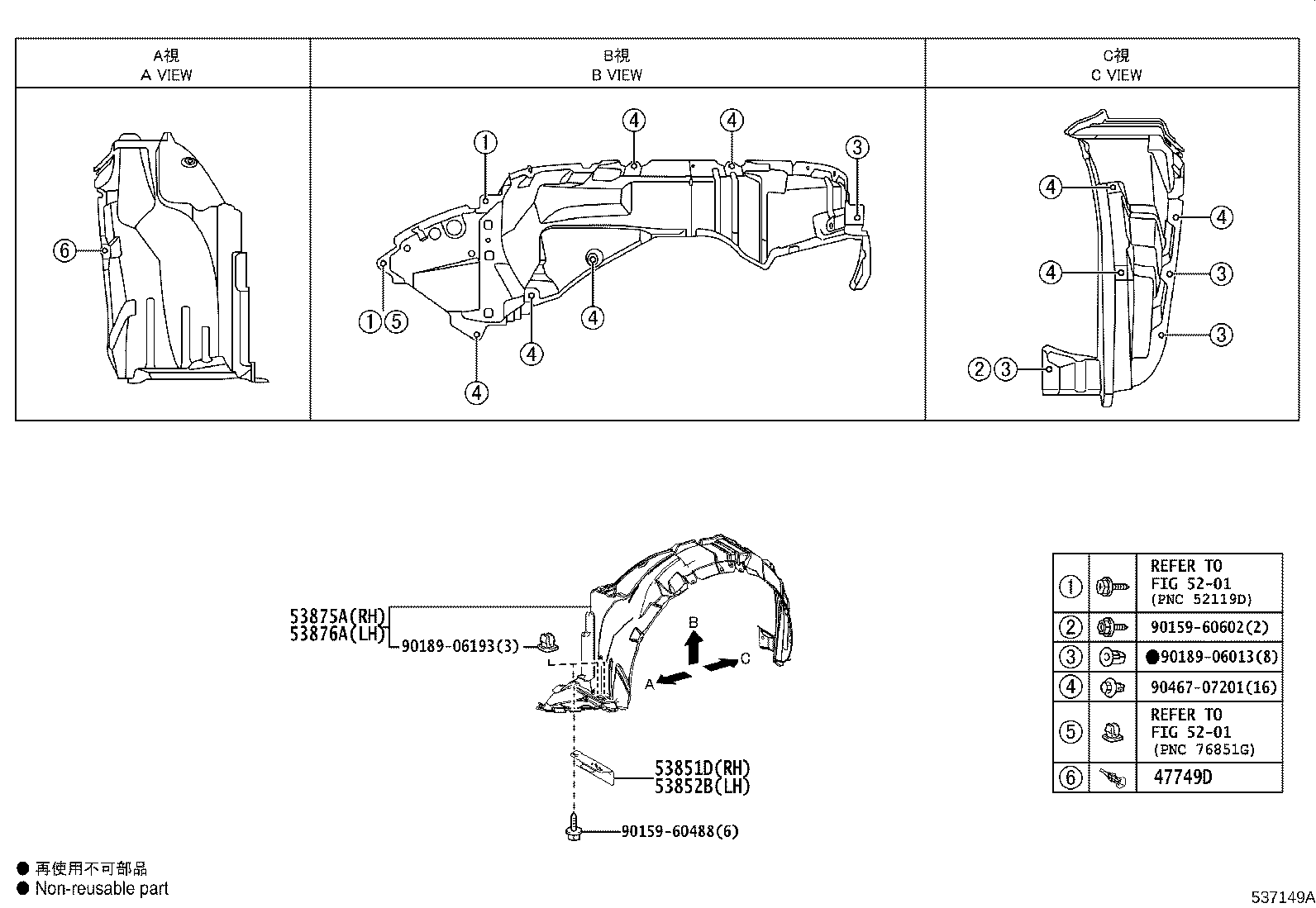

| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53882F | Seal, Front Fender |
| 53935E | Protector, Front End Panel, RH |
| 53936A | Protector, Front End Panel, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
