Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

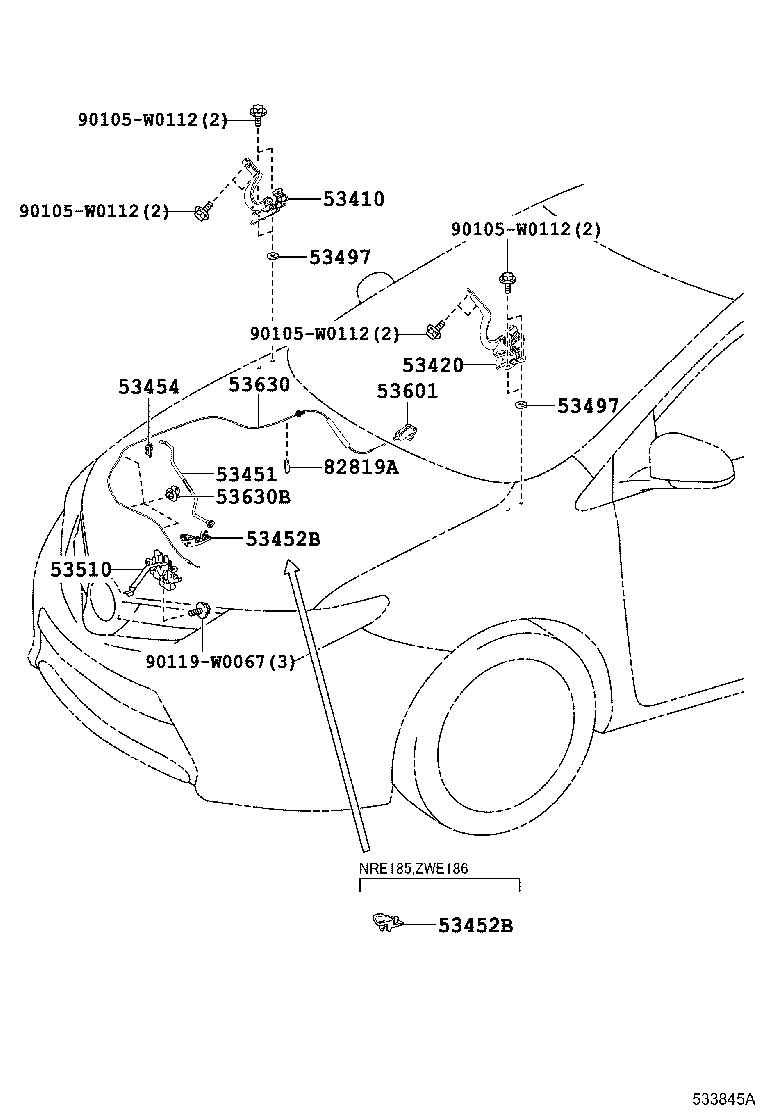

Hood Lock & Hinge
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53451 | Rod, Hood Support |
| 53452B | Bracket, Hood Support Rod |
| 53454 | Clip, Hood Support Rod |
| 53497 | Pad, Hood Hinge, NO.1 |
| 53510 | Lock Assy, Hood |
| 53601 | Lever Sub-assy, Hood Lock Control |
| 53630 | Cable Assy, Hood Lock Control |
| 53630B | Clamp(FOR HOOD LOCK CONTROL CABLE) |
| 82819A | Grommet, Wire |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
