Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04
Mat & Carpet
23 part groups · 6 illustrations
Part groups

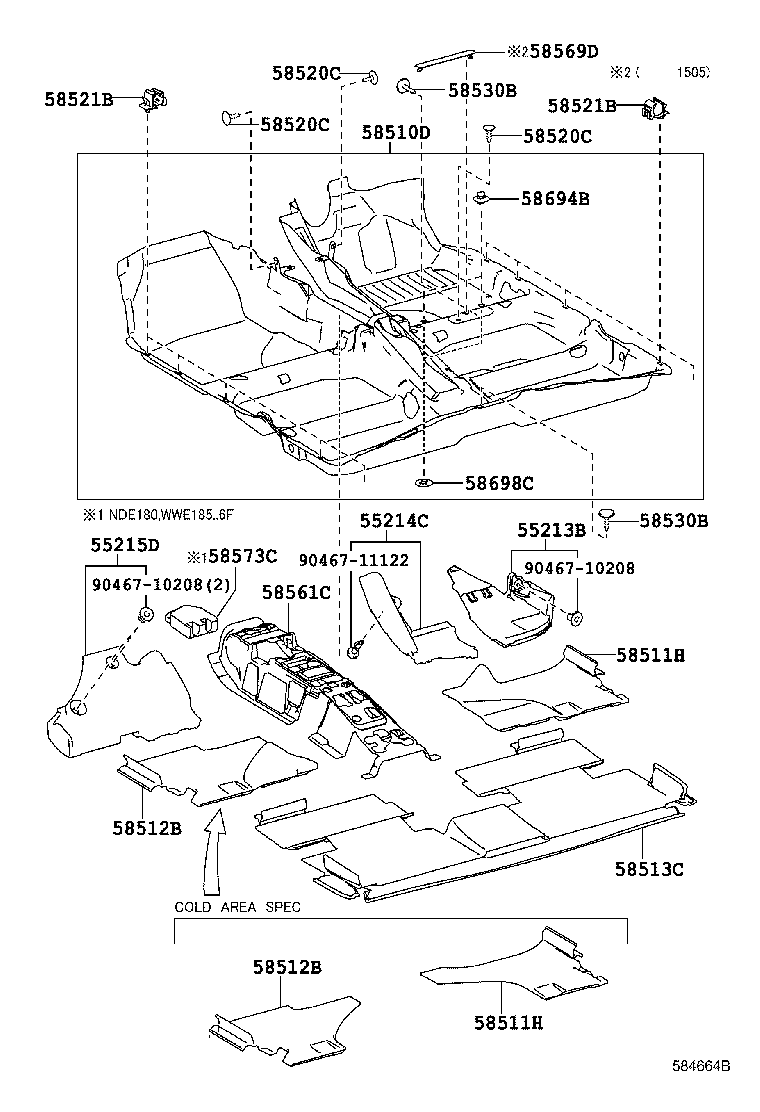

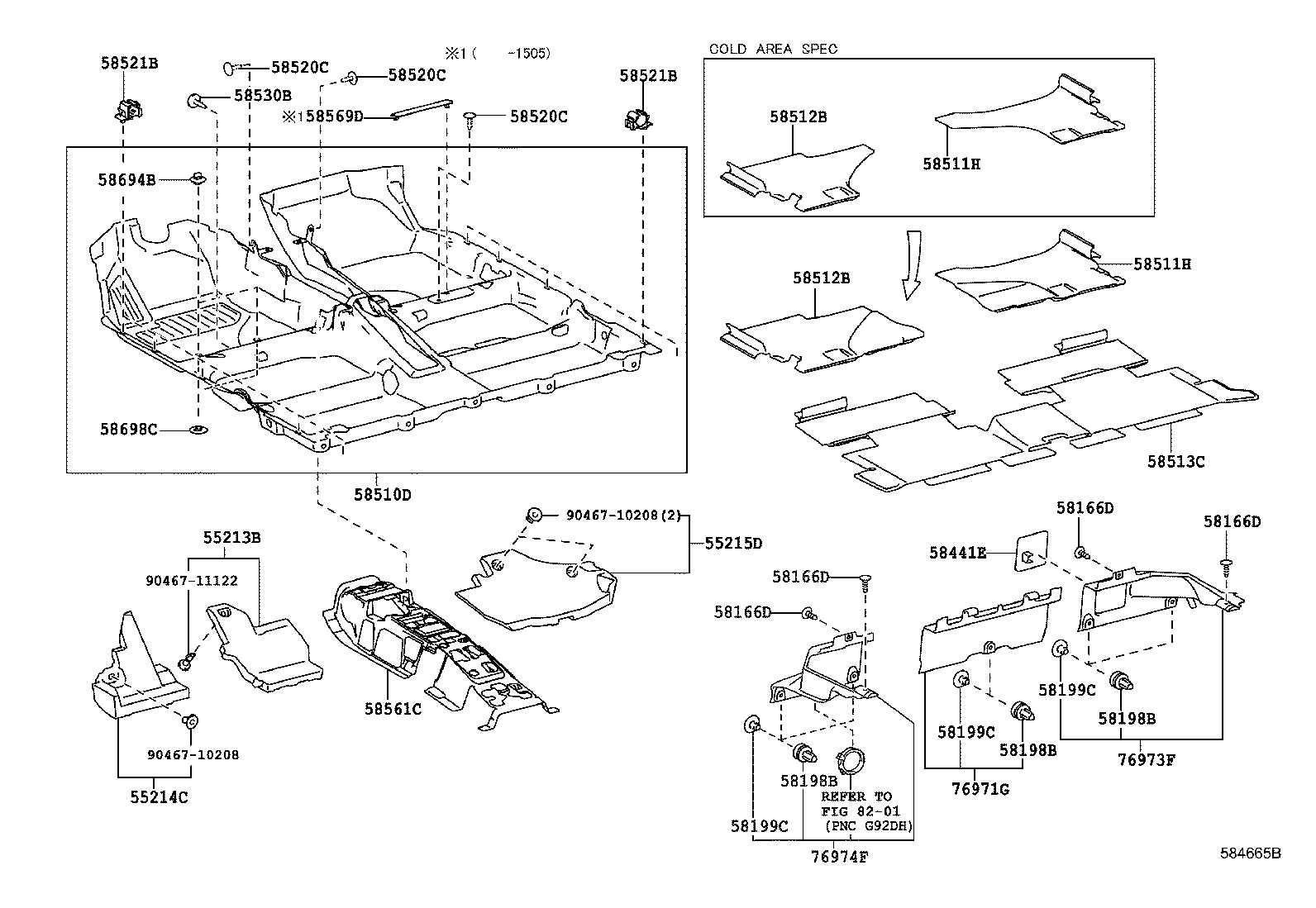

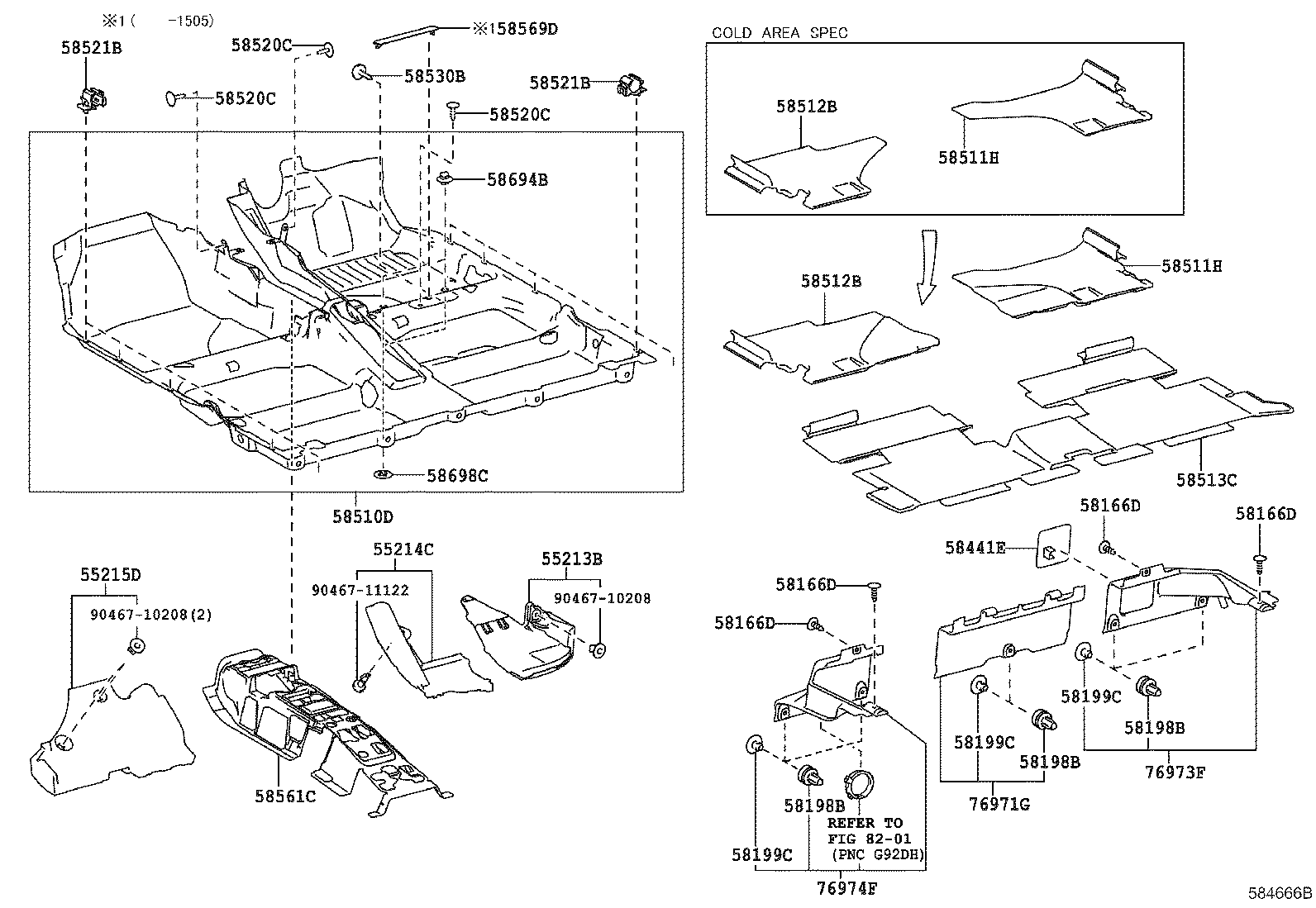

| PNC | Description |
|---|---|
| 55213B | Pad, Dash Panel Insulator, NO.1 |
| 55214C | Pad, Dash Panel Insulator, NO.2 |
| 55215D | Pad, Dash Panel Insulator, NO.3 |
| 58166D | Clip, Floor Cover |
| 58198B | Clip, Footrest, NO.1 |
| 58199C | Clip, Footrest, NO.2 |
| 58441E | Cover, Battery Service Hole |
| 58510D | Carpet Assy, Floor, Front |
| 58510H | Mat Assy, Floor |
| 58511H | Mat, Floor, Front RH |
| 58512B | Mat, Floor, Front LH |
| 58513C | Mat, Floor, Front Center |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58521B | Hook, Floor Carpet |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58561C | Silencer, Front Floor, NO.1 |
| 58569D | Cover, Front Floor Caution Plate |
| 58573C | Pad, Front Floor Center |
| 58694B | Plate, Mat Set, Upper |
| 58698C | Plate, Mat Set, Lower |
| 76971G | Cover, Rear Under |
| 76973F | Cover, Rear Under Side, RH |
| 76974F | Cover, Rear Under Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
