Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

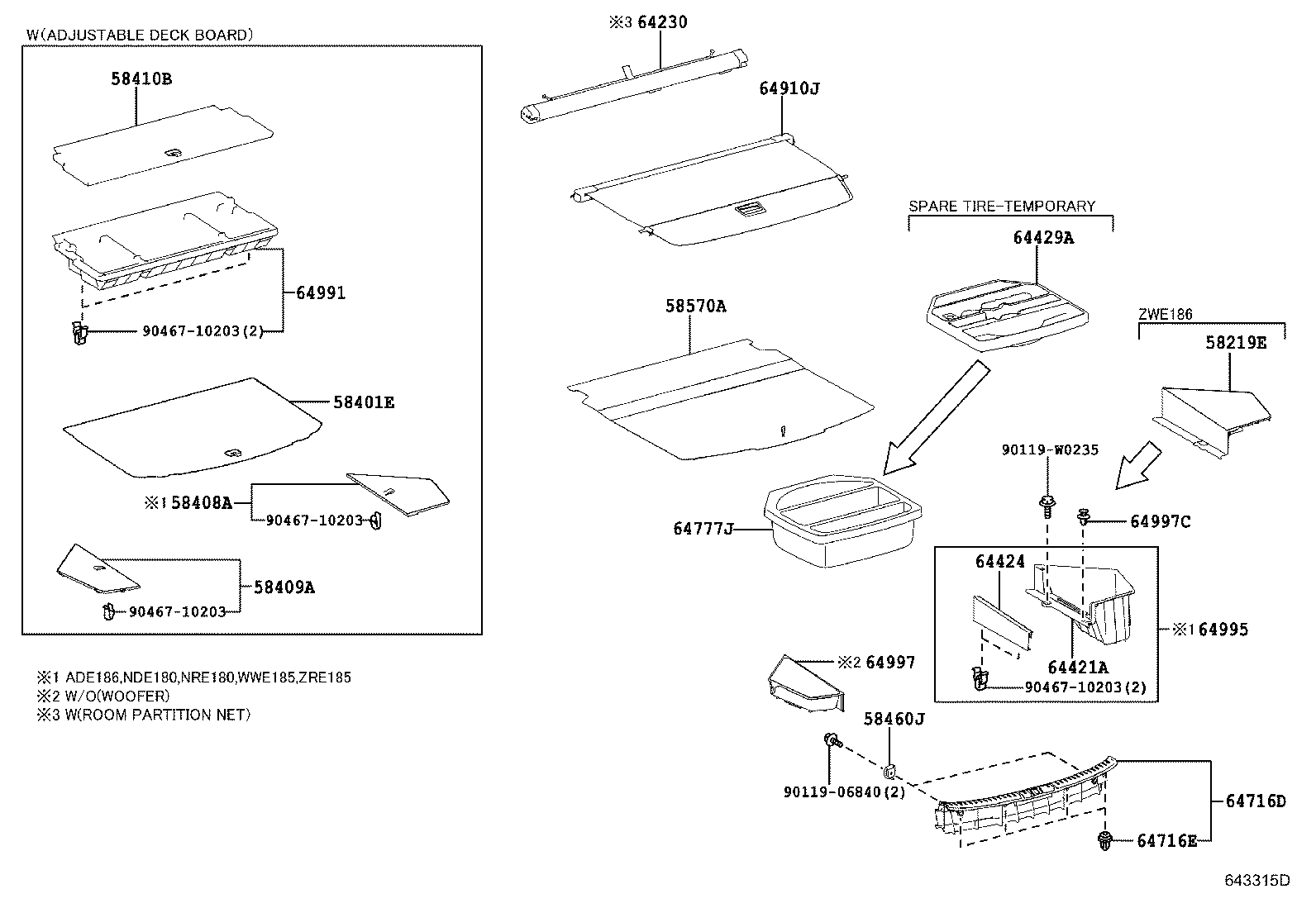

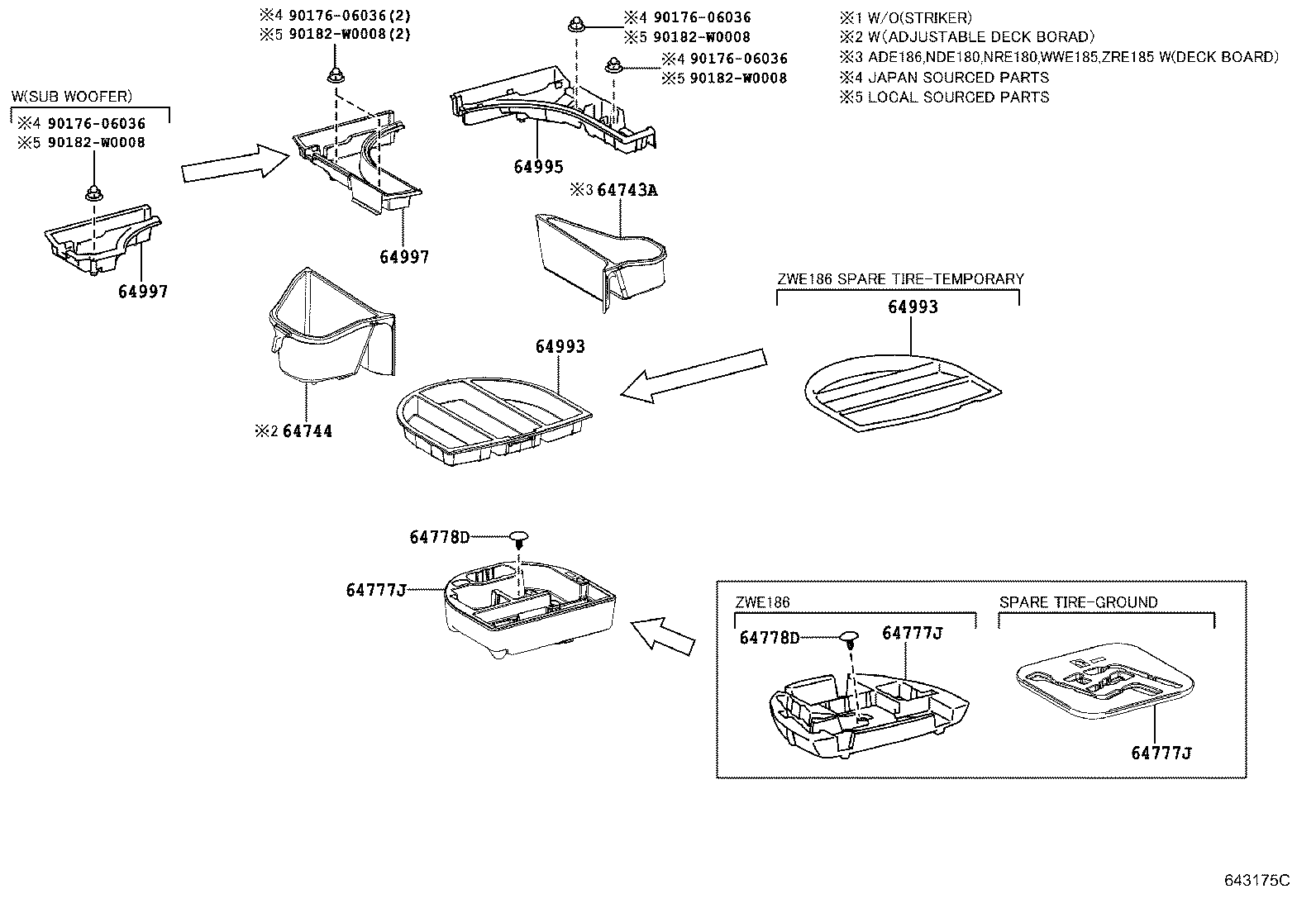

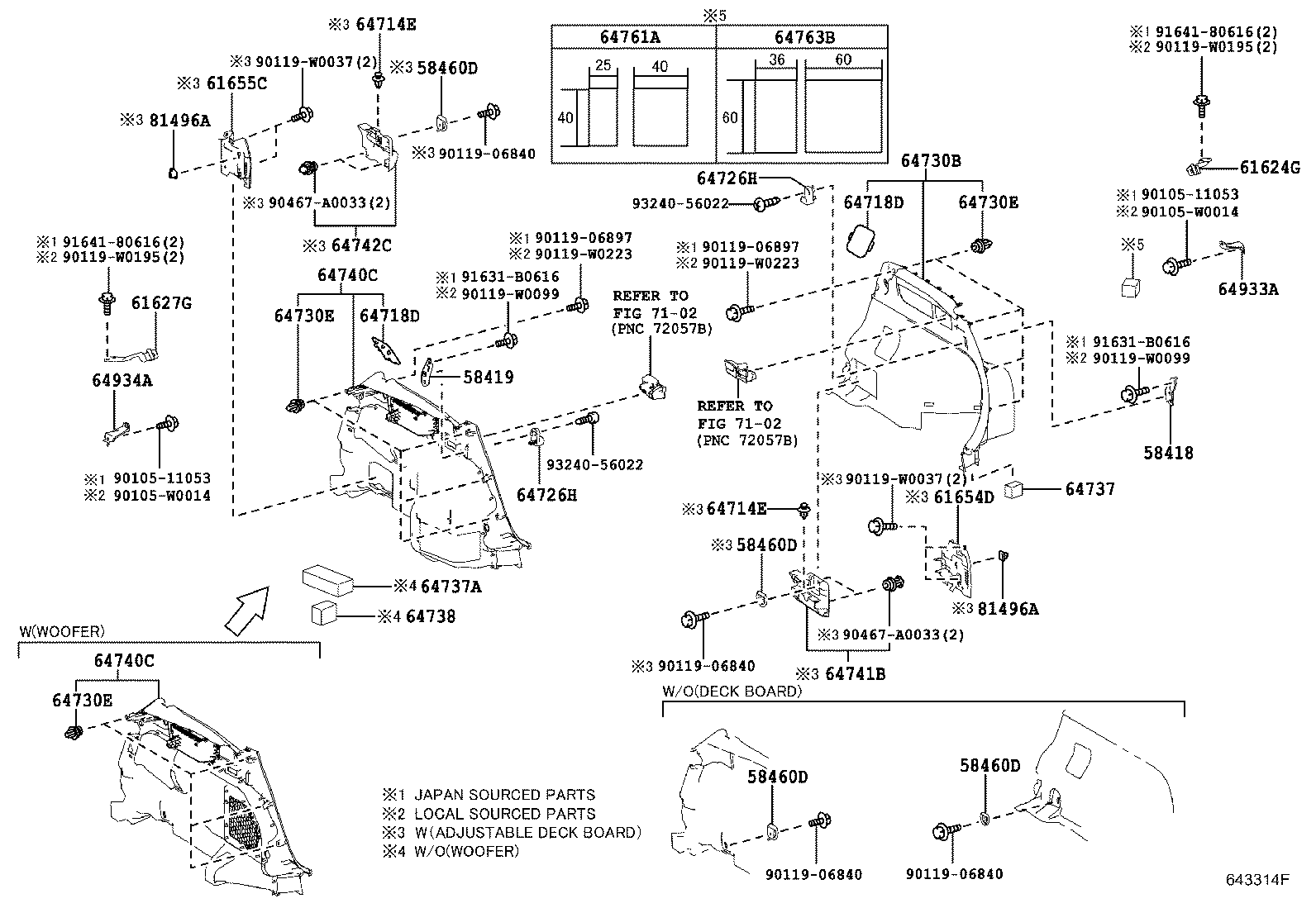

Deck Board & Deck Trim Cover
54 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58219E | Cover, Battery Box |
| 58331H | Bracket, Luggage Compartment Trim, NO.1 |
| 58332K | Bracket, Luggage Compartment Trim, NO.2 |
| 58401E | Board Sub-assy, Deck |
| 58408A | Board Sub-assy, Deck, NO.2 |
| 58409A | Board Sub-assy, Deck, NO.3 |
| 58410B | Board Assy, Deck |
| 58415D | Bracket, Deck Board Support |
| 58418 | Bracket, Deck Board, NO.1 |
| 58419 | Bracket, Deck Board, NO.2 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58460J | Striker Assy, Luggage Hold Belt |
| 58570A | Mat Assy, Rear Floor |
| 61624G | Bracket, Deck Side Trim Upper, RH |
| 61627G | Bracket, Deck Side Trim Upper, LH |
| 61654D | Bracket, Deck Side Trim, NO.2 |
| 61655C | Bracket, Deck Side Trim, NO.3 |
| 64230 | Net Assy, Room Partition |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64342A | Clip |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64421A | Tray, Luggage Compartment |
| 64424 | Separator, Luggage Room Box |
| 64429A | Box, Luggage Compartment Trim |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64718A | Cover, Deck Trim Service Hole |
| 64718D | Cover, Deck Trim Service Hole |
| 64726H | Hook, Deck Side Trim, NO.2 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64737 | Pad, Deck Trim Side Silencer |
| 64737A | Pad, Deck Trim Side, NO.3 |
| 64738 | Pad, Deck Trim Side, NO.4 |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64761A | Silencer, Deck Side Trim, NO.1 |
| 64763B | Silencer, Deck Side Trim, RH |
| 64777J | Cushion, Spare Wheel |
| 64778D | Protector, Spare Wheel |
| 64910J | Cover Assy, Tonneau |
| 64933A | Bracket, Tonneau Cover Holder, RH |
| 64934A | Bracket, Tonneau Cover Holder, LH |
| 64991 | Box, Deck Floor, Front |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 64997C | Clip(FOR DECK FLOOR BOX) |
| 81496A | Guide, Rear Combination Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
