Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

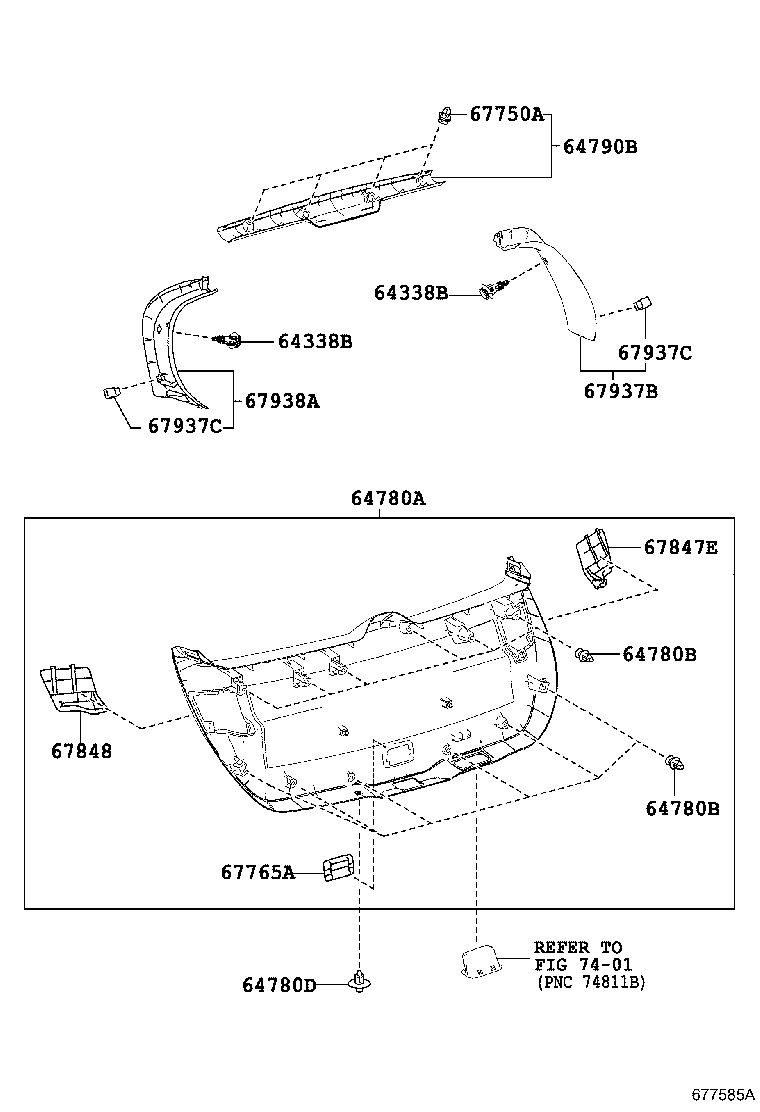

Back Door Panel & Glass
24 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 64338B | Hook, Package Tray Trim Garnish |
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64780D | Retainer(FOR BACK DOOR TRIM BOARD) |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67290 | Damper Assy, Back Door |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67837L | Seal, Door Dust Proof |
| 67847E | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67893A | Protector, Back Door Panel, NO.1 |
| 67894B | Protector, Back Door Panel, NO.2 |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 75571F | Mouldimg, Back Door Window |
| 75575D | Moulding, Back Window, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
