Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

7 part groups · 4 illustrations

Illustrations

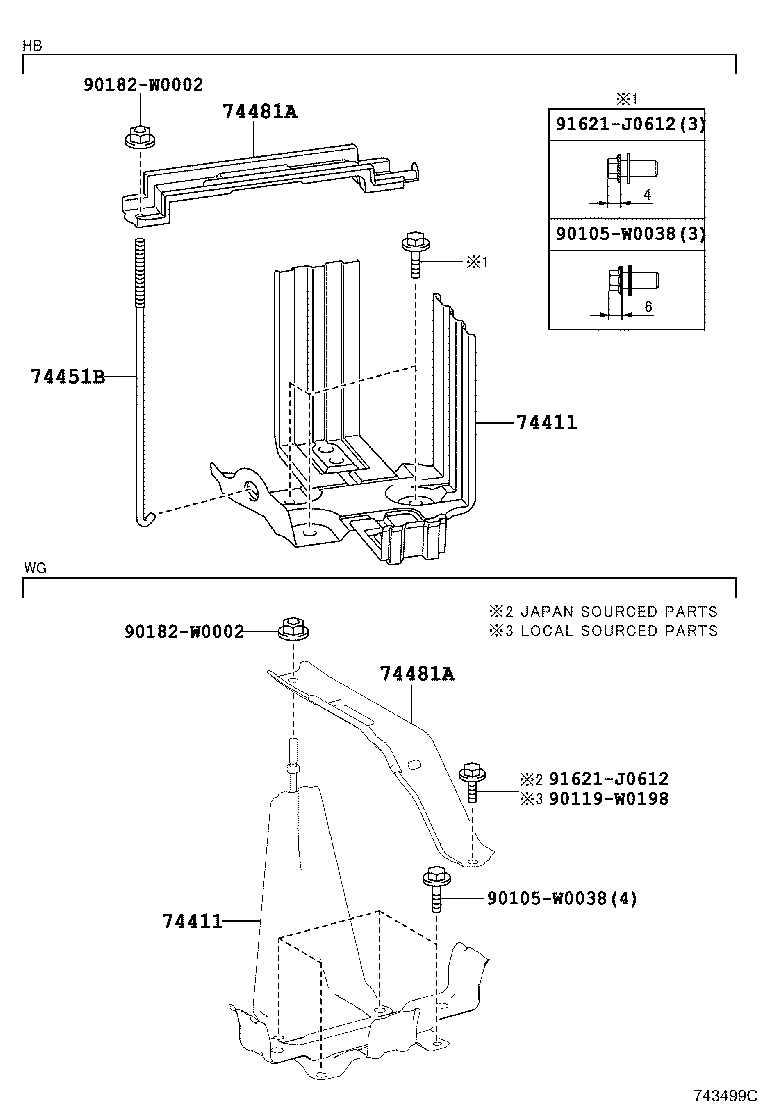

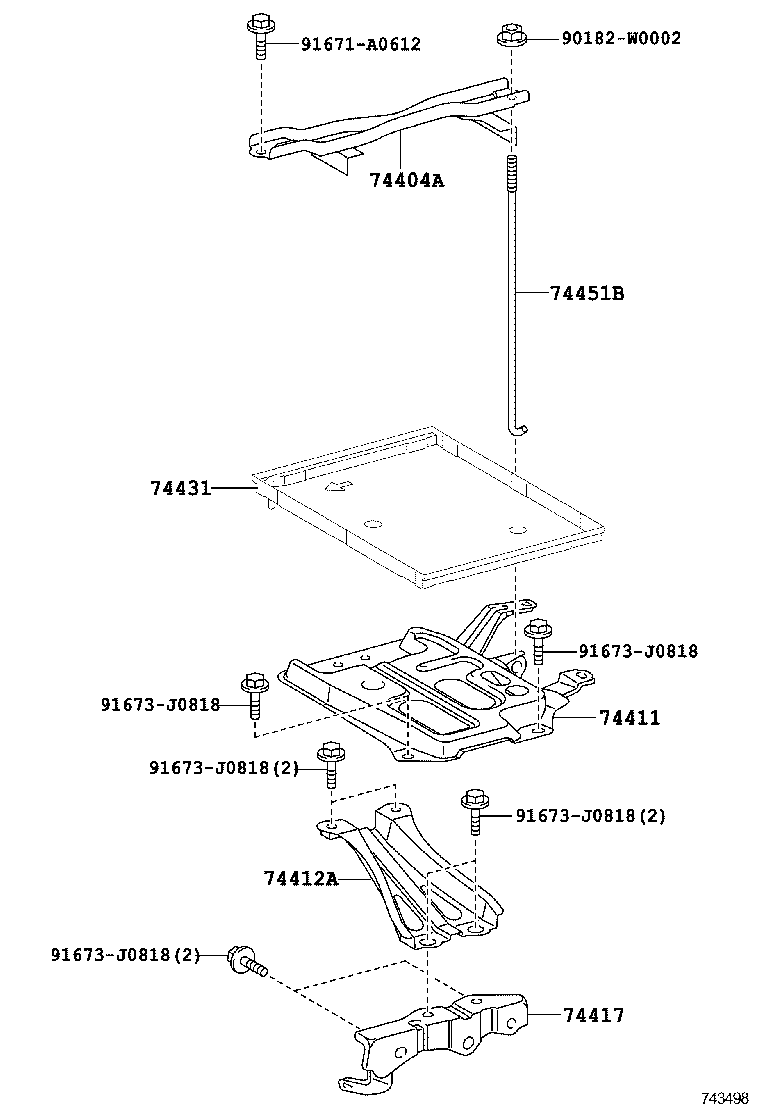

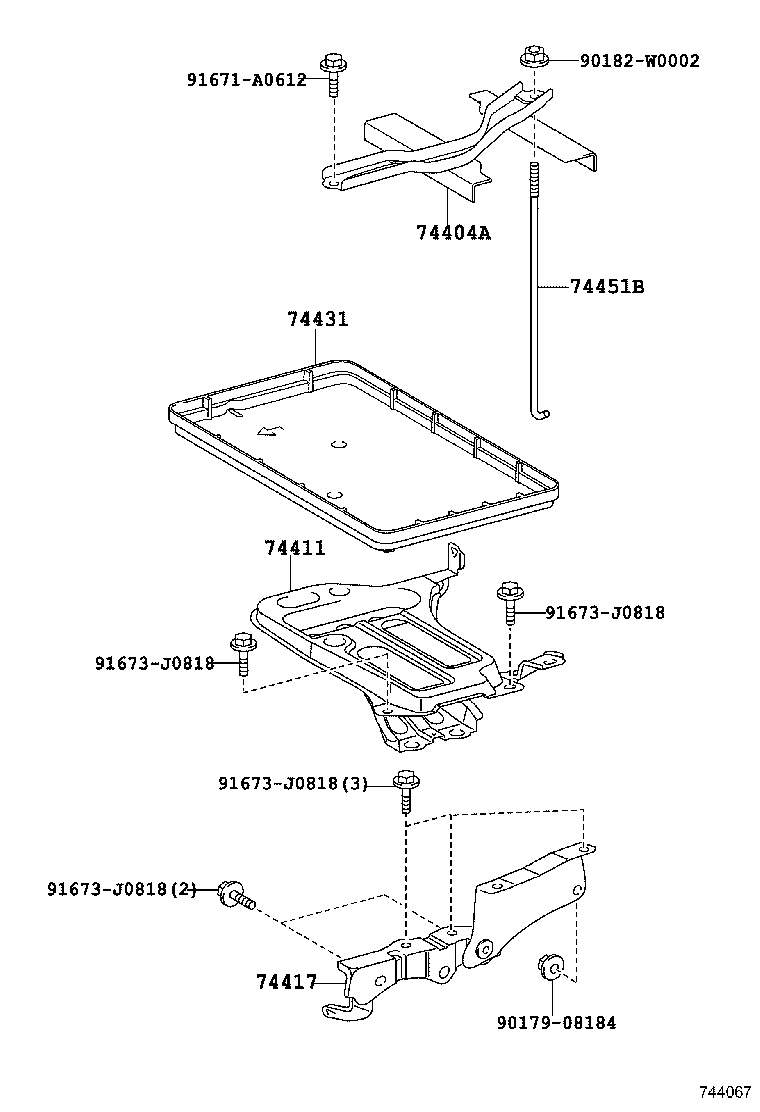

Figure 744066 744066 2012-10 → — Figure 743499C 743499C 2012-10 → — Figure 743498 743498 2012-10 → — Figure 744067 744067 2015-05 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74411 Carrier, Battery
74412A Carrier, Battery, NO.2
74417 Bracket, Battery Carrier
74431 Tray, Battery
74451B Bolt, Battery Clamp
74481A Clamp, Battery
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
