Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 3 illustrations

Illustrations

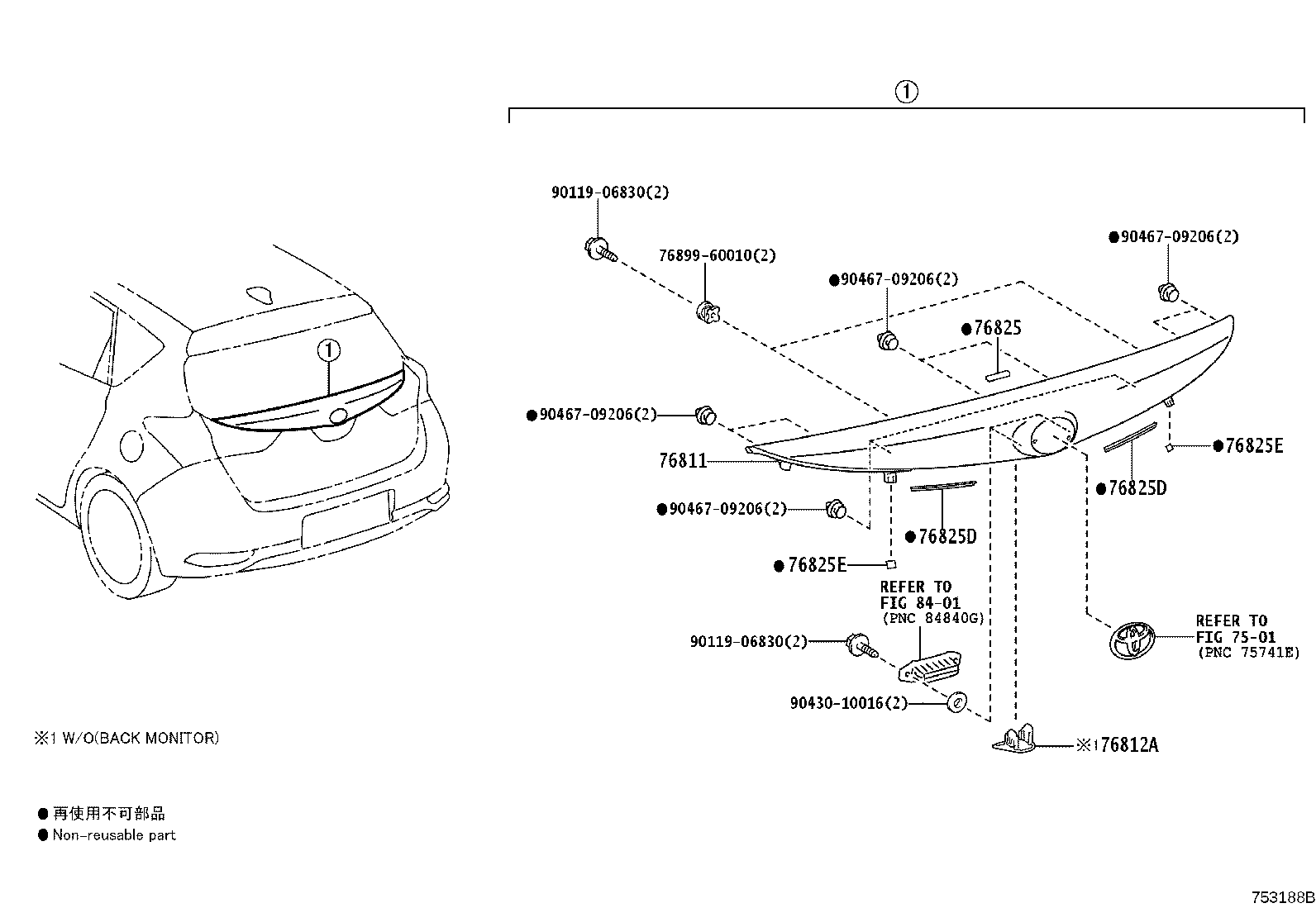

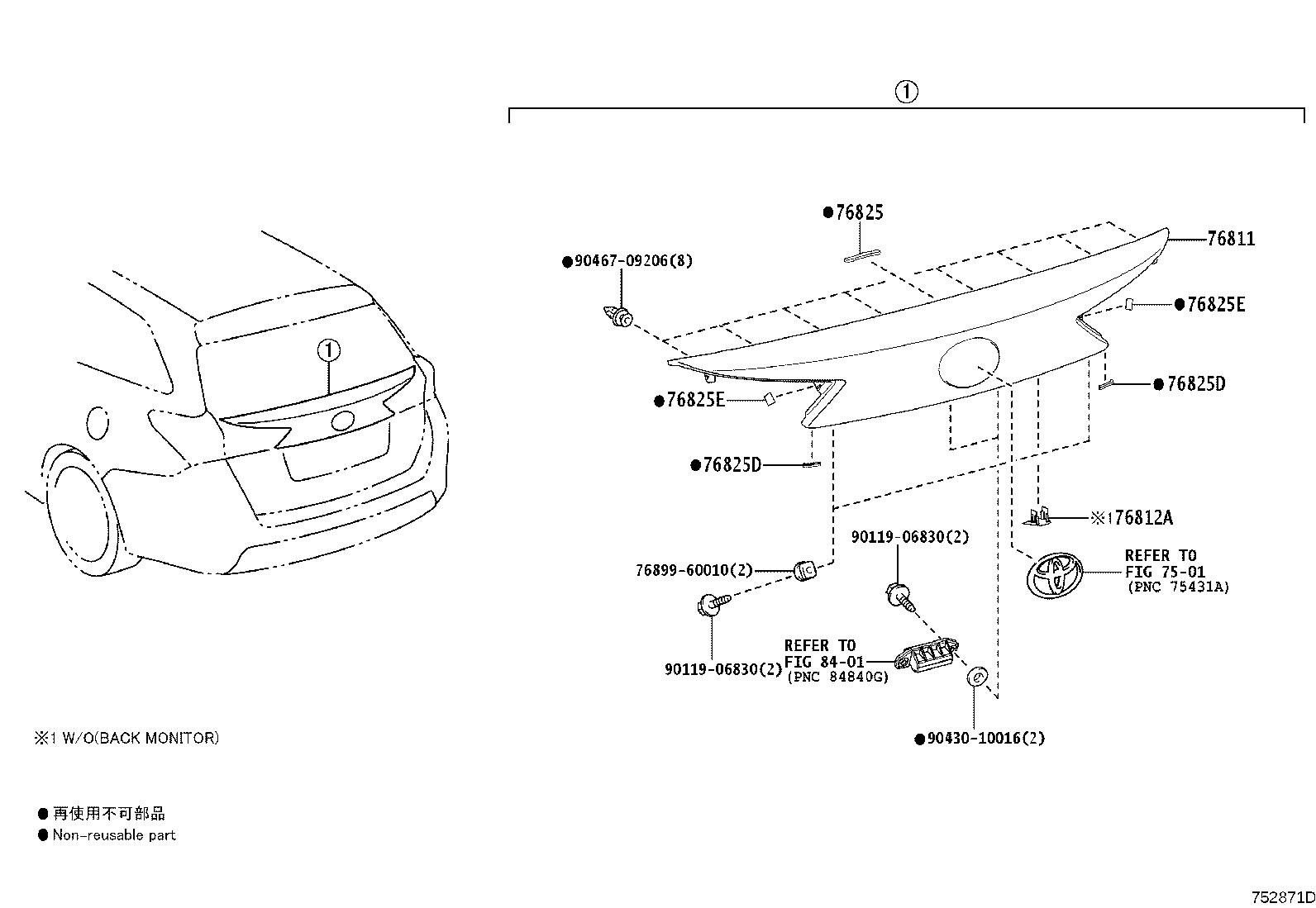

Figure 752764E 752764E 2012-10 → 2015-05 Figure 753188B 753188B 2015-05 → — Figure 752871D 752871D 2013-06 → —

Part groups

PNCDescription
76811 Garnish, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76825 Protector, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76825E Protector, Back Door Outside Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
