Toyota Auris/Hybrid (UKP)
2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe
Supported model
Data version 2019-04

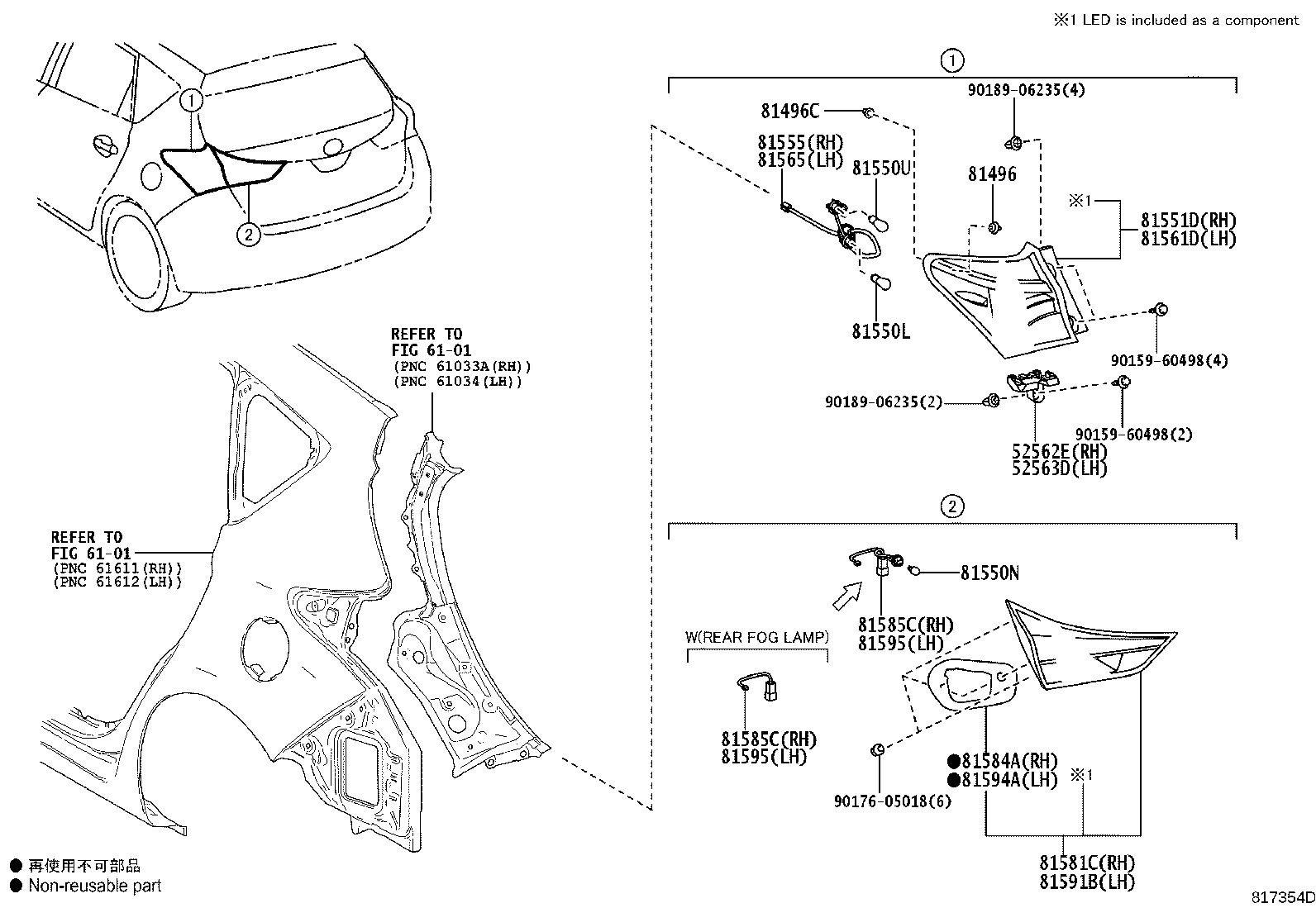

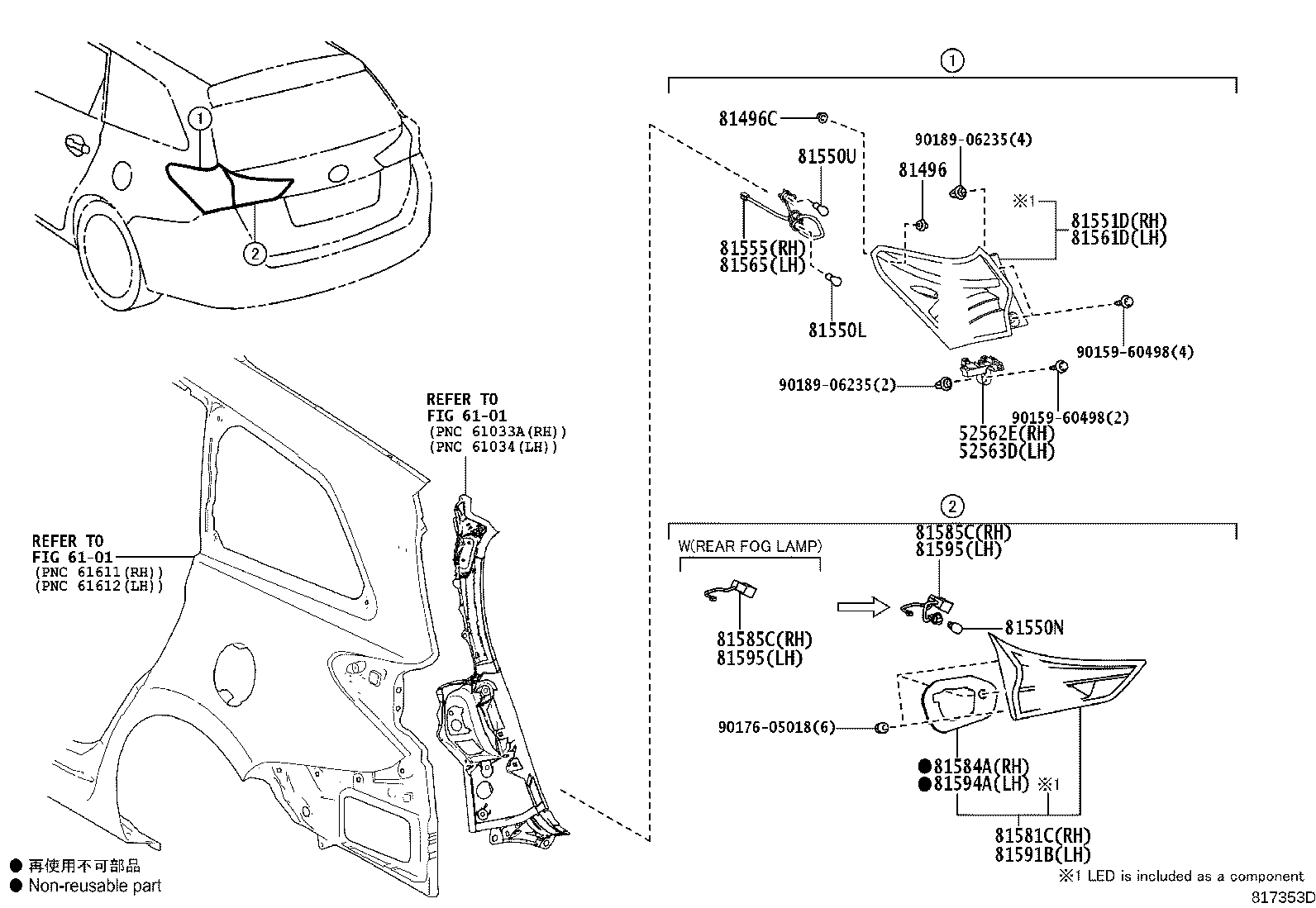

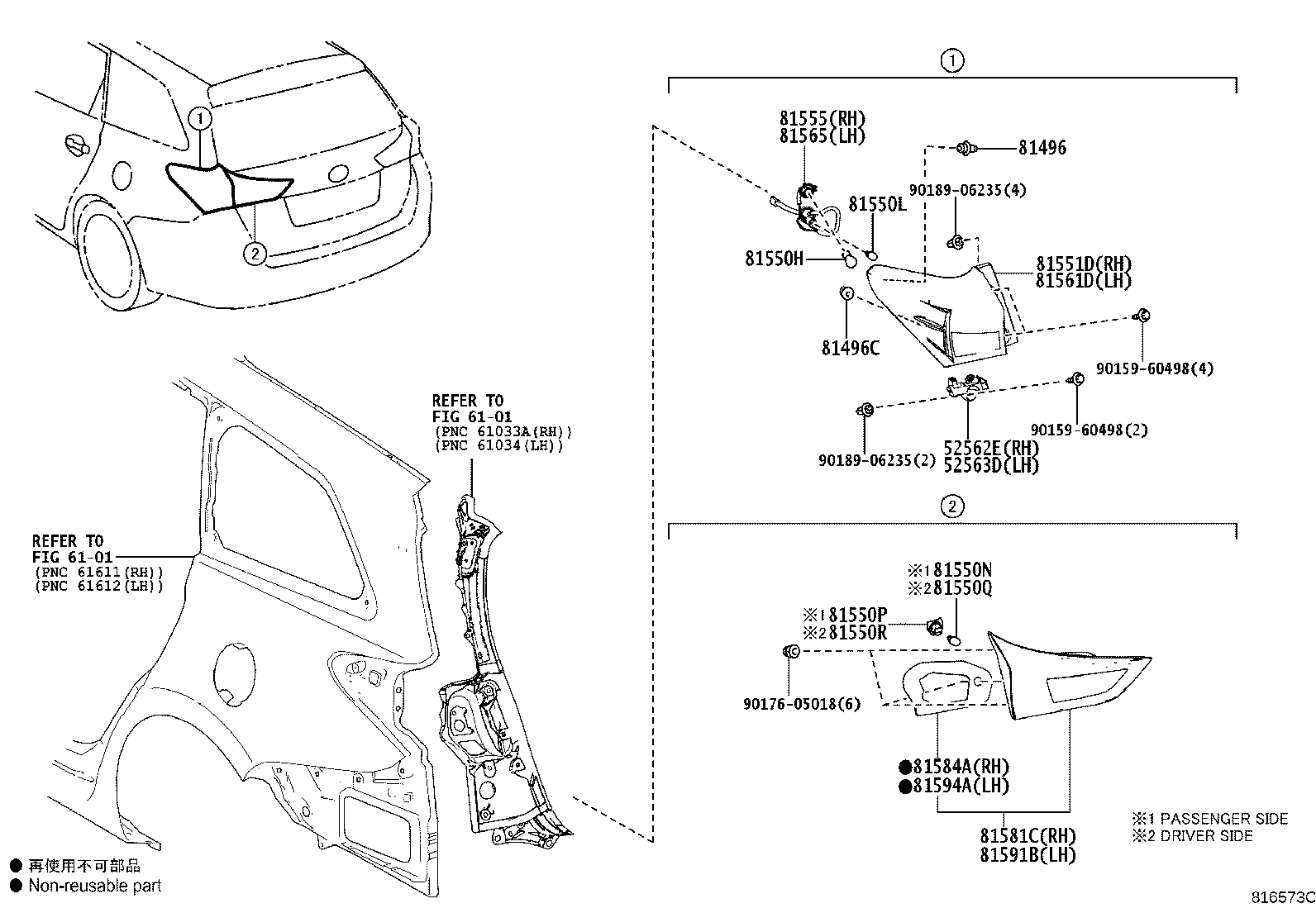

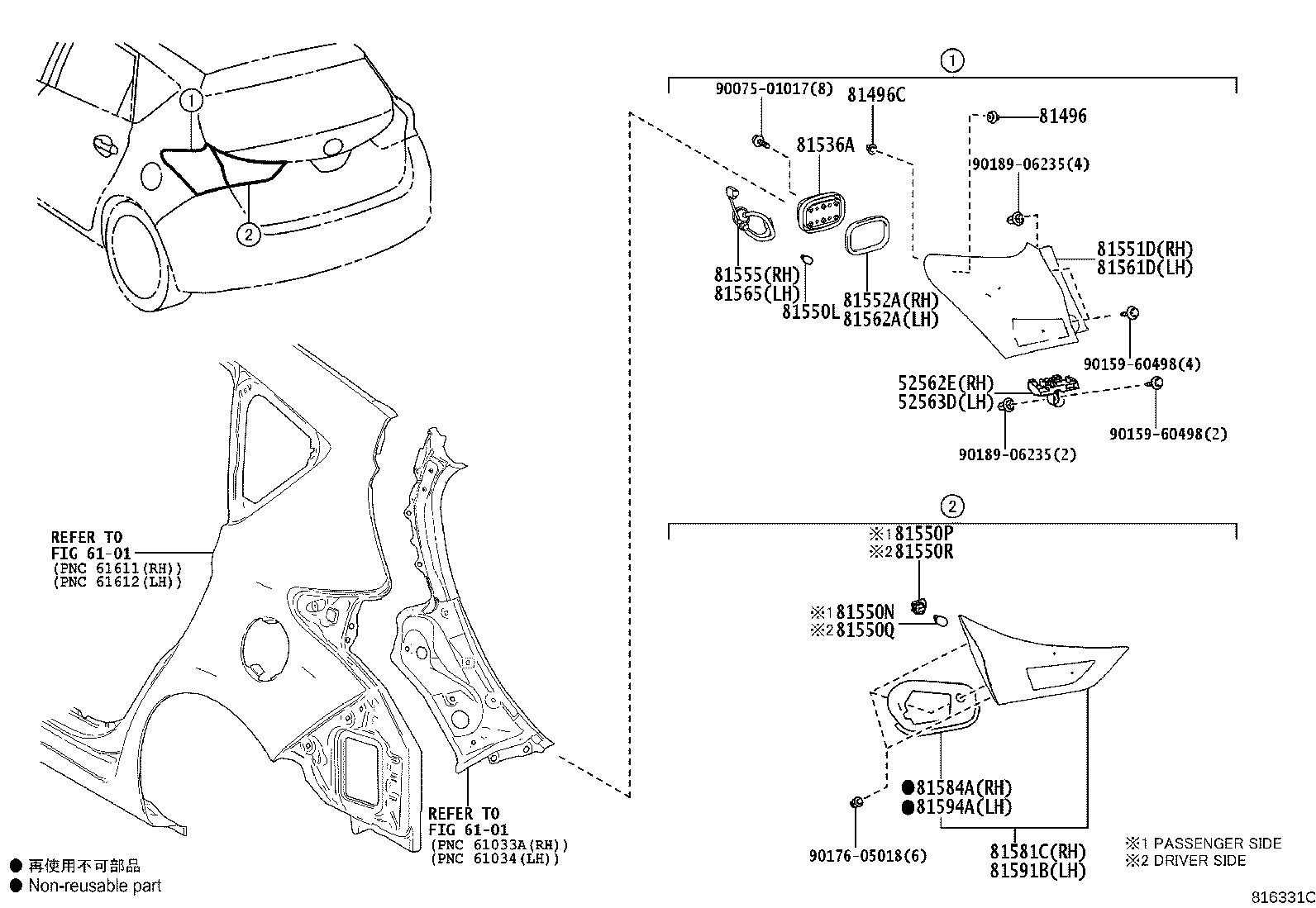

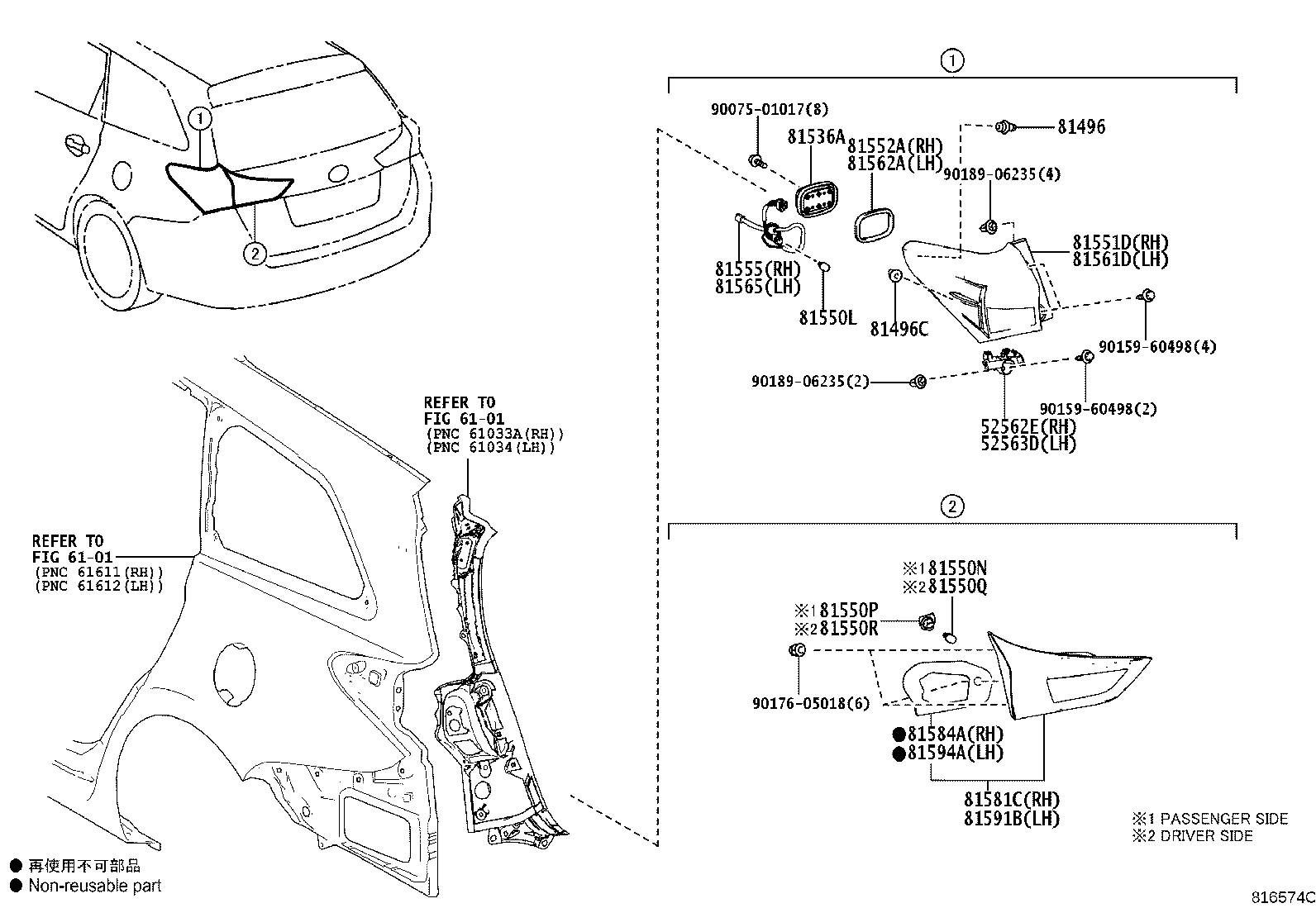

Rear Combination Lamp
24 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 52562E | Retainer, Rear Bumper, Upper RH |
| 52563D | Retainer, Rear Bumper, Upper LH |
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81536A | Led, Rear Combination Lamp |
| 81550H | Bulb, Tail & Stop Lamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81550N | Bulb, Back UP Lamp |
| 81550P | Socket, Back UP Lamp |
| 81550Q | Bulb, Rear Fog Lamp, NO.1 |
| 81550R | Socket, Rear Fog Lamp |
| 81550U | Bulb, Stop Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552A | Gasket, Rear Combination Lamp, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562A | Gasket, Rear Combination Lamp, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585C | Socket & Wire, Rear Lamp, RH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81595 | Socket & Wire, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
