Toyota Auris/Hybrid (UKP)

2012-10 → 2018-11 · chassis ADE186,NDE180,NRE18#,WWE185,ZRE185,ZWE186 · catalogue 166520 · Europe

Supported model Data version 2019-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

31 part groups · 8 illustrations

Illustrations

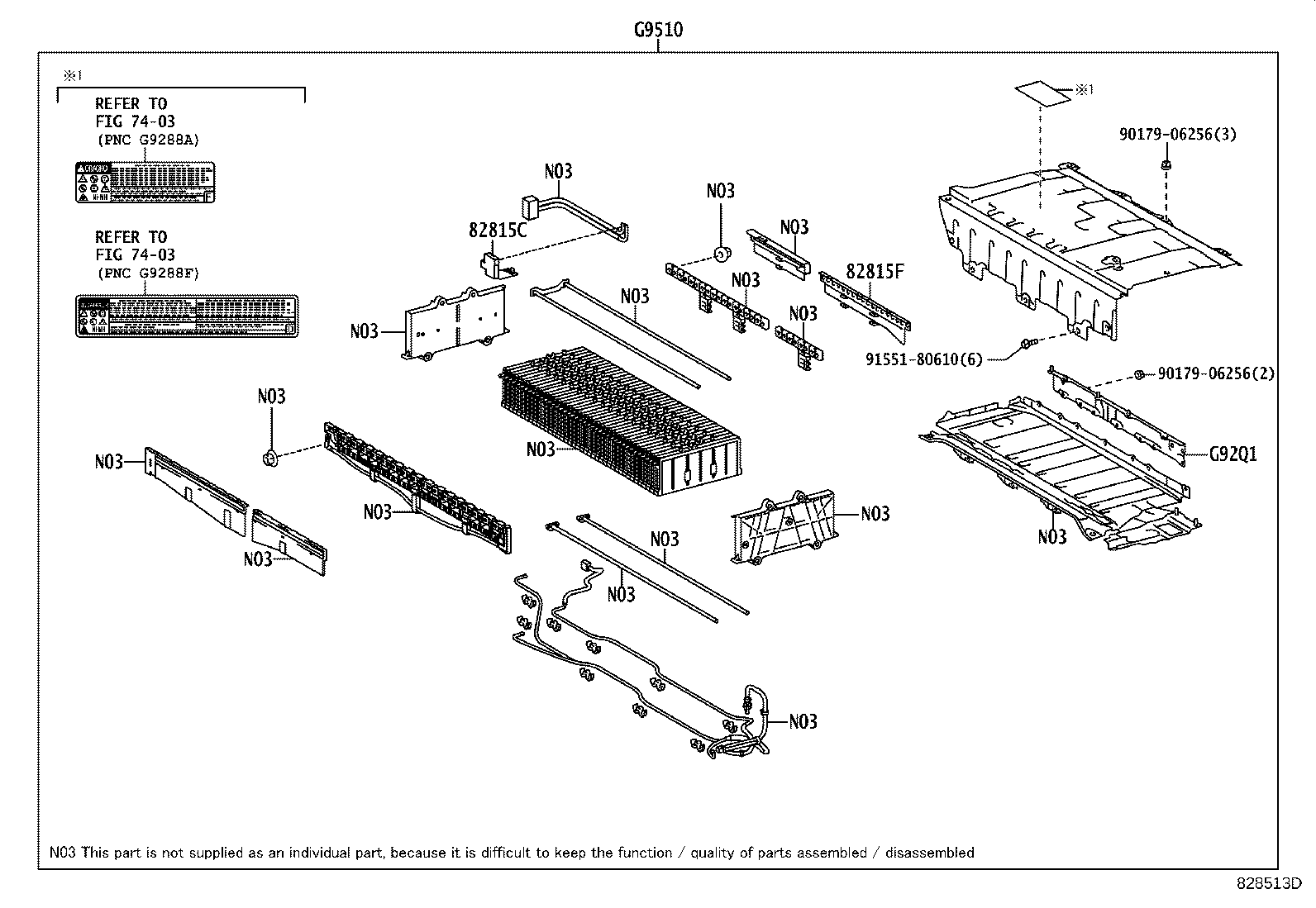

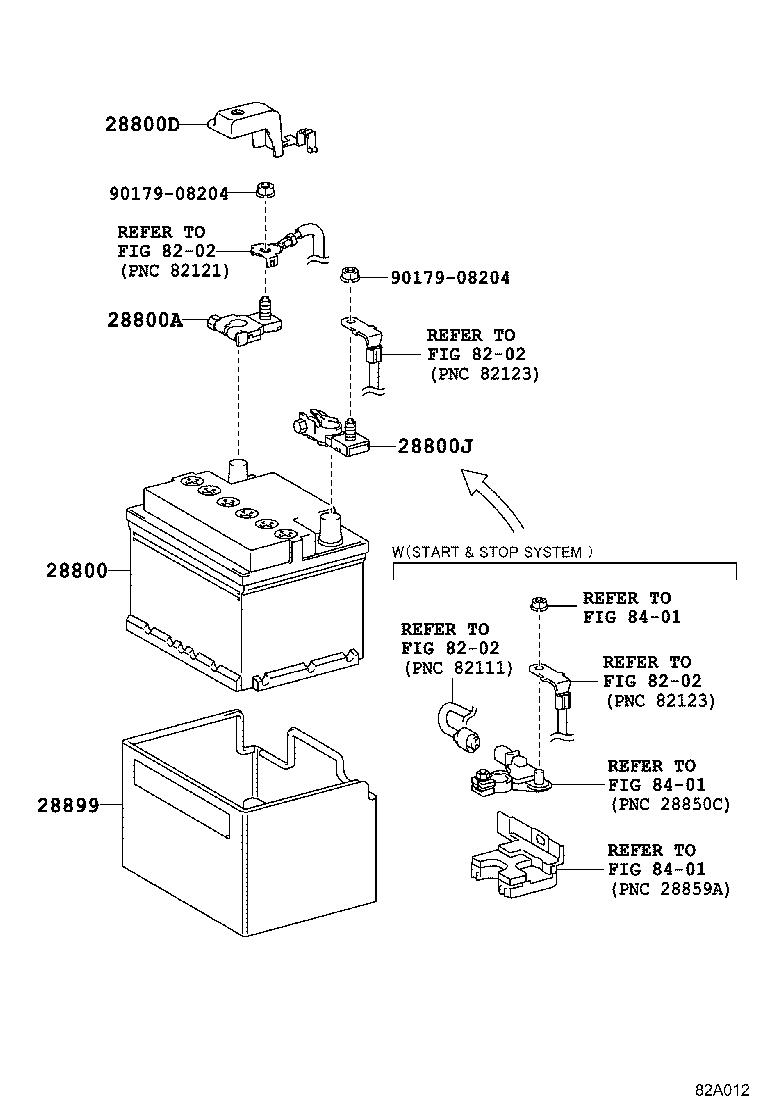

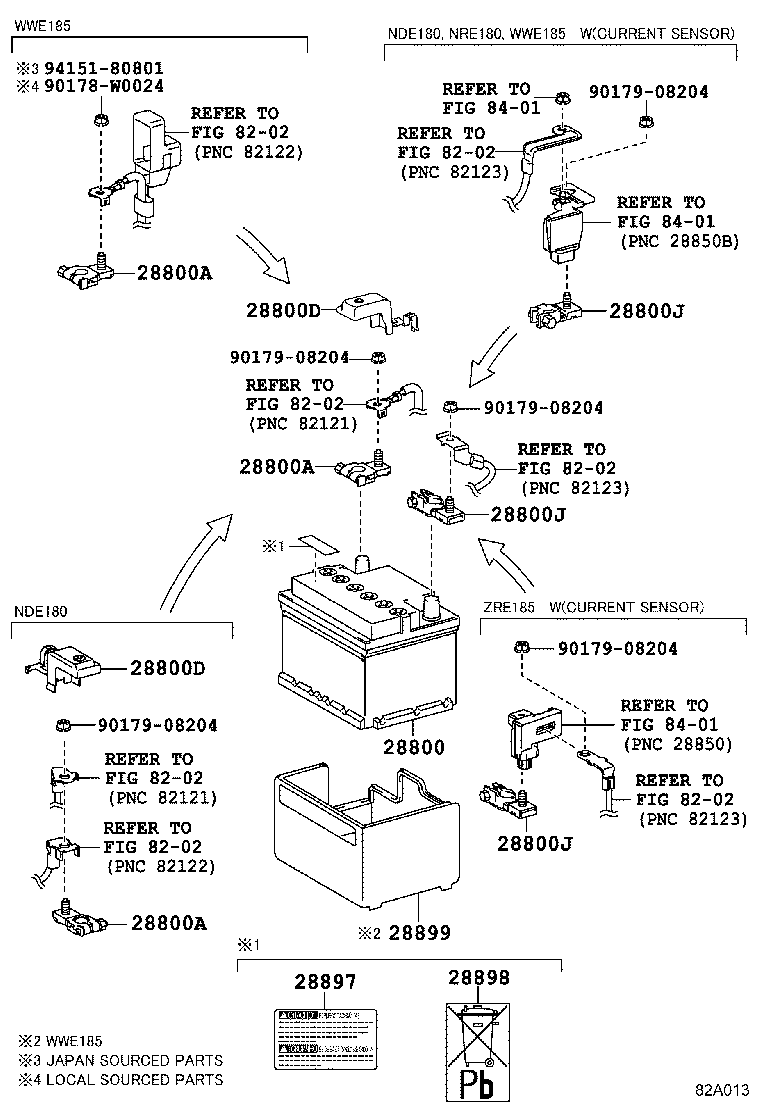

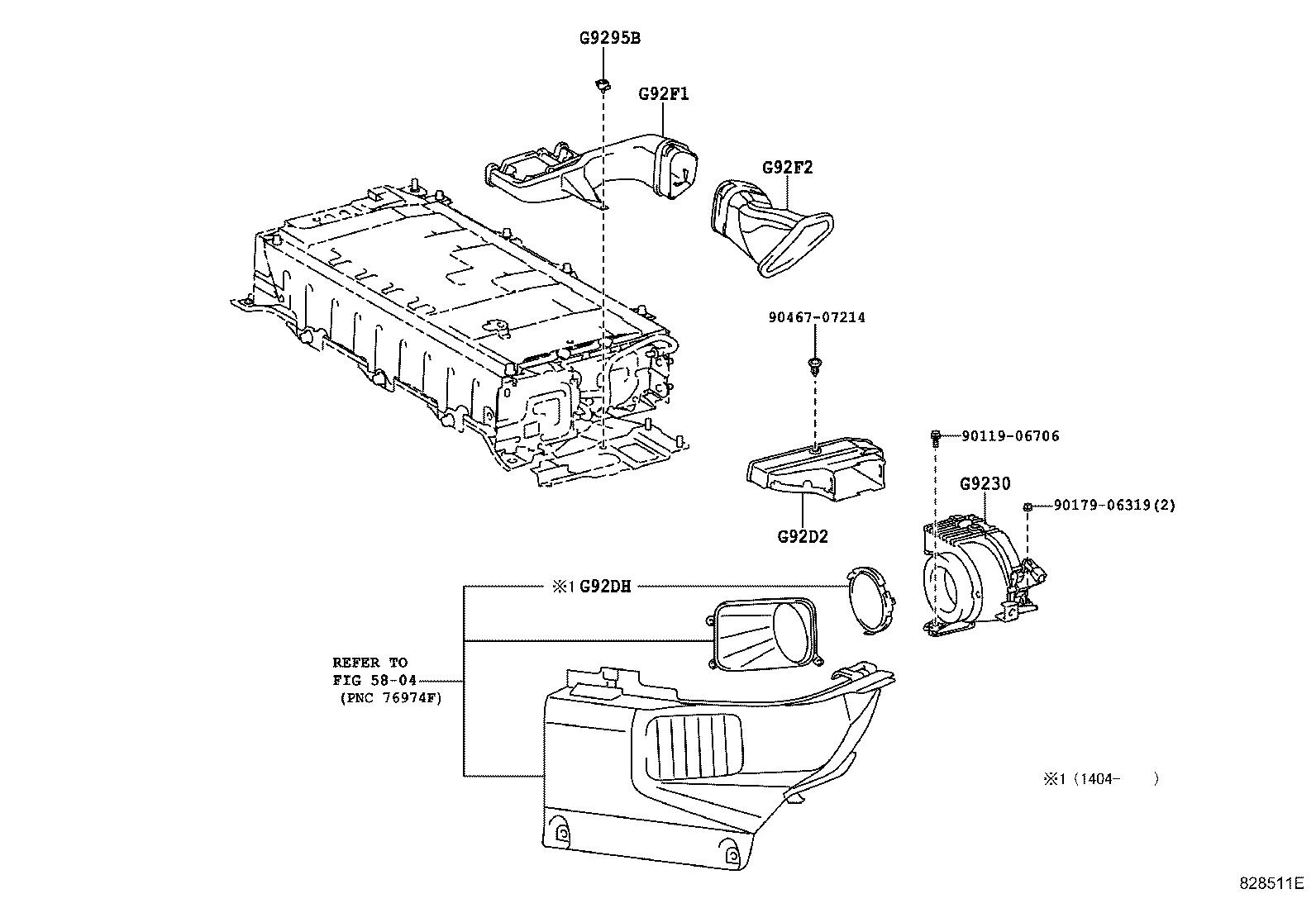

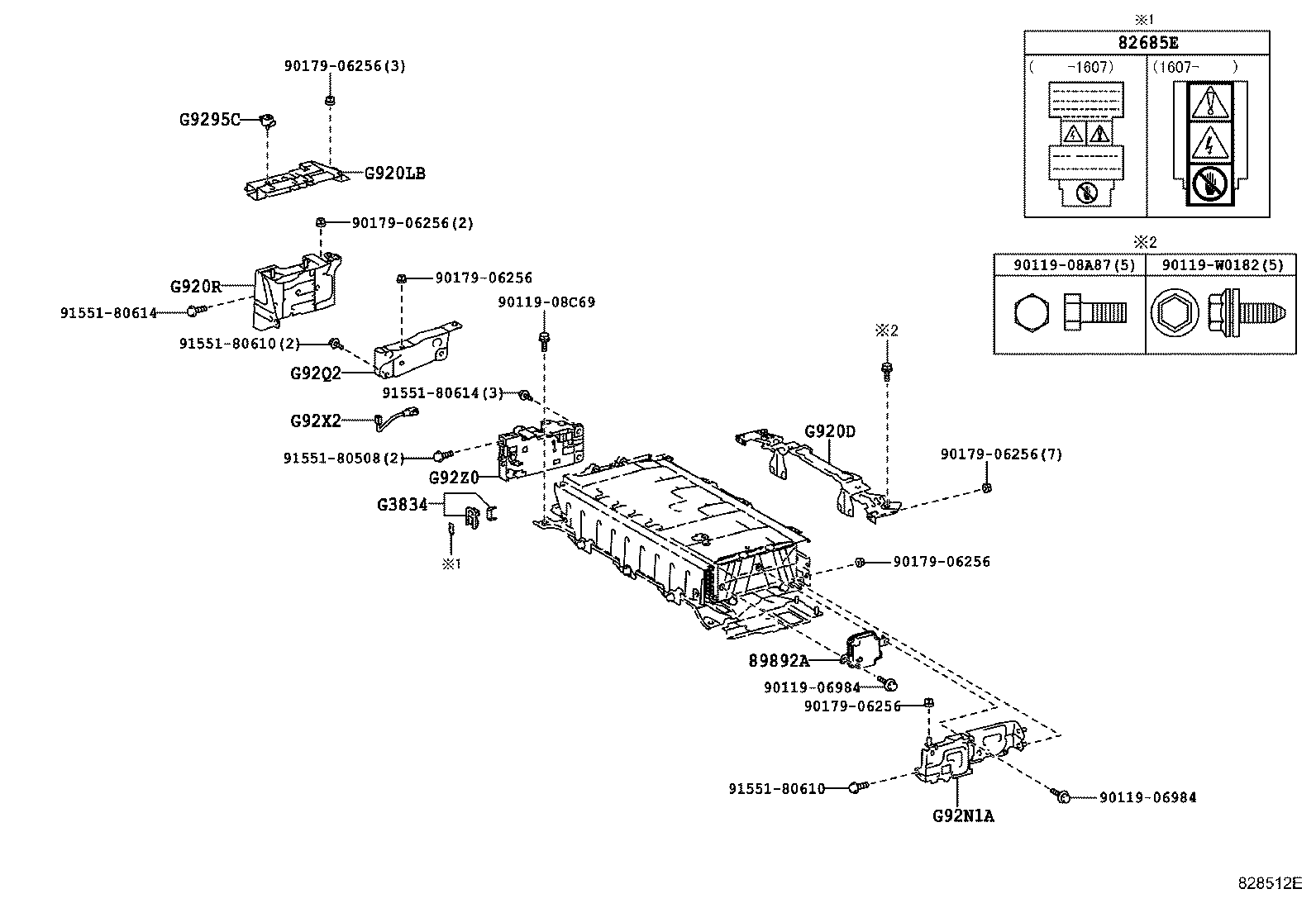

Figure 828509 828509 2012-10 → 2015-05 Figure 828510B 828510B 2012-10 → — Figure 828987B 828987B 2013-06 → — Figure 828511E 828511E 2012-10 → — Figure 828512E 828512E 2012-10 → — Figure 828513D 828513D 2012-10 → — Figure 82A013 82A013 2015-05 → — Figure 82A012 82A012 2015-05 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28800Q Cover, Connector(FOR BATTERY)
28885B Hose, Battery
28897 Plate, Battery Caution
28898 Plate, Battery
28899 Insulator, Battery
82675G Terminal, Earth
82685E Plate, Service Plug Caution
82815C Cover, Wiring Harness Protector, NO.1
82815F Cover, Wiring Harness Protector, NO.4
89892A Sensor, Battery Voltage
G3834 Grip, Service Plug
G920D Bracket Sub-assy, HV Battery Carrier, NO.3
G920LB Cover Sub-assy, Hybrid Battery, RH
G920R Shield Sub-assy, Hybrid Battery, NO.2
G9230 Blower Assy, Battery Cooling
G9295B Striker, Battery Cover Lock
G9295C Striker, Battery Cover Lock, NO.2
G92D2 Duct, Hybrid Battery Intake, NO.2
G92DH Filter, HV Battery Intake, NO.1
G92F1 Duct, Hybrid Battery Exhaust, NO.1
G92F2 Duct, Hybrid Battery Exhaust, NO.2
G92N1A Panel, HV Battery LH Cover, NO.1
G92Q1 Panel, HV Battery Shield, NO.1
G92Q2 Panel, HV Battery Shield, NO.2
G92X2 Wire, HV Battery Pack, NO.2
G92Z0 Block Assy, HV Battery Junction
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
